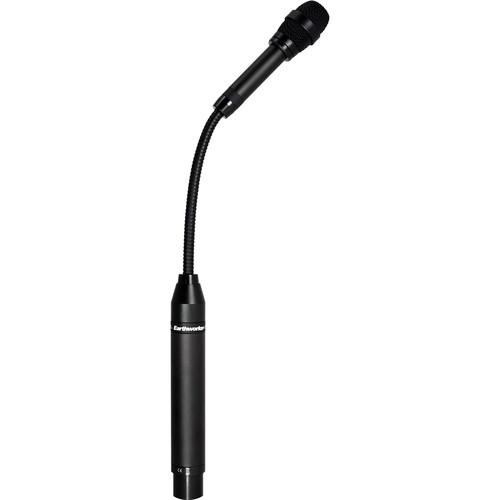

User Manual for Earthworks FM360HD HC High Definition 12.9" Fully Flexible Podium Mic Click to enlarge the picture
Contents of the user manual for the Earthworks FM360HD HC High Definition 12.9"
- Product category: Gooseneck Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Gooseneck Microphones
|
User manual for the Earthworks FM360HD HC High Definition 12.9" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The FM360HD/HC High Definition 12.9" Fully Flexible Podium Mic by Earthworks is for capturing audio. It is used in various environments in audio applications such as for conference rooms, boardrooms, lecture halls, meeting rooms, educational facilities, theater, churches, in houses of congress and more. It features a hypercardioid polar pattern and a 50 Hz to 40 kHz high frequency response that offers more detail with greater clarity and speech intelligibility than previous non HD models. The fully flexible FM360HD/HC is built with an XLR connector and is powered by 48V phantom power. It features smooth off-axis response and provides more gain before feedback. With 145dB SPL max acoustic input it is difficult to overload the microphone. There is also no microphone handling noise in addition to good RFI rejection. A windscreen is included. - Picks up well on or off axis and allows you to always hear the orator
- Uniform frequency response at 0, 45 and 90 °
- More gain before feedback
- Fully flexible gooseneck microphone
In the Box Earthworks FM360HD/HC High Definition 12.9" Fully Flexible Podium Mic Windscreen Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks FM360HD HC High Definition 12.9" Fully Flexible Podium Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks FM360HD/HC Specs | Frequency Response | 50 Hz to beyond 40 kHz + 2dB @ 12" | | Polar Pattern | Hypercardioid | | Sensitivity | 10 mV/Pa (-40 dBV/Pa) | | Power Requirements | 48 V Phantom, 10 mA | | Input | Max Acoustic: 145 dB SPL | | Connector | XLR-3 (pin 2 ±) | | Output Load | Minimum: 600 Ω between pins 2 & 3 | | Noise | A Weighted: 22 dB SPL equivalent | | Gooseneck | Fully flexible gooseneck | | Base Dimensions | Diameter: 0.860" (22mm)
Length: 12.9" (32.6 cm) | | Weight | 4.8 oz (137 g) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 60 owners. Add your rating and experience with the product.
