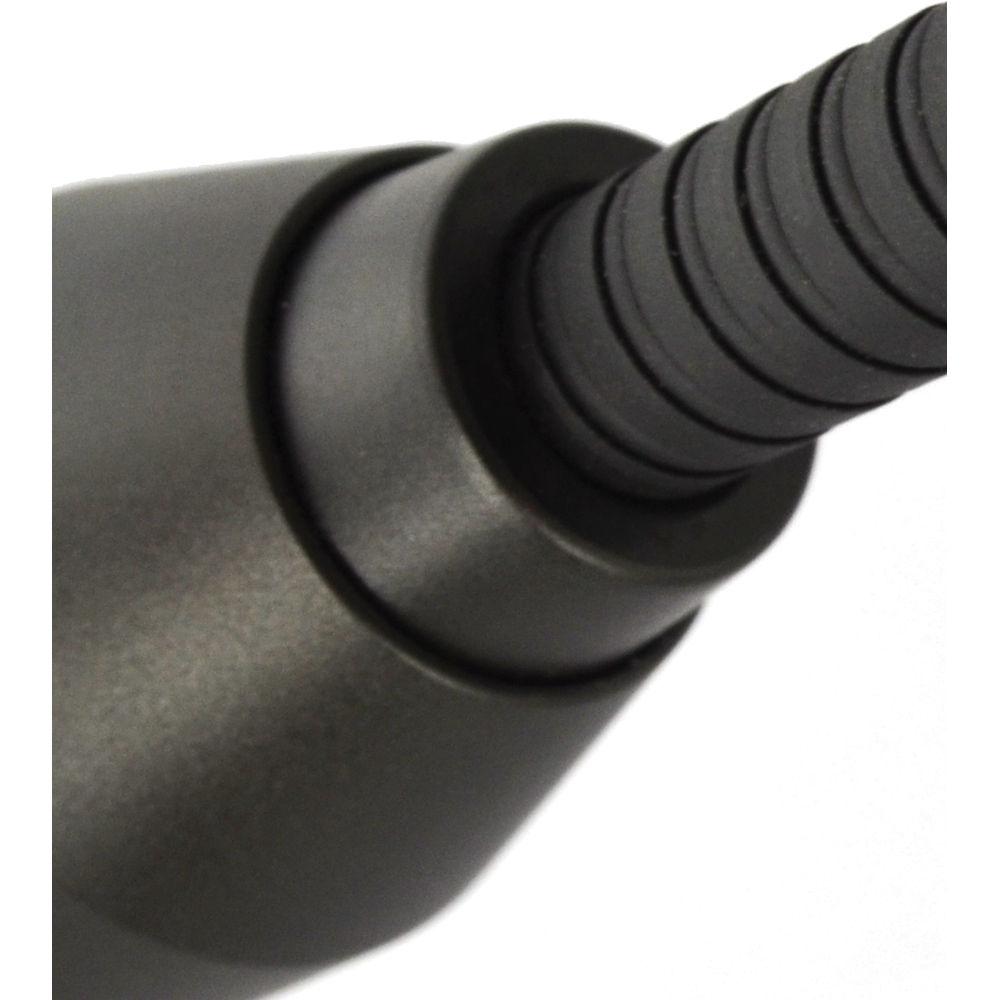

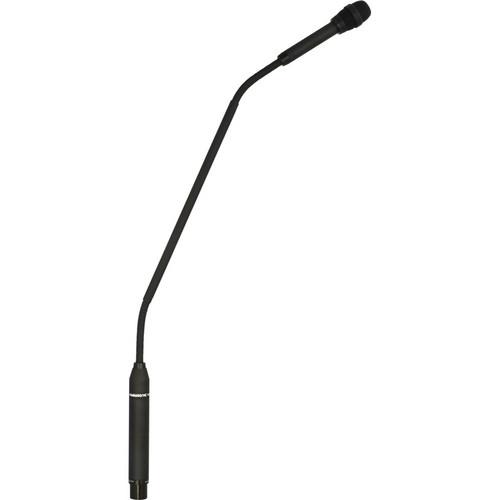

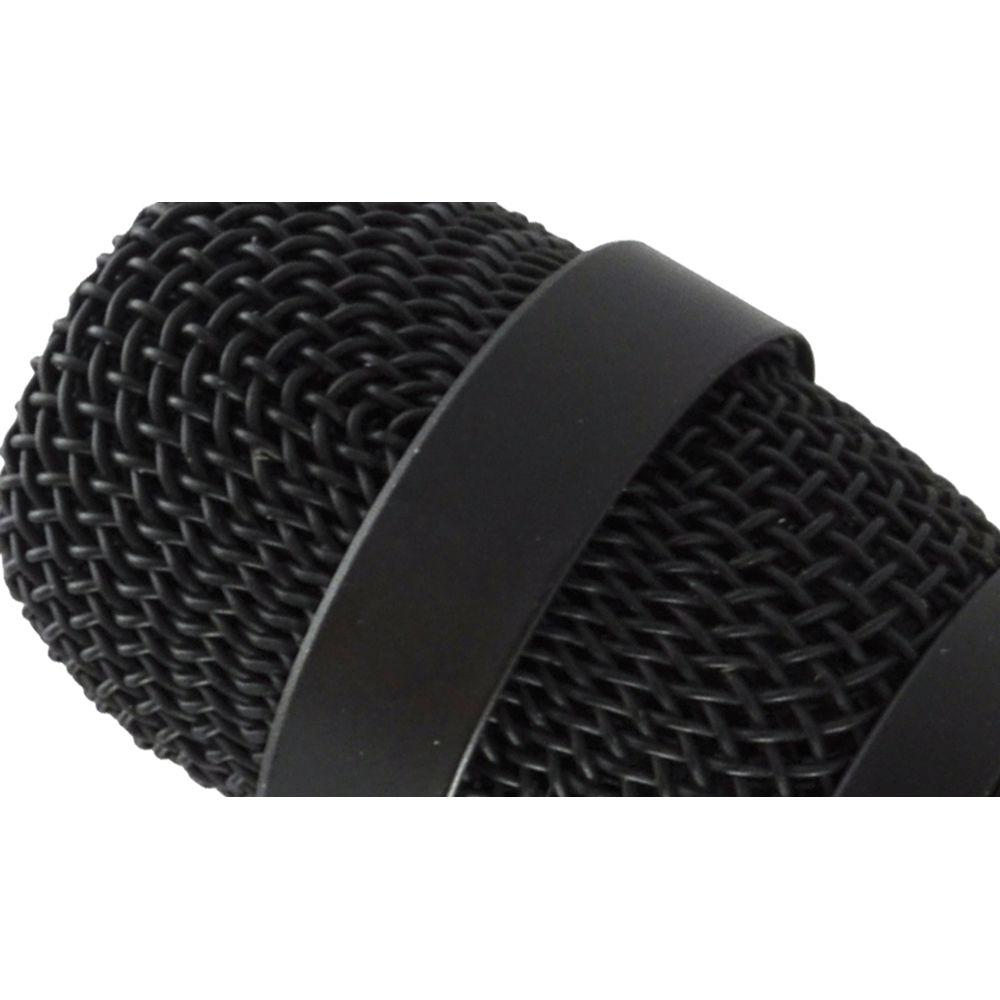

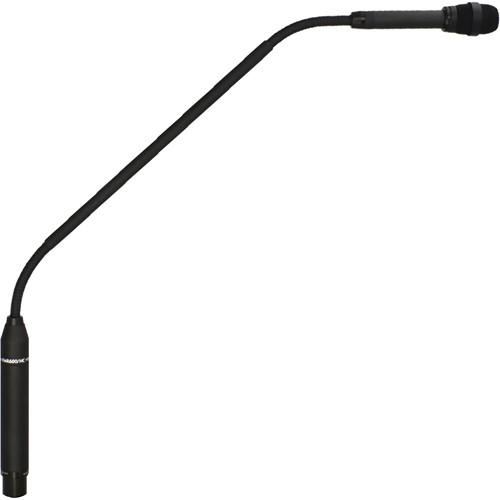

User Manual for Earthworks FMR600 23" Directional Cardioid Podium Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks FMR600 23" Directional Cardioid Podium
- Product category: Gooseneck Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Gooseneck Microphones
 |
User manual for the Earthworks FMR600 23" Directional Cardioid Podium contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The Earthworks FMR600 23” Directional Cardioid Podium Microphone is part of the FlexMic series that comes equipped with rigid center and flex at both ends. It provides a high level of speech intelligibility and uniform off-axis response to ensure the orator is heard clearly, with no loss in sound quality, when speaking at the front or at the sides of the microphone. This smooth off-axis response also provides more gain before feedback.
With 145 dB SPL max acoustic input, it is virtually impossible to overload the microphone. There is also high rejection of sounds from the rear of the microphone, with no handling noise in addition to incredible RFI rejection. It is specifically designed for use as a podium microphone and offers numerous versatile features and options that make it suitable for public speaking venues including lecture halls, presentation spaces, places of worship, civic centers, theaters, and government facilities. - Rigid center and flex at both ends
- Uniform frequency response on or off axis
- Flat from 50 Hz to 20 kHz within +2 dB at 6" (15cm)
- Can handle up to 145 dB SPL
- High rejection of sounds to the rear of the microphone
- Incredible gain before feedback
- Orators can speak above, below, or to either side of the microphone and maintain the same pristine sound quality with high intelligibility
In the Box Earthworks FMR600 23" Directional Cardioid Podium Microphone Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks FMR600 23" Directional Cardioid Podium Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks FMR600 Specs | Frequency Response | 50 Hz to 20 kHz ±2 dB at 6" (15 cm) | | Polar Pattern | Cardioid | | Sensitivity | 10 mV/Pa (-40 dBV/Pa) | | Power Requirements | 48 V Phantom, 10 mA | | Acoustic | Maximum Input: 145 dB SPL | | Output | XLR (pin 2+) | | Impedance | Output: 100 Ω balanced (50 Ω each pins 2 & 3) | | Output Load | Minimum: 600 Ω between pins 2 & 3 | | Noise | 22 dB SPL equivalent (A weighted) | | Gooseneck | Rigid center with nominal 2.5 to 3.0" (63.5 to 76.2 mm) flex on both ends | | Dimensions (L x D) | 23.62 x 0.86" (600.00 x 22.00 mm) | | Weight | 0.3 lb (137.0 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 28.0 x 9.9 x 0.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
