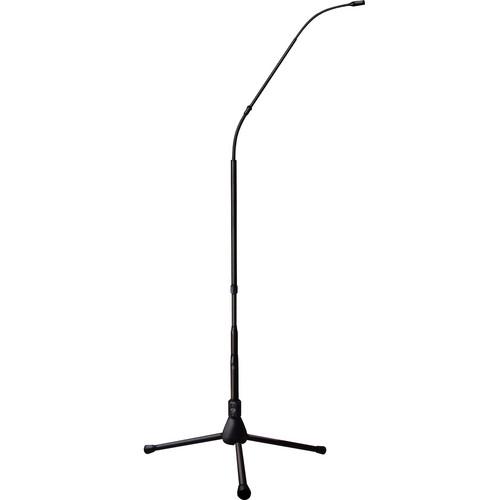

User Manual for Earthworks FW430 FlexWand Series 30 kHz High Definition Hypercardioid Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks FW430 FlexWand Series 30 kHz
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks FW430 FlexWand Series 30 kHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The FlexWand Series 30 kHz High Definition Hypercardioid Microphone from Earthworks incorporates a highly sensitive 30 kHz FlexWand microphone, built into a height adjustable gooseneck stand. The entire microphone system is sleek, low-profile, easy to set up and reproduces audio with incredible detail. The integrated stand is height adjustable. Easily adjust from 4'7" to 10" (1.39m to 25cm) with no exposed cables to create tension or noise.Setting up the microphone is easy, simply connect microphone cables (sold separately) to the base and you are ready to go. Earthwork's patented high definition microphone technology accurately reproduces frequencies that enhance subtleties and detail. This microphone is an ideal choice for crucial recording applications, sound design, speech applications, performance capturing, and much more. - Hypercardioid polar pattern
- Frequency response of 30 Hz to 30 kHz
- Near perfect polar response
- For applications requiring a tighter pickup pattern with greater off-axis rejection
- Large flex section near the center of the stand that couples the stand and the wand
- Mini-gooseneck between the end of the wand and the microphone head
- The combination of a mid-flex section and the mini flex on the wand provide an infinite combination of placement options between 10" and 4.7'
- Substantial improvement in gain before feedback
- The near perfect polar response of the FlexWand allows the use of fewer microphones on choir, with better sound quality, no spotlighting and incredible rejection of sounds from the rear of the microphone
- Ideal for miking individual orchestra instruments such as violins and cellos, as well as acoustic guitars and instrument amplifiers
In the Box Earthworks FW430 FlexWand Series 30 kHz High Definition Hypercardioid Microphone (Single, Tripod Base) Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks FW430 FlexWand Series 30 kHz High Definition Hypercardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks FW430 Specs | | | Polar Pattern | Hypercardioid | | Frequency Range | 30 Hz to 30 kHz | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Weight | 3.6 lb / 1.63 kg |
