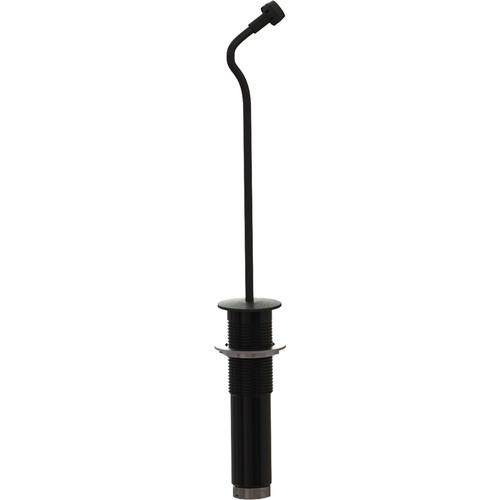

User Manual for Earthworks IM Series IM6B High Definition 6" Gooseneck Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks IM Series IM6B High Definition
- Product category: Gooseneck Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Gooseneck Microphones
|
User manual for the Earthworks IM Series IM6B High Definition contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The black IM Series IM6B High Definition 6" Gooseneck Microphone by Earthworks is for capturing audio and can be used in fixed sound installations for audio applications such as teleconferencing, surveillance, boardrooms, government facilities, lecture halls, ambient room miking, and more. The IM series can be custom mounted in a ceiling, wall or table and provides great sound quality, flexibility and ease of installation. The IM6B features a cardioid polar pattern and has a frequency response of 30 Hz to 30 kHz. The microphone is powered by 48V phantom power. It is built with a small head and flexible mini-gooseneck that allow it to be precisely positioned after installation. This mic features a uniform frequency response at 0, 45 and 90°. This polar response allows the use of fewer microphones, while obtaining higher intelligibility and more gain before feedback. In addition you also have more sound level before feedback, no spotlighting or highlighting, and more rejection of sounds from the rear of the microphone. The IM series provides a low profile, pristine sounding microphone solution for permanent installations. - High definition microphone for conference rooms and fixed sound installations
- Near-perfect polar response
- Can be mounted in wall, ceiling or conference tables
- High rejections of sounds from the rear of the microphone
- Very high intelligibility and provides more gain before feedback
In the Box Earthworks IM Series IM6B High Definition 6" Gooseneck Microphone (Black) Lock Nut Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks IM Series IM6B High Definition 6" Gooseneck Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks IM6 Specs | Frequency Response | 30 Hz to 30 kHz ±2 dB at 12" (30.5 cm) | | Polar Pattern | Cardioid | | Sensitivity | 10 mV/Pa (-40 dBV/Pa) | | Power Requirements | 48 V phantom, 10 mA | | Max Acoustic Input | 145 dB SPL | | Output | XLR (pin 2+) | | Output Impedance | 100 Ω balanced (50 Ω each pins 2 & 3) | | Output Load | Min: 600 Ω between pins 2 & 3 | | Noise | A Weighted: 22 dB SPL equivalent | | Gooseneck | 6" (15 cm) | | Dimensions (L x D) | 14.41 x 1.43" (266 X 37 mm) | | Weight | 0.28 lb (128 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 14.7 x 3.4 x 3.3" |
