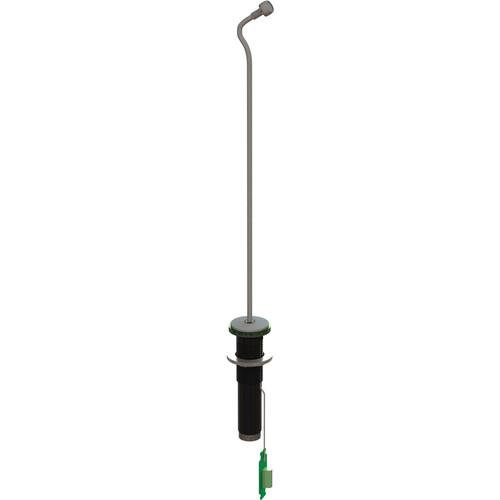

User Manual for Earthworks IML Series 12S 12" High Definition Gooseneck Mic with LED Touch Ring Click to enlarge the picture
Contents of the user manual for the Earthworks IML Series 12S 12" High
- Product category: Gooseneck Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Gooseneck Microphones
|
User manual for the Earthworks IML Series 12S 12" High contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The silver IML Series 12S 12" Gooseneck Microphone with LumiComm Touch Ring by Earthworks is for capturing audio. It is used in fixed sound installations for audio applications such as teleconferencing, surveillance, boardrooms, government facilities, lecture halls, and more. The IML series can be custom mounted in a table and provides great sound quality, flexibility and ease of installation.The IML12S features a cardioid polar pattern and has a frequency response of 30 Hz to 30 kHz. The microphone is powered by 48V phantom power. It is built with a programmable touch sensor and a programmable dual color LED light ring that is powered from an external power source of 7 to 28 VDC. The mic features a small head and flexible mini-gooseneck that allow it to be precisely positioned after installation.This mic features a uniform frequency response at 0, 45 and 90°. This polar response allows the use of fewer microphones, while obtaining higher intelligibility. In addition you also have more sound level before feedback, no spotlighting or highlighting, and more rejection of sounds from the rear of the microphone. The IML series provides a low profile, pristine sounding microphone solution for permanent installations, and includes the option of RJ45 or Phoenix connector. - High definition microphone for conference rooms and fixed sound installations
- Near-perfect polar response
- RF shielding against cell phones and other RF devices
- High rejections of sounds from the rear of the microphone
- Programmable touch sensor and programmable dual color LED light ring
- Very high intelligibility and provides more gain before feedback
In the Box Earthworks IML Series 12S 12" High Definition Gooseneck Mic with LED Touch Ring (Silver) Lock Nut RJ45 or Phoenix Connector Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks IML Series 12S 12" High Definition Gooseneck Mic with LED Touch Ring in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks IML12 Specs | LED Status Indicator | Dual-Color: Red and green | | Frequency Response | 30 Hz to 30 kHz ±2 dB at 12" (30.5 cm) | | Polar Pattern | Cardioid | | Sensitivity | 10 mV/Pa (-40 dBV/Pa) | | Power Requirements | 48 V phantom, 10 mA | | Max Acoustic Input | 145 dB SPL | | Connector | Phoenix or RJ45 | | Output | XLR (pin 2+) | | Output Impedance | 100 Ω balanced | | Output Load | Min: 600 Ω between pins 2 & 3 | | Noise | A Weighted: 22 dB SPL equivalent | | Gooseneck | 12" (30 cm) | | Dimensions (L x D) | Base: 7 x 1.6" (18 x 4 cm) | | Weight | 0.28 lb (128 g) |
