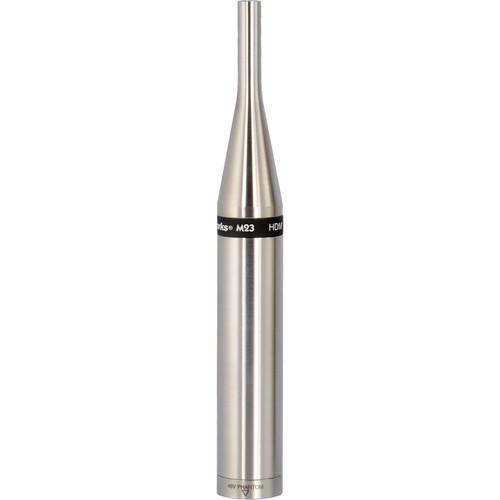

User Manual for Earthworks M23 - Measurement Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks M23 - Measurement Microphone
- Product category: Stereo & Specialty Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Stereo & Specialty Microphones
|
User manual for the Earthworks M23 - Measurement Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The M23 from Earthworks is a cost effective reference microphone for SMAART, MLSSA, Spectrafoo software, TEF and RTA, and all "audio band" measurements. It has a flat frequency response, fast impulse response and exceptional polar characteristics. The company is well known and respected for its reliable reference and measurement microphones. The M23 is highly accurate in the time domain and frequency response and is optimized for clean and very fast impulse performance. Additionally, the microphone is immune to most temperature and atmospheric fluctuations. - Small element provides an accurate omni-directional pattern with an even, coherent response at the direct and off-axis sections of the microphone capsule
- Wide, linear frequency response accurately captures audio signal and reproduces the slightest nuance with great detail
- Uncolored, flat signal results in accurate room calibration for indoor and outdoor application
- Requires 48V phantom power to operate
UPC: 827517000558 In the Box Earthworks M23 - Measurement Microphone Mic Clip ADP1 1/2" Calibrator Adaptor Limited 15-Year Warranty User Manual PDF 1004.7kbrzetqeuvyudffwcteqdyezwvtw Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks M23 - Measurement Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks M23 Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 9 Hz to 23 kHz, +1/-3 dB | | Dynamic Range (Typical) | 72 dB | | Signal-to-Noise Ratio | 22 dB SPL equivalent, A-weighted | | Maximum Input Sound Level | 142 dB SPL | | Power Requirements | +48V Phantom, 10 mA | | Output Impedance | 600Ω between pin 2 and 3 | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | LxD: 6.25 x 0.9" (165 x 22 mm) | | Weight | 0.35 lb (160 g) | | | | Package Weight | 0.93 lb | | Box Dimensions (LxWxH) | 10.7 x 5.5 x 2.7" |
