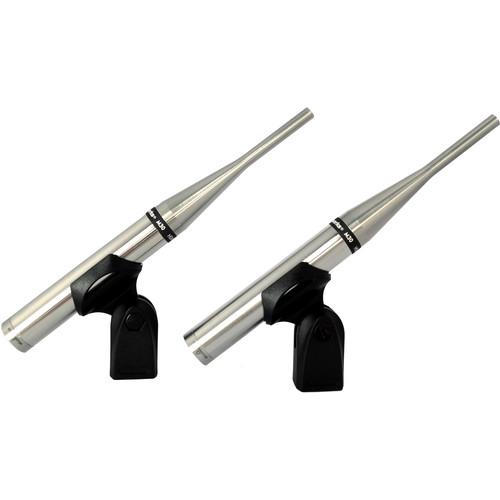

User Manual for Earthworks M30 - Measurement Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks M30 - Measurement Microphone
- Product category: Stereo & Specialty Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Stereo & Specialty Microphones
|
User manual for the Earthworks M30 - Measurement Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The Earthworks M30 is a cost effective measurement microphone intended for large and small room calibration. The ultra wide frequency response of 9Hz to 27kHz is flat throughout the entire spectrum and results in accurate room calibration using Smaart, MLSSA, SIMM and TEF based systems. The small element yields an omni-directional pattern resulting in a wide pick up area at the front and sides of the microphone capsule. The M30 also ships with a "white" noise generator that is capable of adapting to a 1/2" calibrator adapter for field calibration. - Matched Pair
- This stereo set of Earthworks M30 microphones are perfectly matched in sensitivity and frequency response from the manufacturer
- Miniature Omni-directional Capsule
- The miniature element provides an accurate omni-directional pattern with an even coherent response at the direct and off-axis sections of the microphone capsule.
- Wide Linear Frequency Response
- The wide, linear frequency response accurately captures audio signal and reproduces the slightest nuance with great detail.
- Uncolored Response
- The uncolored, flat signal results in accurate room calibration for indoor and outdoor application.
UPC: 827517130330 In the Box Earthworks M30 - Measurement Microphone (Matched Pair) White Noise Calibrator Case 2 x Stand Clamp Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks M30 - Measurement Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks M30 Specs | Transducer | Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | +/- 1dB 9Hz to 27kHz
+1 / -3dB 5Hz to 30kHz | | Dynamic Range (Typical) | 72dB | | Signal-to-Noise Ratio | 27dB SPL Equivalent (A weighted) | | Maximum Input Sound Level | 150dB SPL | | Power Requirements | +48V Phantom, 10mA | | Output Impedance | 600 ohms betweenpin 2 and pin 3 | | Output Connectors | XLR intended to drive a balanced transformerless input Pin2+ | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 9 x .860" (229 x 22mm)(Length x Diameter) | | Weight | 225g (.5 lb) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 11.3 x 5.5 x 2.0" |
