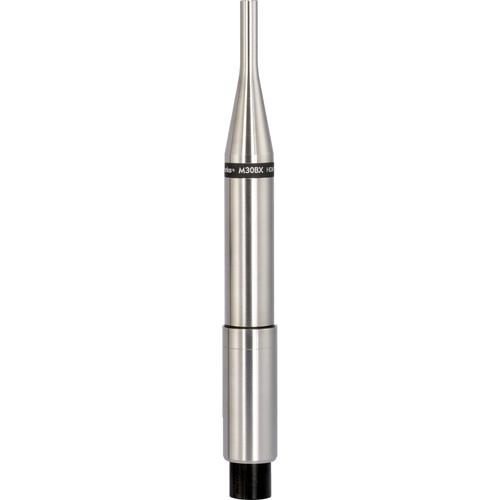

User Manual for Earthworks M30BX Battery-Powered Measurement Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks M30BX Battery-Powered Measurement Microphone
- Product category: Stereo & Specialty Microphones Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Stereo & Specialty Microphones
|
User manual for the Earthworks M30BX Battery-Powered Measurement Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The M30BX Battery-Powered Measurement Microphone from Earthworks is a measurement microphone with an omnidirectional polar pattern for on-location acoustical measurements such as loudspeaker design and quality control, sound system setup and troubleshooting, room acoustics, or other applications where a free-field measurement microphone is required and a power source is not available.The M30BX body opens for access to a replaceable battery which will power the unit for 300 hours of operation. It requires a 6V lithium battery (included) or four LR44 alkaline batteries. The battery is automatically powered On or Off when the XLR connection is inserted or removed, eliminating the need for a power switch and preserving battery life. Featuring a flat frequency response that extends from 9 Hz to 30 kHz, the M30BX microphone is equipped with a fast impulse response and linear phase response. This makes it suitable for use with high-quality FFT-based real-time audio system measurement software like SMAART, SIM, REW, Electroacoustics Toolbox, FuzzMeasure, and others, as well as for use in PA system alignment and loudspeaker design.Additionally, every M30BX Battery-Powered Measurement Microphone is individually hand-tuned and tested and includes a 1/2" calibrator adapter, an XLR to RCA adapter, and an MC3 microphone clip. - Microphone body opens for replaceable battery access, with a battery life of 300 hours
- Works with RTA apps for iPad/iPhone with TRRS to XLR mic cable (sold separately)
- 9 Hz to 30 kHz flat frequency response
- Ideally suited for acoustical measurements including loudspeaker design and quality control, sound system setup and troubleshooting, room acoustics, or any application where an accurate free-field measurement microphone is required
- Updated version of the SMAARTMIC previously offered by EAW
- Omnidirectional polar pattern
- Flat frequency response, fast impulse response, and natural polar characteristics
- Used by SMAART, MLSSA, Spectrafoo, TEF, and RTA in addition to acoustic measurement systems manufactured by dbx, DEQX, and others
- Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
- Each M Series microphone is delivered with its own calibration chart providing its individually measured open-circuit sensitivity and the frequency response curve
UPC: 827517140001 In the Box Earthworks M30BX Battery-Powered Measurement Microphone 1/2" Calibrator Adapter ecwdusvzaeuruubuayydeffqtdvsweuawqer XLR to RCA Connector Adapter for M30BX MC3 Microphone Clip for M30BX Microphone 6V Type P28 Battery Limited 15-Year Warranty User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks M30BX Battery-Powered Measurement Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks M30BX Specs | | | Sound Field | Mono | | Polar Pattern | Omnidirectional | | Frequency Range | 9 Hz to 30 kHz | | Equivalent Noise Level | 20 dB A-Weighted | | Maximum SPL | 140 dB SPL Peak | | Impedance | 65 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 34 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Battery Type | 1 x 2CR-1/N Also powered by 4 x LR44 1.5 V alkaline batteries | | Operating Voltage | 6 V | | Length | 8.66" / 220 mm | | Diameter | 0.87" / 22 mm | | Weight | 6.35 oz / 180 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.5 x 3.9 x 2.4" |
