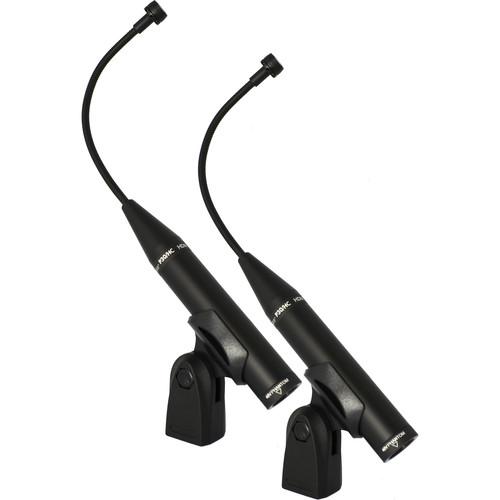

User Manual for Earthworks Matched Pair P30 Periscope Hypercardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks Matched Pair P30 Periscope Hypercardioid
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks Matched Pair P30 Periscope Hypercardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The Earthworks P30 Periscope microphones are miniature condenser microphones designed for flexible placement and high-definition audio reproduction. The P30 provides accurate reproduction of instruments, amplifier cabinets, vocal groups and more. The highly sensitive capsule rests on a flexible gooseneck for easy positioning. The P30 is available in a variety of polar patterns, this version features a Hypercardioid pick up pattern. The ultra sensitive P30 is an ideal solution for crucial recording as well as professional sound reinforcement. - Matched Pair
- This package includes a stereo matched pair of Periscope series microphones. The frequency and sensitivity response are matched in order to achieve accurate stereo reproduction.
- Flexible Miniature Capsule
- The Persicope P30 features a flexible, gooseneck capsule for easy microphone positioning and placement.
- High SPL Handling
- The highly sensitive capsule handles high sound pressure for clean reproduction without peaks and distortion at close proximity.
UPC: 827517000114 In the Box Earthworks Matched Pair P30 Periscope Hypercardioid Instrument Microphone (Black) Limited 15-Year Warranty Wooden Storage Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks Matched Pair P30 Periscope Hypercardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks P30 Specs | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Response | 9Hz to 30kHz +1 / -3dB | | Dynamic Range (Typical) | 72dB | | Signal-to-Noise Ratio | 22dB SPL Equivalent (A weighted) | | Maximum Input Sound Level | 142dB SPL | | Power Requirements | 48V Phantom Power | | Output Impedance | 600 ohms between pins 2&3 | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 10.75 x .860" (275 x 22mm) (Length x Diameter) | | Weight | 3 lb (1.36 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.1 x 6.8 x 2.4" |
