User Manual for Earthworks PM40T PianoMic Touring Piano Condenser Microphone System Click to enlarge the picture
Contents of the user manual for the Earthworks PM40T PianoMic Touring Piano Condenser
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
 |
User manual for the Earthworks PM40T PianoMic Touring Piano Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|

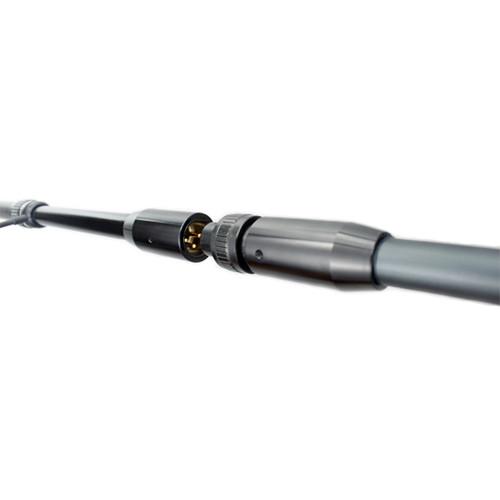

Product description The PM40T Touring PianoMic System from Earthworks takes the PM40 PianoMic system and makes it an easily installed mobile microphone system, ideal for touring. The PM40T uses an unconventional approach to capturing piano with superior results while keeping the microphones hidden from view. Two high-quality, random-incidence omnidirectional microphones are mounted onto a telescoping bar for close-miking within the piano itself.The microphone capsules may be mounted to either face, or point away from the dampers. The capsules themselves feature flex-arm goosenecks that enable further microphone adjustments to be made in order to achieve desired audio results. The PianoMic connects to the 5-pin input of the PMVM1 electronics-box, which in turn features 3-pin XLR outputs for connecting to a stereo preamplifier, two mixer channel inputs, etc.While many experienced engineers may find the close-miking technique unconventional, special technology ensures optimum results and placement inside the piano means less leakage from nearby instruments, speaker cabinets and other noise sources. - Internally Mounted Microphones

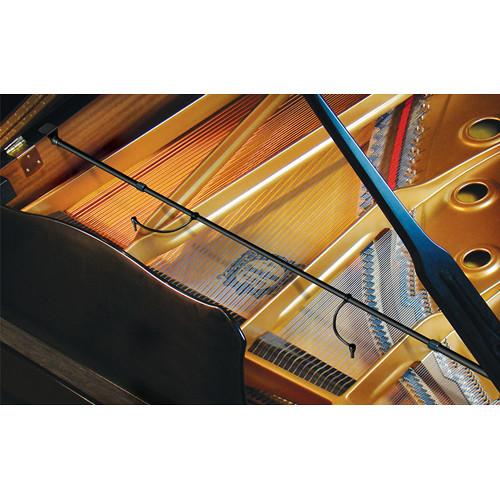

- The PM40T PianoMic system mounts within the piano bed itself for maximum results and minimal visibility.
- Random Incidence Omnidirectional Microphones
- Superior quality, random-incidence omnidirectional capsule compensate for transients and other issues involved with close-miking pianos. The result is low-noise and an excellent quality suitable for crucial recording and professional sound reinforcement applications.

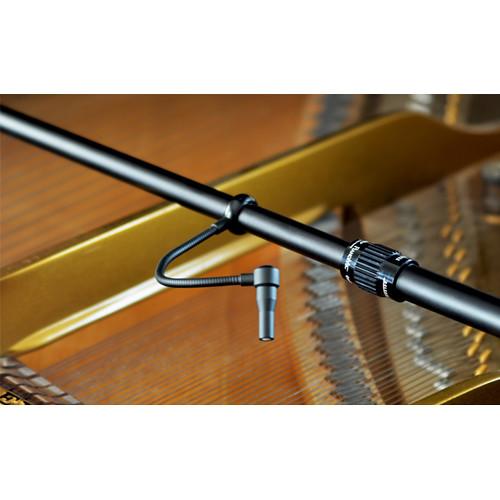

- Flexible Adjustments

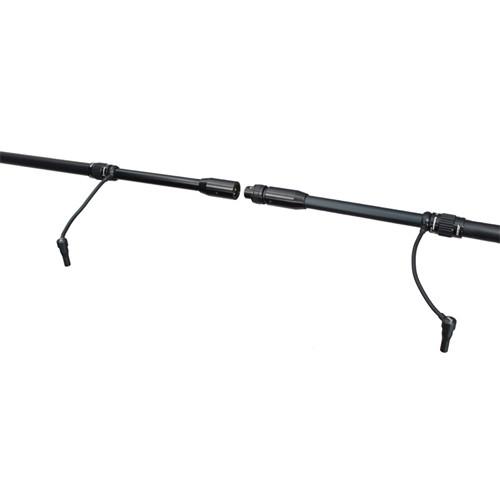

- The telescoping bar adjusts to fit any size piano and the capsules are set onto flex-arm gooseneck for perfect microphone placement.
- Electronic Output Stage Box
- A separate output stage box features a 5-pin XLR input and two 3-pin XLR outputs. A leather case with a strap allows the box to be mounted onto a piano leg.

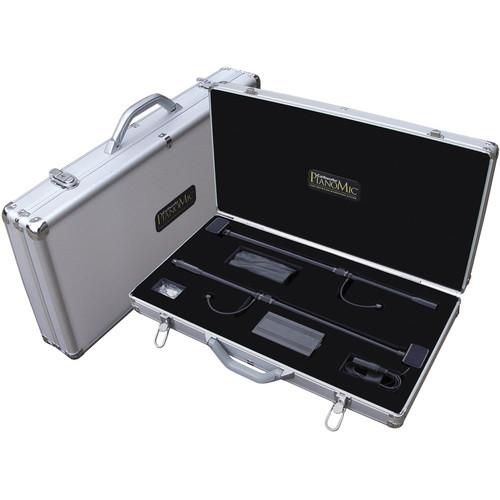

UPC: 827517000848 In the Box Earthworks PM40T PianoMic Touring Piano Condenser Microphone System PianoMic Telescoping Bar with Attached Microphone Heads Microphone Electronics Bar PMVM1 Electronics Box User Manual Metal Flight Case Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks PM40T PianoMic Touring Piano Condenser Microphone System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks PM40T Specs | | | Polar Pattern | Omnidirectional | | Frequency Range | 9 Hz to 40 kHz | | Equivalent Noise Level | 22 dB A-Weighted
24.5 dB CCIR | | Maximum SPL | 148 dB SPL | | Impedance | 65 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 15 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 64" / 162.56 cm | | Weight | 0.75 lb / 340 g | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 26.0 x 15.0 x 5.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
