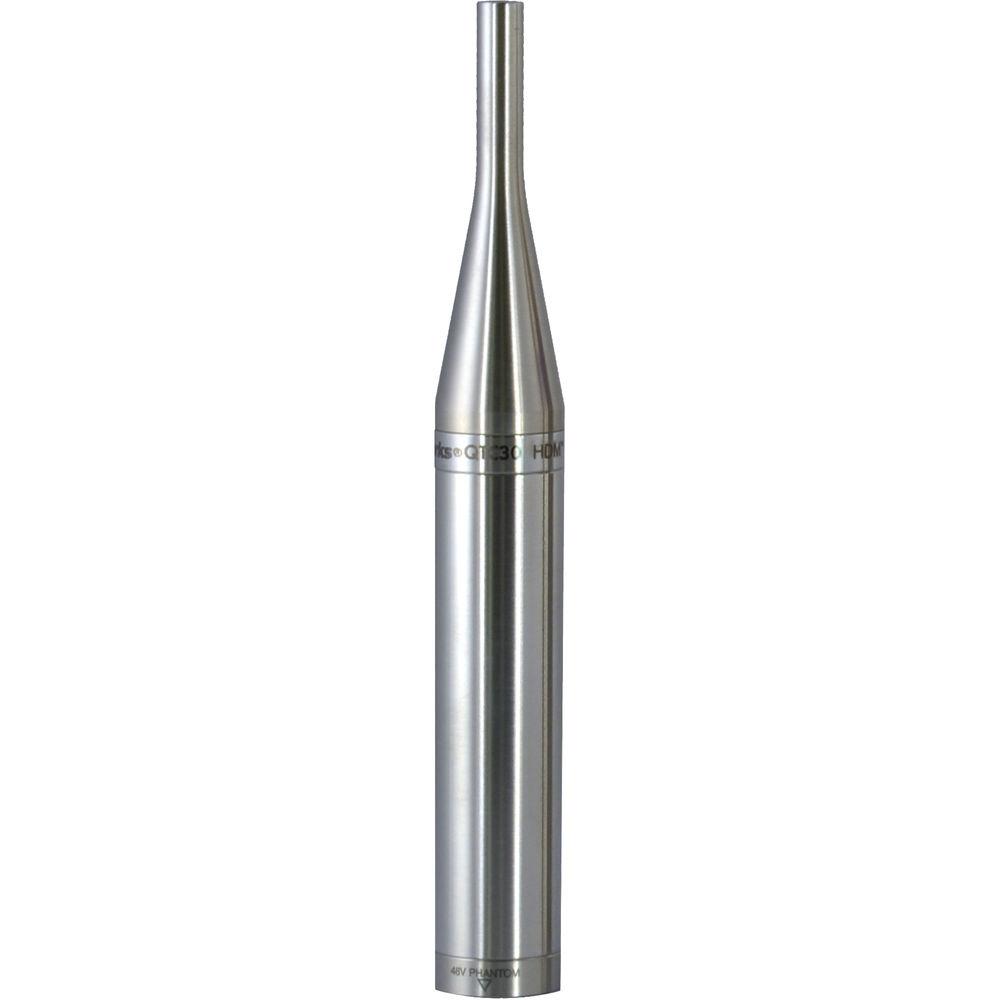

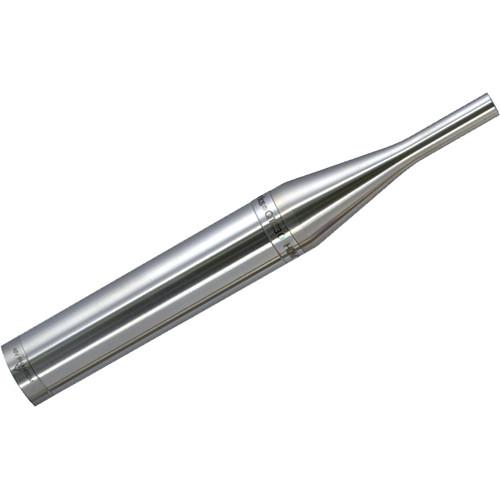

User Manual for Earthworks QTC30 Omnidirectional Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks QTC30 Omnidirectional Condenser Microphone
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
 |
User manual for the Earthworks QTC30 Omnidirectional Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|

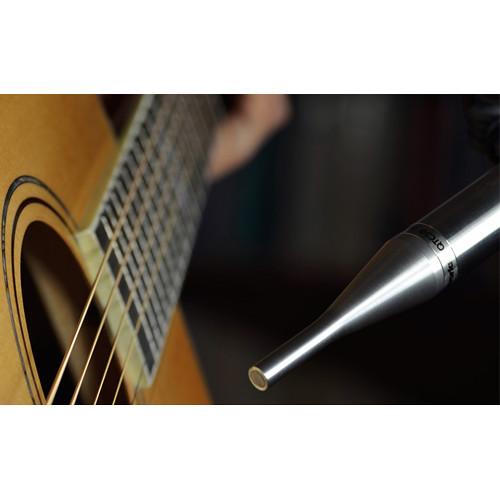

Product description The QTC30 from Earthworks is a condenser microphone. The QTC30 is a member of Earthworks Quiet Time-Coherent series and is designed to accurately reproduce quiet audio signals with pristine detail and low noise. The wide dynamic range of strings, choirs, and orchestras are captured and reproduced with uncanny accuracy and detail. The prepolarized omnidirectional capsule exhibits fast response to transient (peak) signals, enabling exceptional SPL handling and minimal distortion.The omnidirectional capsule is incapable of proximity effect and a wide, flat frequency response of 6Hz to 30 kHz further maximizes detail. Overall the QTC30 is a valued addition in high definition recording and sound reinforcement applications that include choir, orchestra and acoustic music capturing as well as speech and sound design. - High Definition & Detail
- The Quiet Time-Coherent microphone series from Earthworks are designed to reproduce quiet signals with uncanny accuracy and detail without noise. Perfect for 192 kHz resolution recording.
- Ultra Wide Frequency Response
- The QTC30 exhibits a frequency response of 6 Hz to 30 kHz resulting in impressively detailed signal reproduction.
- Fast Transient Response
- The prepolarized condenser capsule is capable of capturing signal rich in transient peaks without noise due to distortion.
- High SPL Handling
- The QTC30's high SPL provides incredible headroom which further minimizes noise due to peak distortion and excessively loud signals at close proximity.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides rich, consistent detail at the off and direct sections of the capsule.
UPC: 827517108803 In the Box Earthworks QTC30 Omnidirectional Condenser Microphone (Single Microphone) Plastic Storage Box Microphone Clip Frequency Response Chart Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks QTC30 Omnidirectional Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks QTC30 Specs | | | Polar Pattern | Omnidirectional | | Frequency Range | 6 Hz to 30 kHz | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 142 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 30 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 6.5" / 165.10 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.35 lb / 159 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.3 x 7.1 x 4.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
