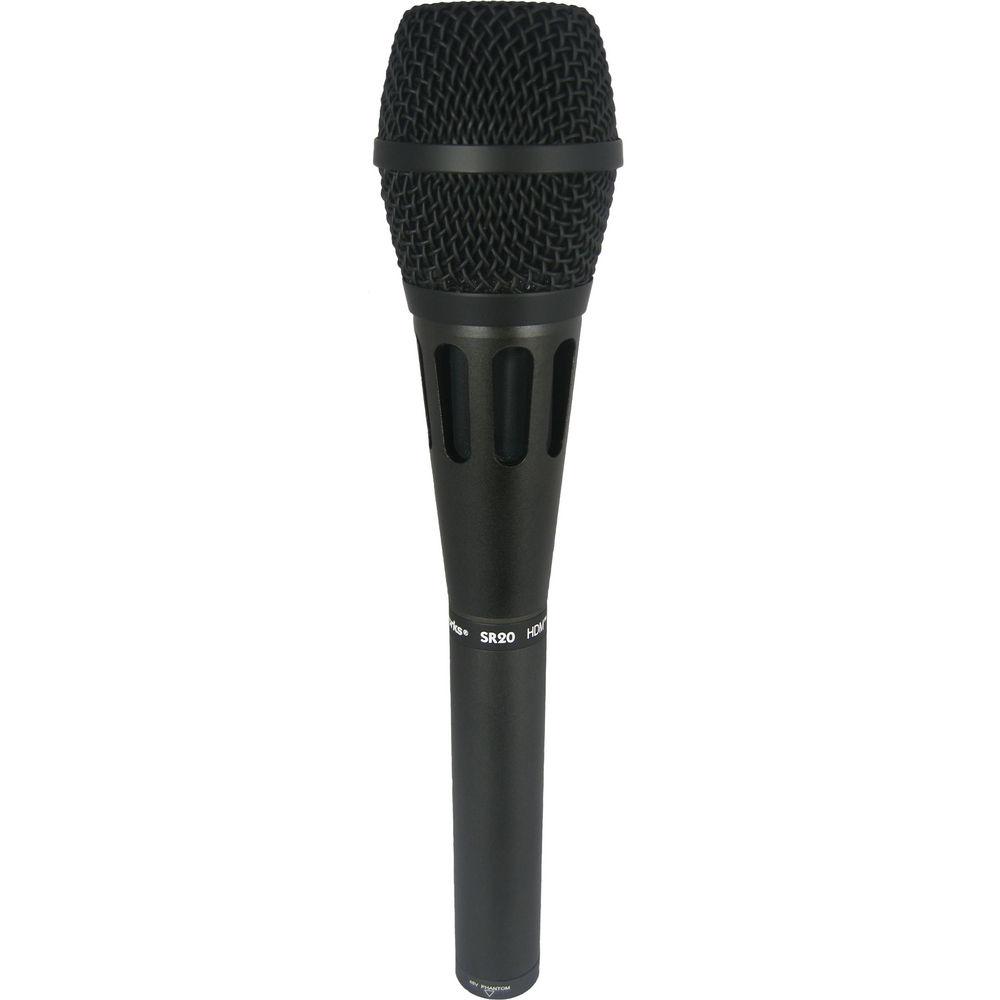

User Manual for Earthworks SR20 Cardioid Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks SR20 Cardioid Handheld Microphone
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
 |
User manual for the Earthworks SR20 Cardioid Handheld Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The SR20 from Earthworks is a professional performance microphone designed to handle the demands of professional sound reinforcement and recording applications. The SR20 features an electret condenser element with a cardioid polar pattern. The SR20's clean on-axis response provides maximum intelligibility of vocals while rejecting off-axis noise and feedback from ambiance and near by stage monitors. The microphone is capable of handling high Sound Pressure Levels (SPL) making it an exceptional choice for instrument capturing. A removable windscreen assembly unveils an alternate signal response that results in a wider pick up area, ideal for background vocals and choir pick up. The SR20 is an exceptional choice for stage performances, studio recording, presentations, houses-of-worship, meeting halls, board rooms and more. - Cardioid Polar Pattern
- The cardioid polar pattern is effective in rejecting off-axis noise and ambiance that causes feedback.

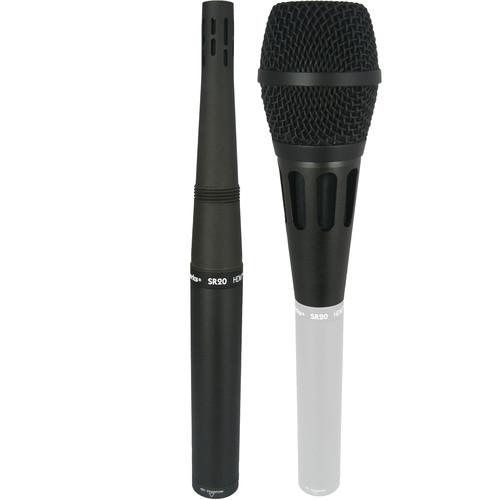

- Detachable Windscreen Assembly
- The detachable windscreen creates a wider pick up area, ideal for capturing back ground vocals and instruments.
- High SPL Handling
- The SR20 is capable of handling SPL up to 145 dB without noise caused by peak distortion.
- Uniform Frequency Response
- The uniform frequency response is maintained at a 45 and 90 degree axis.
UPC: 827517103105 In the Box Earthworks SR20 Cardioid Handheld Microphone Thread Mounted External Windscreen Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks SR20 Cardioid Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks SR20 Specs | | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 20 kHz | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 8.4" / 213.36 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.3 lb / 136 g | | | | Package Weight | 1.16 lb | | Box Dimensions (LxWxH) | 10.5 x 8.0 x 3.5" |
