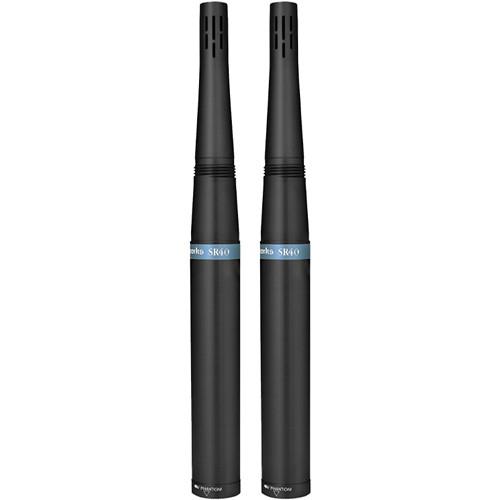

User Manual for Earthworks SR40HCMP 40 kHz Hypercardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks SR40HCMP 40 kHz Hypercardioid Condenser
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks SR40HCMP 40 kHz Hypercardioid Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The matched pair of SR40HCMP 40 kHz Hypercardioid Condenser Microphones from Earthworks are precision-engineered condenser microphones that are designed to capture audio for acoustic string instruments, brass, woodwinds, piano, vocals, and drums. They can be used for live performance and studio recording applications.The microphones' hypercardioid polar pattern is consistent across all frequencies, simplifying mic placement, ensuring more gain before feedback, and virtually eliminating phasing issues when using multiple microphones. The extended frequency response from 30 Hz to 40 kHz reproduces sound with more depth and accuracy, especially for instruments that have more high-frequency overtones.These multi-purpose microphones are equally at home miking acoustic guitar, brass, woodwinds, along with numerous other instruments. Two MC1 microphone clips are also included. - High-definition microphone
- 30 Hz to 40 kHz frequency response
- Hear details that other microphones miss
- Superb for vocals and musical instruments
- Uniform frequency response at 0°, 45°& 90°
- 139 dB SPL maximum acoustic input
- More gain before feedback
- Exceptional rejection of sounds from the rear
- Optional SRW1 screw-on windscreen
UPC: 827517141886 In the Box Earthworks SR40HCMP 40 kHz Hypercardioid Condenser Microphone (Matched Pair) Limited 15-Year Warranty 2 x MC1 Mic Clips Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks SR40HCMP 40 kHz Hypercardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks SR40 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 30 Hz to 40 kHz | | Signal to Noise Ratio | 16 dB A-Weighted | | Maximum SPL | 139 dB SPL Peak | | Impedance | 600 Ohms | | Load Impedance | 65 Ohms | | Sensitivity | 20 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 24 to 48 V | | Length | 9.84" / 249.94 mm | | Diameter | 0.860" / 21.84 mm | | Weight | 0.5 lb / 227 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.7 x 6.3 x 2.7" |
