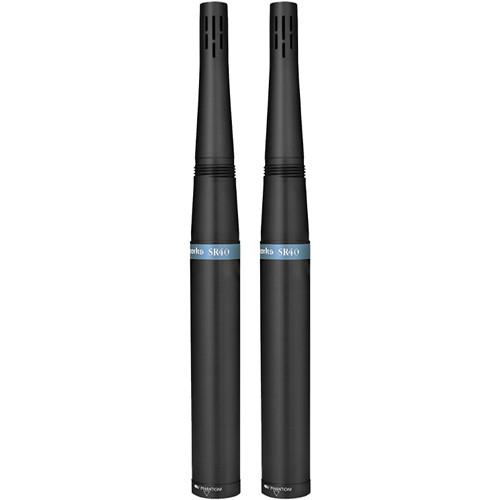

User Manual for Earthworks SR40MP High Definition Cardioid Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks SR40MP High Definition Cardioid Microphone
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks SR40MP High Definition Cardioid Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The SR40MP from Earthworks is a matched pair of professional recording microphones for pristine recordings. Earthworks delivers their high-definition sound in a microphone intended for vocal and instrument capturing in professional recording and sound reinforcement applications. The SR40 features a near-perfect cardioid polar pattern and a frequency response of 30 Hz to 40 kHz. High definition goes beyond 20 kHz to provide ultimate detail and fidelity. Its cardioid pickup pattern maintains a uniform frequency response throughout the spectrum, while effectively eliminating off-axis noise and ambiance. The SR40 provides high gain-before-feedback without "beaming" or "spotlighting" the subject audio. - High-definition microphone
- 30 Hz to 40 kHz frequency response
- Hear detail that other microphones miss
- Superb for vocals and musical instruments
- Uniform frequency response at 0°, 45°, and 90°
- 145 dB SPL max acoustic input
- More gain before feedback
- Exceptional rejection of sounds from the rear
- Available in cardioid and hypercardioid
- Optional SRW1 screw-on windscreen
In the Box Earthworks SR40MP High Definition Cardioid Microphone (Matched Pair) Case Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks SR40MP High Definition Cardioid Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks SR40 Specs | | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 40 kHz | | Equivalent Noise Level | 22 dB A-Weighted | | Maximum SPL | 145 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 10 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 9.84" / 249.94 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.5 lb / 227 g | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 12.8 x 6.4 x 2.6" |
