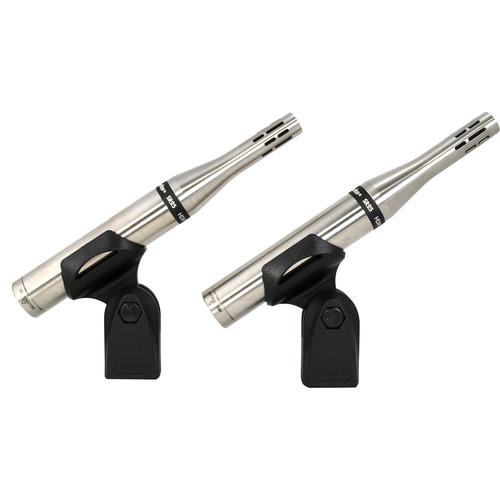

User Manual for Earthworks TC25MP Omnidirectional Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Earthworks TC25MP Omnidirectional Condenser Microphone
- Product category: Small Diaphragm Condenser Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Small Diaphragm Condenser
|
User manual for the Earthworks TC25MP Omnidirectional Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description The TC25MP from Earthworks is a matched pair of omnidirectional microphones. The TC25's design is intended for crucial capturing of loud, transient rich sources such as drums, percussion, amplified instruments, horns and much more. The prepolarized omnidirectional capsule exhibits fast response to transient (peak) signals.The capsule is coupled with a dedicated low output impedance preamplifier resulting in transparent signal reproduction without noise and peak distortion. An impressively wide, flat frequency response and omnidirectional pick up pattern further maximize detail and eliminate noise due to proximity effect. Overall the TC25 is a valued addition to professional and project recording facilities as well as sound reinforcement rigs. - Matched Pair
- This stereo set of Earthworks TC25 microphones are perfectly matched in sensitivity and frequency response from the manufacturer. The matched pair is intended for stereo applications such as ambiance, overhead, and piano capturing.
- Ultra-Wide Frequency Response
- The TC25 exhibits a frequency response of 9 Hz to 25 kHz resulting in impressively detailed signal reproduction.
- Fast Transient Response
- The prepolarized condenser capsule is capable of capturing signal rich in transient peaks without noise due to distortion.
- High SPL Handling
- The TC25's high SPL provides incredible headroom which further minimizes noise due to peak distortion and excessively loud signals at close proximity.
- Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides rich, consistent detail at the off and direct sections of the capsule.
- Compact Profile
- The TC25 shares similar features to the TC30 except a maximum high frequency response at 25 Hz and a much smaller profile.
UPC: 827517108025 In the Box Earthworks TC25MP Omnidirectional Condenser Microphone (Matched Pair) Plastic Storage Box 2 x Microphone Clips Frequency Response Chart Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks TC25MP Omnidirectional Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks TC25 Specs | | | Polar Pattern | Omnidirectional | | Frequency Range | 9 Hz to 25 kHz | | Equivalent Noise Level | 27 dB A-Weighted | | Maximum SPL | 150 dB SPL | | Impedance | 100 Ohms | | Load Impedance | 600 Ohms | | Sensitivity | 8 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 10 mA | | Operating Voltage | 48 V | | Length | 6.5" / 165.10 mm | | Diameter | 0.86" / 21.84 mm | | Weight | 0.35 lb / 159 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.5 x 6.1 x 3.4" |
