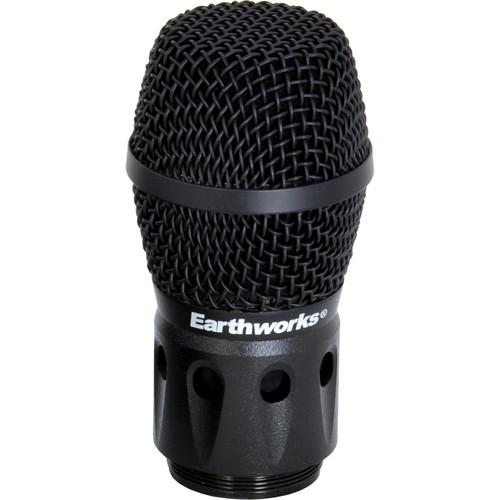

User Manual for Earthworks WL40V 40kHz Wireless Vocal Microphone Capsule Click to enlarge the picture
Contents of the user manual for the Earthworks WL40V 40kHz Wireless Vocal Microphone
- Product category: Microphone Capsules Earthworks
- Brand: Earthworks
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Earthworks Microphone Capsules
|
User manual for the Earthworks WL40V 40kHz Wireless Vocal Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Earthworks product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Earthworks user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Earthworks product will considerably shorten its lifespan!
|
Product description EarthWorks Audio's WL40V 40kHz Wireless Vocal Microphone Capsule has been adapted in wireless capsule form from the SR40V Vocal Microphone. Designed to maintain the same signature sound as its wired counterpart, the WL40V delivers a detailed and realistic vocal sound that requires little to no EQ. Its textbook perfect hypercardioid polar pattern and extended flat frequency response translate to a natural on- and off-axis performance coupled with benchmark levels of clarity and detail.
Note: The WL40V utilizes a conventional 3-ring concentric connector with the outer ring as common-, middle ring as power+ and center ring as audio +. Please verify that your wireless transmitter has the same 3-ring concentric ring configuration as described above to insure proper functionality of the capsule. Compatible With: -
- Lectrosonics: HH
- Line 6: XD-V55, XD-V75
- Shure: LX2, PGX2, SLX2, T2, U2, UC2, ULX2, UR2, UT2
- Sony: DWM-02, ZTX-M01
Features: - Frequency range spanning from 30Hz - 40kHz
- Interchangeable with any screw-on-type handheld transmitters that receive a 1.25"/28 thread pitch (31.3mm/pitch 1.0mm threading)
- Delivers detailed and realistic vocal sound that requires little to no EQ
- Natural on- and off-axis performance
- Benchmark levels of clarity and detail
- More gain before feedback
- Excels at distance capture
In the Box Earthworks WL40V 40kHz Wireless Vocal Microphone Capsule Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Earthworks WL40V 40kHz Wireless Vocal Microphone Capsule in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEarthworks WL40V Specs | Compatibility | Compatible with:
Lectrosonics: HH
Line 6: XD-V55, XD-V75
Shure: LX2, PGX2, SLX2, T2, U2, UC2, ULX2, UR2, UT2
Sony: DWM-02, ZTX-M01 | | Frequency Response | 30Hz-40kHz | | Polar Pattern | Hypercardioid | | Sensitivity | 10mV/Pa | | Power Requirements | 5 to 12V @ 500µA using second & outer ring on 3-ring concentric connector | | Max Output | Acoustic: 135dB SPL at 5V | | Output Impedance | 300Ω, unbalanced (center & outer ring) | | Noise | 22dB SPL equivalent (A weighted) | | Thread | 1.25"/28 thread pitch (31.3mm/pitch 1mm threading) | | Dimensions | 3.7 x 1.93" (49 x 93.98 mm) Maximum Diameter, 1.46" (37 mm) Minimum Diameter | | Weight | 0.2 lbs (90 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.0 x 5.6 x 3.4" |
