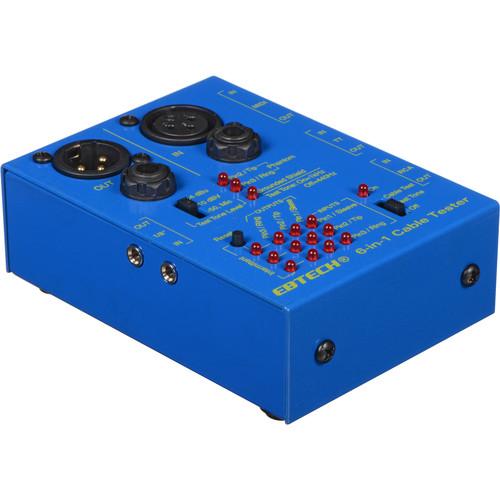

Product description The Ebtech 6-in-1 Cable Tester is used to display the exact wiring of any cable or adapter, and even allows you to test cables installed within building walls. The LED display is used for wiring and intermittent detection, an installed cable tester, a test tone generator, a phantom power detector, and a ground shield detector. This cable tester works on 2 AA batteries (sold separately). - Checks XLR, 1/4" (TS or TRS), RCA, 1/8" (TS or TRS), TT, and 3-pin MIDI cables and offers 5 other handy functions
- Displays information on intermittent connections until you reset it, and clearly shows where the problem is and what type of defect it is
- Wiring display shows how the cable is wired, as well as continuity, opens, and shorts for each pin
- Suitable for determining custom/adapter wirings such as XLR to 1/4" or 1/8" to dual RCA
- Shows if XLR Pin 1 (ground) is connected to the XLR housing (grounded shield)
- Diagnoses cables that are installed within building walls
- Test tone generator for producing a 1 kHz or 440 Hz tone at 4 dBu, -10 dBv, and mic levels
- Detects when a DC voltage of 5V or more is present on Pin 2 (tip) and/or Pin 3 (ring)
UPC: 614859646137 In the Box Ebtech 6-in-1 Cable Tester Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ebtech 6-in-1 Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEbtech CT Specs | Input/Output | Input: 1 x XLR, 1 x 1/4", 1 x RCA, 1 x 1/8", 1 x TT, and 1 x 3-pin MIDI
Output: 1 x XLR, 1 x 1/4", 1 x RCA, 1 x 1/8", 1 x TT, and 1 x 3-pin MIDI | | Tone Generator | Test Tone Generation: 1 kHz or 440 Hz tone at 4 dBu, -10 dBv, and mic levels | | Power | Runs on 2 x AA batteries (sold separately) | | Dimensions (L x W x H) | 4.75 x 3.63 x 2.75" (12.07 x 9.22 x 6.99 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.075 lb | | Box Dimensions (LxWxH) | 5.7 x 4.1 x 2.15" |
