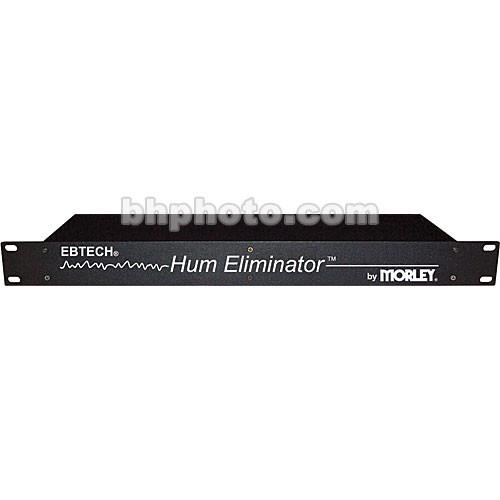

Ebtech HE-8 Hum Eliminator

Search your instruction manual in PDF to download

User Manual for Ebtech HE-8 Hum Eliminator

Click to enlarge the picture
Ebtech HE-8 Hum Eliminator Contents of the user manual for the Ebtech HE-8 Hum Eliminator
  • Product category: Hum Eliminators Ebtech
  • Brand: Ebtech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Ebtech Hum Eliminators

User manual for the Ebtech HE-8 Hum Eliminator contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Ebtech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Ebtech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Ebtech product will considerably shorten its lifespan!



Product description

The HE-8 Hum Eliminator from Ebtech is an eight channel rack mount unit, designed to eliminate 60 cycle hum caused by ground loops. It is also designed to convert unbalanced lines to true balanced lines, since unbalanced lines are more susceptible to picking up electrical noise and RF interference. The HE-8 Hum Eliminator prevents ground loop antennae from forming and picking up AC hum. AC hum and noise are almost always caused by a loop antenna effect across signal lines between two or more pieces of gear, or by long unbalanced cables picking up noise. Loop antennae are basically a type of radio antenna, which tend to pick up the 60Hz (and harmonics) AC signal being broadcast by a building's electrical current. These loop antennae are closed circuits usually along the ground wires and hence are commonly called ground loops. Unbalanced signals are more susceptible to picking up electrical noise and RF interference than balanced signals are. The longer the unbalanced cable, the greater the chance of a problem. The
HE-8 Hum Eliminator is one of the most cost-effective ways to convert between unbalanced signals and true balanced signals.
  • Eliminates AC hum/60Hz buzz and noise quickly and easily
  • Breaks grounds loops safely, while leaving all signal grounds intact
  • Automatically translates signal voltages to match differences in ground potentials, avoiding clipping
  • Converts automatically back and forth between balanced and unbalanced lines at either end
  • Completely passive design with audiophile quality components assures the best possible noise and distortion performance
UPC: 614859091043 In the Box Ebtech HE-8 Hum Eliminator
  • 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Ebtech HE-8 Hum Eliminator in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Ebtech HE-8 Specs

    Function 8-channel noise reduction and ground loop eliminator
    Inputs 8 x 1/4" TRS phone
    Outputs 8 x 1/4" TRS phone
    Frequency Response 20Hz to 70kHz
    Distortion <0.005% THD @ 1kHz
    Crosstalk >-97dB
    Dimensions (WxDxH) 1U 19" rack
    Weight Not specified by the manufacturer
    Specialties Completely passive design
    Package Weight 4.55 lb
    Box Dimensions (LxWxH) 20.2 x 9.5 x 2.4"
