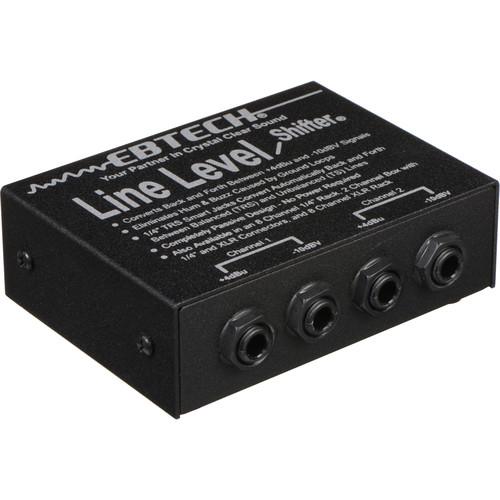

User Manual for Ebtech LLS-2 - Dual Channel Line Level Shifter & Hum Eliminator Click to enlarge the picture
Contents of the user manual for the Ebtech LLS-2 - Dual Channel Line
- Product category: Level Matching Transformers Ebtech
- Brand: Ebtech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ebtech Level Matching Transformers
|
User manual for the Ebtech LLS-2 - Dual Channel Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ebtech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ebtech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ebtech product will considerably shorten its lifespan!
|
Product description The LLS-2 Line Level Shifter & Hum Eliminator from Ebtech is a handy two-channel utility that effectively provides line level transformation between balanced and unbalanced devices. The Line Level Shifter also contains Ebtech's Hum Eliminator technology for breaking the ground loops that cause 60Hz hum and AC buzz, noise that can occur when making these kinds of connections. Audiophile quality components and passive design provide a quiet signal path throughout. The unit uses the physics of inductance and impedance matching to increase or decrease the signal voltage without the added noise of active electronics. "Smart" connections automatically distinguish between balanced and unbalanced connections. The unit features 1/4" TRS phone inputs and outputs on both channels. - Converts back and forth between -10dBV and +4dBu
- Converts automatically back and forth between balanced and unbalanced lines at either end
- 1/4" TRS "smart" jacks (tip, ring, sleeve) inputs and outputs
- Built-in "Hum Eliminator" technology eliminates AC hum/60Hz buzz and noise
- Automatically translates signal voltages to match differences in ground potentials, avoiding clipping
- Completely passive design with audiophile quality components assures the best possible noise and distortion performance
UPC: 614859078754 In the Box Ebtech LLS-2 - Dual Channel Line Level Shifter & Hum Eliminator Rubber Feet Two (2) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ebtech LLS-2 - Dual Channel Line Level Shifter & Hum Eliminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEbtech LLS-2 Specs Function | 2-channel line level matching device | Inputs | 2 x 1/4" TRS phone | Outputs | 2 x 1/4" TRS phone | Frequency Response | 20Hz to 40kHz, +/-1.0dB into 10kΩ load | Distortion | <0.002% THD @ 1kHz | Crosstalk | >-97dB | Dimensions (WxDxH) | Not specified by manufacturer | Weight | Not specified by manufacturer | Specialties | Completely passive design | | Package Weight | 1.05 lb | Box Dimensions (LxWxH) | 7.3 x 5.7 x 1.9" |
