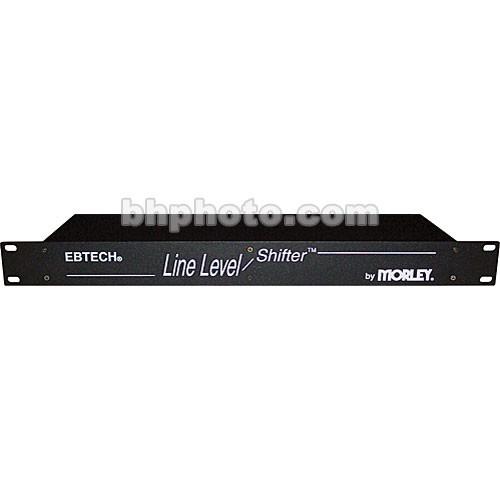

User Manual for Ebtech LLS8 8 Channel Balanced Unbalanced Line Level Shifter and Hum Eliminator Click to enlarge the picture
Contents of the user manual for the Ebtech LLS8 8 Channel Balanced Unbalanced
- Product category: Level Matching Transformers Ebtech
- Brand: Ebtech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ebtech Level Matching Transformers
|
User manual for the Ebtech LLS8 8 Channel Balanced Unbalanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ebtech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ebtech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ebtech product will considerably shorten its lifespan!
|
Product description The 8 channel EBtech Line Level Shifter is everything the 2 channel version is with provisions for multi-channel use. This device provides 8 channels of line level tranformation bettween balanced and unbalanced devices. 60Hz hum, AC buz and other noise caused by such connections are eliminated resulting in clean, quiet audio signal. Audiophile quality components and passive design provide a quiet signal path throughout resulting in effective noise elimination without altering the original signal. 1/4" TRS "Smart" connections automatically distinguish bettween balanced and unbalanced connections. - Eliminates Hum & Ground Loops
- The EBtech Line Level Shifter effectively eliminated 60Hz/AC hum caused by electrical ground loops. Automaticaly translates signal voltages to match differences in ground potentials, avoiding clipping.
- Converts Balanced and Unbalanced Signals
- Converts automatically back and forth between balanced and unbalanced lines bettween -10dBV and +4dBu.
- Passive Design
- Designed for completely passive operation with audiophile quality components resulting in the best possible noise and distortion performance.
- 1/4 inch Smart Connections
- Featuring 1/4" TRS "Smart Connections", automatically recognizing balanced and unbalanced connections.
UPC: 614859058046 In the Box Ebtech LLS8 8 Channel Balanced/Unbalanced Line Level Shifter and Hum Eliminator (Rack Mount) 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Ebtech LLS8 8 Channel Balanced Unbalanced Line Level Shifter and Hum Eliminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEbtech LLS-8 Specs | Connections | 8-Input / 8-Output
1/4" TRS "Smart" Connections (tip, ring, sleeve) | | Total Harmonic Distortion (THD) | Less than 0.002% THD @ 1kHz | | Crosstalk | Better than -97dB | | Impedance | Maximum source impedance: 1k Ohms
Minimum load impedance: 10k Ohms | | Frequency Response | 10Hz to 40kHz +/- 1dB into 10k Ohm load | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 20.157 x 9.528 x 2.441" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
