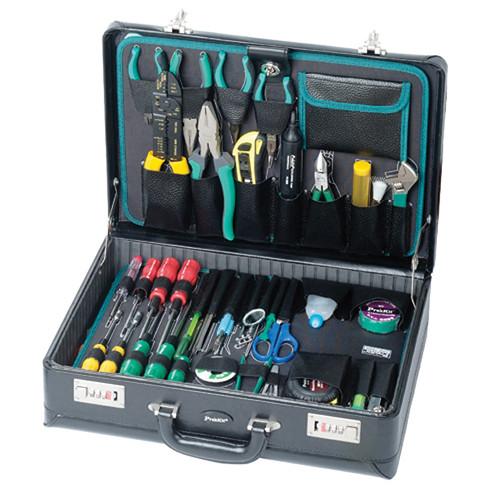

User Manual for Eclipse Tools 57-Piece Electronics Master Kit Click to enlarge the picture
Contents of the user manual for the Eclipse Tools 57-Piece Electronics Master Kit
- Product category: Installation & Maintenance Tools Eclipse Tools
- Brand: Eclipse Tools
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eclipse Tools Installation & Maintenance Tools
|
User manual for the Eclipse Tools 57-Piece Electronics Master Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eclipse Tools product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eclipse Tools user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eclipse Tools product will considerably shorten its lifespan!
|
Product description Ideal for performing most repairs of electronics, including smart devices and personal computers, the Eclipse Tools 57-Piece Electronics Master Kit contains a comprehensive set of tools needed for performing disassembly and repair work. Among many highlights are a soldering kit that features a soldering iron with a ceramic tip, soldering wire, electronics testing tools, a set of pliers, a Pro-Soft screwdriver kit, and many more. This kit is truly a self-contained set of tools that will serve you well with any electronics repair task. It is supplied in a well-organized portable custom briefcase with pockets tailored for each tool, a rounded handle with leatherette covering, and two metal combination locks. - Soldering Tools
-
- Soldering iron (110V) with ceramic tip
- Adjustable soldering iron stand with sponge
- Adjustable wrench (6")
- Solder core: 63% Sn (Tin)
- Three soldering aid tools
- Reverse action tweezers
- De-soldering braid
- De-soldering pump
- Heat sink
- Brush
- Electronic Testing Tools
-
- Six-piece electronic screwdriver set
- Five-piece needle file set
- Testing screwdriver
- Crimping tool
- IC extractor
- Selection of Pliers
-
- Long-nose pliers (5.3")
- Diagonal cutting pliers (4.3")
- Dual color lineman's pliers (5.1")
- Slip-channel pump pliers (10")
- Side cutting pliers (5.9")
- Dual color long nose Pliers
- Bent nose pliers
- Pro-Soft S/D Screwdrivers
-
- Hex: 3/16", 1/4"
- Flat: 3.2 x 75mm, 6 x 100mm, 5 x 75mm, 6 x 40mm
- Phillips: #0/75mm, #1/75mm, #2/100mm, #2/40mm
- Miscellaneous Tools
-
- Utility component storage box
- Alignment tool (7.9")
- Seven-piece folding type hex key set
- Six-piece open-end wrench set
- Heavy-duty curved-claw hammer
- Stainless scissors (6")
- Utility knife with three self-loading blades
- Measuring tape (10')
- Inspection mirror
- PVC insulated tape
- LED flashlight
- Three-prong holder
- Two-piece pallets
- Parts tube
- Oil can
In the Box Eclipse Tools 57-Piece Electronics Master Kit (Briefcase) Storage Briefcase Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eclipse Tools 57-Piece Electronics Master Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEclipse Tools 1PK-1700NA Specs | Dimensions | Briefcase: 17.7 x 12.8 x 5.2" (45.0 x 32.5 x 13.2 cm) | | Weight | 18.2 lb (8.3 kg) | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 18.3 x 14.2 x 5.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
