ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat

Search your instruction manual in PDF to download

User Manual for ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat

Click to enlarge the picture

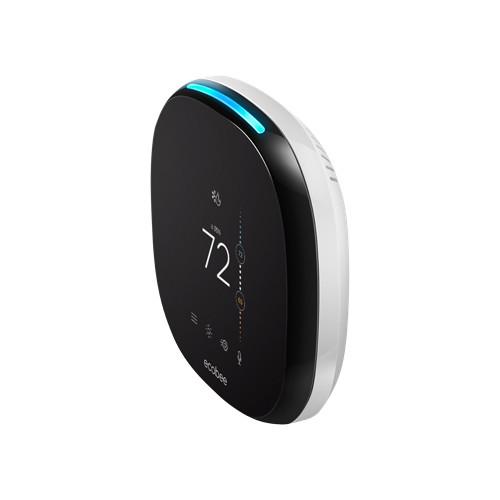

ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat Contents of the user manual for the ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat
  • Product category: Thermostats ecobee
  • Brand: ecobee
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ecobee Thermostats

ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat
User manual for the ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ecobee product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ecobee user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ecobee product will considerably shorten its lifespan!

Product description

The ecobee4 Wi-Fi Voice-Enabled Thermostat from ecobee provides energy-saving temperature control for your home. This thermostat has an easy-to-read, 3.5" LCD color touchscreen with a 320 x 480 resolution. Alexa, Google Assistant, HomeKit are all supported. Audio is possible thanks to built-in microphones and a speaker. Additionally, this thermostat is equipped with far-field voice recognition technology that allows the ecobee4 to hear you from across the room.

The included wireless room sensor manages hot and cold spots in your home, ensuring comfortable temperatures for your rooms. Smart home/away modes automatically enable the right mode for energy savings when it senses that your home is vacant. The ecobee app for iOS and Android allows for control of your ecobee4 on the go. You'll also be able to receive service alerts and reminders away from home.
  • Saves you up to 23% in heating and cooling costs
  • Supports up to 32 room sensors
  • Humidifier, dehumidifier, ventilator, HRV, and ERV support
  • Free HomeIQ online energy reports
  • Built-in Alexa functionality
  • Room sensor helps manage hot or cold spots to maintain comfortable room temperatures
  • The ecobee4 is hardwired, so you won't have to rely on a battery or your HVAC
  • Compatible with Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, Wink, Haiku fans, Logitech Harmony, Vera, Control4, Tendril, Cooper, AutoGrid, EnergyHub, Siemens, and Earth Networks
UPC: 627988401003 In the Box ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat
  • Mounting Plate
  • Room Sensor with Detachable Stand
  • Wire Labels
  • Voice Card
  • Screws and Drywall Plugs
  • Power Extender Kit
  • Trim Plate
  • Limited 3-Year Warranty
  • Table of Contents

    Upload User Manual

    Have you got an user manual for the ecobee ecobee4 Wi-Fi Voice-Enabled Thermostat in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)


    Technical parameters

    ecobee ecobee4 Specs

    Display 3.5" / 8.9 cm full color LCD touchscreen
    Display Resolution 320 x 480 pixel display
    Sensors Thermostat Sensors:
    Voice & Audio Communication Built-in Alexa voice service
    Built-in microphones
    Built-in speaker
    Far-field voice recognition
    Sensory TrulyHandsfree Wake Word engine
    Works with Apple HomeKit, Amazon Alexa, Samsung SmartThings, IFTTT, Wink, Haiku fans, Logitech Harmony, Vera, Control4, Tendril, Cooper, AutoGrid, EnergyHub, Siemens, Earth Networks
    Compatibility Gas, oil, electric, dual fuel
    Conventional (2H/2C)
    Heat Pump (4H/2C)
    Humidifier, dehumidifier, ventilator, HRV or ERV
    Wire Terminals Rc, G, Y1, Y2, O/B, PEK, Rh, C, W1, W2, ACC -, ACC +
    Wireless Networking & Security Wi-Fi, IEEE 802.11 b/g/n at 2.4 GHz
    Wi-Fi Protected Access (WPA/WPA2) and Wired Equivalent Privacy (WEP)
    DHCP (dynamic) or static IP addressing
    Transport Layer Security (TLS)
    915 MHz
    Bandwidth 15+ MB per month dependent on Alexa usage
    Sustainability Recycled packaging
    RoHS compliant
    Temperature Range Desired Temperature: 44 to 92°F / 7 to 33°C
    Display: 41 to 98°F / 5 to 37°C
    Sensitivity: ±0.9°F / ±0.5°C
    Operating: 32 to 131°F / 0 to 55°C
    Humidity Range Display: 20 to 90% RH
    Sensitivity: ±5% RH
    Operating: 5 to 95% RH, non-condensing
    Storage Conditions -31 to 113°F / -35 to 45°C
    5 to 95% RH, non-condensing
    Power Consumption Less than 3.5 VA
    Powering Options Wired 24 VAC through terminals C and Rc
    Power extender kit enables you to reliably power your thermostat without having to run a fifth wire
    Languages English
    Dimensions (L x W x D) Thermostat: 4.3 x 4.3 x 1.03" / 109 x 109 x 26.1 mm
    Room Sensor: 1.7 x 1.7 x 0.79" / 44 x 44 x 20 mm
    Room Sensor with Stand: 2.13 x 1.7 x 0.79" / 54 x 44 x 20 mm
    Optional Power Extender Kit: 2.44 x 2.37 x 0.84" / 62.1 x 60.1 x 21.4 mm
    Package Weight 1.95 lb
    Box Dimensions (LxWxH) 7.5 x 7.5 x 3.3"
