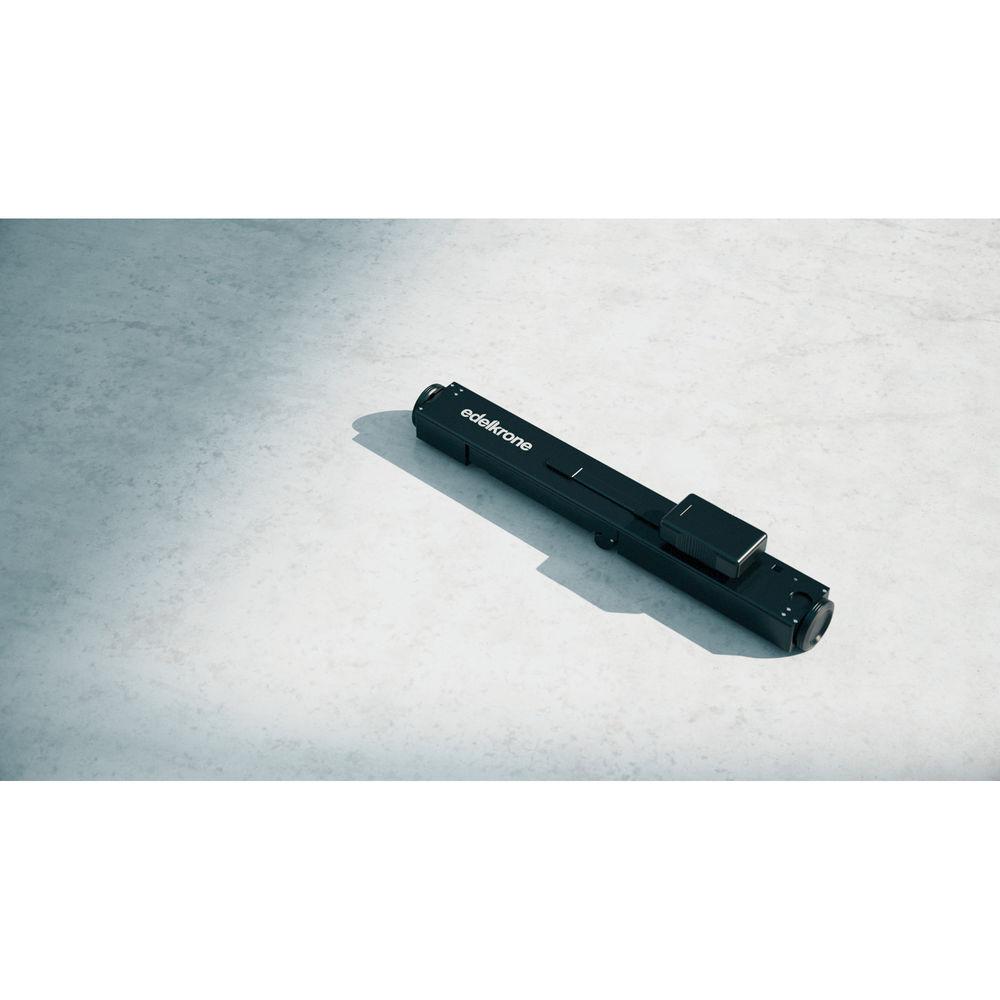

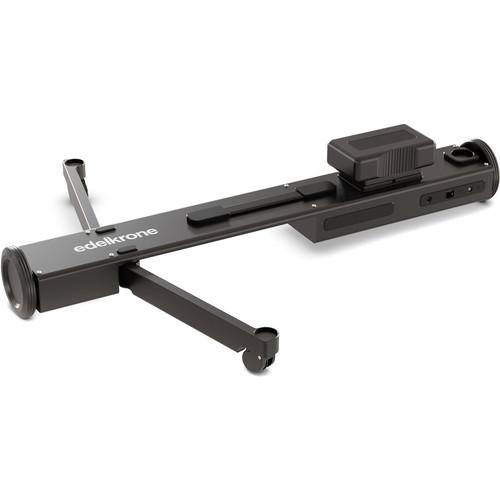

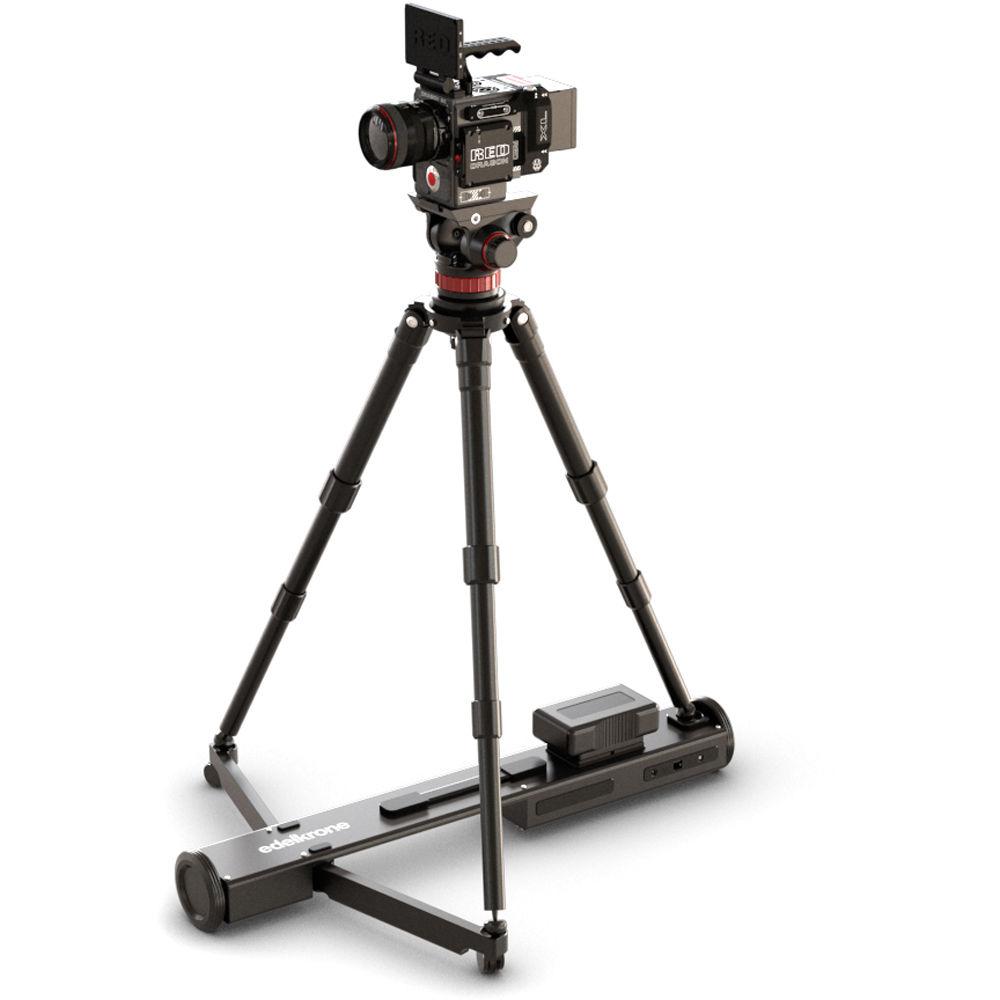

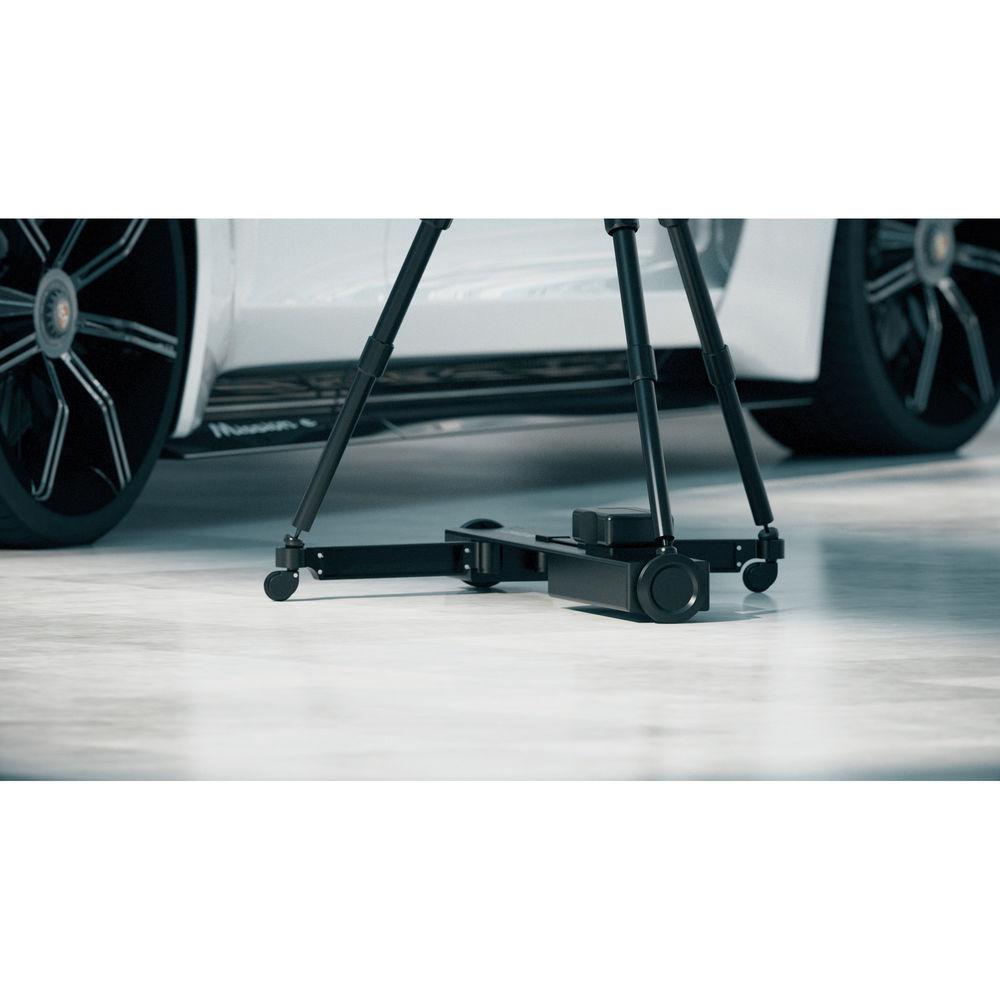

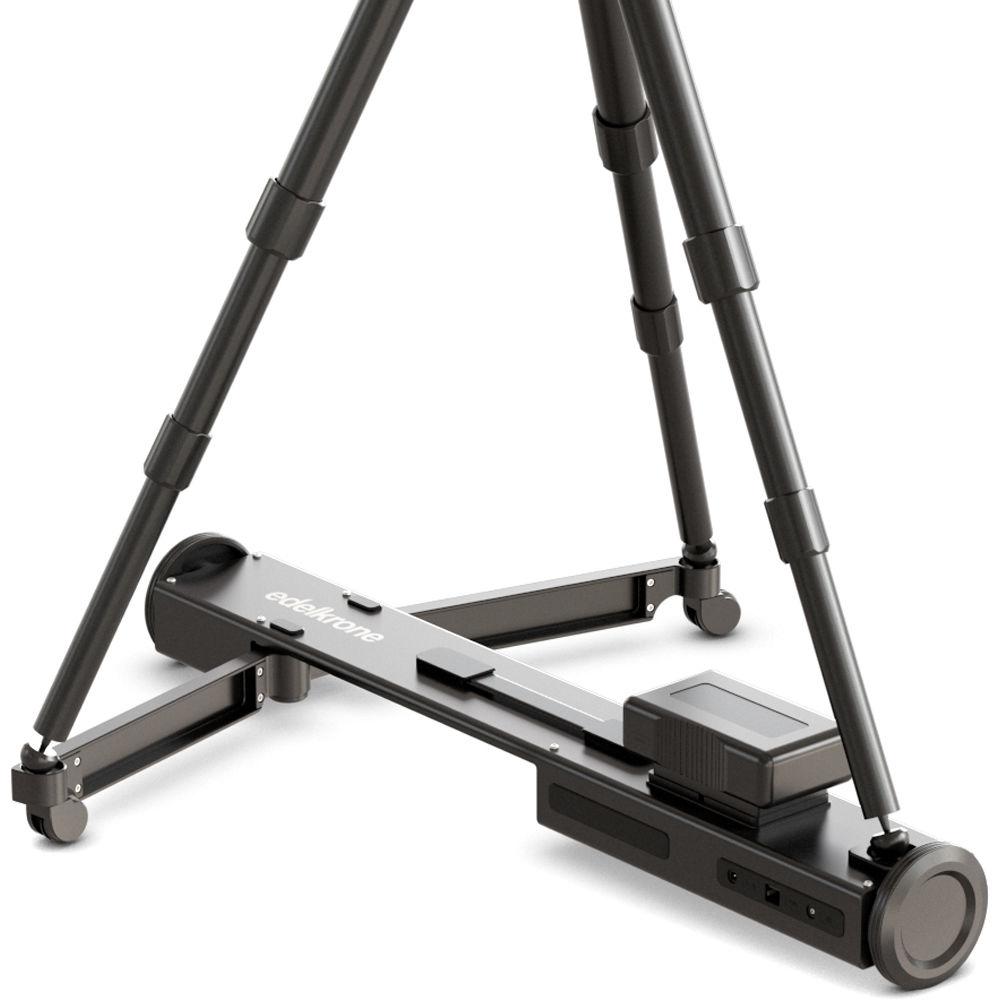

Product description The edelkrone DollyPLUS PRO is a portable robotic tripod dolly that allows both linear and circular motorized camera moves on flat interior surfaces or tripods. It has a load capacity of 45 pounds. The DollyPLUS PRO will automatically find its own center, so there is no worry about manually calibrating the system to your tripod and camera.
You control the system via Bluetooth and it could include the DollyPLUS PRO along with either the HeadONE, HeadPLUS, or HeadPLUS PRO which the DollyPLUS PRO wirelessly pairs with. The edelkrone app is available for both iOS and Android and allows you to create linear or circular paths with keyframe points that you can manually control or you can program the DollyPLUS PRO to move in a loop between two points. You can also adjust the move speed and your camera's shooting frame rate to create timelapse videos. The DollyPLUS PRO is powered by either a V-mount or Gold-mount battery, or by an included AC/DC power supply.. Compatible battery plates are not included and must be sourced separately. - Remote Control Tripod Dolly Movement
- Linear Movement:
- The default setting for the DollyPLUS PRO is a straight slide. This allows you to either track side to side or dolly in/out on the lens. You can program multiple points along the straight-line path and move to any of those points or have the DollyPLUS PRO loop between any two points.
Circular Movement: - Using the easy path creation wizard enables you to create a circular path around any target you choose, with no measuring tools required. You can select several points on the curved path and make DollyPLUS PRO go to any of them and as with the linear movement, you can have it loop between any two points.
- App Control
- The edelkrone app scans the available devices in its surroundings and pairs with them automatically, giving you a single screen to control all devices simultaneously. It is available for both iOS and Android.
- Motion Timelapse
- The app allows you to create timelapse videos. You can have a simple transition between two keypoints or you can convert a recorded complex camera motion into a time-lapse with a single button. edelkrone's unique Dynamic Interval and Dynamic Step Size technologies allow you to adjust the time and camera speed independently of each other.
- Backlash-Free Gears
- All edelkrone motorized products use the same backlash-free gear design technology for perfectly repeatable, smooth motion for even the most demanding shots.
- Quiet Stepper Motor Design
- All edelkrone motorized devices have a unique silent stepper motor technology that combines ultra precise stepper motor positioning with ultra silent operation. Stepper motors are perfect for precise motion control but until now their downside has been the noise they make. With edelkrone motorized devices, you will get the world's most precise positioning with the quietest performance.
- Connect Wirelessly to HeadONE, HeadPLUS & HeadPLUS PRO

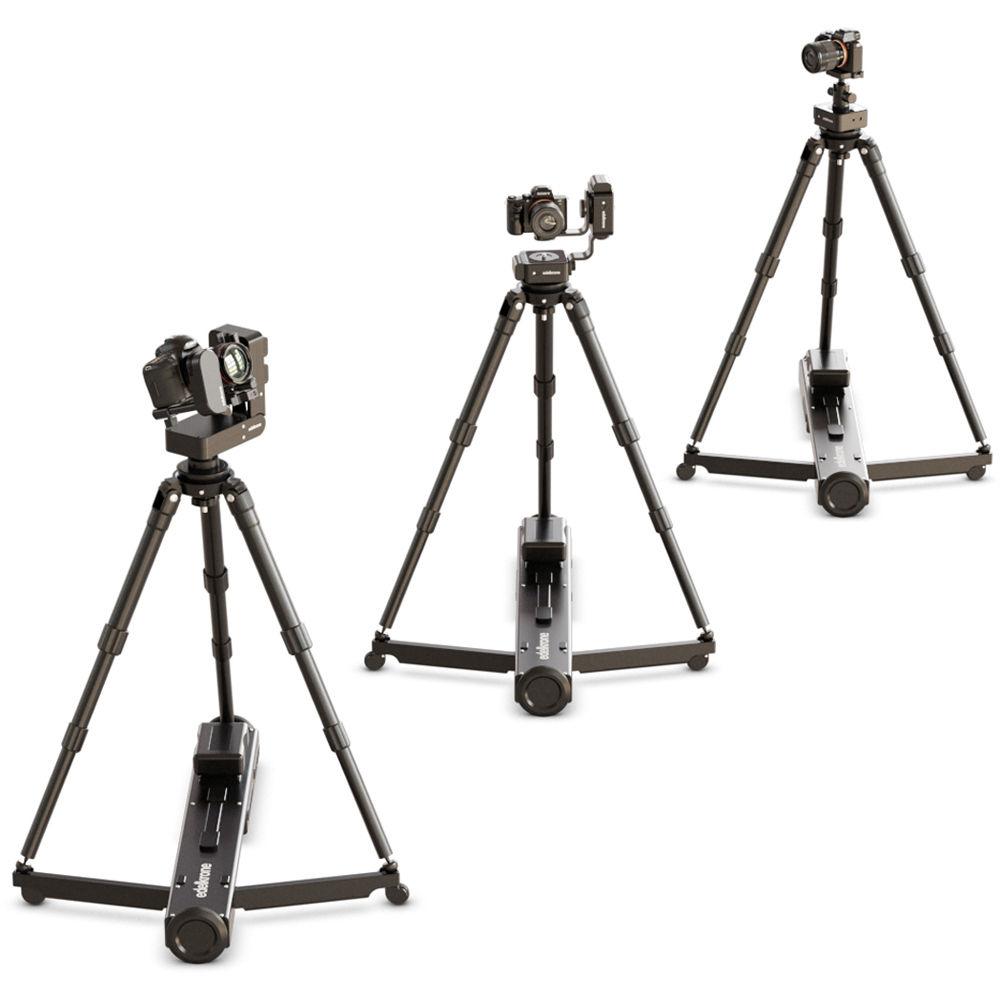

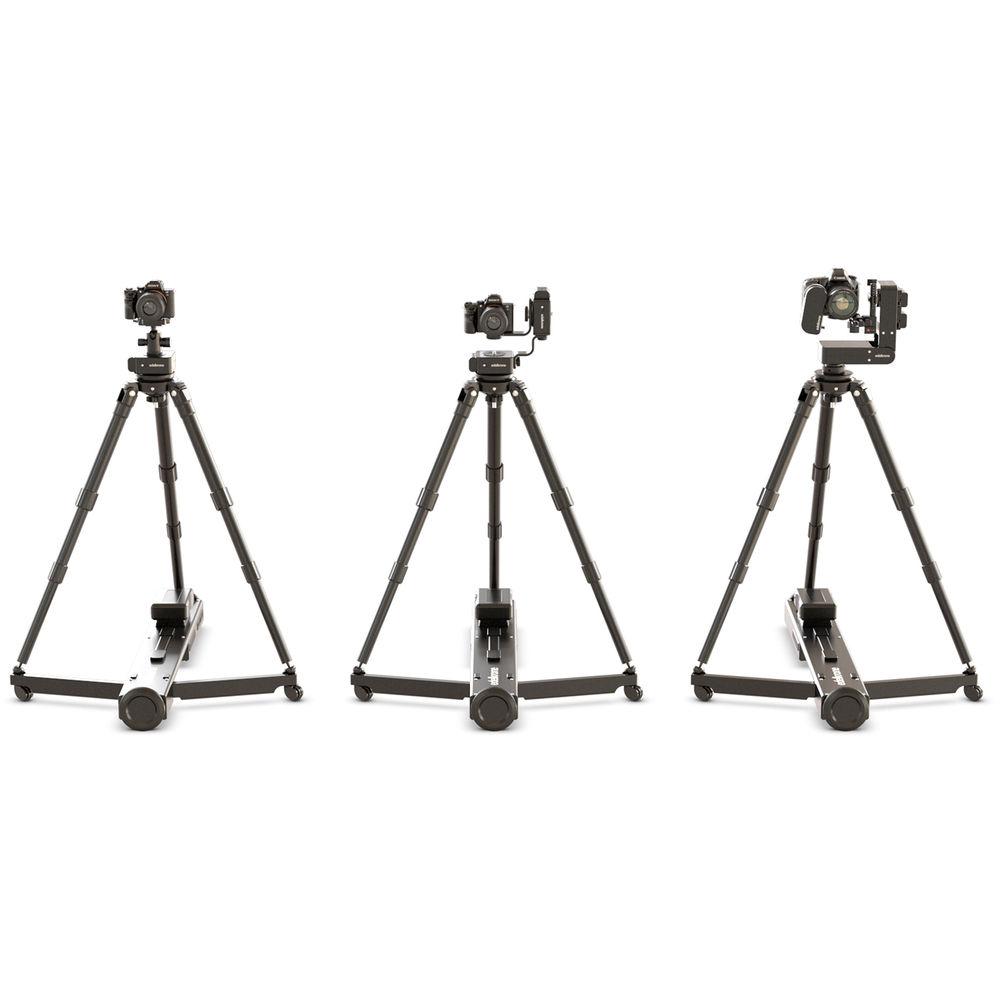

- The DollyPLUS PRO is designed to wirelessly connect to the HeadONE, HeadPLUS, or HeadPLUS PRO, providing a motorized head on DollyPLUS PRO, which enables 4- or 5-axis camera motion that can be easily programmed and repeated. The devices pair instantly in the background and you still use the same app to control all devices together.
- Power
- Powers from V-mount or Gold-mount batteries, or an AC/DC power adapter. Please note that battery plates are not included and must be sourced separately.
In the Box edelkrone DollyPLUS PRO AC/DC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the edelkrone DollyPLUS PRO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersedelkrone DollyPlus Specs | Material of Construction | CNC Machined Aluminum and Stainless Steel Components | | Load Capacity | 45. lb / 20.41 kg | | Mounting | 1 x 3/8"-16 Screw | | Maximum Speed | 9.84 in per sec / 25 cm per sec | | Minimum Step | 7.6 μm | | Motor Type | 2 x Step Motors with Ultra High-Res Encoders | | Battery | Gold Mount or V-Mount (Battery Plates Not Included) | | Bluetooth | Yes | | App Compatibility | iOS 11.0 or Later & Android 5.0 or Later | | Dimensions | 35.6 x 4.7 x 4.5" / 90.42 x 11.94 x 11.43 cm | | Weight | 16.5 lb / 7.48 kg | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 36.0 x 6.4 x 4.7" |
