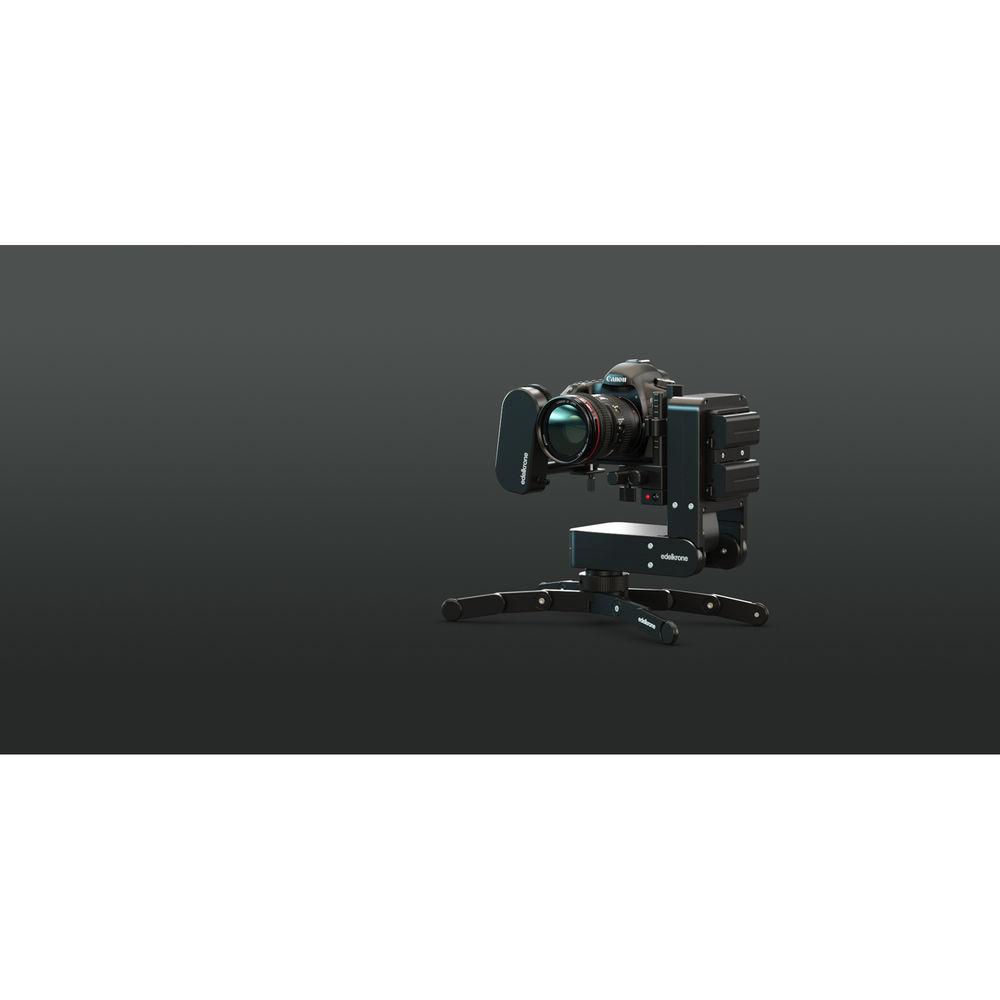

Product description Upgrade your shots with smooth, precise motion using the HeadPLUS Pan and Tilt Head from edelkrone. The sturdy aluminum and steel head supports a maximum equipment load of 10 lb. It can be mounted onto a tripod with a 3/8"-16 screw or used with the SliderPLUS with Slide Module for smooth, pan-and-tilt sliding shots.

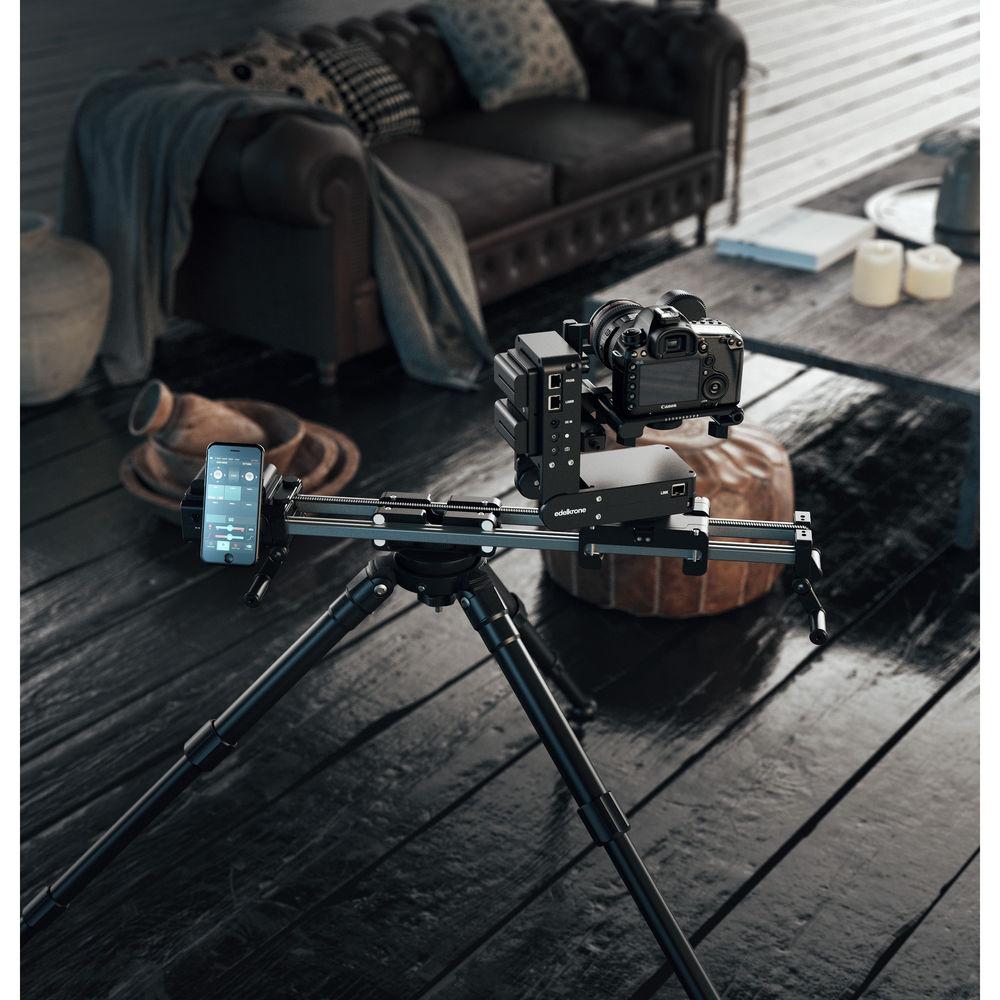

The head can be precisely controlled via the edelkrone smartphone app or it can be moved manually. When mounted on the SliderPLUS, you can track objects automatically to produce dramatic motion shots such as parallax effects. The head can also be programmed for time-lapse or special effects shots by recording motions and repeating them.
With the separately available Focus Module, you can control focus at points during your motion. During a pan-and-tilt sliding shot, you can pre-program to live-switch between three targets and adjust focus during movement. You can also purchase the Laser Module which can record the distance and location of your subject, allowing you to track the object while in motion. The head also has a LANC port which allows you to trigger your camera's shutter with a separately available cable.

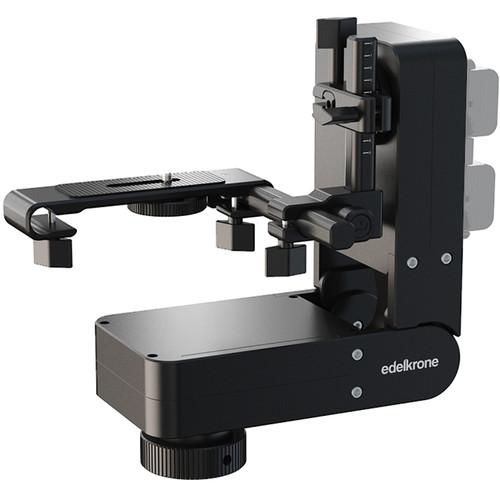

The head folds flat which makes it easy to store in a production bag. The HeadPLUS also includes an L-bracket with 1/4"-20 mounting screw for your camera, a LINK cable, and width extenders for use with the SliderPLUS legs. You can power the unit with a separately available AC adapter or optional V-mount, Gold mount, LP-E6, or NP-F battery plates. - Sturdy Aluminum Design
- The HeadPLUS is made with CNC-machined aluminum and can hold an equipment load of up to 10 lb. It weighs under 5 lb and folds to fit in a bag.
- Easy Manual or Auto Operation
- The head requires no calibration and operates smoothly and silently. You can either program it for automated motion or operate it manually.
- Mounting and Compatibility

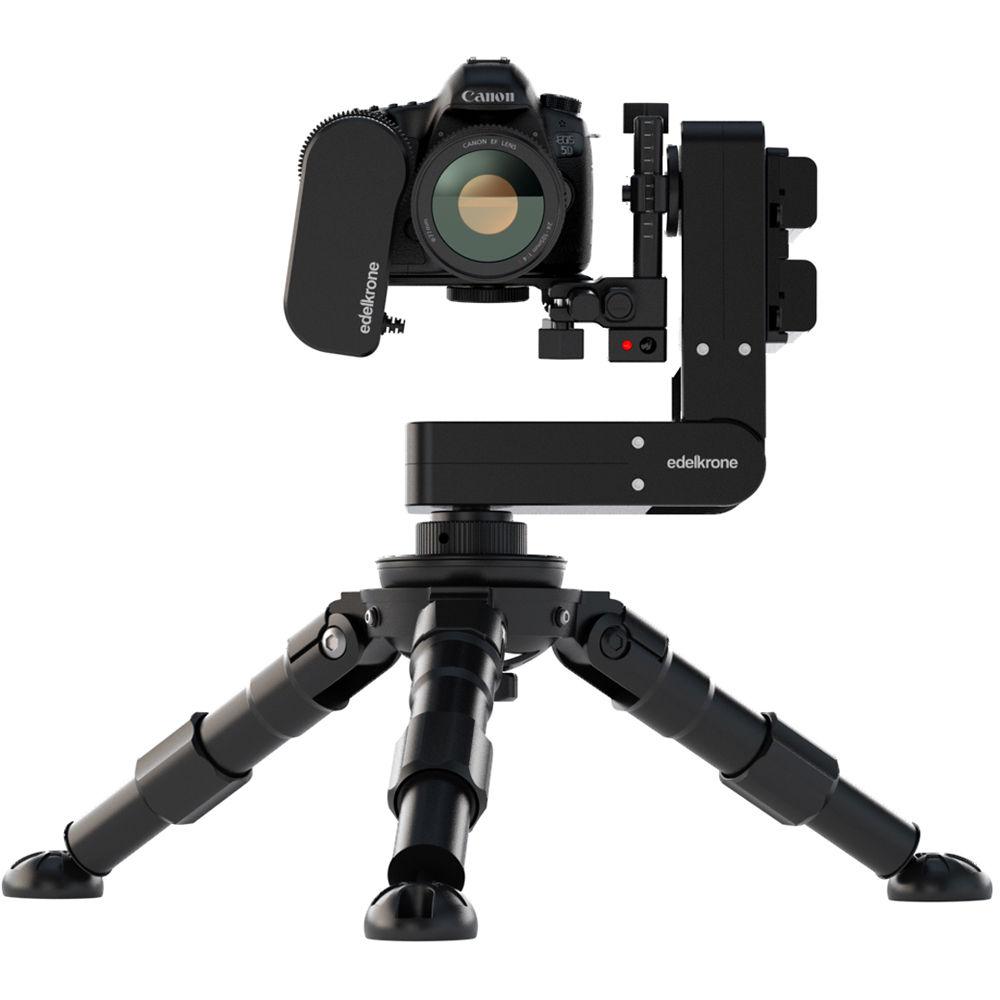

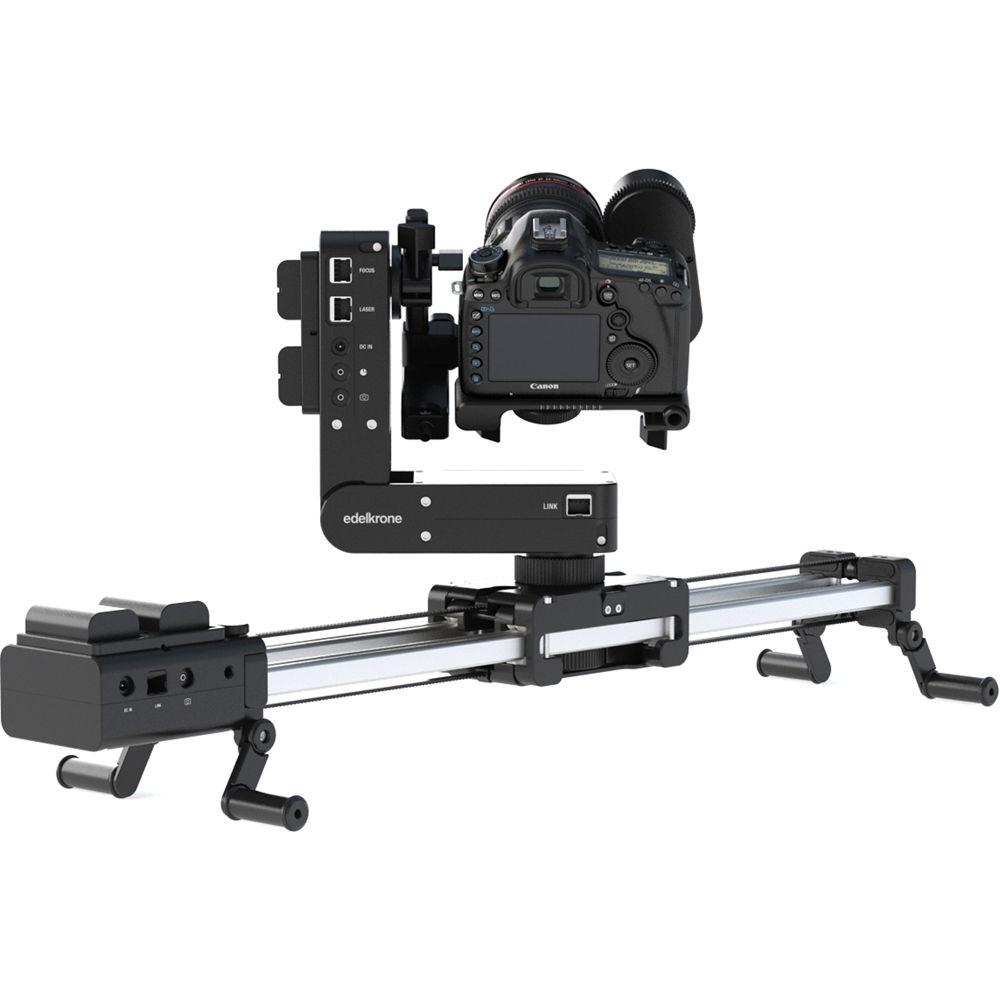

- The HeadPLUS can be installed on a tripod with a 3/8"-16 mount, or used with the SliderPLUS with Slide Module for sliding shots. It can also be used with the SliderPLUS X, SliderPLUS M, and the previous generation SliderPLUS and SliderPLUS Pro. It comes with an L-bracket with a 1/4"-20 camera-mounting screw.
- Smartphone App Control
- Connect the edelkrone smartphone app via Bluetooth to control speed and record/repeat motions for time-lapses, visual effects, or other complex shots.
- Target Switching
- With the optional Focus Module, you can set up to three targets for smooth transitions and keep them each in sharp focus during live motion.
- Object Tracking
- You can purchase the optional Laser Module to pinpoint your subject, learn its distance, and track it when performing complex pan-and-tilt sliding shots.
- Power
- Power with a separately available AC adapter or optional V-mount, Gold mount, LP-E6, or NP-F battery plates. Operates for approximately five hours and shoots 36,000 photos in time-lapse mode on 28.8Wh batteries.
UPC: 850988007290 In the Box edelkrone HeadPLUS Pan and Tilt Head L-Bracket Leg Width Extenders Link Cable Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the edelkrone HeadPLUS Pan and Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersedelkrone Headplus Specs | Material of Construction | CNC-Machined Aluminum and Stainless Steel | | Load Capacity | 10 lb / 4.5 kg | | Compatibility | Slide Module, Focus Module, Laser Module, SliderPLUS X, SliderPLUS M, previous generation SliderPLUS, SliderPLUS Pro, DollyPLUS, SliderONE PRO | | Mounting Options | HeadPLUS: 3/8"-16 Thread on Bottom
L-Bracket: 1/4"-20 Screw | | Motor Type | 2 x Step Motors with Ultra High-Resolution Encoders | | Number of Axes | 2, Pan and Tilt | | Maximum Speed | 360° in 20 Seconds | | Wireless Support | Bluetooth | | App Compatibility | iOS 11.0 or Later
Android 5.0 or Later | | Power | Voltage Input: 100-240 V
Voltage Output: 9.0 V
Current Output: 2.2 A
Polarization: Positive Center
AC Adapter: Optional Barrel Plug Output Connector | | Battery | Plates: Optional Gold Mount, V-Mount, LP-E6, NP-F
Battery Life: 5 Hours Continuous with 28.8 Wh Battery Max.
Time-Lapse Mode: 36,000 Photos on Full Charge | | Control Ports | LINK Port: LINK, for Connection to Slide Module
Focus Port: LINK, for Focus Module
Laser Port: LINK, for Laser Module
Shutter Control: 2.5 mm LANC | | Dimensions | HeadPLUS: 13.8 x 3.9 x 2.7" / 35 x 10 x 7 cm
L-Bracket: 6.7 x 5.6 x 2.9" / 17 x 14.3 x 7.5 cm | | Weight | HeadPLUS: 4.9 lb / 2.2 kg
L-Bracket: 15 oz / 426 g | | | | Package Weight | 8.11 lb | | Box Dimensions (LxWxH) | 10.7 x 10.6 x 4.9" |
