edelkrone SliderPLUS Long with Dual HeadONE

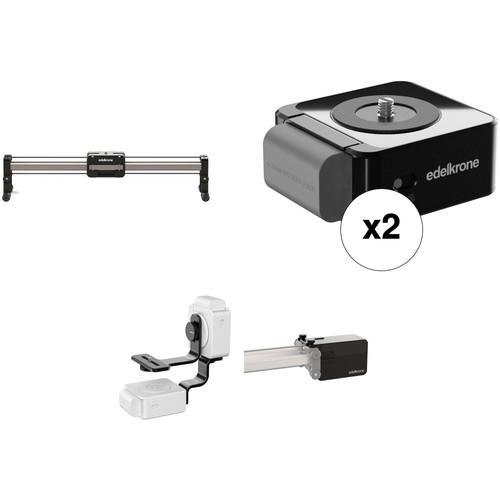

User Manual for edelkrone SliderPLUS Long with Dual HeadONE Bundle 1

• Product category: Camera Sliders edelkrone
• Brand: edelkrone
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for edelkrone Camera Sliders

Product description

• edelkrone SliderPLUS Long (21") The 21" SliderPLUS Long from edelkrone features rails that move with your camera, effectively providing twice the travel range of a slider of a similar size. This lightweight, portable slider supports camera rigs weighing up to 40 lb when mounted on the ground and up to 10 lb when mounted on a tripod. Its travel range extends to 1.3' on the ground and to 2.6' on a tripod.Compatible with edelkrone's separately available electronic and manual controllers, the SliderPLUS Long's backlash-free gear design enables smooth, repeatable moves. Additional slider features include folding legs, a 3/8"-16 camera screw, a 3/8"-16 tripod thread, magnetic belt clips, and a safety lock.The SliderPLUS Long is constructed with aluminum rails, aluminum and stainless steel components, and stainless steel ball bearings. For tripod-mounted use, edelkrone recommends a minimum distance of 43" between the tripod legs.

  Features

  • The rails of the slider move with the camera, providing twice the amount of camera travel compared to other sliders of its size
  • 40 lb capacity on ground, 20 lb capacity on tripod
  • 1.3' travel range on ground, 2.6' when mounted on a tripod
  • The rails move with the camera, remaining out of your shot
  • Backlash-free gear design enables smooth, repeatable moves
  • Compatible with separately available electronic and manual controllers
  • Aluminum and stainless steel components
  • Stainless steel ball bearings
  UPC: 850988007900
• 2 x edelkrone HeadONE Th edelkrone HeadONE is an ultra-compact 360° motorized pan system controllable remotely via an iOS/Android app. The app allows for setting up motion-controlled panning shots, time-lapse sequences, stop-motion shots, and 360 panorama photo capture. In 360 panorama mode, you simply need to enter in how many photos you'd like, and the HeadONE automatically does the rest, providing you with precision panoramic images. It operates very quietly thanks to its ultra-silent step motor driver technology.

  The HeadONE features a 3/8"-16 thread on the bottom and includes a 1/4"-20 bushing for the thread. It can be attached on sliders, tripods, dollies, and various other supports as well as placed directly on flat surfaces. It also pairs well with edelkrone products such as the DollyPLUS, which has wheels and provides another dimension of motion to work in combination with the pan motion of the HeadONE. Furthermore, the HeadONE supports a dedicated add-on Tilt Kit for tilt axis motion, and a Turntable Kit for product shots of jewelry and other items.

  The camera-mounting platform offers a 3/8"-16 mounting screw for ball heads as well as edelkrone products such as the FlexTILT. The HeadONE comes with an LP-E6 battery plate for convenient battery operation, allowing you to keep it compact and wireless. It also provides a 2.5mm shutter cable port.
  Key Features
  • • HeadONE is a highly redesigned version of the edelkrone Motion BOX
    • Completely new mechanical design with backlash-free gears
    • Quieter operation with ultra-silent step motor driver technology
    • LP-E6 battery slot
    • Improved carrying capacity for tilting (when using an optional Tilt Kit)
    • Pop-up screw on top for a safer packing experience
    • Increased signal range with plexiglass top piece
    • Built-in Wi-Fi module for future updates
    • Improved low-speed control for macro shots
    • Centered camera weight with optional Tilt Kit (allows better performance for indoor 360° photography)
    • Easier to stabilize on small stands
    • Wirelessly connects to edelkrone sliders and dollies
    • LANC port for better remote camera management
• edelkrone Tilt Kit for HeadONE The Tilt Kit for HeadONE from edelkrone attaches two HeadONE motorized pan system units together and enables both pan and tilt motion. The kit consists of two brackets: one connects the HeadONE units together, and the other provides tilt functionality while also serving as the panning platform. The tilt bracket supports up to 7 lb loads. UPC: 850988007474
• edelkrone Slide Module v2 The edelkrone Slide Module v2 is a compact add-on accessory that converts the edelkrone SliderPLUS into a motorized slider. v2 has been updated with a quiet step motor and with backlash-free gears that allow for smoother and more stable repeatable motion. It neatly attaches on the end of the slider and enables it with programmable, motorized motion capability. Slide Module v2 and SliderPLUS sync up with the intuitive edelkrone iOS/Android app, and in the app you can assign various standard and motion time-lapse automated slides. The app also has special features that allow you to bend the speed of time and speed of camera motion independently.

  Slide Module v2 is compatible with any 3rd- and 4th-generation SliderPLUS model, including the SliderPLUS Small, SliderPLUS PRO, SliderPLUS M, and SliderPLUS X. Please see full compatibility details in the Features section below. Slide Module v2 also supports HeadPLUS for tracking stationary objects when used with the slider. Synced up with Slide Module v2 and SliderPLUS, HeadPLUS (with a Laser Module installed) is able to achieve automated smart tracking after some position programming is done in the app. Similarly, HeadONE (Single and Dual versions) are also supported for motorized pan and tilt motion.

  The updated motor functions quietly thanks to its ultra-silent step motor driver technology, which combines precision step motor positioning ability with silent operation. This is a big aspect of the Slide Module because although step motors are known for their precision, they are also known for making noise, and edelkrone has succeeded in getting rid of the noise. Backlash-free gears are also known for their precision. The new backlash-free gears in v2 have a heavy-duty design, which ensures a longer operational life.

  With Slide Module v2 attached to your SliderPLUS you can still operate the slider manually if you'd like, and the motor will not be damaged in any way. Slide Module v2 drives the SliderPLUS in horizontal slides only.

  Slide Module v2 can be battery-operated or powered via an AC adapter. All power accessories are sold separately. Slide Module v2 supports two LP-E6 or two L-series batteries via an optional battery tray which installs right on top.
  Key Features
  • • Motorized add-on accessory for 3rd- and 4th-generation SliderPLUS models (see below)
    • Enables automated standard and motion time-lapse slides, programmable via an iOS/Android app
    • Also supports HeadPLUS for tracking stationary objects when used with the slider
    • Updated with a quiet step motor and backlash-free gears
    • Does not interfere with manual control of the slider
    • Can be battery-operated or powered via an AC adapter (all power accessories are sold separately)
    • Drives the SliderPLUS in horizontal slides only
  Compatibility
  • Slide Module v2 is compatible with all 3rd- and 4th-generation SliderPLUS models and also supports HeadPLUS for smart tracking when used with the slider. Earlier SliderPLUS models (those with black rails) are not compatible. The following SliderPLUS models are all supported:


    • SliderPLUS Compact
    • SliderPLUS Small
    • SliderPLUS Medium
    • SliderPLUS Long
    • SliderPLUS Large
    • SliderPLUS PRO Compact
    • SliderPLUS PRO Medium
    • SliderPLUS PRO Long
    • SliderPLUS PRO Large
    • SliderPLUS PRO XL
    • SliderPLUS M Short
    • SliderPLUS M Long
    • SliderPLUS X Short
    • SliderPLUS X Long
  UPC: 850988007436

• SliderPLUS Long (21") dvzqtscxeuvdqbc
• Limited 1-Year Warranty

• 2 x HeadONE

• Tilt Kit for HeadONE

• Slide Module v2

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• edelkrone SliderPLUS Long (21")

  Load Capacity	40 lb / 18.14 kg (Surface-Mounted) 10 lb / 4.54 kg (Tripod-Mounted)
  Travel Distance	1.31' / 40 cm 2.62' / 80 cm (Tripod-Mounted)

  Camera Mounting Screw	3/8"-16 Male
  Accessory Mounting	None
  Tripod Mounting	1 x 3/8"-16 Female Thread

  Material	Aluminum

  Material	Steel

  Body Material	Aluminum, Stainless Steel
  Track Length	21.10" / 536 mm
  Track Width	4.25" / 108 mm
  Track Height	2.80" / 71 mm
  Weight	3.20 lb / 1.45 kg

  Box Dimensions (LxWxH)	22.5 x 6.0 x 4.0"

• 2 x edelkrone HeadONE

  Payload	15 lb / 6.8 kg
  Mount Types	3/8"-16 Threaded Screw on Top, 3/8"-16 Threaded Hole on the Bottom (3/8"-16 to 1/4"-20 Bushing Included for the Threaded Hole)
  Minimum Step	0.00061°
  Maximum Speed	25.7°/sec
  Number of Axes	1
  Rotation	∞ x 360°
  Motor Type	Step Motor with Ultra High-Resolution Encoders
  Power Input	LP-E6 Battery Slot
  Shutter Cable Support	2.5 mm Port
  Mobile Connectivity	Bluetooth
  App Compatibility	iOS 11.0 or Later, Android 5.0 or Later
  Material of Construction	Aluminum and Stainless Steel
  Dimensions	3.9 x 3.75 x 1.9" / 9.9 x 9.5 x 4.8 cm
  Weight	1.28 lb / 580 g

  Box Dimensions (LxWxH)	5.5 x 5.5 x 3.0"

• edelkrone Tilt Kit for HeadONE

  Payload	7 lb / 3.2 kg
  Mount Types	1/4"-20 Mounting Screw on L Bracket
  Material of Construction	Aluminum and Stainless Steel
  Dimensions	L Bracket: 4.9 x 4.4 x 4.1" / 12.4 x 11.2 x 10.5 cm Connector Bracket: 3.6 x 3.6 x 2.8" / 9.3 x 9.3 x 7.1 cm
  Weight	1.1 lb / 0.5 g

  Box Dimensions (LxWxH)	5.45 x 5.05 x 4.6"

• edelkrone Slide Module v2

  Minimum Step	11.2 μm (On Ground)
  Maximum Speed	2.5" / 6.4 cm per Second (On Tripod) 1.3" / 3.2 cm per Second (On Ground)
  Motor Type	Step Motor with Ultra High-Resolution Encoder
  Power	2 x LP-E6 or 2 x L-Series Batteries (Batteries and Battery Brackets Sold Separately) 1 x 2.1 mm DC Barrel Input (5.5 mm Outer Diameter) 100-240 VDC Input 9 V Voltage Output 2.2 A Current Output Polarization: Positive Center Power Cable Sold Separately
  Shutter Cable Support	1 x 2.5 mm Port
  Mobile Device Communication	Bluetooth
  App Compatibility	iOS 11.0 or Later, Android 5.0 or Later
  Material of Construction	CNC-Machined Aluminum and Stainless Steel Components
  Dimensions	5.3 x 3.2 x 2.6" / 13.5 x 8.1 x 6.6 cm
  Weight	1.9 lb / 0.85 kg

  Box Dimensions (LxWxH)	7.0 x 5.0 x 4.0"
