User Manual for edelkrone Two HeadONE Units with Tilt Kit Click to enlarge the picture
Contents of the user manual for the edelkrone Two HeadONE Units with Tilt
- Product category: Tripods, Supports & Rigs edelkrone
- Brand: edelkrone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for edelkrone Tripods, Supports & Rigs
|
User manual for the edelkrone Two HeadONE Units with Tilt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any edelkrone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official edelkrone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a edelkrone product will considerably shorten its lifespan!
|

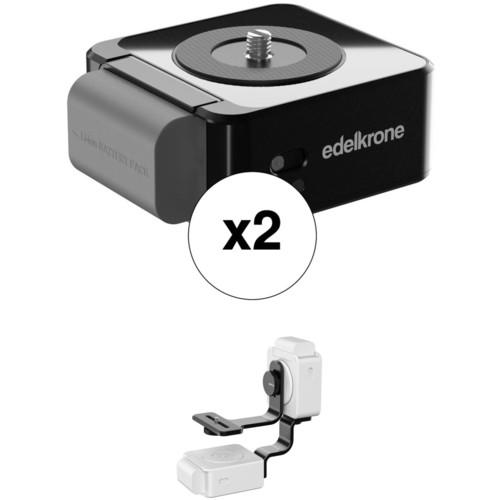

Product description Add a motorized pan and tilt system to your rig with this edelkrone HeadONE with Tilt Kit put together by B&H. This bundle includes two HeadONE motorized 360° pan system units which can create motion-controlled pan shots, time-lapse sequences, and stop-motion shots, all controlled from a smartphone app.
The Tilt Kit features two brackets that can connect the two HeadONE units together on the same mount; the brackets enable panning for one headONE and tilt for the other. The Tilt Kit has a 7 lb load capacity. - 2 x edelkrone HeadONE Th edelkrone HeadONE is an ultra-compact 360° motorized pan system controllable remotely via an iOS/Android app. The app allows for setting up motion-controlled panning shots, time-lapse sequences, stop-motion shots, and 360 panorama photo capture. In 360 panorama mode, you simply need to enter in how many photos you'd like, and the HeadONE automatically does the rest, providing you with precision panoramic images. It operates very quietly thanks to its ultra-silent step motor driver technology.
The HeadONE features a 3/8"-16 thread on the bottom and includes a 1/4"-20 bushing for the thread. It can be attached on sliders, tripods, dollies, and various other supports as well as placed directly on flat surfaces. It also pairs well with edelkrone products such as the DollyPLUS, which has wheels and provides another dimension of motion to work in combination with the pan motion of the HeadONE. Furthermore, the HeadONE supports a dedicated add-on Tilt Kit for tilt axis motion, and a Turntable Kit for product shots of jewelry and other items.
The camera-mounting platform offers a 3/8"-16 mounting screw for ball heads as well as edelkrone products such as the FlexTILT. The HeadONE comes with an LP-E6 battery plate for convenient battery operation, allowing you to keep it compact and wireless. It also provides a 2.5mm shutter cable port. - Key Features
-
- HeadONE is a highly redesigned version of the edelkrone Motion BOX
- Completely new mechanical design with backlash-free gears
- Quieter operation with ultra-silent step motor driver technology
- LP-E6 battery slot
- Improved carrying capacity for tilting (when using an optional Tilt Kit)
- Pop-up screw on top for a safer packing experience
- Increased signal range with plexiglass top piece
- Built-in Wi-Fi module for future updates
- Improved low-speed control for macro shots
- Centered camera weight with optional Tilt Kit (allows better performance for indoor 360° photography)
- Easier to stabilize on small stands
- Wirelessly connects to edelkrone sliders and dollies
- LANC port for better remote camera management
- edelkrone Tilt Kit for HeadONE The Tilt Kit for HeadONE from edelkrone attaches two HeadONE motorized pan system units together and enables both pan and tilt motion. The kit consists of two brackets: one connects the HeadONE units together, and the other provides tilt functionality while also serving as the panning platform. The tilt bracket supports up to 7 lb loads. UPC: 850988007474
In the Box - 2 x HeadONE xcfcccxddybqdbvc
- 3/8"-16 to 1/4"-20 Bushing for Threaded Hole
- LP-E6 Battery Plate
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the edelkrone Two HeadONE Units with Tilt Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x edelkrone HeadONE
| Payload | 15 lb / 6.8 kg | | Mount Types | 3/8"-16 Threaded Screw on Top, 3/8"-16 Threaded Hole on the Bottom (3/8"-16 to 1/4"-20 Bushing Included for the Threaded Hole) | | Minimum Step | 0.00061° | | Maximum Speed | 25.7°/sec | | Number of Axes | 1 | | Rotation | ∞ x 360° | | Motor Type | Step Motor with Ultra High-Resolution Encoders | | Power Input | LP-E6 Battery Slot | | Shutter Cable Support | 2.5 mm Port | | Mobile Connectivity | Bluetooth | | App Compatibility | iOS 11.0 or Later, Android 5.0 or Later | | Material of Construction | Aluminum and Stainless Steel | | Dimensions | 3.9 x 3.75 x 1.9" / 9.9 x 9.5 x 4.8 cm | | Weight | 1.28 lb / 580 g | | | | Box Dimensions (LxWxH) | 5.5 x 5.5 x 3.0" | - edelkrone Tilt Kit for HeadONE
| Payload | 7 lb / 3.2 kg | | Mount Types | 1/4"-20 Mounting Screw on L Bracket | | Material of Construction | Aluminum and Stainless Steel | | Dimensions | L Bracket:
4.9 x 4.4 x 4.1" / 12.4 x 11.2 x 10.5 cm
Connector Bracket:
3.6 x 3.6 x 2.8" / 9.3 x 9.3 x 7.1 cm | | Weight | 1.1 lb / 0.5 g | | | | Box Dimensions (LxWxH) | 5.45 x 5.05 x 4.6" |
