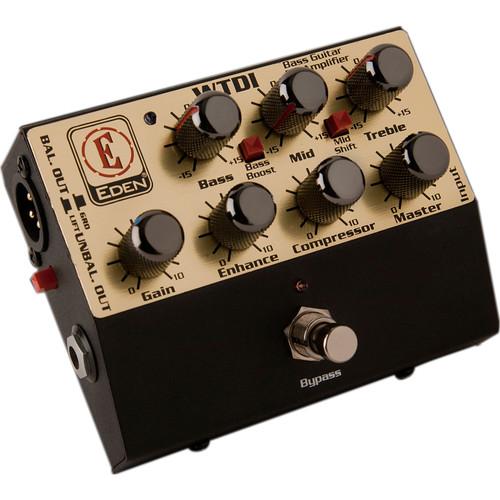

User Manual for Eden Amplification WTDI Bass Guitar Preamp Direct Box with EQ and Compression Click to enlarge the picture
Contents of the user manual for the Eden Amplification WTDI Bass Guitar Preamp
- Product category: Effects Pedals Eden Amplification
- Brand: Eden Amplification
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eden Amplification Effects Pedals
|
User manual for the Eden Amplification WTDI Bass Guitar Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eden Amplification product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eden Amplification user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eden Amplification product will considerably shorten its lifespan!
|
Product description The WTDI from Eden Amps is a preamp and direct box for bass guitar with an integrated 3-band EQ and compressor. The WTDI (World Tour Direct Injection) features a low-shelf bass control with 15 dB of cut or boost at 30 Hz. Additionally, there is a button to add a bass boost to your sound. The mid control offers 15 dB of boost or cut at a selectable frequency of 550 Hz or 2.2 kHz using the mid shift button, while the treble control offers a high-shelf EQ with 15 dB of boost or cut at 5 kHz.
The gain control regulates the first gain stage of the preamplifier, while the enhance control boosts very low, mid-high and high frequencies, and dips the low mid frequencies. The compressor is off at zero, but increases the level of compression as the control knob is turned clockwise. The master controls the overall output of the WTDI. The pedal offers a 1/4" / 6.35mm instrument input, a balanced XLR output, and a 1/4" / 6.35mm output to connect to an amplifier. A ground-lift is provided for the XLR output should there be any ground noise issues. The WTDI ships with a 15V power adapter In the Box Eden Amplification WTDI Bass Guitar Preamp Direct Box with EQ and Compression 15V Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eden Amplification WTDI Bass Guitar Preamp Direct Box with EQ and Compression in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEden Amplification WTDI-U Specs | Type | Direct box / preamplifier | | Connections | Input Jack: 1/4" / 6.35 mm
Output Jack: XLR and 1/4" / 6.35 mm | | Power | 15 V | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.2 x 4.3 x 2.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
