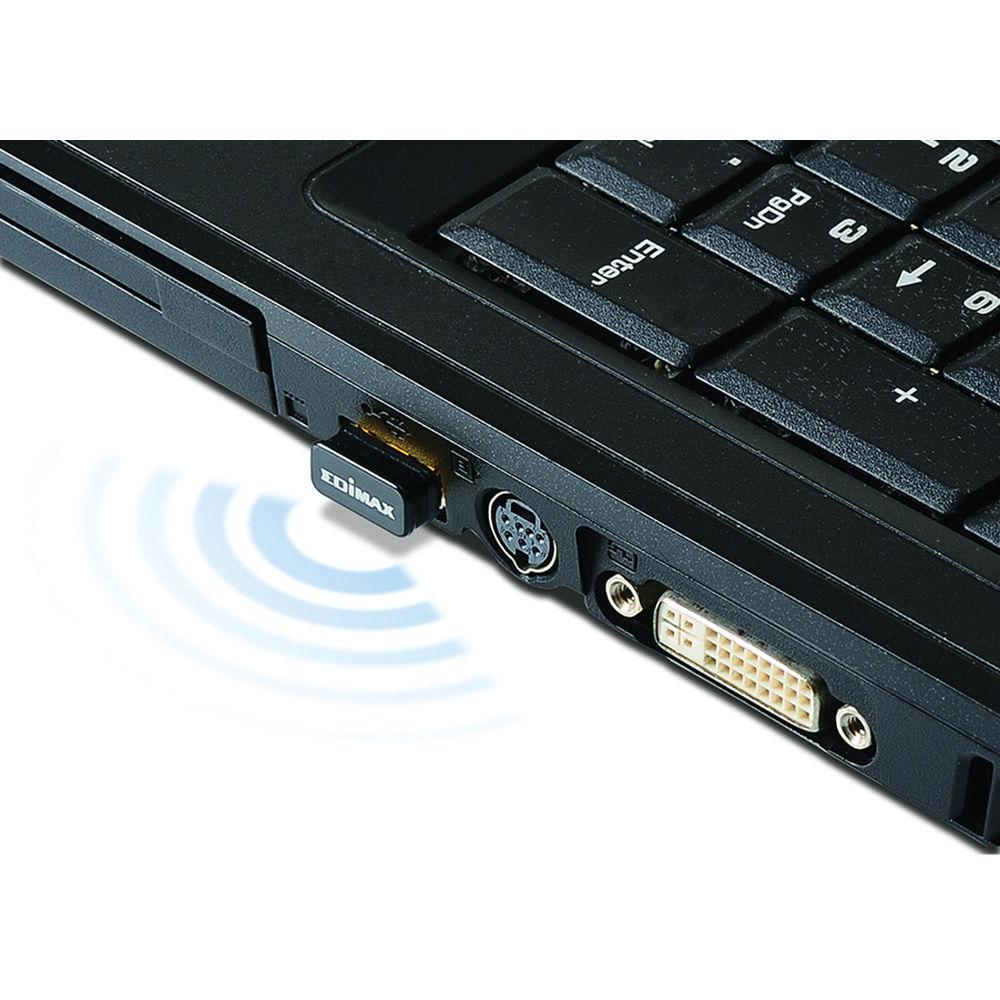

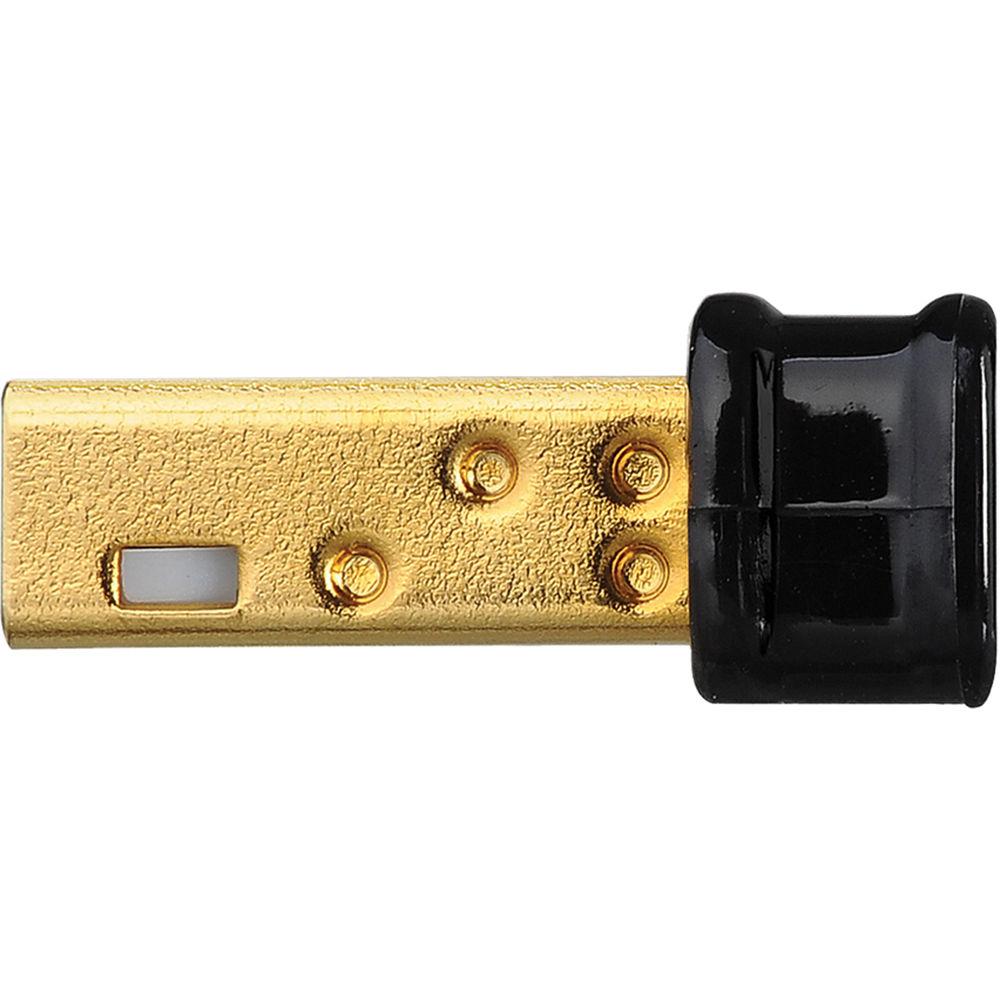

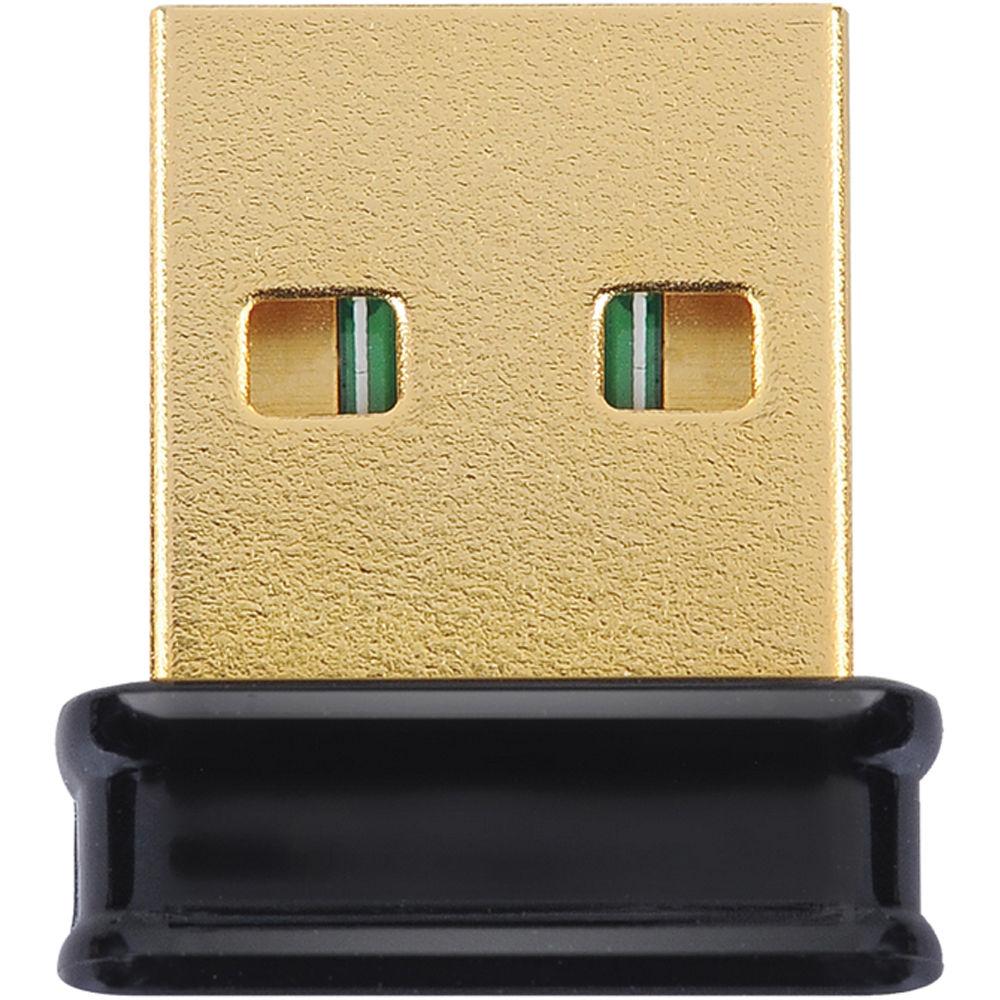

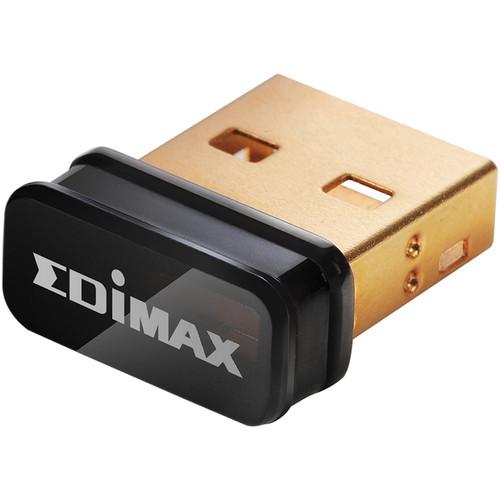

Product description The 150 Mb/s Wireless IEEE802.11b/g/n Nano USB Adapter from EDIMAX Technology supports maximum range and speed. Despite its size, this tiny USB adapter supports data rates up to 150 Mb/s when connecting with wireless 802.11n devices, which is three times faster than 802.11g connections. Just plug it into your computer's USB port for high-speed wireless network access. - Complies with Wireless 802.11n Standards with Data Rate Up to 150 Mb/s
- The EW-7811Un complies with wireless IEEE802.11b/g/n standards. The EW-7811Un can increase your wireless coverage by 3x and help reduce "dead spots" compared to older 802.11g adapters. Data transmission rates can reach 150 Mb/s when connected to 802.11n devices, with greater range and stability compared to 802.11g connectivity.
- Supports Green WLAN
- The EW-7811Un adjusts transmission output by distance and CPU offload to help reduce power consumption when idle. With its green WLAN technology, power consumption can be reduced by 20 to 50% to help you save on electric bills and protect the environment.
- Supports WPS (Wi-Fi Protected Setup)
- Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of a wireless network. This wireless USB adapter supports software WPS-compatible configuration. By pressing two buttons, your wireless network is immediately secured, provided that your wireless router also supports WPS.
- Supports Multi-Language Easy Setup Wizard

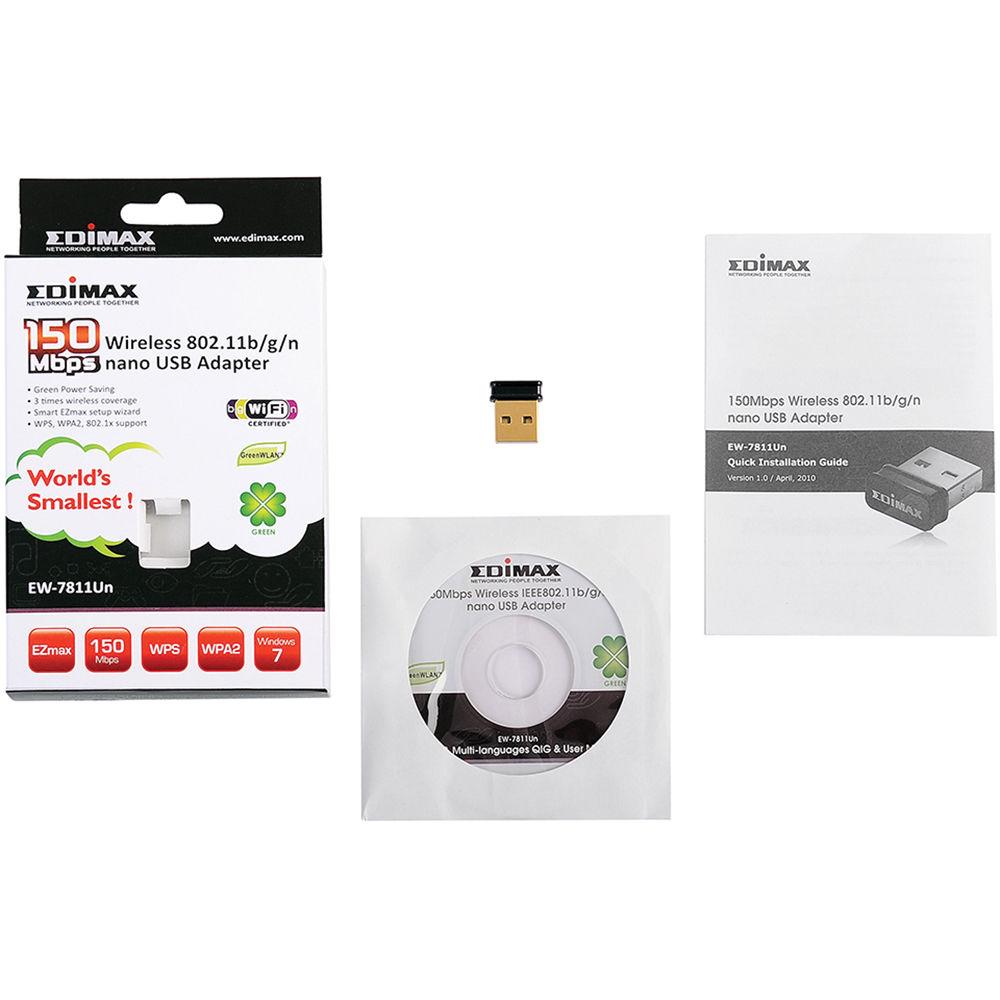

- The included 16-language setup wizard and friendly user interface will walk you through the configuration of the EW-7811Un.
- Portable and Compact design

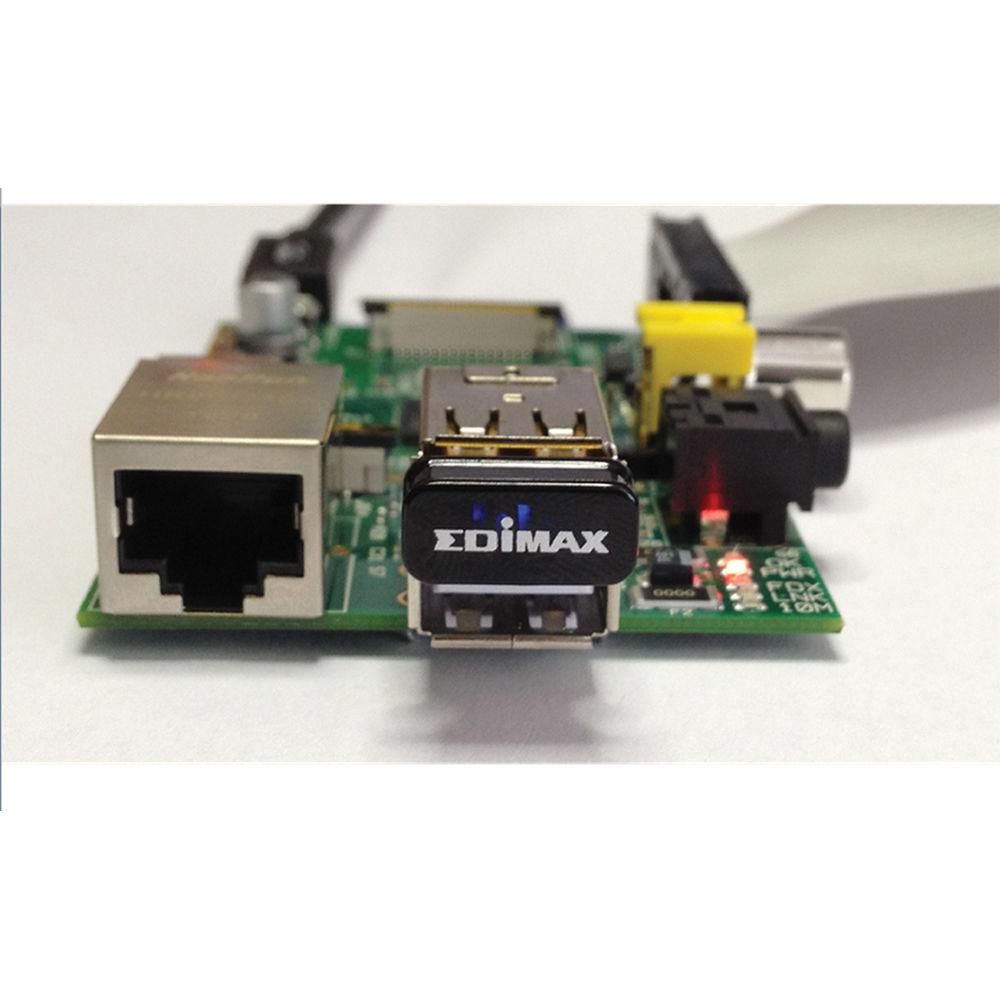

- The compact design of EW-7811Un makes it very portable and less prone to physical damage when plugged into a USB port.
UPC: 649659022706 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology 150 Mb s Wireless IEEE802.11b g n Nano USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7811UN Specs | Hardware Interface | 1 x USB 1.0/2.0 Type A
Internal antenna | | Standard | IEEE802.11b, 802.11g, 802.11n | | Frequency Band | 2.4000 to 2.4835 GHz (Industrial scientific medical band) | | Data Rate | 11b: 1/2/5.5/11 Mb/s
11g: 6/9/12/24/36/48/54 Mb/s
11n (20 MHz): MCS0-7 (up to 72 Mb/s)
11n (40 MHz): MCS0-7 (up to 150 Mb/s) | | Installation | Multi-language easy setup wizard with auto run configuration | | LED | Link/Activity | | Security | WEP 64/128, WPA, WPA2, and IEEE802.1x
Software WPS configuration | | Output Power | 11b: 17 ±1.5dbm
11g: 15 ±1.5dbm
11n: 14 ±1.5dbm | | Temperature & Humidity | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C)
Operating: 10 to 90% (non-condensing)
Storage: Maximum 95% (non-condensing) | | Receive Sensitivity | 11n (20 MHz) at MCS7: -68dBm±2dBm
11n (40 MHz) at MCS7: -64dBm±2dBm
11g at 54 Mb/s: -71dBm±2dBm
11b at 11 Mb/s: -81dBm±2dBm | | System Requirements | Windows XP/Vista/7/8/8.1 Linux and Mac OS | | Certifications | CE, FCC, Wi-Fi | | Unit Dimension (W x D x H) | 0.58 x 0.72 x 0.27" (14.90 x 18.50 x 7.10 mm) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.9 x 3.4 x 0.7" |
