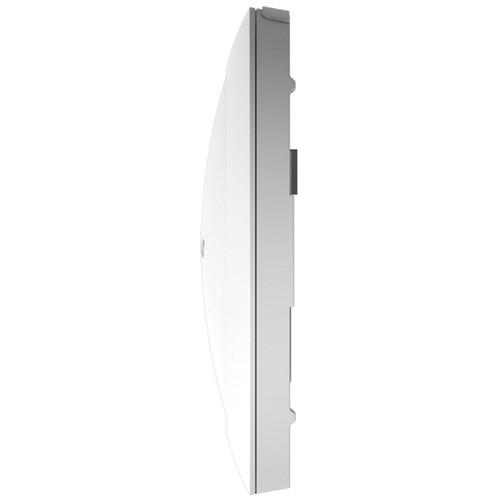

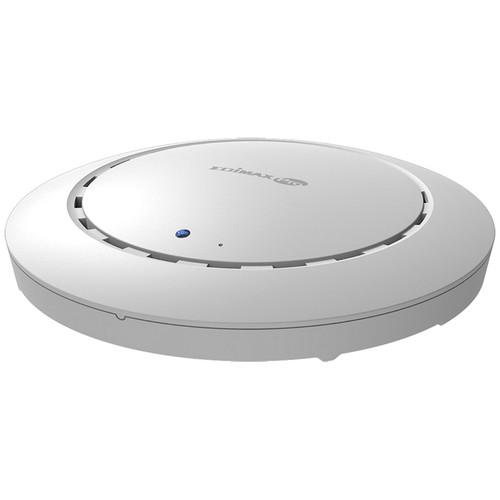

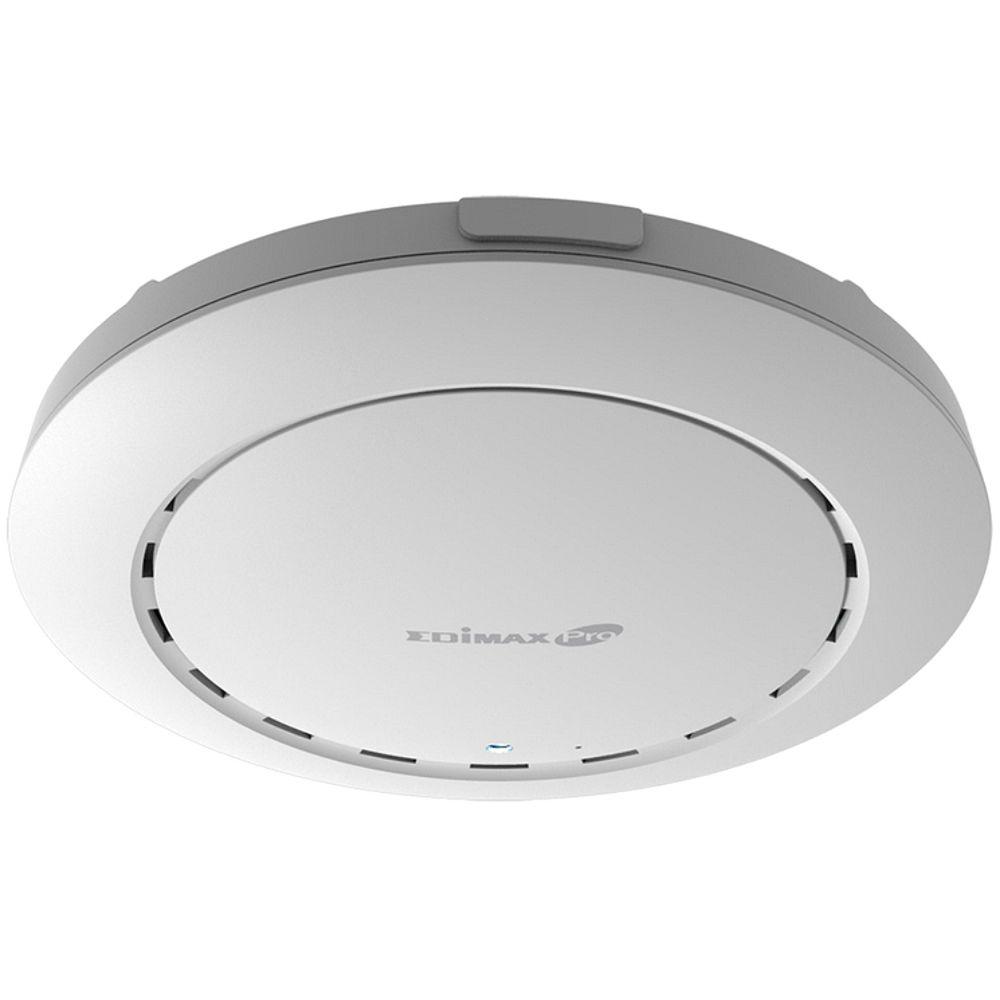

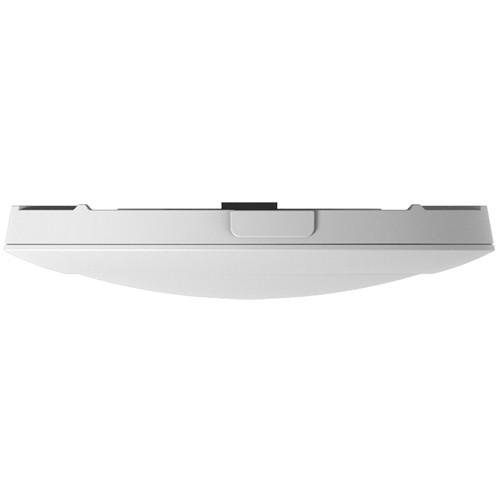

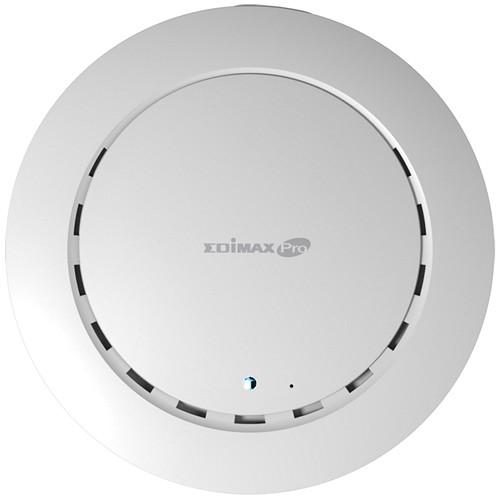

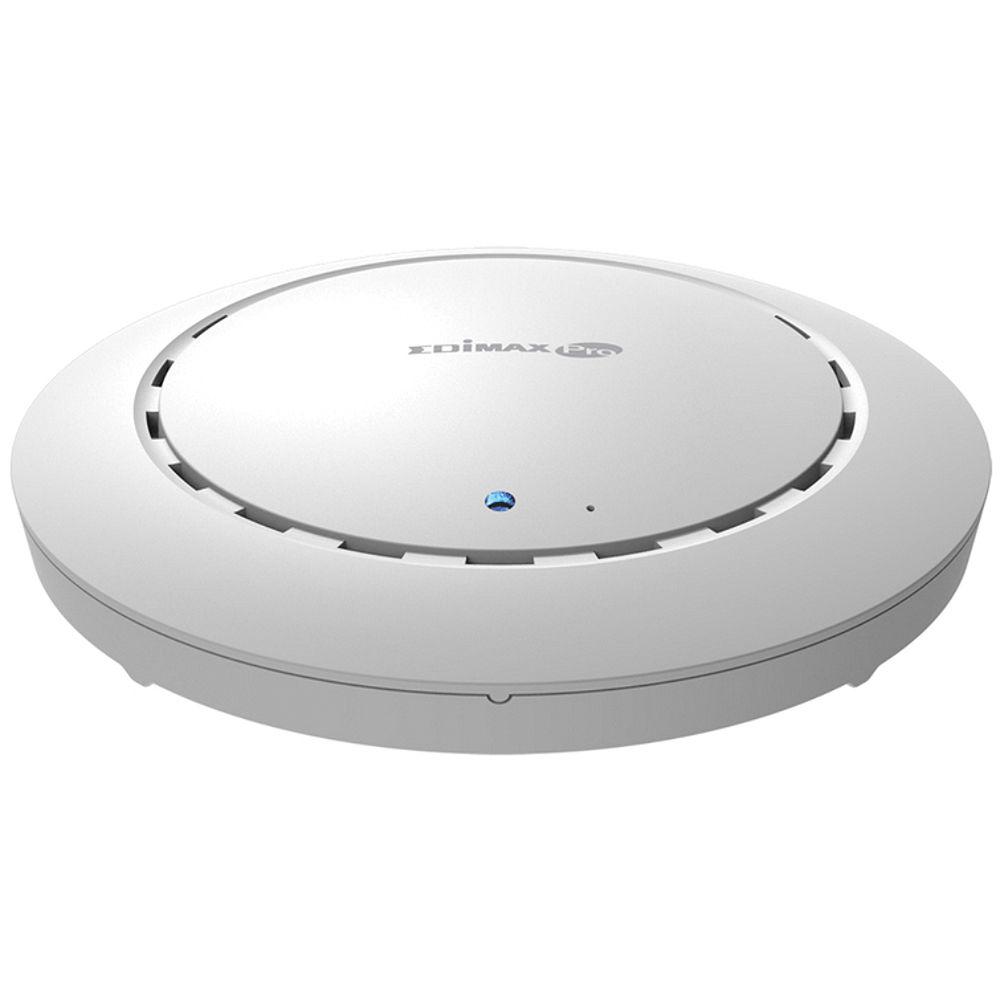

User Manual for EDIMAX Technology 2 x 2 AC Dual-Band Ceiling-Mount PoE Access Point Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology 2 x 2 AC
- Product category: Wireless Access Points EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Access Points
 |
User manual for the EDIMAX Technology 2 x 2 AC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The 2 x 2 AC Dual-Band Ceiling-Mount PoE Access Point from EDIMAX Technology is a powerful wireless solution designed to meet the requirements of modern mainstream businesses with IEEE 802.11ac technology for wireless speeds up to 1200 Mb/s. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling mount design make a suitable dual-band solution for enterprise environments. For businesses that demand security, flexibility and speed, the Edimax Pro has a wide range of potential applications from office environments to schools, campuses, hotels, and hospitals. High-density capacity for up to 100 simultaneous users is suitable for BYOD workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive Web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators. The Edimax Pro is suitable to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed. - 802.11ac Dual-Band High Speed
- IEEE 802.11ac concurrent dual-band with 1200 Mb/s wireless speed
- Easy Installation
- Ceiling-mount and T-rail mount design with easy installation kit
- Compact and Durable Housing
- Ultra slim design with UL94-5VB flame-retardant plastic housing
- Designed for High Density Usage
- Supports up to a hundred users simultaneously, suitable for crowded environments and BYOD (Bring Your Own Device) workplaces
- Multiple SSIDs for Security Management
- Supports up to 32 SSIDs (16 x 2.4 GHz and 16 x 5 GHz) suitable for multiple departments, user groups, customers or guests
- Fast Roaming
- Roams smoothly between APs without lag or interruption, ensuring top performance for video and voice streaming applications
- Wide Coverage and High Sensitivity
- Adjustable RF output power and high receiver sensitivity for wide coverage across large spaces
- Seamless Mobility
- 1.5 times better coverage than typical APs for blanket coverage to ensure seamless connectivity for Wi-Fi devices across enterprise environments
- Power over Ethernet
- Supports IEEE 802.3af PoE as well as included power adapter
- Built-In RADIUS Server
- With management for up to 256 user accounts
- Business Environments
- Mainstream choice for SMBs that is suitable for a wide range of commercial applications such as offices, hotels, meeting rooms, schools, campuses, resorts, retail, and others
- Central Network Management Suite
- Edimax Pro NMS (Network Management Suite) is a Web-based wireless network management system. Company MIS persons can plan and manage Edimax Pro access points' powerful functionality according to office space using an easy, remote Web-based interface which includes a dashboard, map view, traffic statistics, and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings, and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.
UPC: 649659025134 In the Box EDIMAX Technology 2 x 2 AC Dual-Band Ceiling-Mount PoE Access Point Ceiling Mount Bracket T-Rail Mounting Kit and Screws CD Ethernet Cable Power Adapter Ceiling Mount Screw Template Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology 2 x 2 AC Dual-Band Ceiling-Mount PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the EDIMAX Technology 2 x 2 AC Dual-Band Ceiling-Mount PoE Access Point can be downloaded in PDF format at the link stated below.
Technical parametersEDIMAX Technology CAP1200 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | WLAN Mode | 802.11ac | | Sensitivity | -58 to -95 dBm | | Antenna Gain | 2.8 to 4 dBi | | Transmit Power | 18 to 26 dBm | | Supported Protocols | IPv6
WMM | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point, Bridge | | Max SSIDs Supported | 16 | | Throughput | 2.4 GHz: 300 Mb/s
5 GHz: 867 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.1x, 802.3af, 802.3az | | | | DC Input Power | 12 VDC at 1 A | | Power Consumption | 11 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | | | Dimensions | 6.9 x 1.2" / 17.6 x 3.2 cm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.3 x 8.5 x 2.6" |
