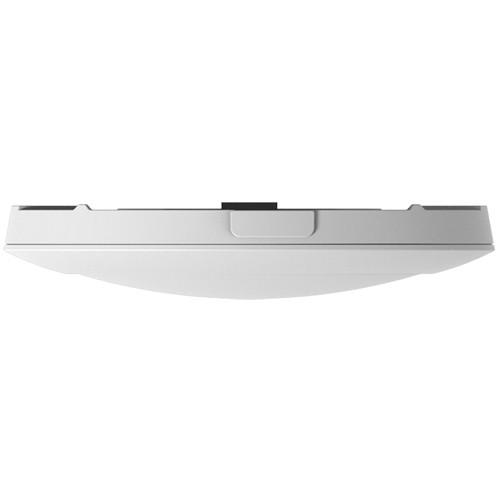

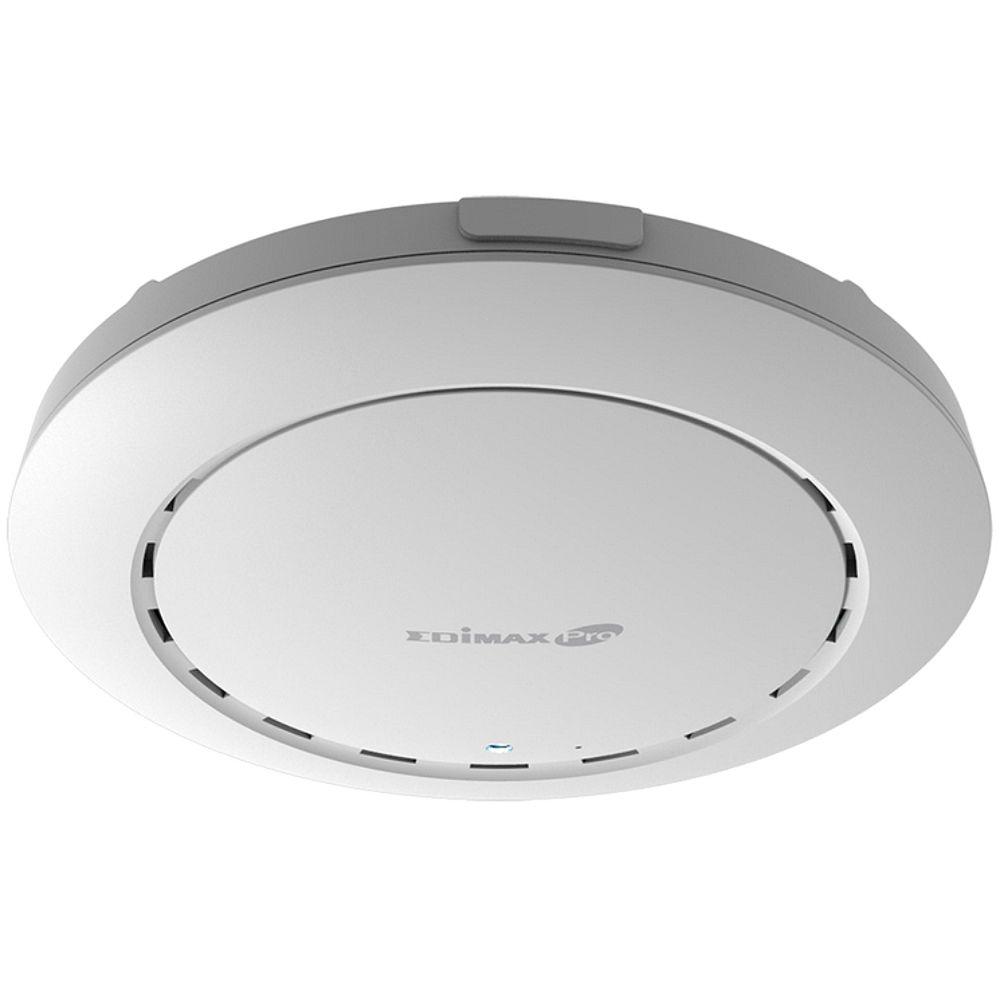

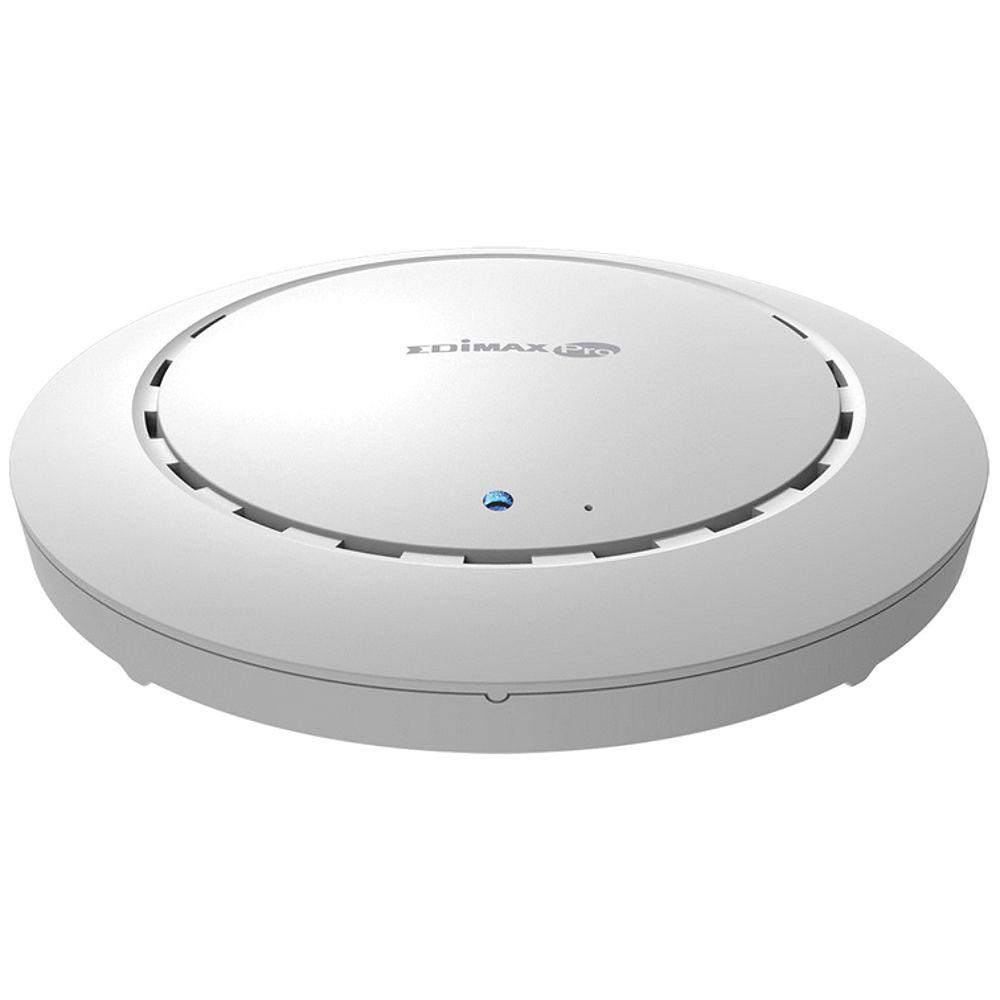

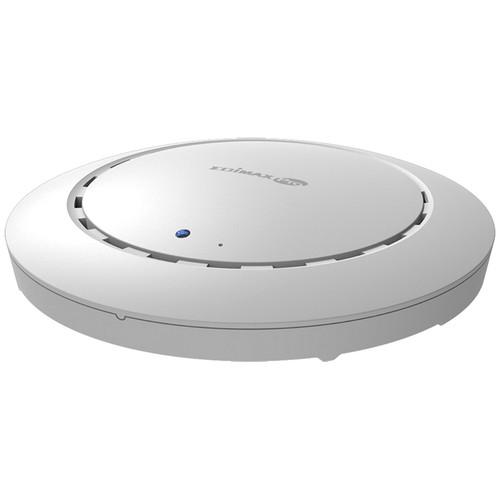

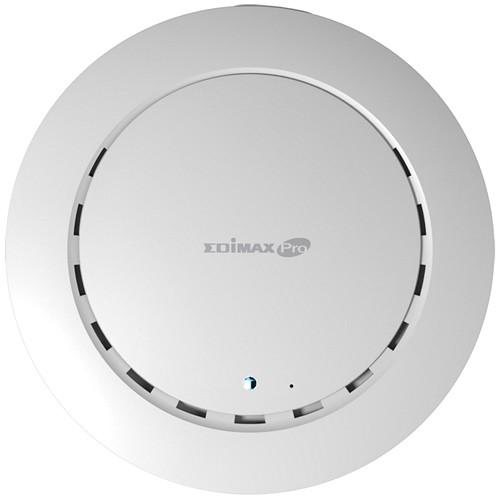

Product description The 2 x 2 N Ceiling-Mount PoE Access Point from EDIMAX Technology is a reliable and affordable entry level wireless access point designed to meet the needs of modern small to medium sized businesses, with IEEE802.11n wireless speeds up to 300 Mb/s. Industrial-grade performance and build quality combined with user-friendly operation, an extensive feature set and a practical, ceiling-mount design make it ideal product for day-to-day enterprise use. The Access Point has a wide range of potential applications from office environments to schools, campuses, hotels, and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE), and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators. - High Performance Design
- It supports 802.11b/g/n with speeds up to 300 Mb/s when connected to wireless 802.11n devices. It features other high-performance design features such as solid capacitors for significantly longer life spans, generating less heat, and delivering increased stability. It is durable, robust and ready for business environments. It also features an internal buzzer and WPS/Reset button.
- Wide Coverage and Multiple SSIDs
- With adjustable RF output power and high receiver sensitivity, it is equipped to provide wide coverage. It is suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms. It keeps every corner of your business connected and differentiates user groups, departments, or guests with up to 16 separate SSIDs with independent security. It also offers wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.
- BYOD Solutions and High Density Networking
- Bring Your Own Device (BYOD) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. The Access Point supports the Wi-Fi along with high-density capacity to support up to fifty users simultaneously, ideal for BYOD workplaces and a large number of wireless devices.
- Seamless Mobility
- Typical wireless access points can effectively cover a 25- to 30-meter radius under normal usage. You can extend effective coverage approximately 1.5x further, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices.
- Large-Scale Network
- With high-speed 11n high-density networking for up to 50 simultaneous users, it provides an ideal solution for multi-tenant unit buildings, hotels, resorts, hospitals, campuses, and conventions with large-scale network use, with safety and effectiveness guaranteed.
- Rogue AP Detection & Wireless Isolation
- Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.
- Easy and Intuitive Central Network Management Suite (NMS)
- Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system. Company MIS departments can plan and manage access point functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics, and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings, and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.
- AP Array
- Edimax Pro Network Management Suite (NMS) supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 8 Edimax Pro access points with no additional wireless controller required, reducing costs and facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface.
- Easy Installation Kit
- It provides ceiling-mount & T-rail mount design with easy installation kit.
- Security
- The Access Point offers Wireless L2 Isolation, Station Isolation, IEEE 802.1x Authenticator, Hidden SSID, MAC Address Filter, Wireless STA, and Rogue AP Detection (Edimax Pro Network Management Suite (NMS)) for security.
UPC: 649659025158 Guides & Manuals fzbqeezu Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology 2 x 2 N Ceiling-Mount PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the EDIMAX Technology 2 x 2 N Ceiling-Mount PoE Access Point can be downloaded in PDF format at the link stated below.
Technical parametersEDIMAX Technology CAP300 Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | WLAN Mode | 802.11n | | Sensitivity | -70 to -95 dBm | | Antenna Gain | 2.8 dBi | | Transmit Power | 19 to 26 dBm | | Supported Protocols | WMM
SNMPv1
SNMPv2c
SNMPv3 | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | | | Operation Modes | Access Point, Bridge | | Max SSIDs Supported | 16 | | Throughput | 300 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.3af, 802.3az | | | | DC Input Power | 12 VDC at 1 A | | Power Consumption | 6.5 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 90% | | | | Dimensions | 1.3 x 6.9" / 3.2 x 17.6 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 11.26 x 8.583 x 2.677" |
