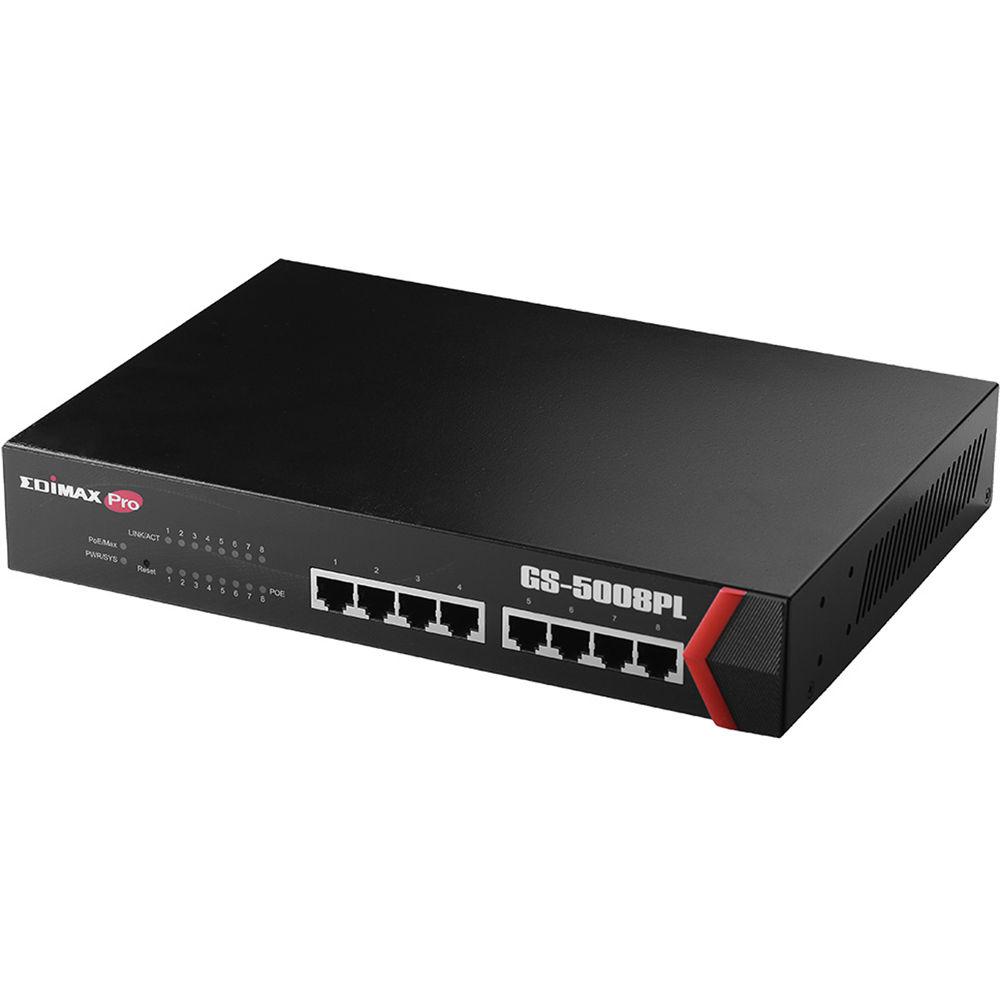

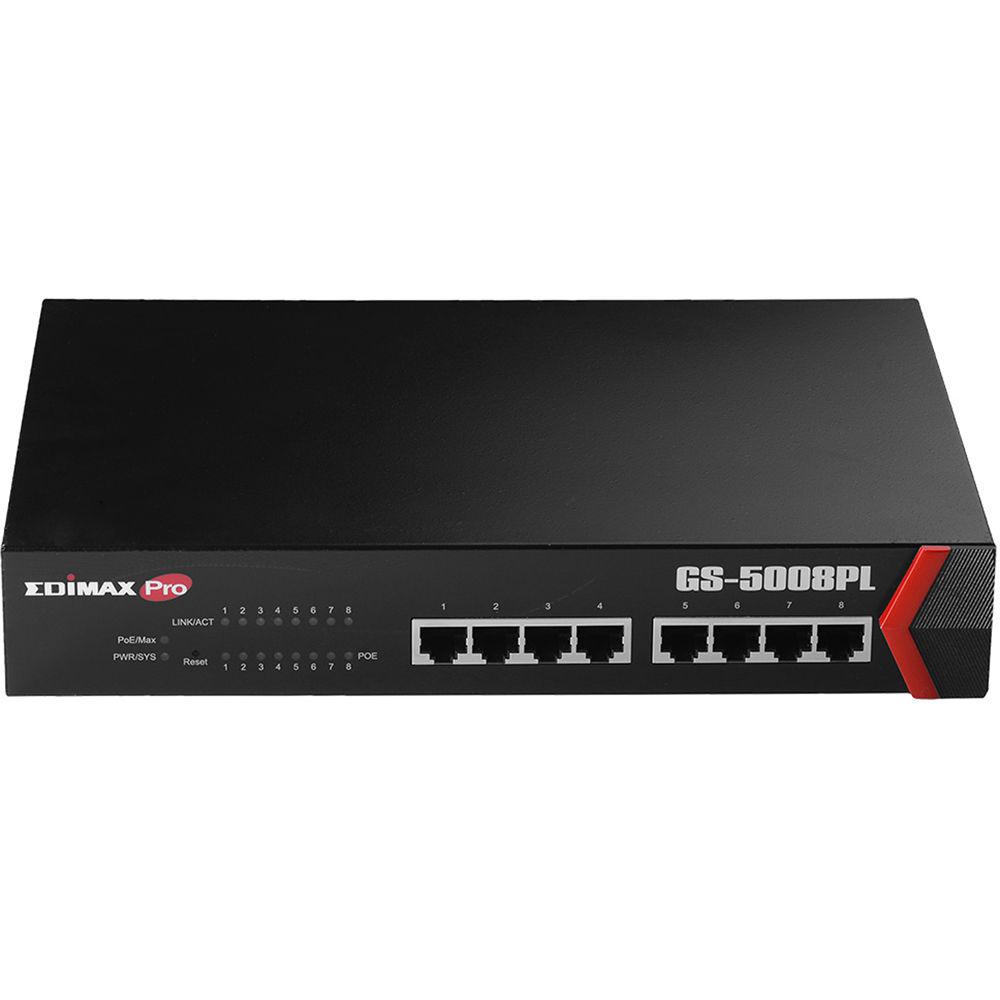

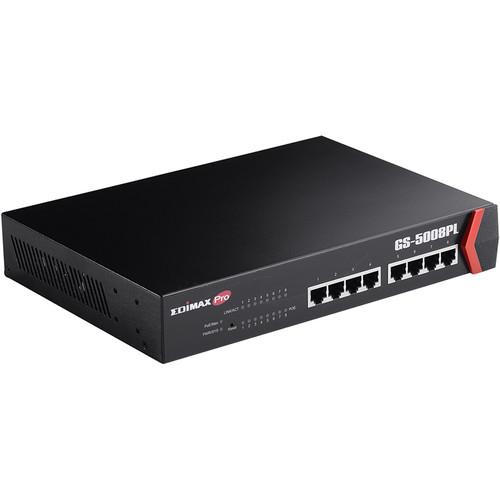

Product description Supporting the 802.3af/at PoE network standard, the 8-Port Gigabit PoE+ Web Smart Switch from Edimax supports up to 30W of power per port and comes with a total power budget of up to 150W. With power like this users can connect a variety of PoE compliant devices such as access points, VoIP phones, and more directly to the switch without the need to power the devices independently. Once configured this Edimax switch offers enhanced network reliability thanks to the 16 Gb/s switching capacity, 11.9 Mb/s forwarding rate, 4K MAC address table, and 192 KB memory buffer. Additional features such as QoS support and IGMP snooping allow network administrators to manage network traffic to ensure each connected client receives the necessary bandwidth to operate effectively. - IEEE 802.3at/af Power over Ethernet Standard
- The GS-5008PL features 8 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port, and has a total power supply of 150 W to power any 802.3at or 802.3af compliant power device. With PoE detection capability, the GS-5008PL is able to verify whether the connected device is IEEE 802.3at or 802.3af compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable. The GS-5008PL can be used with different PoE products such as access points, network cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.
- PoE for Easy Installation and Better Cost Efficiency
- PoE technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. Overall the GS-5008PL can lower installation costs and simplify the deployment effort.
- Power-Budget User Interface for PoE Device Management
- The GS-5008PL features an innovative power-budget UI which allows IT managers to monitor the power consumption of each PoE port and the total power consumption of connected PoE devices. Monitor the entire PoE network and assess the total power usage before adding new PoE devices to the network architecture. The power-budget UI also features a remote on/off function for each PoE port, so manual plug/unplug isn't necessary when a PoE device hangs. Simply use the remote power button to quickly reset the device.
- Smart Tools for Improved Network Efficiency
- The GS-5008PL features smart network monitoring tools that allow for improved network efficiency. Security and management features include bandwidth control and VLAN (IEEE 802.1Q VLAN tagging and port-based VLAN). Using its web-based interface, administrators can set up VLANs to segregate traffic and configure link aggregation settings to create fat traffic pipelines. Additionally, these features offer extra protection on the network edge and the password-protected configuration interface can be accessed remotely.
UPC: 649659020795 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology 8-Port Gigabit PoE Web Smart Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology GS-5008PL Specs | | | Ports | 8 x Port RJ-45 10/100/1000Base-T PoE+ ports | | Transmission Method | Store and forward | | Buttons | Reset button | | LED Indicators | Per Port: Link/Act
PoE: Act/Status
Per Unit: Power | | Power Input | 100-240 VAC, 50-60 Hz (internal power supply) | | Power Consumption | 150 W | | | | Switching Capacity | 16 Gbps | | Forwarding Rate | 11.9 Mpps | | MAC Address | 4 K | | Buffer Memory | 192 KB | | Jumbo Frames | 9.6 KB | | Filtering / Forwarding Rates | 1000 Mbps Port - 1,488,000 pps 100 Mbps Port - 148,800 pps 10 Mbps Port - 14,880 pps | | | | Standard | IEEE 802.3af, IEEE 802.3at | | Power Output | Up to 30 W per port | | Pin Assignments | 1/2(+), 3/6(-) End-Span (mode A) | | Power Budget | 130 W, (Port 1 to 4 = 65 W & Port 5 to 8 = 65 W) | | Management | PoE ouput on/off management | | | | VLAN | Up to 8 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN | | Port Trunking | IEEE 802.3ad LACP Trunk-Static trunk up to 1 trunk groups | | IGMP Snooping | IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Multicast Groups: 20 | | QoS (Quality of Service) | Port-based QoS, IEEE802.1p QoS, 4 Priority Queues, scheduling algorithm | | Management | User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log | | Security | Broadcast Storm control | | | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 10 to 90% non-condensing | | | | Standards | IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1Q VLAN
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3p Quality of Service (QoS) | | Certifications | FCC Class A, CE | | | | Dimensions | 10.43 x 7.24 x 1.73" / 265 x 184 x 44 mm | | Weight | 3.57 lb / 1.62 kg | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 12.7 x 10.8 x 2.9" |
