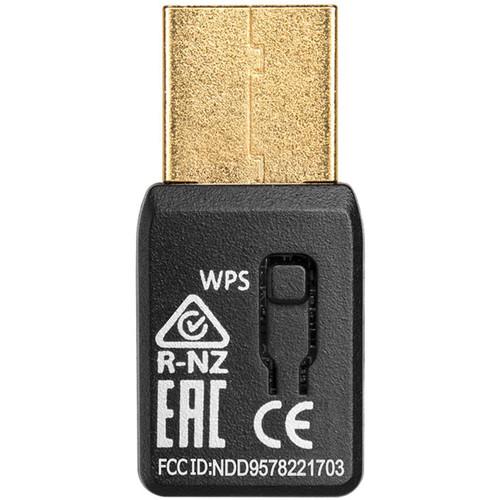

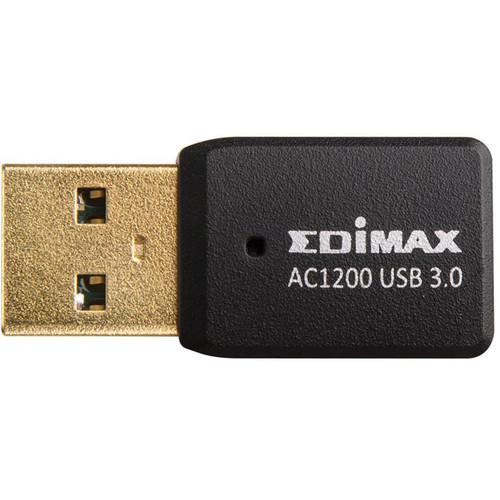

User Manual for EDIMAX Technology AC1200 Dual-Band MU-MIMO USB 3.0 Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology AC1200 Dual-Band MU-MIMO USB
- Product category: Wireless Adapters & Cards EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Adapters & Cards
 |
User manual for the EDIMAX Technology AC1200 Dual-Band MU-MIMO USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description Connect your laptop or other USB equipped computer to a Wi-Fi network with the AC1200 Dual-Band MU-MIMO USB 3.0 Adapter from Edimax. This tiny, discrete USB Wi-Fi adapter features a USB 3.0 connector and supports the 802.11ac Wi-Fi network standard while operating on both 2.4 GHz and 5 GHz frequencies. Once configured, users can take advantage of wireless data transfer rates of up to 1200 Mb/s along with support for both MU-MIMO and beamforming technologies to ensure you receive a strong, reliable Wi-Fi connection. - Super-Speed with 802.11ac
- The EW-7822UTC runs ultra-speed 802.11ac Wi-Fi, that's almost three times faster than 802.11n. Upgrade your laptop or PC to 802.11ac Wi-Fi so you can enjoy online video streaming and multiple data transfers at the fastest speeds.
- USB 3.0 Connectivity
- USB 3.0 is up to 10 times faster than USB 2.0 with data transfer rates up to 5 Gb/s. It enables devices to achieve the superfast speeds which 802.11ac can provide for faster photos, music, videos, and data.
- Dual-Band Flexibility
- Experience better performance and greater flexibility with EW-7822UTC for your laptop with dual-band connectivity. Either the 2.4 GHz or 5 GHz frequency band can be selected with top speeds at 300 Mb/s and 867 Mb/s respectively. Surf the internet and check emails on the longer-range 2.4 GHz band, or use the high-speed 5 GHz band for online gaming and YouTube or Netflix HD streaming.
- 11ac MU-MIMO
- The latest 11ac MU-MIMO (Multiple User - Multiple Input Multiple Output) technology runs four streams and serves multiple devices simultaneously, for the fastest speeds and uninterrupted Wi-Fi connectivity to all devices.
- MU-MIMO for Non-Stop Streaming
- Instantly upgrade your older laptop or PC to 11ac MU-MIMO functionality. Everyone in the room can enjoy smooth surfing, streaming, and gaming at the same time when the EW-7822UTC is successfully paired with a MU-MIMO router.
- Beamforming Wi-Fi
- Beamforming generates directionally targeted Wi-Fi signals, instead of standard Wi-Fi which radiates outwards. Paired with any beamforming router, the EW-7822UTC's beamforming support enables your Wi-Fi signal to be targeted at your adapter for a stronger, more reliable and efficient Wi-Fi connection. This means better audio quality and HD video streaming as you explore your digital wonderland.
- Tiny, Stylish Design for Laptops
- This tiny USB Wi-Fi adapter can be plugged into any laptop for more mobility and convenience, and it looks great. The tiny design means it feels like nothing to carry around, so it's easy to always keep it with your laptop.
UPC: 649659025295 In the Box EDIMAX Technology AC1200 Dual-Band MU-MIMO USB 3.0 Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology AC1200 Dual-Band MU-MIMO USB 3.0 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7822UTC Specs | | | Interface | 1 x USB 3.0 Type A
1 x Link/activity LED | | Antenna | 2 x Internal antennas (2T2R) | | | | Standards | 2.4 GHz: IEEE 802.11b, 802.11g, 802.11n
5 GHz: IEEE 802.11ac, 802.11a, 802.11n | | Frequency | 2.4000-2.4835 GHz
5.150-5.825 GHz
FCC: Band 1: 5.150~5.250 (GHz); Band 4: 5.745~5.850 (GHz)
CE: Band 1: 5.150~5.250 (GHz) | | Signal Rate | 2.4 GHz
11n: Up to 300 Mb/s (dynamic)
11g: Up to 54 Mb/s (dynamic)
11b: Up to 11 Mb/s (dynamic)
5GHz
11ac: Up to 867 Mb/s (dynamic)
11g: Up to 300 Mb/s (dynamic)
11a: Up to 54 Mb/s (dynamic) | | Transmit Power | <20 dBm (EIRP) | | Security | WEP 64/128-bit, WPA, WPA2
Hardware & software WPS configuration | | Modulation Technology | DBPSK, DQPSK, CCK, 16-QAM, 64-QAM, 256-QAM | | | | Certifications | CE, FCC, RoHS | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90% non-condensing
Storage Humidity
Max. 95% non-condensing | | System Requirements | Windows 7/8/8.1 or above
Mac OS 10.7 or above | | Dimensions | 0.3 x 0.6 x 1.3" / 0.8 x 1.6 x 3.4 cm | | Weight | 0.1 oz / 4.0 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.8 x 3.5 x 0.7" |
