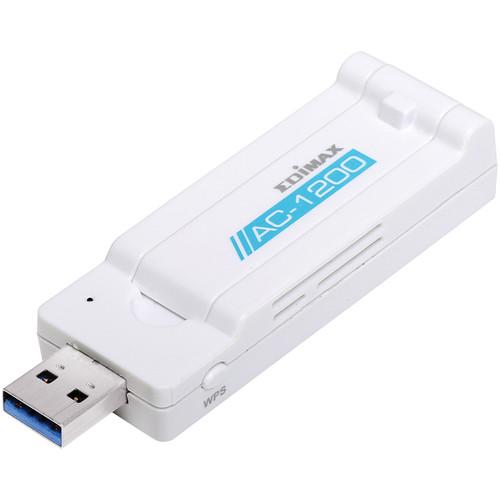

User Manual for EDIMAX Technology AC1200 Wireless Dual-Band USB 3.1 Gen 1 Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology AC1200 Wireless Dual-Band USB
- Product category: Wireless Adapters & Cards EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Adapters & Cards
 |
User manual for the EDIMAX Technology AC1200 Wireless Dual-Band USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The AC1200 Wireless Dual-Band USB 3.0 Adapter from EDIMAX Technology is the latest and fastest wireless standard. Super-speed 802.11ac dual-band routers are already available but older wireless devices don't support 802.11n technology. This USB 3.0 adapter lets you upgrade your wireless device to dual-band 802.11ac connectivity for fast Wi-Fi speeds on the interference free 5 GHz frequency band. - USB 3.0
- USB 3.0 is up to 10 times faster than USB 2.0 and specifies a maximum transmission speed of to 5 Gb/s. Providing quicker data transmission times, and backwards compatibility with USB 2.0 (which specifies a maximum speed of 480 Mb/s), USB 3.0 is the new standard in connectivity, enabling devices to achieve the superfast speeds which 802.11ac can provide.
- Next Generation Wi-Fi Standard
- The Edimax EW-7822UAC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 867 Mb/s at 5 GHz, which is almost three times as fast as 802.11n. The EW-7822AC can upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi with streaming video and data at speeds of up to 867 Mb/s.

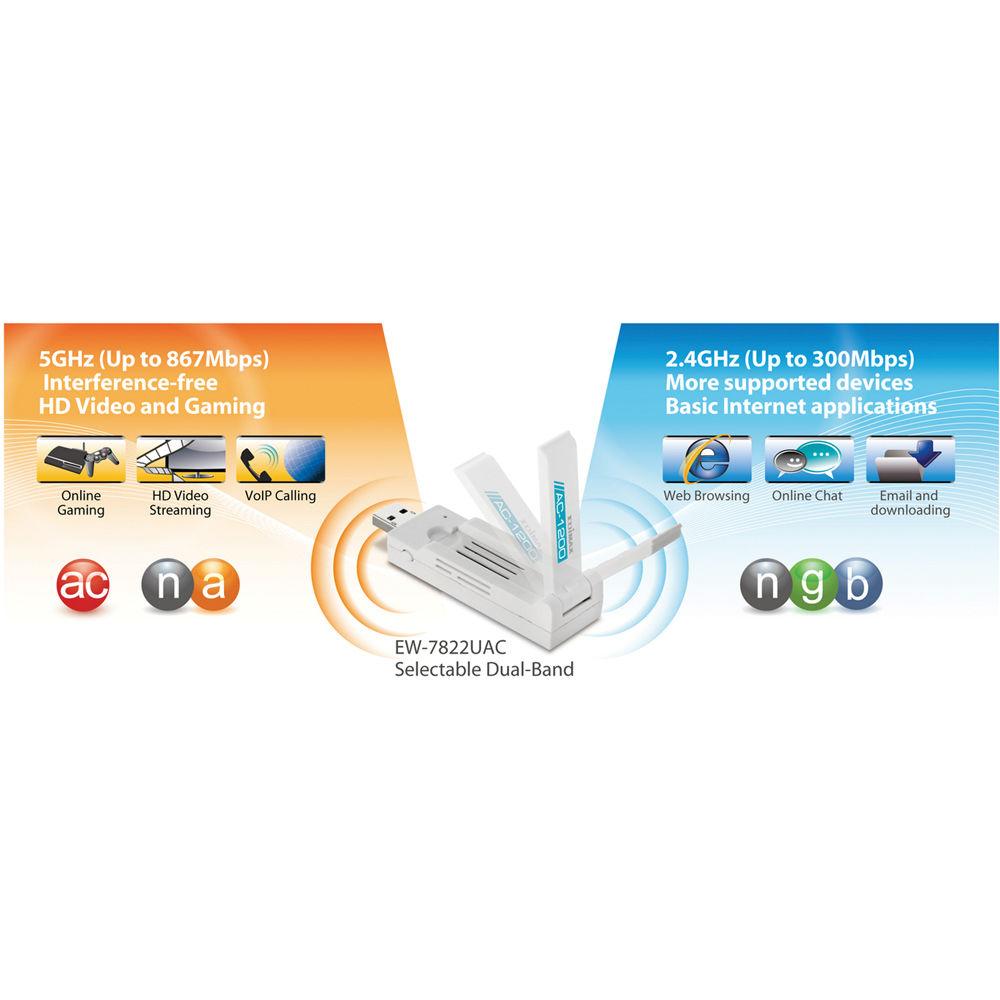

- Dual-Band Connectivity
- You can enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW- 7822UAC provides connectivity for the 2.4 GHz band at speeds of 300 Mb/s or 5 GHz band at speeds of 867 Mb/s. You can surf the Internet and check your email on the 2.4 GHz band, or select the 5 GHz band for online gaming and video streaming.
- Download and Stream Anywhere
- Use the EW-7822UAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

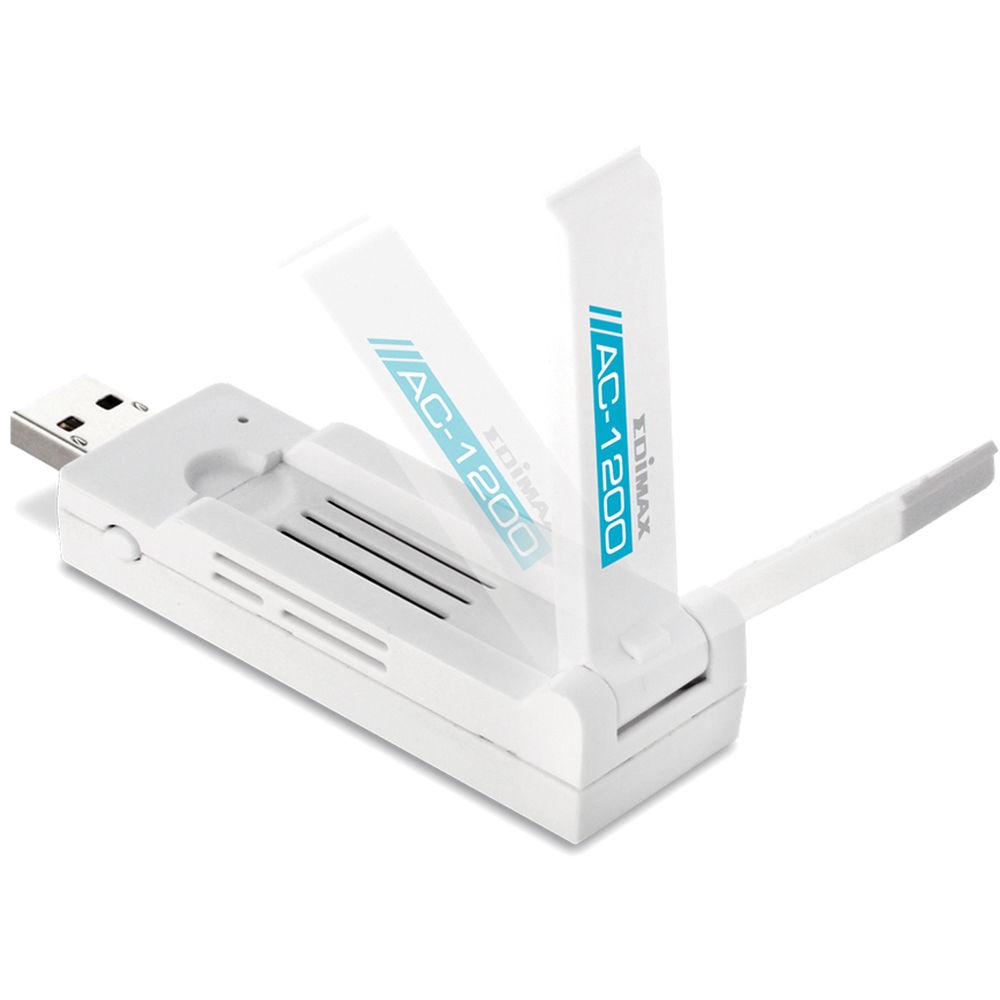

- 180 Degree Adjustable Foldaway Antenna
- The EW-7822UAC's sleek design features an adjustable foldaway antenna, allowing users to adjust the antenna's angle for optimum Wi-Fi performance and fold back the antenna to minimize size when it's not in use.
UPC: 649659022959 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology AC1200 Wireless Dual-Band USB 3.1 Gen 1 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7822UAC Specs | Hardware | 1 x USB 3.0 Type A
1 x Hardware WPS Button
1 x Link/Activity LED
2 x Antennas | | Standards | 2.4 GHz: IEEE 802.11b, 802.11g, 802.11n
5 GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n | | Frequency Band | 2.4000 to 2.4835 GHz (subject to local regulations)
5.150 to 5.825 GHz (subject to local regulations) | | Output Power | 2.4 GHz
11b (11 Mb/s): 16dBm±1.5dBm
11g (54 Mb/s): 14dBm±1.5dBm
11n (20 MHz, MCS7): 14dBm±1.5dBm
11n (40 MHz, MCS7): 12dBm±1.5dBm
5 GHz
11a (54 Mb/s): 12dBm±1.5dBm
11n (20 MHz, MCS7): 10dBm±1.5dBm
11n (40 MHz, MCS7): 10dBm±1.5dBm
11ac (80 MHz, MCS9): 10dBm±1.5dBm | | Installation | Multi-language easy setup wizard Hardware WPS button for easy wireless connections | | Data Rate | 11a: 6/9/12/24/36/48/54 Mb/s
11b: 1/2/5.5/11 Mb/s
11g: 6/9/12/24/36/48/54 Mb/s
11n (20 MHz): MCS0-15 (up to 144 Mb/s)
11n (40 MHz): MCS0-15 (up to 300 Mb/s)
11ac (40 MHz): MCS0-9 (up to 400 Mb/s)
11ac (80 MHz): MCS0-9 (up to 867 Mb/s) | | LED | WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware & software WPS configuration | | Certifications | CE/FCC | | Temperature & Humidity | Maximum 95% (non-condensing)
32 to 104°F (0 to 40°C) | | Dimensions (L x W x H) | 3.42 x 1.06 x 0.70" (87.10 x 27.00 x 18.00 mm) | | Weight | 0.81 oz (23.00 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 8.189 x 5.433 x 1.417" |
