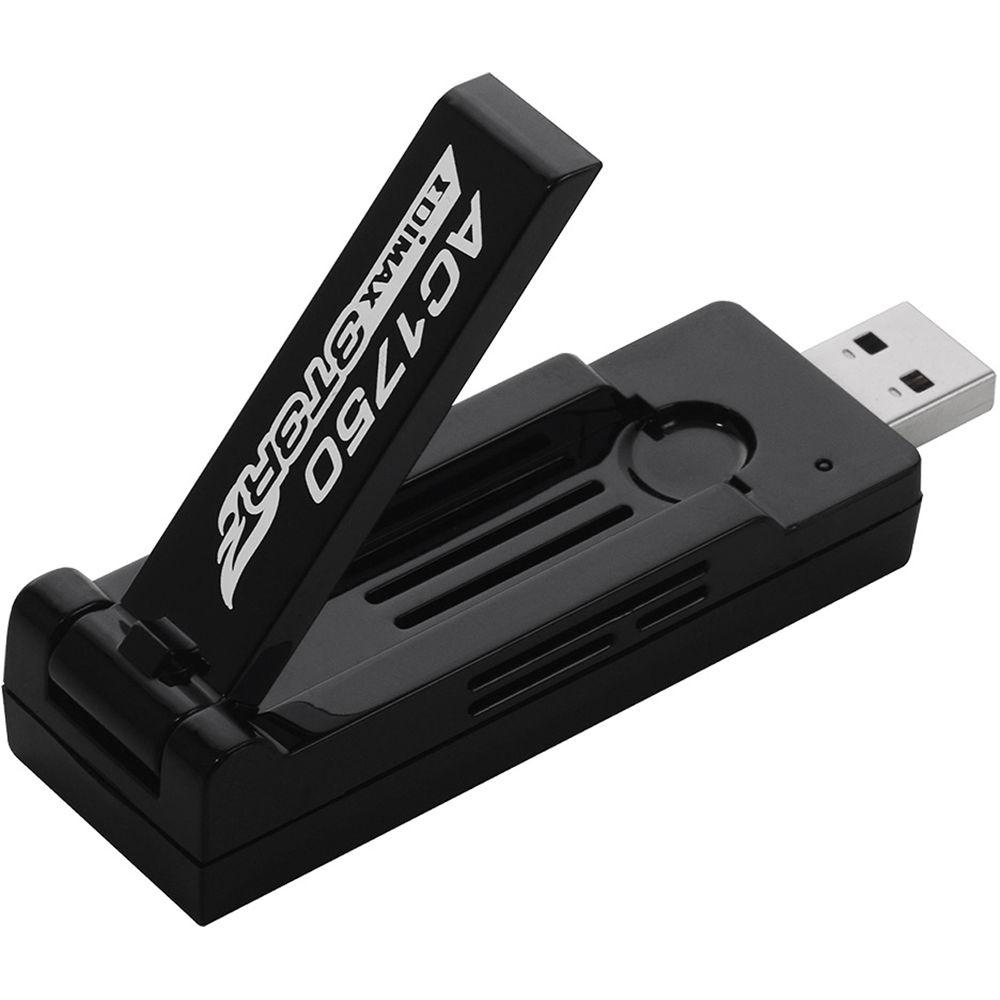

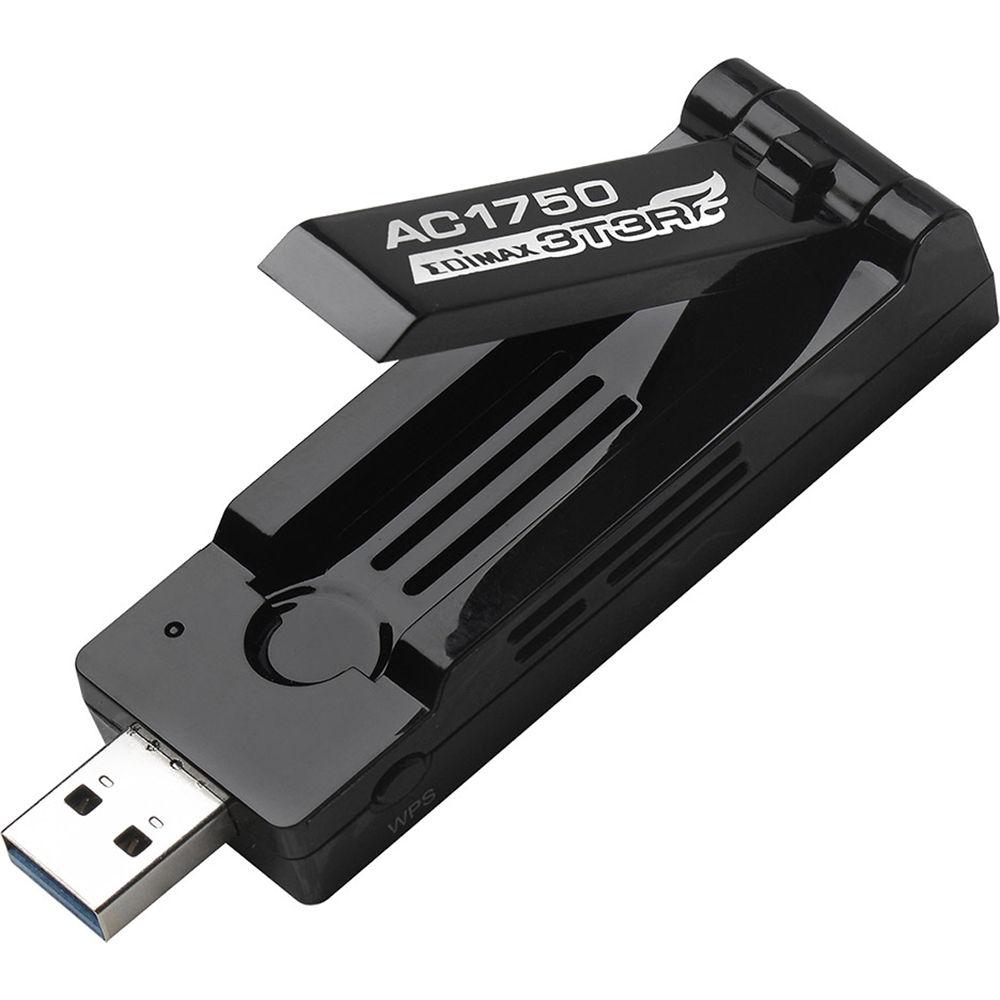

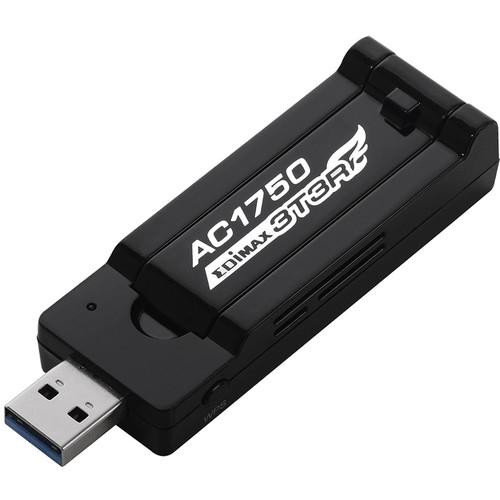

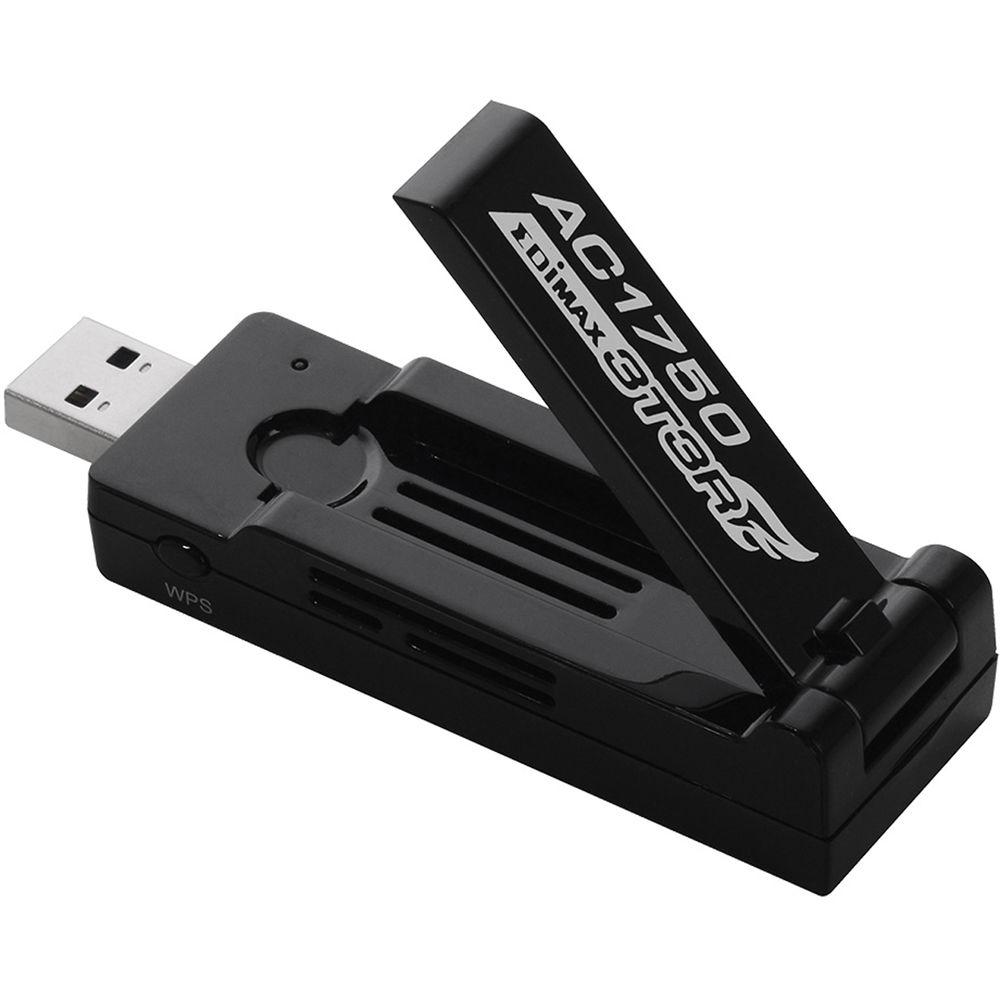

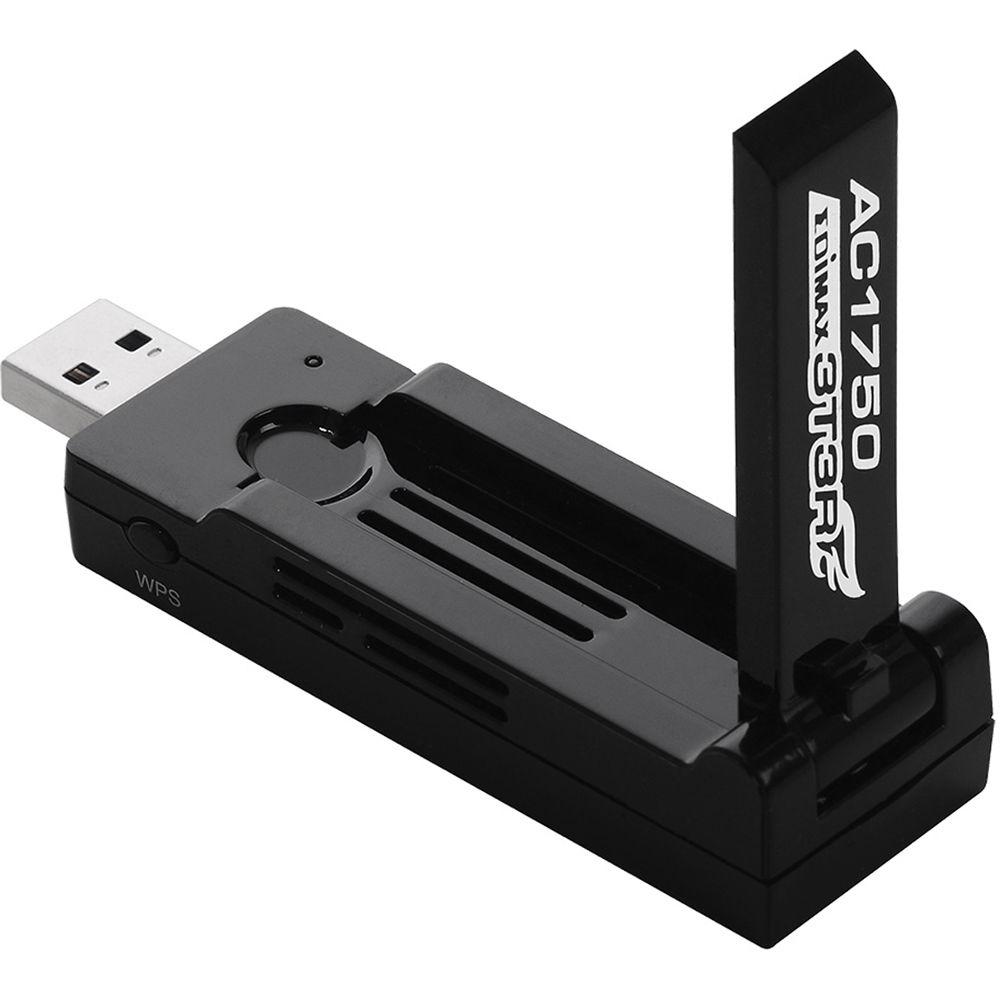

User Manual for EDIMAX Technology AC1750 802.11ac Dual-Band Wi-Fi USB 3.1 Gen 1 Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology AC1750 802.11ac Dual-Band Wi-Fi
- Product category: Wireless Adapters & Cards EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Adapters & Cards
 |
User manual for the EDIMAX Technology AC1750 802.11ac Dual-Band Wi-Fi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description Add wireless high-speed dual-band connectivity to your computer with the AC1750 802.11ac Dual-Band Wi-Fi USB 3.0 Adapter from EDIMAX Technology. This adapter uses a USB Type-A interface so it's compatible with almost every system; however, by connecting it to a USB 3.0 port, you'll be able to utilize the max data transfer rate provided by the 802.11ac network. With dual-band connectivity, you can connect to 2.4 GHz and 5 GHz frequencies for speeds of up to 450 Mbps and 1300 Mbps respectively. It also features beamforming and MIMO technology for a more efficient, stable, and optimized wireless connection. The adjustable antenna can be rotated 180 degrees for optimal Wi-Fi connectivity and performance. For security, this device has 64- and 128-bit WEP, WPA, and WPA2 encryption as well as a one-click WPS button for an easy set up. - Easy Upgrade to 802.11ac
- With a USB 3.0 Type-A interface, this adapter can be plugged into any standard USB port to give you access to 802.11ac networks. It also features dual-band connectivity so you can connect to the 2.4 GHz and 5 GHz band for speeds of up to 450 Mbps and 1300 Mbps respectively. By using a USB 3.0 port, you'll be able to fully utilize the speeds provided by the 802.11ac connection.
- Beamforming and MIMO Technology
- Beamforming technology directs wireless signals towards your devices for a more efficient and stable connection. Furthermore, this adapter features multiple input and multiple output (MIMO) technology with three transmitter and three receiver antennas to optimize data speed for better performance.

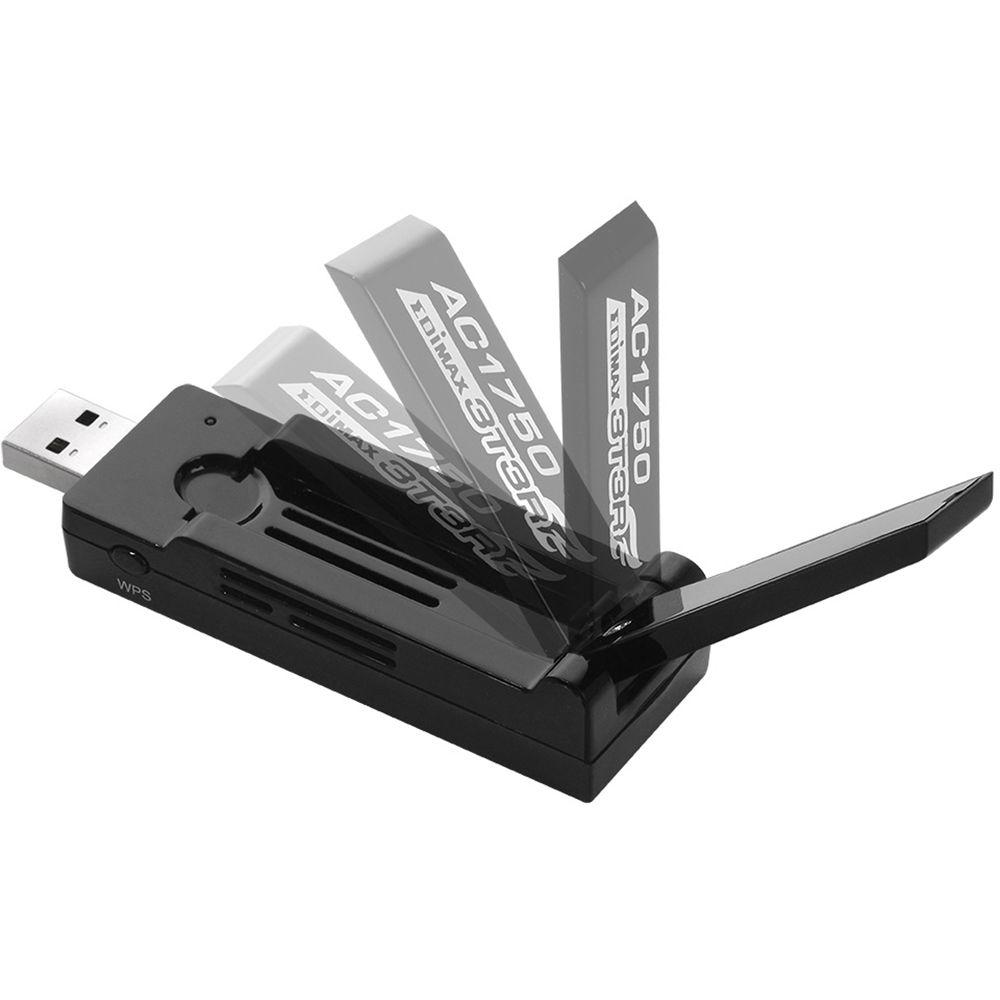

- 180° Adjustable Foldaway Antenna
- The 180° adjustable foldaway antenna lest you adjust the antenna's angle for optimal Wi-Fi performance. It also folds back into the adapter when not in use, making it compact and portable.
UPC: 649659025226 In the Box EDIMAX Technology AC1750 802.11ac Dual-Band Wi-Fi USB 3.1 Gen 1 Adapter Limited 2-Year Warranty Brochure PDF 932.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology AC1750 802.11ac Dual-Band Wi-Fi USB 3.1 Gen 1 Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology AC1750 Specs | | | Interface | USB 3.0 Type-A | | Buttons | WPS Button | | LED | Link/Activity LED | | Antennas | 3T3R MIMO:
3 x Transmitter Antennas
3 x Receiver Antennas | | | | Standards | 2.4 GHz: IEEE 802.11b/g/n
5 GHz: IEEE 802.11ac/a/n | | Frequency | 2.4000 - 2.4835 GHz (subject to local regulations)
5.150 - 5.825 GHz (subject to local regulations)- FCC:
- Band 1: 5.150~5.250 GHz
- Band 4: 5.745~5.850 GHz
- CE:
- Band 1: 5.150~5.250 GHz
| | Output Power | 2.4 GHz:
11b (11 Mbps): 16 dBm ± 1.5 dBm
11g (54 Mbps): 14 dBm ± 1.5 dBm
11n (20 MHz, MCS7): 14 dBm ± 1.5 dBm
11n (40 MHz, MCS7): 12 dBm ± 1.5 dBm
5 GHz:
11a (54 Mbps): 12 dBm ± 1.5 dBm
11n (20 MHz, MCS7): 10 dBm ± 1.5 dBm
11n (40 MHz, MCS7): 10 dBm ± 1.5 dBm
11ac (80 MHz, MCS7): 9.5 dBm ± 1.5 dBm | | Operating Range | 11a: 6/9/12/24/36/48/54 Mbps
11b: 1/2/5.5/11 Mbps
11g: 6/9/12/24/36/48/54 Mbps
11n (20 MHz): MCS0-15 (up to 223 Mbps)
11n (40 MHz): MCS0-15 (up to 450 Mbps)
11ac (80 MHz): MCS0-9 (up to 1300 Mbps) | | Security | WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware & Software WPS Configuration | | | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Operating Humidity | Max 95% (non-condensing) | | | | Certification | CE, FCC | | Dimensions (L x W x H) | 3.43 x 1.06 x 0.71" (87.1 x 27 x 18 mm) | | Weight | 0.81 oz (23 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 9.1 x 5.3 x 1.6" |
