User Manual for EDIMAX Technology AC600 Wi-Fi Dual-Band High-Gain USB Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology AC600 Wi-Fi Dual-Band High-Gain
- Product category: Wireless Adapters & Cards EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Adapters & Cards
 |
User manual for the EDIMAX Technology AC600 Wi-Fi Dual-Band High-Gain contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

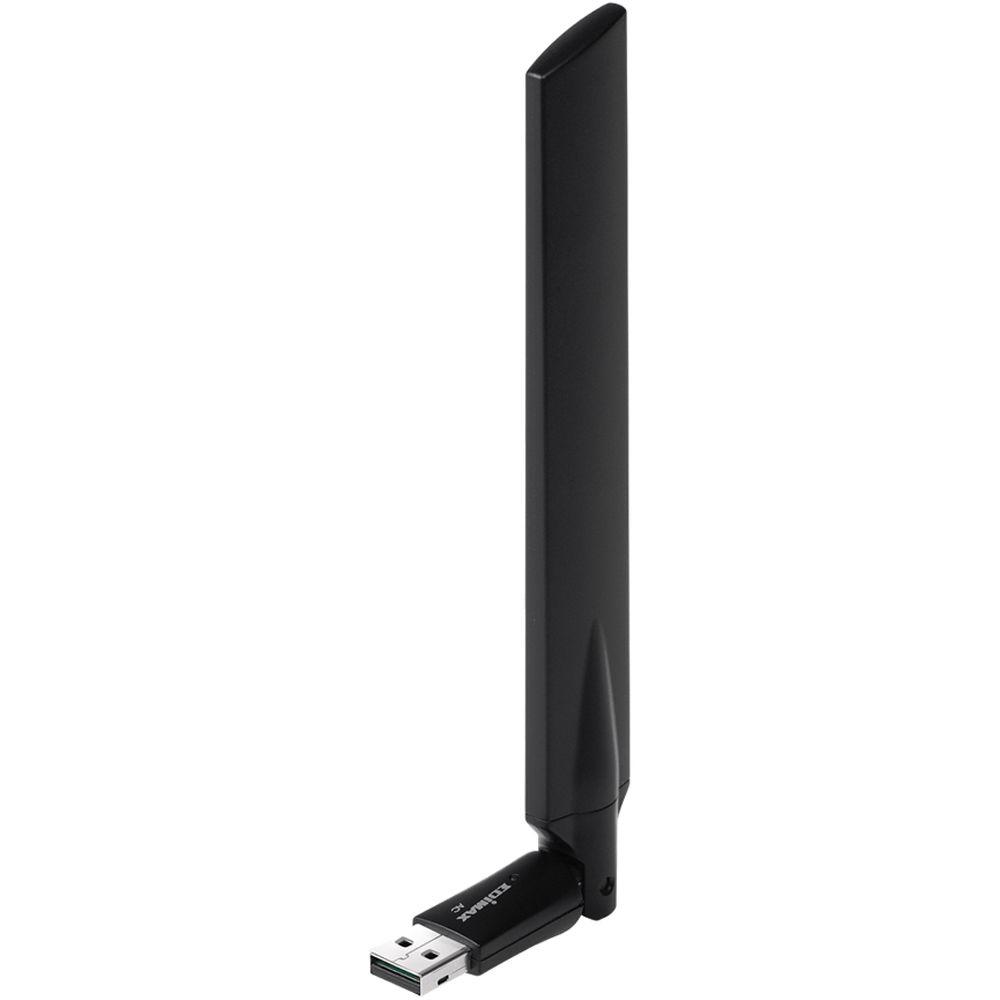

Product description The AC600 Wi-Fi Dual-Band High-Gain USB Adapter from EDIMAX Technology is the next generation 802.11ac wireless standard that is set to revolutionize Wi-Fi. Super-speed 802.11ac dual-band routers are already available but wireless devices are still stuck with 802.11n technology. You can upgrade your wireless device to dual-band 802.11ac with the USB 2.0 connectivity for blistering Wi-Fi speeds on the interference free 5 GHz frequency band. The EW-7811UAC has a high gain, high-performance, dual band antenna that can increase the effective wireless operation range of 802.11ac/a/b/g/n wireless devices. - Next Generation Wi-Fi Standard
- The Edimax EW-7811UAC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433 Mb/s at 5GHz which is almost three times as fast as 802.11n. You can upgrade PCs and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.
- Dual-Band Connectivity
- You can enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811UAC provides connectivity for the 2.4 GHz band at speeds of 150 Mb/s or 5GHz band at speeds of 433 Mb/s. You can surf the Internet and check your email on the 2.4 GHz band, or select the 5 GHz band for online gaming and video streaming.
- 4dBi/6dBi High Gain Antenna
- The EW-7811UAC high gain antenna, 4dBi (2.4 GHz) and 6dBi (5 GHz), provides high performance and long distance connections for your wireless network.

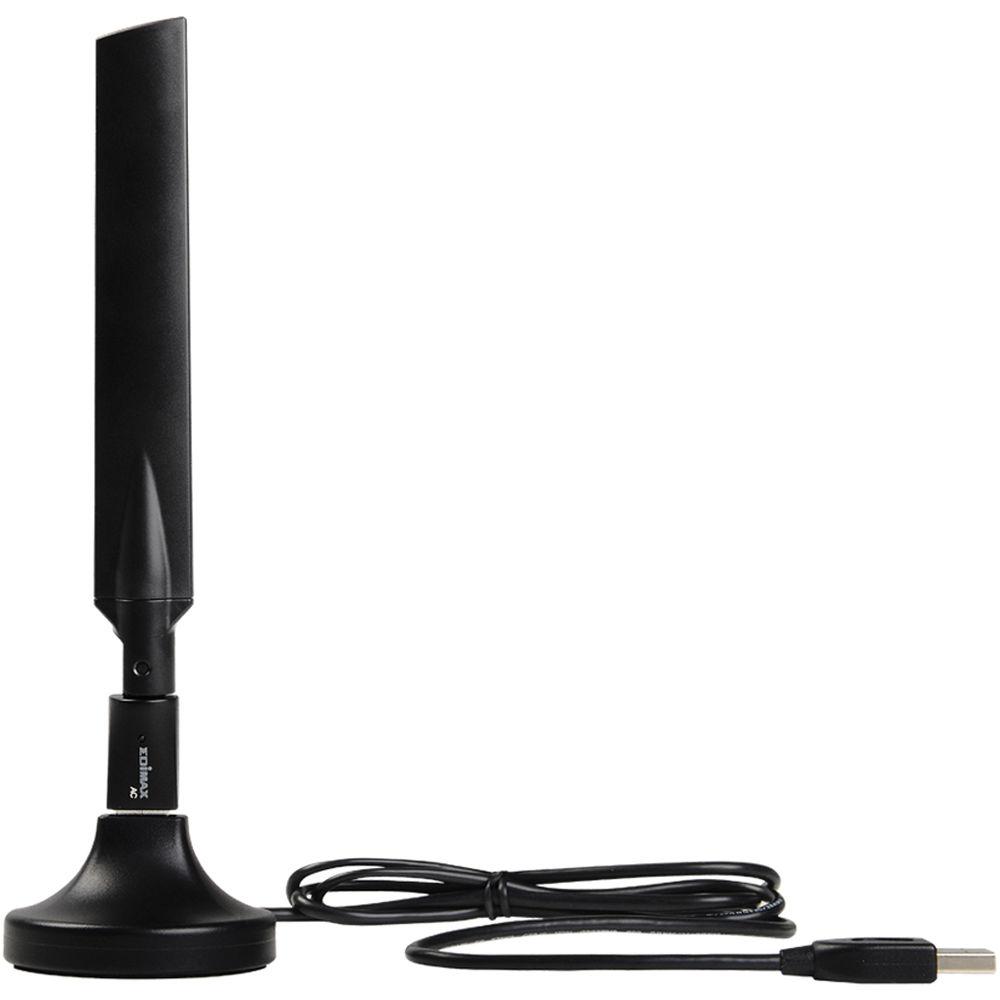

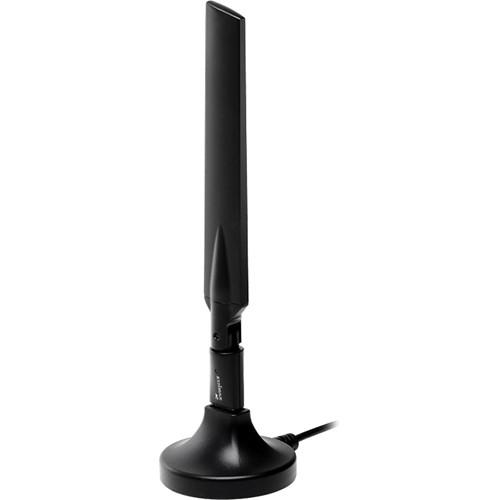

- USB Cradle for Enhanced Wireless Signal
- The EW-7811UAC comes with a 1.2 meter cradle for flexible placement. Adjust the antenna position for peak performance at no extra cost.
- Download and Stream Anywhere
- Use the EW-7811UAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.
UPC: 649659025028 In the Box EDIMAX Technology AC600 Wi-Fi Dual-Band High-Gain USB Adapter 1 x USB Cradle with 1.2 m Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology AC600 Wi-Fi Dual-Band High-Gain USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7811UAC Specs | Hardware | 1 x USB 2.0 Type A
1 x Hardware WPS Button
1 x Link/Activity LED | | Standards | 2.4 GHz: IEEE 802.11b, 802.11g, 802.11n
5 GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n | | Frequency Band | 2.4000 to 2.4835 GHz (subject to local regulations)
5.150 to 5.825 GHz (subject to local regulations) | | Output Power | 2.4 GHz
11b (11 Mb/s): 17dBm±1.5dBm
11g (54 Mb/s): 15dBm±1.5dBm
11n (20 MHz, MCS7): 14dBm±1.5dBm
11n (40 MHz, MCS7): 14dBm±1.5dBm
5 GHz
11a (54 Mb/s): 14dBm±1.5dBm
11n (20 MHz, MCS7): 13dBm±1.5dBm
11n (40 MHz, MCS7): 13dBm±1.5dBm
11ac (80 MHz, MCS9): 12dBm±1.5dBm | | Installation | Multi-Language easy setup wizard
Hardware WPS button for easy wireless connections | | Operating | Data Rate:
11a: 6/9/12/24/36/48/54 Mb/s
11b: 1/2/5.5/11 Mb/s
11g: 6/9/12/24/36/48/54 Mb/s
11n (20 MHz): MCS0-07 (up to 72 Mb/s)
11n (40 MHz): MCS0-07 (up to 144 Mb/s)
11ac (80 MHz): MCS0-09 (up to 433 Mb/s) | | LED | Link/Activity | | Security | WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware & software WPS configuration | | Certifications | CE/FCC | | Temperature & Humidity | Maximum 95% (non-condensing)
32 to 104°F (0 to 40°C) | | Dimensions (L x W x H) | 7.48 x 0.78 x 0.27" (190.00 x 20.00 x 7.00 mm) | | Weight | 0.63 oz (18.00 g) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 8.2 x 5.3 x 1.9" |
