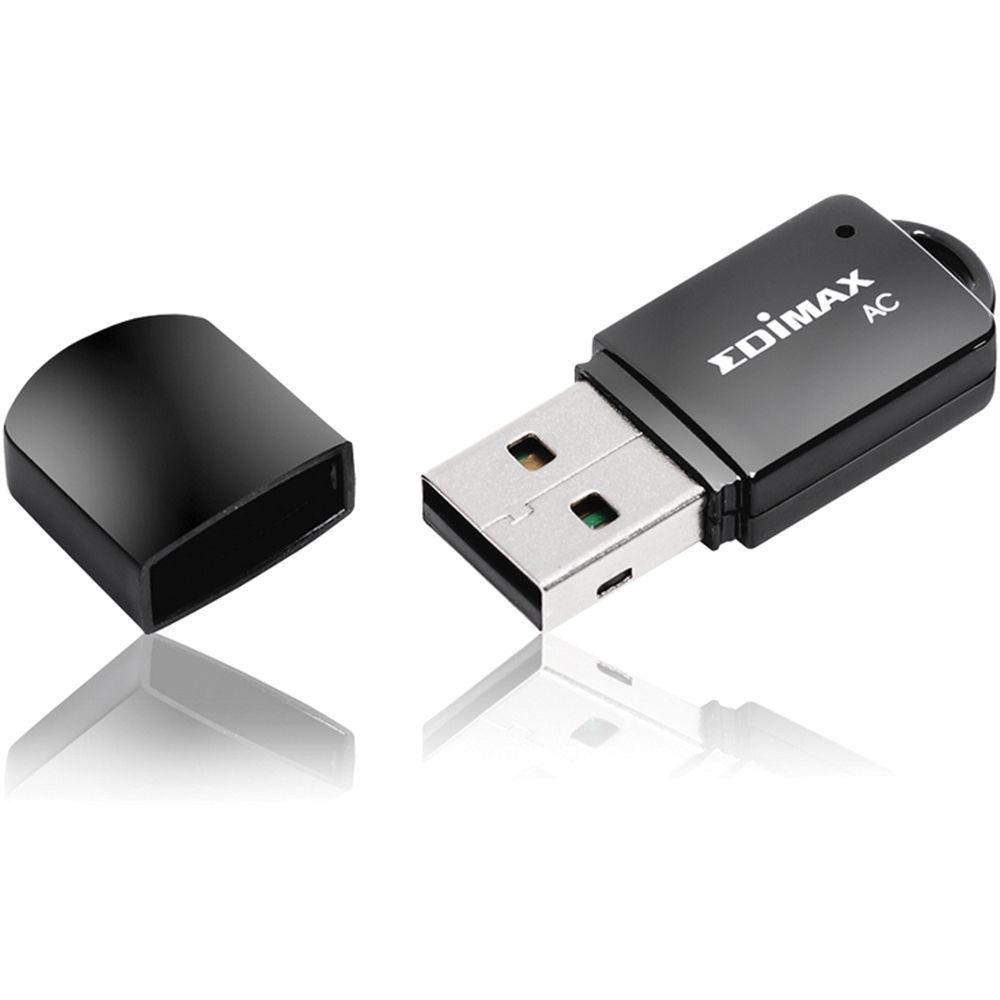

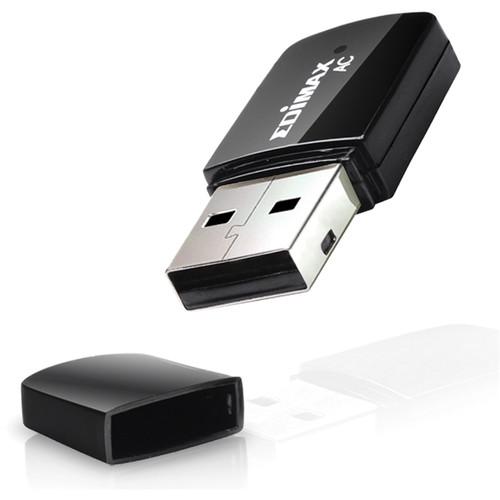

User Manual for EDIMAX Technology AC600 Wireless Dual-Band Mini USB Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology AC600 Wireless Dual-Band Mini
- Product category: Wireless Adapters & Cards EDIMAX Technology
- Brand: EDIMAX Technology

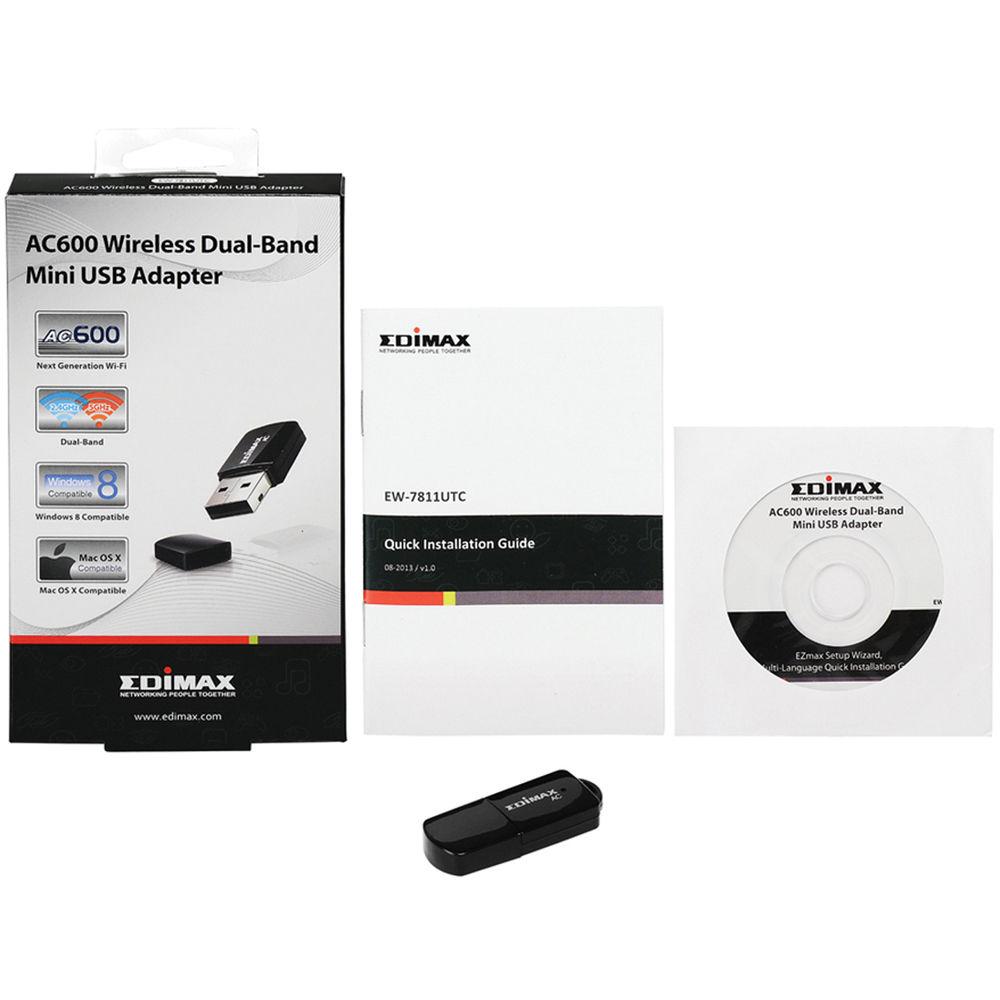

- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Adapters & Cards
 |
User manual for the EDIMAX Technology AC600 Wireless Dual-Band Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The AC600 Wireless Dual-Band Mini USB Adapter from EDIMAX Technology is the latest wireless standard. Super-speed 802.11ac dual-band routers are already available but older wireless devices are typically not compatible with 802.11ac. This tiny adapter lets you upgrade your wireless device to dual-band 802.11ac for super-speed Wi-Fi on the interference-free 5 GHz frequency band. - Next Generation Wi-Fi Standard
- The Edimax EW-7811UTC is compatible with the draft 802.11ac standard, capable of delivering speeds up to 433 Mb/s at 5GHz, which is almost three times as fast as 802.11n. You can upgrade PCs and notebooks to 802.11ac Wi-Fi and enjoy smooth streaming video and data.
- Dual-Band Connectivity
- The EW-7811UTC provides connectivity at speeds of 150 Mb/s for the 2.4 GHz band and 433 Mb/s for the 5 GHz band. You can surf the Internet and check your email on the 2.4 GHz band, or select the 5 GHz band for online gaming and video streaming.
- Download and Stream Anywhere
- Use the EW-7811UTC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.

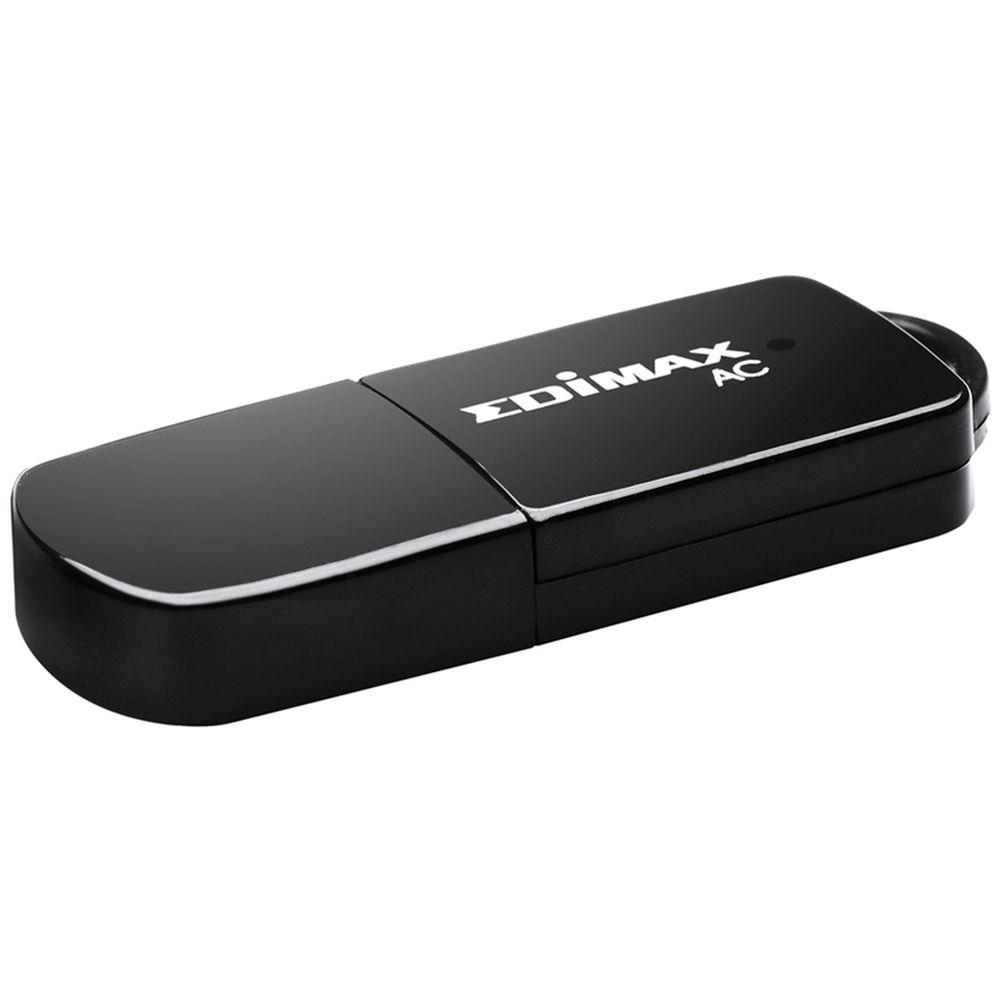

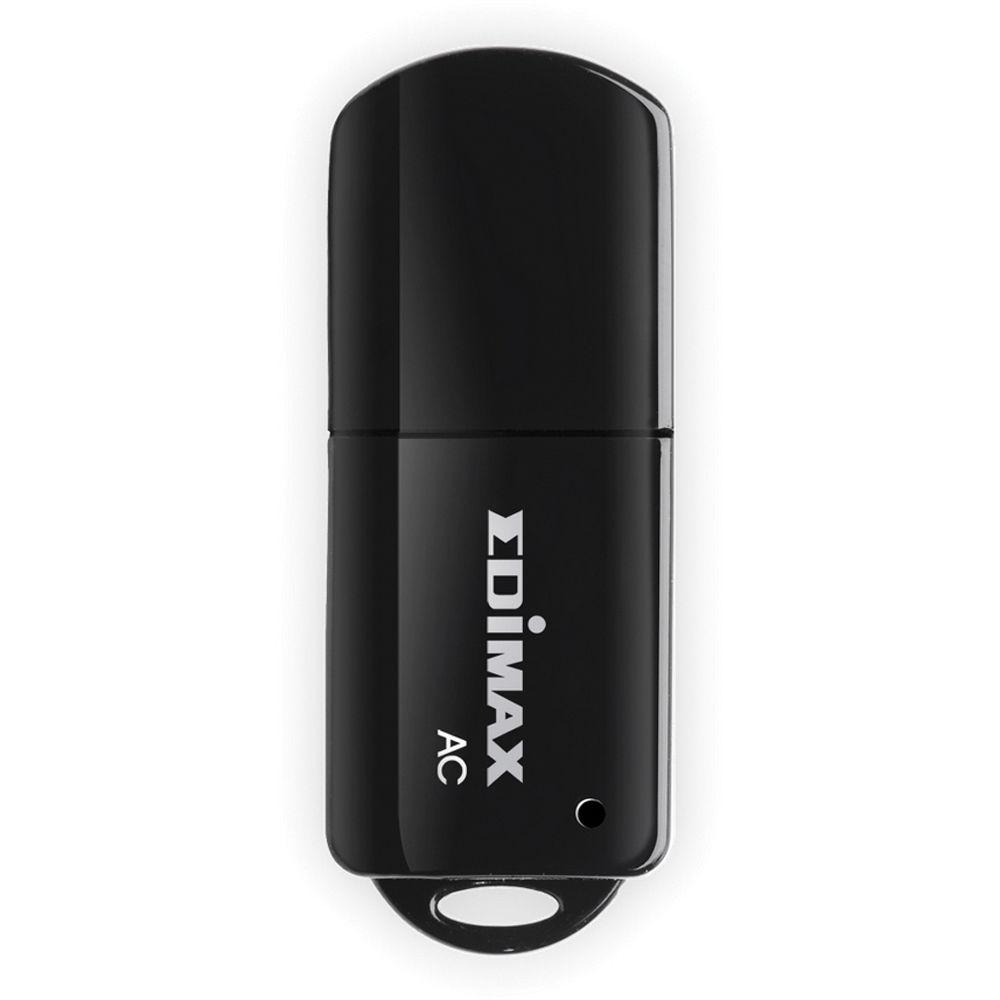

- Compact & Convenient
- Designed for efficiency and performance, the mini-sized adapter is lightweight, sleek, and portable. The low-profile mini-adapter sits almost unnoticed in any USB port and travels with your laptop.

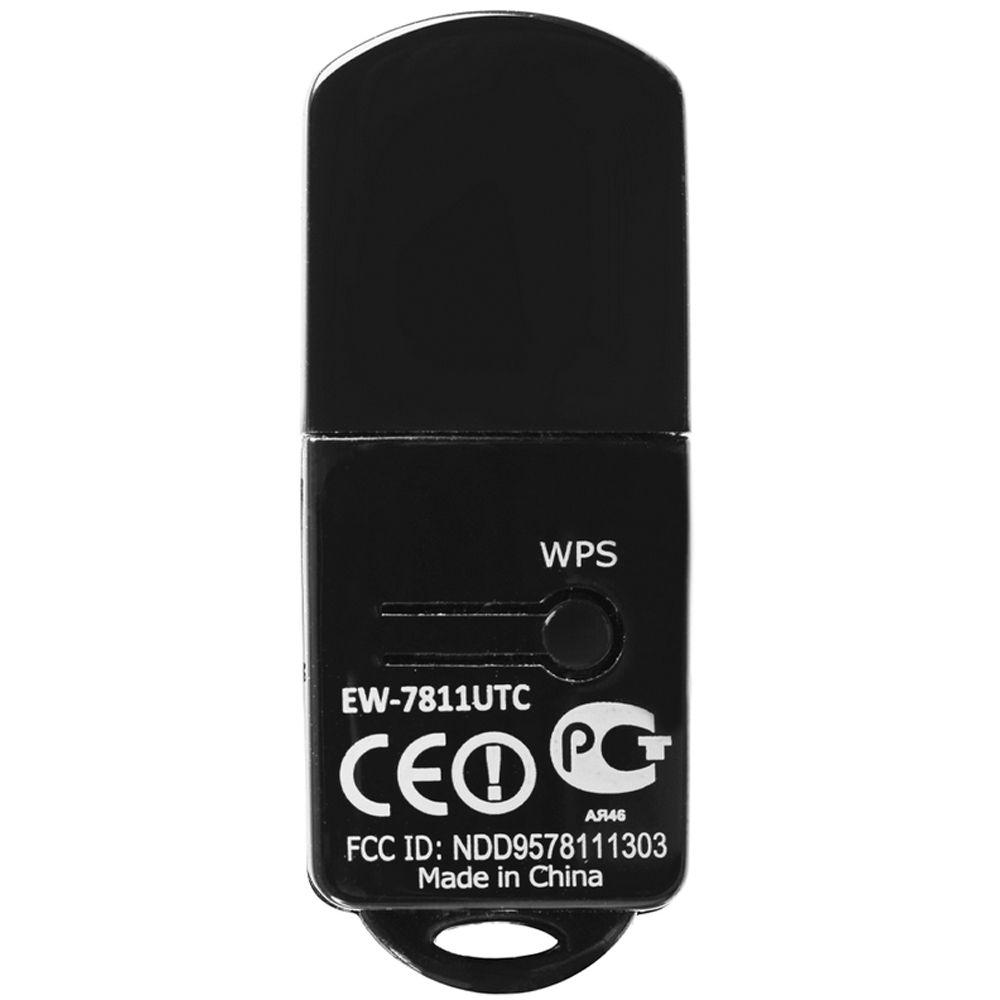

- Wi-Fi Protected Setup (WPS) Button
- The EW-7811UTC has a one-click Wi-Fi Protected Setup (WPS) button to help you set up and activate a secure wireless network in a snap.
UPC: 649659022980 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology AC600 Wireless Dual-Band Mini USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7811UTC Specs | Hardware | 1 x USB 2.0 Type A
1 x Hardware WPS Button
1 x Link/Activity LED | | Standards | 2.4 GHz: IEEE 802.11b, 802.11g, 802.11n
5 GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n | | Frequency Band | 2.4000 to 2.4835 GHz (subject to local regulations)
5.150 to 5.825 GHz (subject to local regulations) | | Output Power | 2.4 GHz
11b (11 Mb/s): 17dBm±1.5dBm
11g (54 Mb/s): 15dBm±1.5dBm
11n (20 MHz, MCS7): 14dBm±1.5dBm
11n (40 MHz, MCS7): 14dBm±1.5dBm
5 GHz
11a (54 Mb/s): 14dBm±1.5dBm
11n (20 MHz, MCS7): 13dBm±1.5dBm
11n (40 MHz, MCS7): 13dBm±1.5dBm
11ac (80 MHz, MCS9): 12dBm±1.5dBm | | Installation | Easy setup wizard Hardware WPS button for easy wireless connections | | Data Rate | 11a: 6/9/12/24/36/48/54 Mb/s
11b: 1/2/5.5/11 Mb/s
11g: 6/9/12/24/36/48/54 Mb/s
11n (20 MHz): MCS0-07 (up to 72 Mb/s)
11n (40 MHz): MCS0-07 (up to 144 Mb/s)
11ac (80 MHz): MCS0-09 (up to 433 Mb/s) | | LED | Link/Activity | | Security | WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware & software WPS configuration | | Certifications | CE/FCC | | Temperature & Humidity | Maximum 95% (non-condensing)
32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 0.62 x 1.57 x 0.27" (16.00 x 40.00 x 7.00 mm) | | Weight | 0.10 oz (3 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 5.7 x 3.4 x 0.8" |
