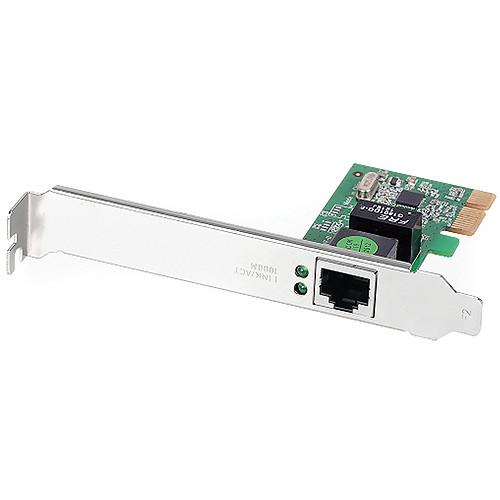

User Manual for EDIMAX Technology EN-9260TX-E Gigabit Ethernet PCIe Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology EN-9260TX-E Gigabit Ethernet PCIe
- Product category: Network Interface Cards & Adapters EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Interface Cards & Adapters
|
User manual for the EDIMAX Technology EN-9260TX-E Gigabit Ethernet PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The EN-9260TX-E Gigabit Ethernet PCIe Adapter from EDIMAX Technology offers power management and Gigabit Ethernet network connectivity capability. The full bandwidth capability boasts a robust 1000 Mb/s capability through the PCIe bus architecture. The adapter's auto-negotiation feature works with the existing switch, broadband router, or hub to provide the highest network speed available (10/100/1000 Mb/s). The automatic full duplex capability further increases bandwidth and eliminates packet collisions by allowing data to flow in both directions at the same time. - General Features
- Complies with PCI Express 1.1, x1 PCIe standard
IEEE 802.3, 802.3u, 802.3ab and 802.3x standards
Supports 10/100/1000 Mb/s Auto Negotiation and Jumbo Frame
Supports IEEE802.3x full-duplex flow control
Supports IEEE802.1Q VLAN tagging and IEEE802.1P Layer2 priority encoding
Supports Wake on LAN and ACPI power management
Supports IEEE802.3az energy efficient Ethernet function
Includes a low-profile bracket
Supports drivers for Novell 5.X/6.X, Windows 98/ME/NT4.0/2000/XP/Vista/7/8, Linux 2.4.x - Reliability
- The adapter's exceptional chipset offers increased bandwidth and more functionality than other standard PCI network adapters. The adapter is specifically designed to carry the full bandwidth capacity of the PCIe bus of 2.5 Gb/s, thus eliminating collisions and latencies that exist with current 32/64-bit PCI bus architectures
- Ease of Installation and Configuration
- It offers ease and flexibility of installation and configuration of the adapter through plug-and-play technology. Simply place the adapter into the PCIe slot in your PC and then turn on the PC, plug-and-play automatically detects the new device. The adapter is fully compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks and the adapter's 10/100/1000 Mb/s auto negotiation ports eliminate any need for manual switching. Best of all, the adapter is supported by all major operating systems including Vista and Linux OS
- User-friendly
- To facilitate network connectivity, the EN-9260TX-E includes a user-friendly setup CD wizard. Its user interface simplifies driver installation for immediate use of the device
UPC: 649659021112 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology EN-9260TX-E Gigabit Ethernet PCIe Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EN-9260TX-E Specs | Hardware Interface | PCI Interface
1 x 10/100/1000 Mb/s LAN port | | LED Indicators | 1 x Link
1 x Activity
1 x 1000M | | Bus Architecture | 66/33 MHz PCI V 2.3/2.2/2.1 (32-bit) | | Chipset | Realtek RTL8168E single chip | | System Requirements | CPU: Pentium III 1 G above or similar
Memory size: 256 MB RAM
1 x CD-ROM drive
Hard Disk: 100 MB (minimum)
1 x Available PCIe slot
OS: Novell 5.x/6.x, Windows 98/ME/NT4.0/2000/XP/Vista/7/8, Linux 2.4.x | | Power Consumption | 1.8 W (maximum) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to +158°F (-40 to +70°C) | | Operating Humidity | 10 to 90% RH (non-condensing) | | Storage Humidity | 50 to 95% RH (non-condensing) | | Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x, 802.1q, 802.1p, 802.3az | | Certifications | CE, FCC | | Dimensions | 2.5 x 1.5" (64.0 x 39.0 mm) | | Weight | 1.8 oz (50.0 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.7 x 5.0 x 1.1" |
