User Manual for EDIMAX Technology ES-1008PH V2 8-Port Fast Ethernet Long Range PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology ES-1008PH V2 8-Port Fast
- Product category: Network Switches, Bridges & Hubs EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Switches, Bridges & Hubs
 |
User manual for the EDIMAX Technology ES-1008PH V2 8-Port Fast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

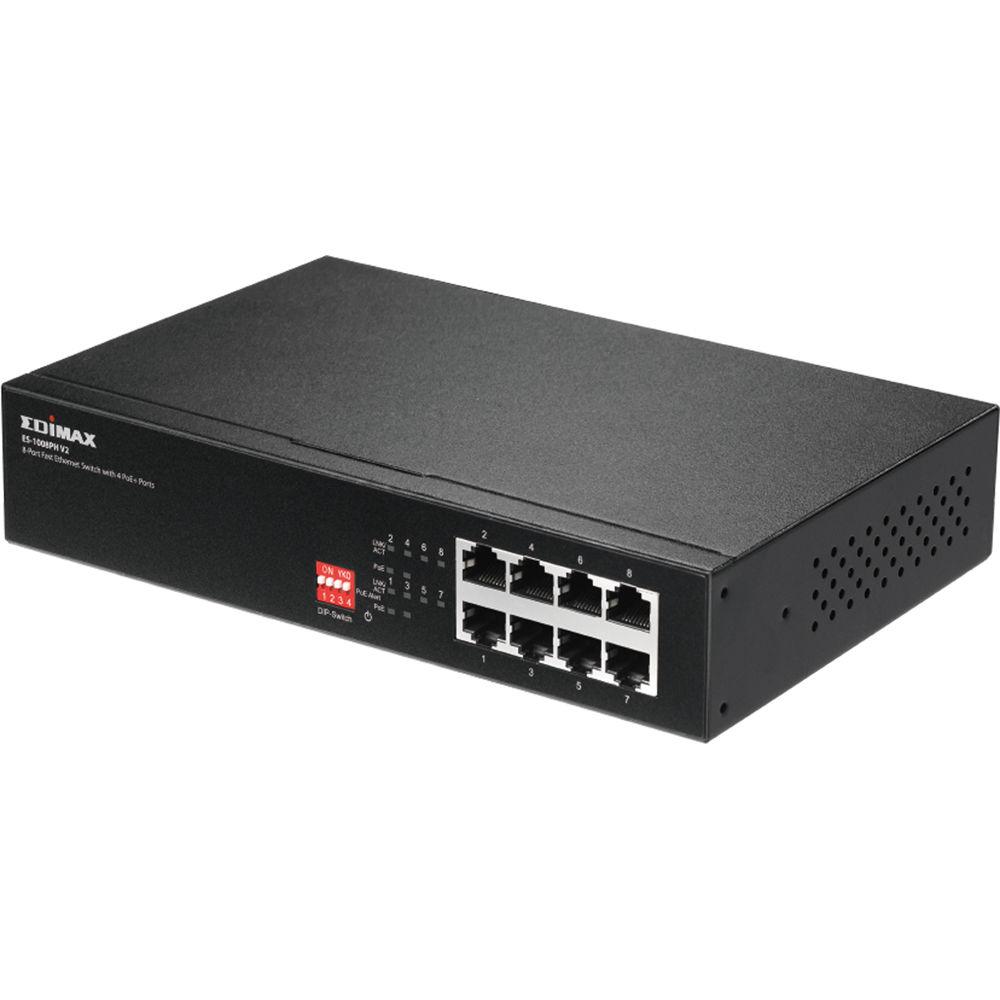

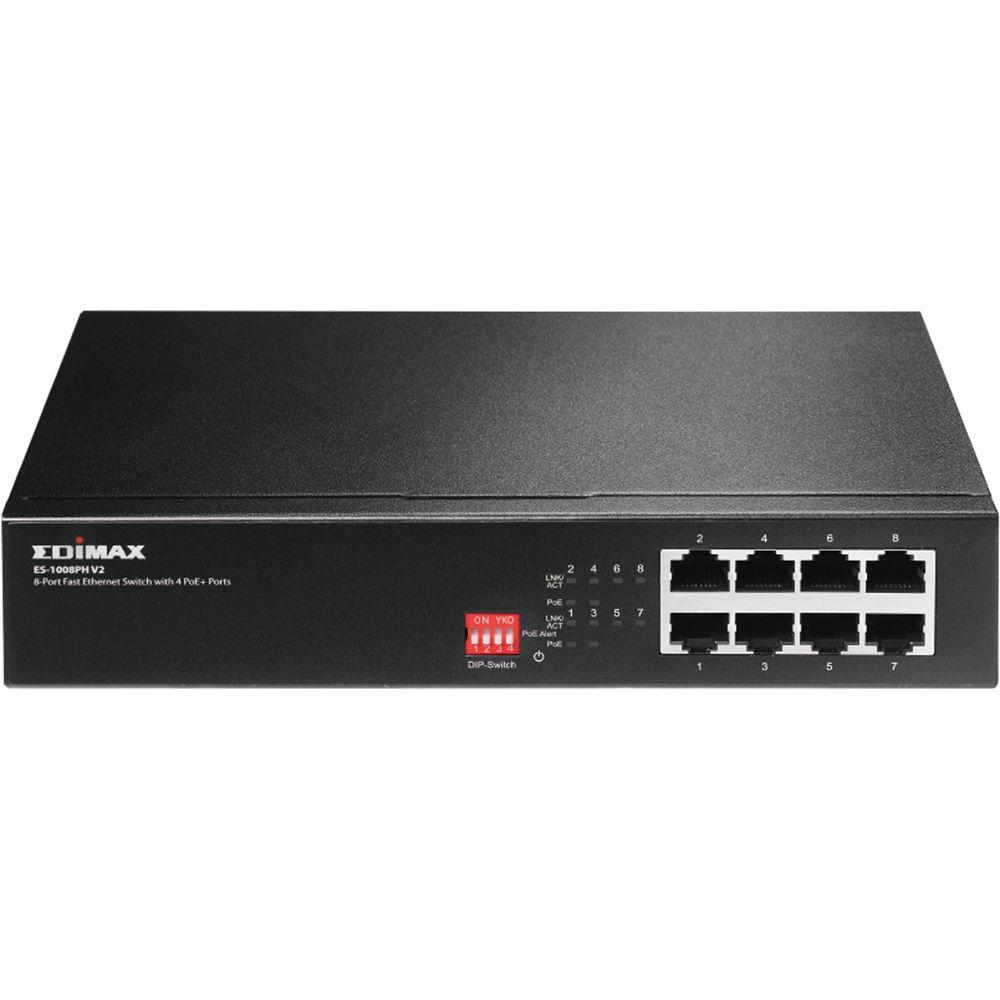

Product description Provided by third party: The ES-1008PH is an 8-port Fast Ethernet switch with 4 PoE ports, designed for use in small or medium sized network environments. The device's compact size makes the ES-1008PH ideal for users with limited space.
- Key Features
-
- Complies with IEEE 802.3, 802.3u, 802.3x, 802.3af, and 802.3at standards
- Automatically detects power devices (PD) and power consumption levels
- Supports auto fault detection (over/under current and voltage)
- Supports IEEE 802.3az energy efficient Ethernet
- Complies with IEEE 802.3at Power over Ethernet (PoE)

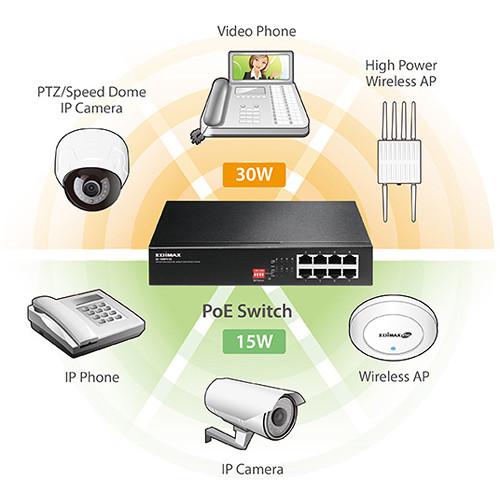

- The ES-1008PH features 4 IEEE 802.3at Power over Ethernet (PoE) ports, which supply up to 30 watts of power per port. It can convert standard 100-240 V AC power into low-voltage DC, which runs over existing LAN cables to supply power to IEEE 802.3at compliant network accessories. The ES-1008PH also features PoE detection, to verify whether the connected device is IEEE 802.3at compliant; if it is not a PoE device, only data will be sent through the LAN cable.
- No special networking cable required
- The standard Cat-5 Ethernet cable is used to link the ES-1008PH and the powered devices. This Ethernet cable can transmit both data and power. No separate power cable is needed for the powered devices, thus reducing installation time and costs.
UPC: 649659020870 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology ES-1008PH V2 8-Port Fast Ethernet Long Range PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology ES-1008PH V2 Specs | | | Device Type | Switch - 8 ports | | Enclosure Type | Desktop | | Subtype | Fast Ethernet | | Ports | 4 x 10/100 (PoE+) + 4 x 10/100 | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 70 W | | Performance | Switching capacity: 1.6 Gbps
Forwarding rate (100Mbps): 148800 packets per second
Forwarding rate (10Mbps): 14880 packets per second | | MAC Address Table Size | 1K entries | | Features | Store and forward, over-current protection, over-voltage protection, undercurrent protection | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az | | Status Indicators | Power, PoE, link/activity | | | | Interfaces | 4 x 100Base-TX RJ-45 PoE+ - 30 W
4 x 100Base-TX RJ-45 | | | | Power Device | Internal power supply | | Power Provided | 80 Watt | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 5 Watt | | | | Compliant Standards | FCC, LVD | | | | Width | 5.2 in | | Depth | 8.5 in | | Height | 1.7 in | | Weight | 31.37 oz | | | | Min Operating Temperature | 32
