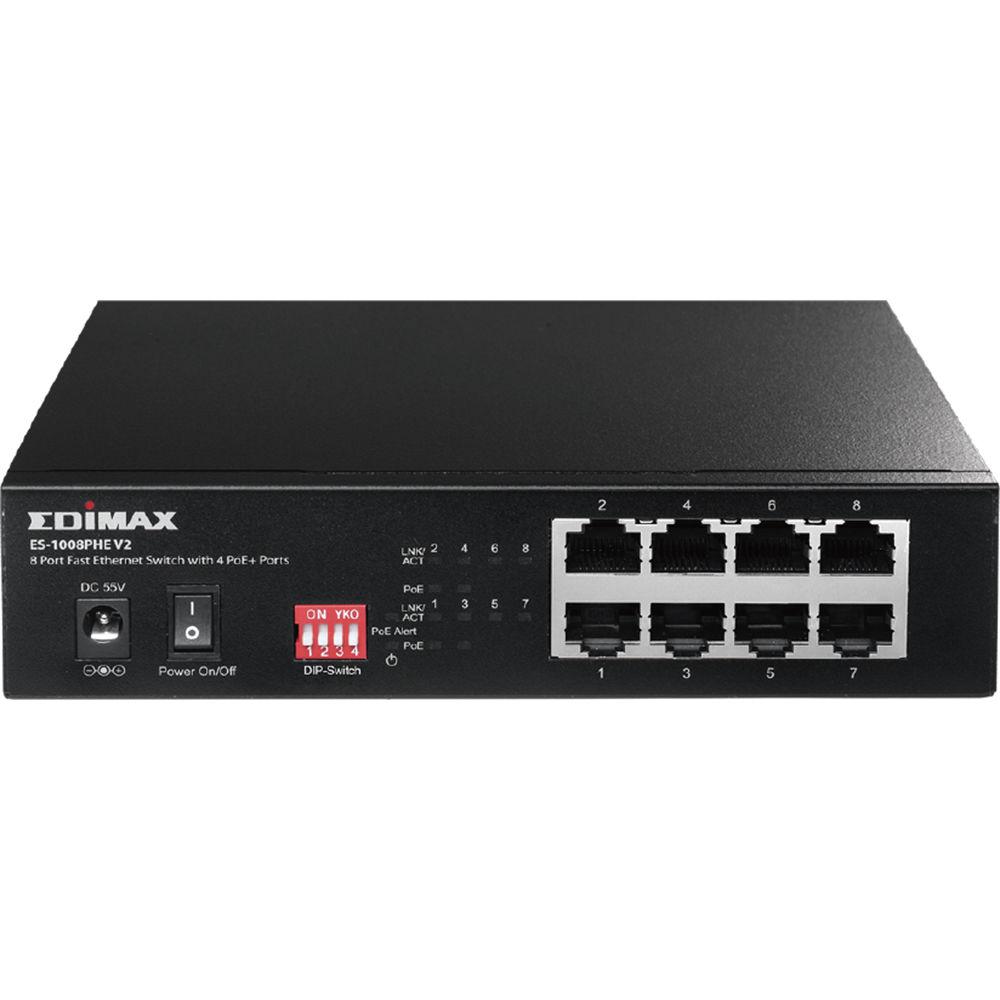

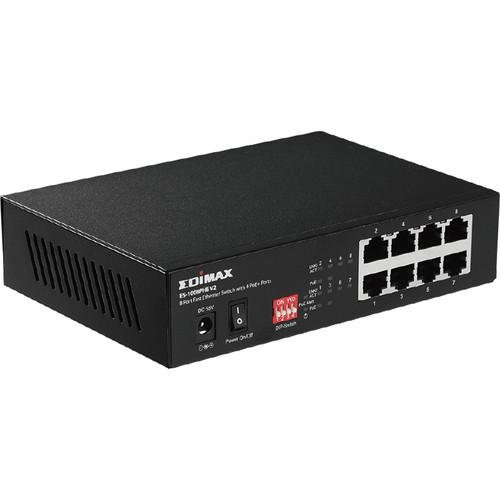

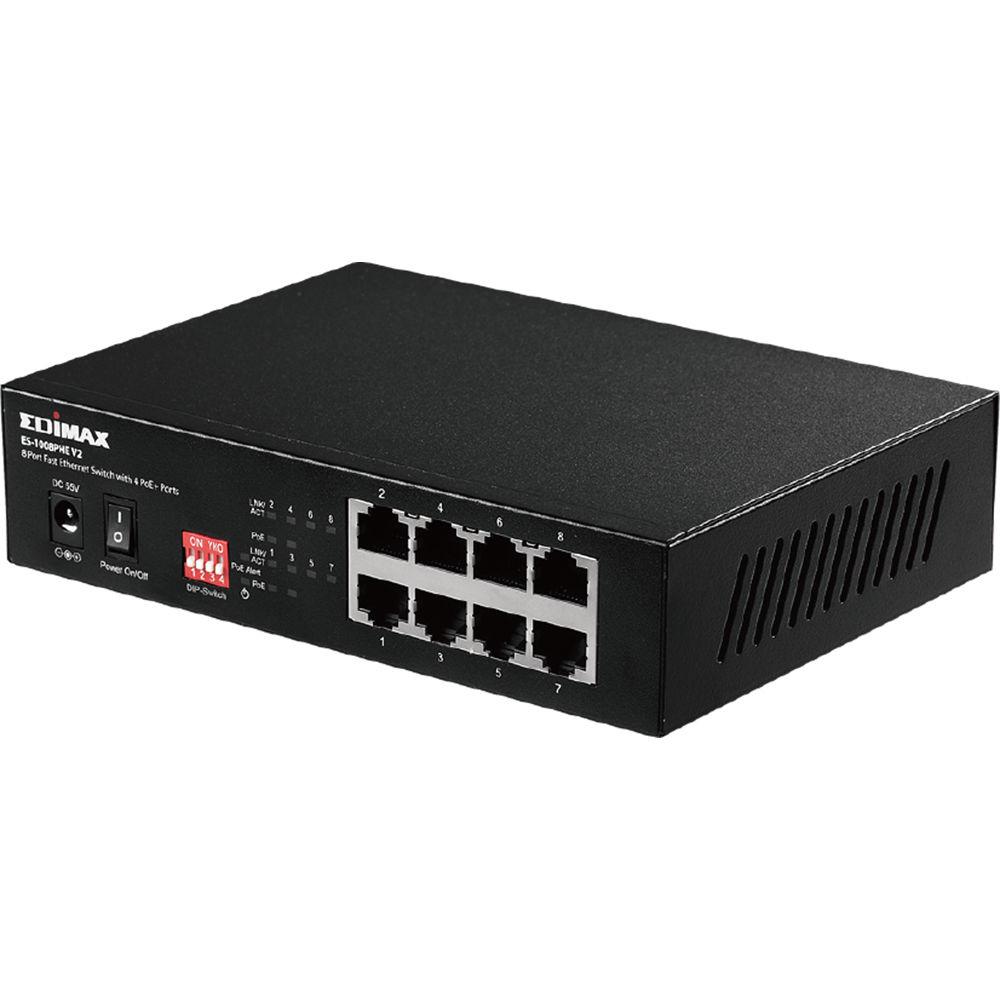

User Manual for EDIMAX Technology ES-1008PHE V2 8-Port Fast Ethernet Long Range PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology ES-1008PHE V2 8-Port Fast
- Product category: Network Switches, Bridges & Hubs EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Switches, Bridges & Hubs
 |
User manual for the EDIMAX Technology ES-1008PHE V2 8-Port Fast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

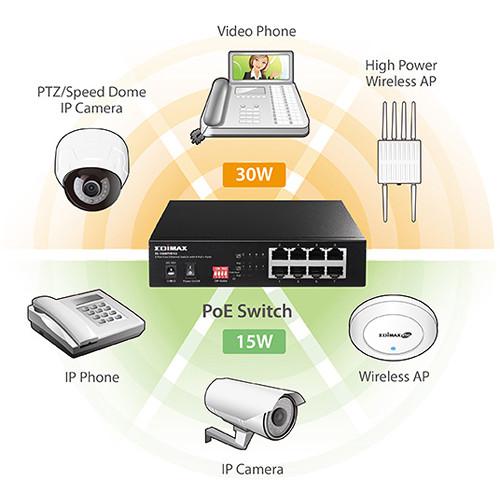

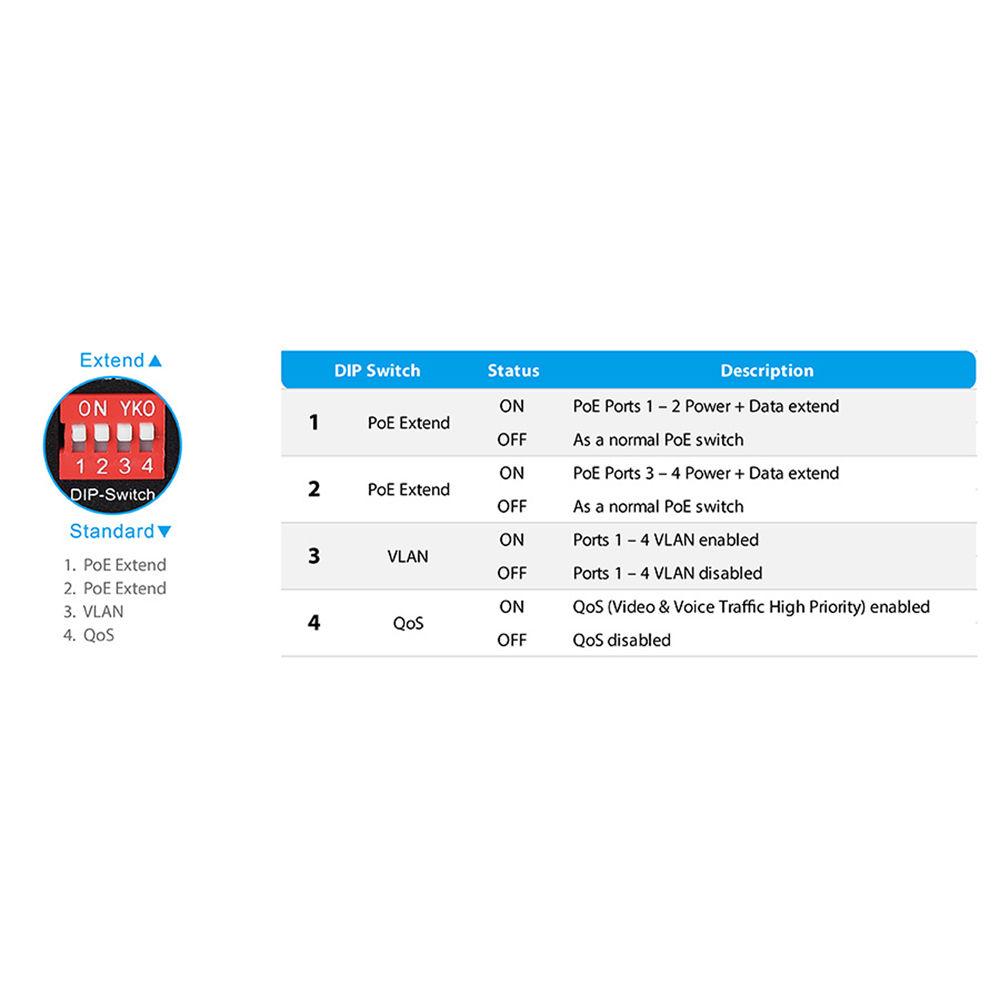

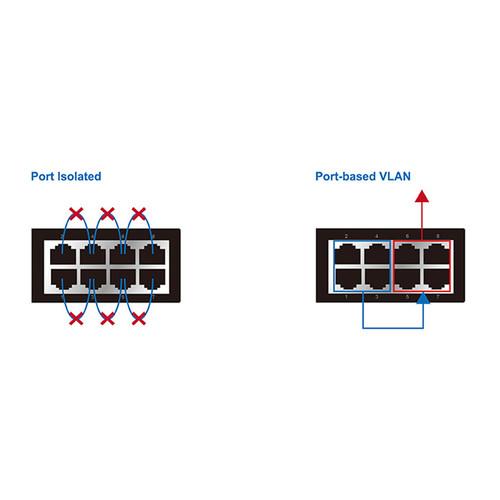

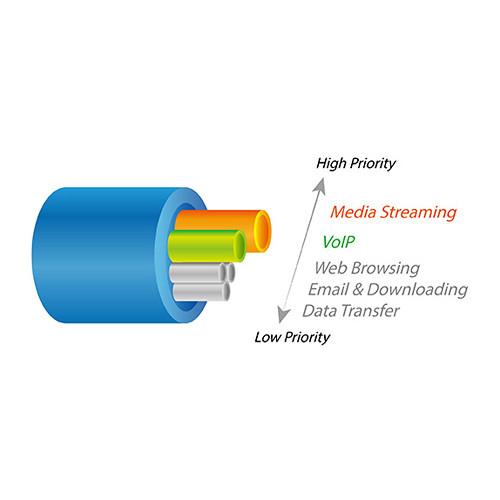

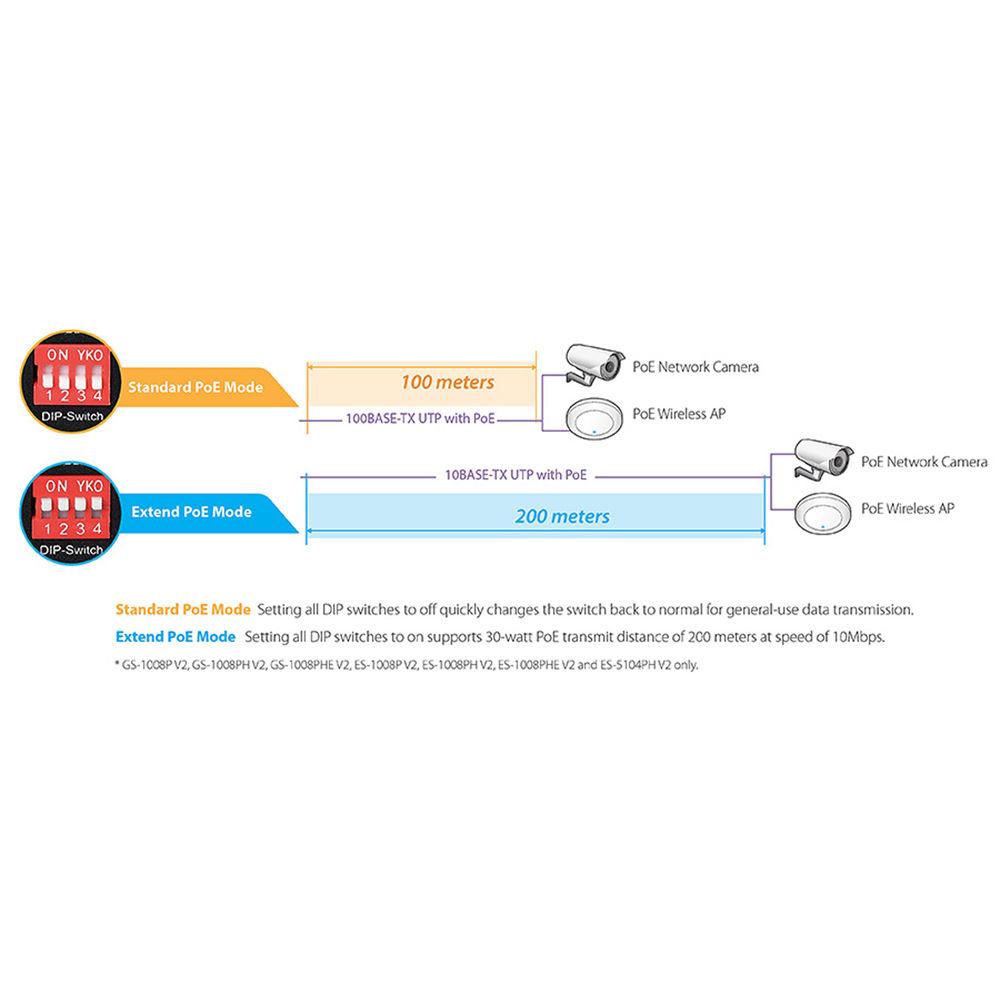

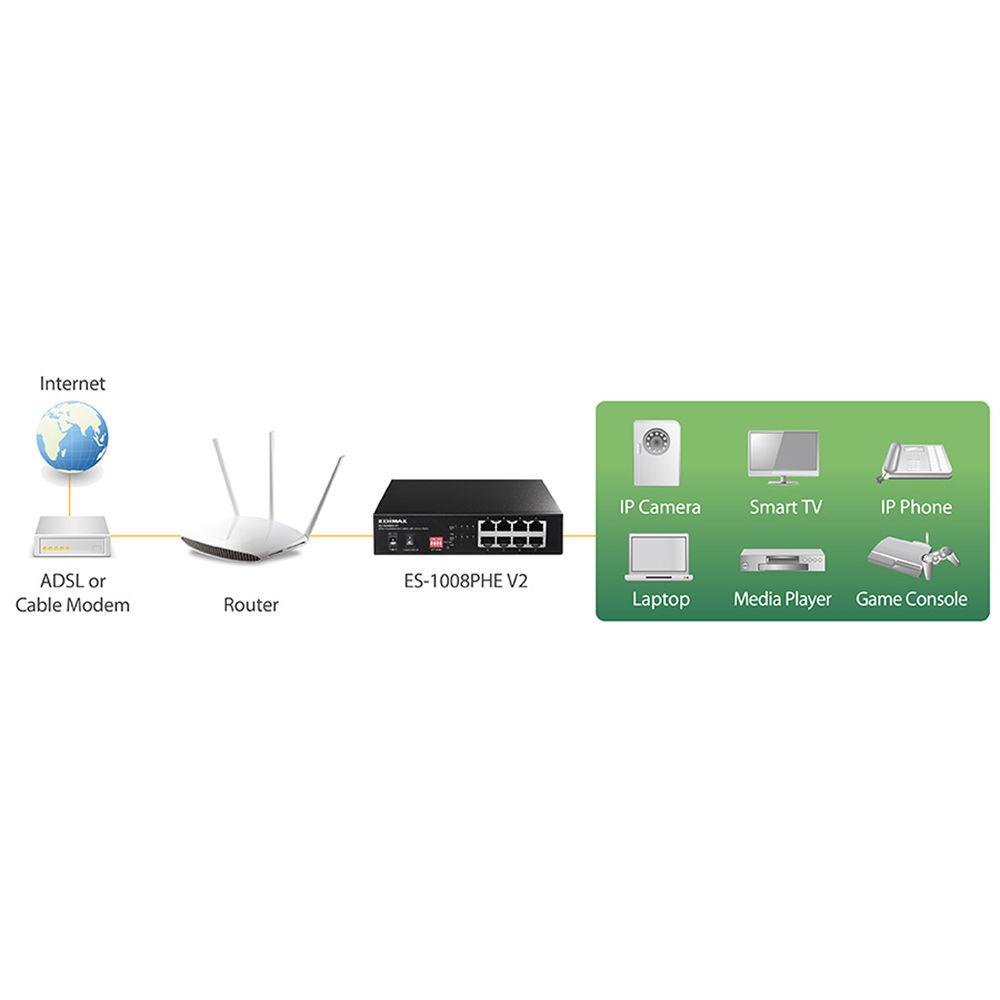

Product description Provided by third party: The Edimax ES-1008PHE V2 is an eight port Fast Ethernet switch with four PoE+ Ports designed for use in home, small or medium sized network environments. With four DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.
- Key Features
-
- Eight 10/100Mbps Fast Ethernet ports and four PoE+ ports
- IEEE 802.3af/at PoE compliant for simplified deployment and installation
- Up to 30W per PoE port for powering PoE-enabled devices
- Auto-detection of powered devices (PD) and power consumption levels
UPC: 649659020849 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology ES-1008PHE V2 8-Port Fast Ethernet Long Range PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology ES-1008PHE V2 Specs | | | Device Type | Switch - 8 ports | | Enclosure Type | Desktop | | Subtype | Fast Ethernet | | Ports | 4 x 10/100 (PoE+) + 4 x 10/100 | | Power Over Ethernet (PoE) | PoE+ | | PoE Budget | 60 W | | Performance | Switching capacity: 1.6 Gbps | | MAC Address Table Size | 1K entries | | Features | Store and forward, fanless, 128KB packet buffer | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az | | Status Indicators | Power, PoE, link/activity | | | | Interfaces | 4 x 100Base-TX RJ-45 PoE+ - 30 W
4 x 100Base-TX RJ-45 | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 5 Watt | | | | Compliant Standards | FCC, LVD | | | | Width | 6.5 in | | Depth | 4.6 in | | Height | 1.5 in | | Weight | 17.53 oz | | | | Min Operating Temperature | 32
