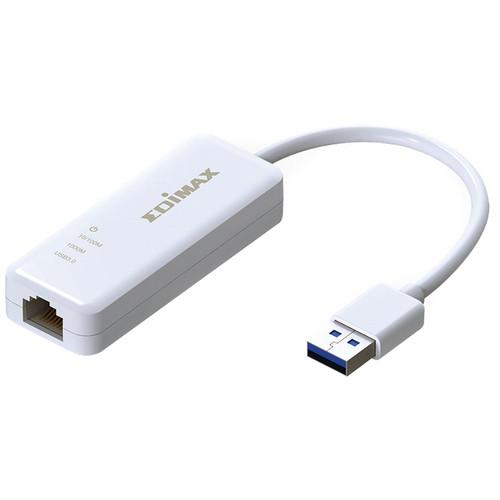

User Manual for EDIMAX Technology EU-4306 USB 3.1 Gen 1 Gigabit Ethernet Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology EU-4306 USB 3.1 Gen
- Product category: Network Interface Cards & Adapters EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Interface Cards & Adapters
|
User manual for the EDIMAX Technology EU-4306 USB 3.1 Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The EU-4306 USB 3.0 Gigabit Ethernet Adapter from EDIMAX Technology supports USB 3.0 which specifies a maximum data transmission speed of 5 Gb/s. For Ultrabooks or a Macbook Air with no Ethernet port, you can use this Gigabit Ethernet adapter for a simple plug-and-play Gigabit Ethernet network connection capability. You can upgrade your existing 10/100 Ethernet connectivity to fast Gigabit speeds or introduce USB 3.0 true Gigabit Ethernet connectivity to an Ultrabook or Macbook Air. - USB 3.0
- The EU-4306 supports USB 3.0 which offers a maximum data transmission speed of 5 Gb/s. Up to ten times faster than the existing USB 2.0 standard which is restricted to a maximum speed of 480 Mb/s, USB 3.0 enables the full capacity of 10/100/1000 Mb/s Gigabit Ethernet to be reached through an existing USB port with no need to install a Gigabit Ethernet card.
- Compatibility
- For Ultrabooks or a Macbook Air with no Ethernet port, use the USB 3.0 Gigabit Ethernet adapter for simple plug-and-play Gigabit Ethernet network connection capability. The adapter is compact and portable and lets you stay connected to fast, reliable Gigabit Ethernet whenever you need. It provides Gigabit Ethernet connectivity for desktops, laptops, game consoles, and home network appliances.
- Supports Jumbo Frames
- Support for jumbo frames can offer improvements in network performance and raise bandwidth. Jumbo frames are Ethernet frames (data packets) of up to 4000 bytes per frame, in comparison with standard, significantly smaller 1500 byte Ethernet frames. Using large frames means that fewer frames are sent across the network which improves CPU cycles and bandwidth. For some applications, especially those typical of Gigabit Ethernet use such as large file transfers, the result is an increased network performance.
- Power-Saving
- The EU-4306 incorporates a power-saving feature to reduce power consumption by up to 35% when there is no Ethernet activity, reducing costs and contributing to a environment.
- Windows 8.1 and Mac OS X 10.x
- Compatibility with Windows 8.1 and Mac OS X 10.x for hassle-free use with Windows 8.1 and Mac OS X 10.x devices.
UPC: 649659018037 In the Box EDIMAX Technology EU-4306 USB 3.1 Gen 1 Gigabit Ethernet Adapter CD with Setup Wizard 1 x Multi-Language QIG Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology EU-4306 USB 3.1 Gen 1 Gigabit Ethernet Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EU-4306 Specs | Hardware | 1 x USB 3.0 type A, male
1 x RJ-45 10/100/1000 Mb/s LAN port | | Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az
IEEE 802.1x/q | | Power Consumption | 165 mA at 5.0 VDC (USB bus powered) | | LED Indicators | Power: 10/100M, 1000M, USB 3.0 | | Supported OS | Windows XP/Vista/7/8/8.1
Mac OS 10.6/10.7/10.8
Linux kernel 3.x/2.6.x | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Certifications | FCC, CE | | Dimensions (L x W x H) | 2.9 x 1.1 x 0.5" (73.2 x 28.0 x 13.6 mm) | | Weight | 0.8 lb (23.5 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.591 x 4.331 x 1.181" |
