User Manual for EDIMAX Technology EW-7208APC Multi-Function Dual-Band 802.11ac Access Point Range Extender Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology EW-7208APC Multi-Function Dual-Band 802.11ac
- Product category: Wireless Access Points EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Access Points
 |
User manual for the EDIMAX Technology EW-7208APC Multi-Function Dual-Band 802.11ac contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

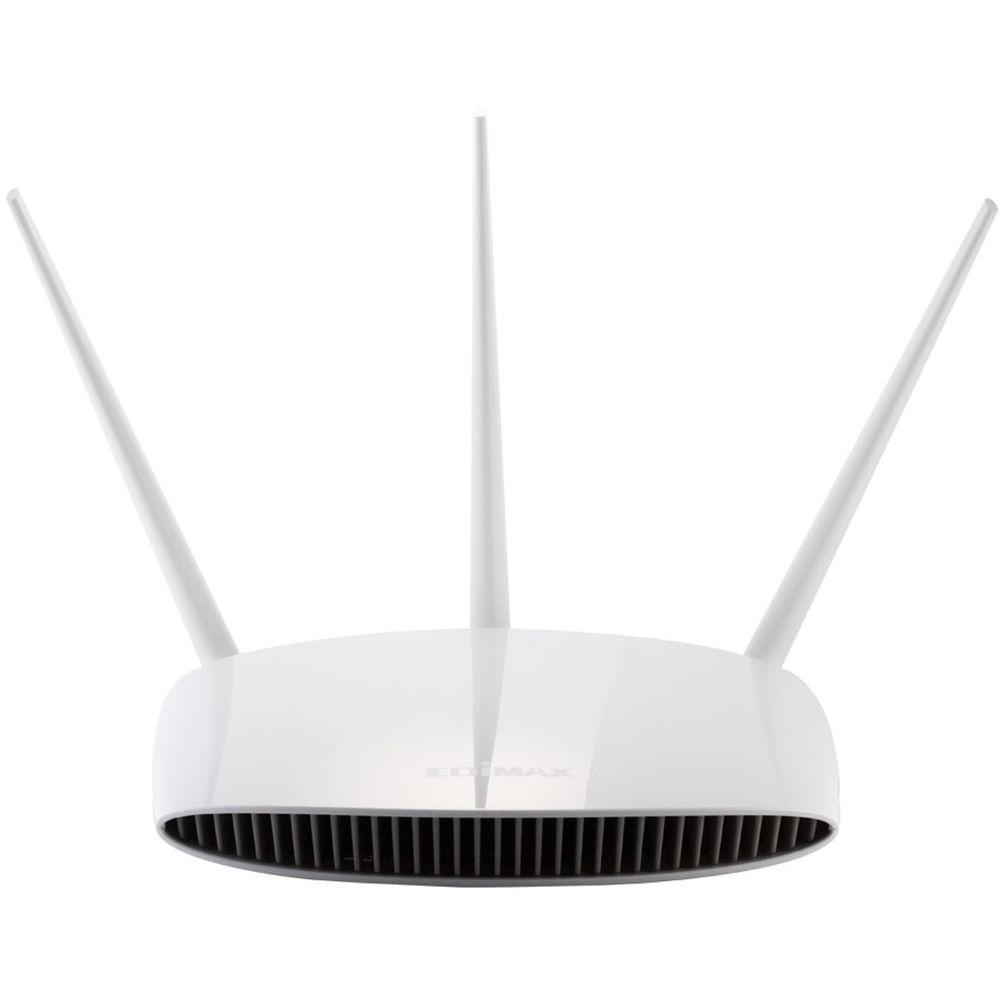

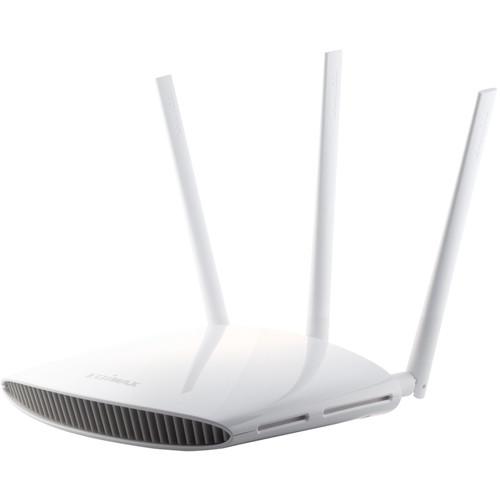

Product description The EW-7208APC Multi-Function Dual-Band 802.11ac Access Point/Range Extender from EDIMAX Technology meets the connectivity needs of homes and small businesses alike. This access point features 802.11ac wireless standards for considerable improvements in Wi-Fi speed and performance. The triple antennas extend the coverage area. With 300 Mb/s speeds in the 2.4 GHz band and 433 Mb/s speeds in 5 GHz, this access point is ideal for HD video streaming and large file transfers. It is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices. - 11ac Wireless Networking
-
- This access point supports IEEE 802.11ac wireless standard, meaning higher data rates in the 5 GHz band. With 300 Mb/s speeds in the 2.4 GHz band and 433 Mb/s speeds in 5 GHz, it is ideal for HD video streaming and large file transfers. The access point is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.

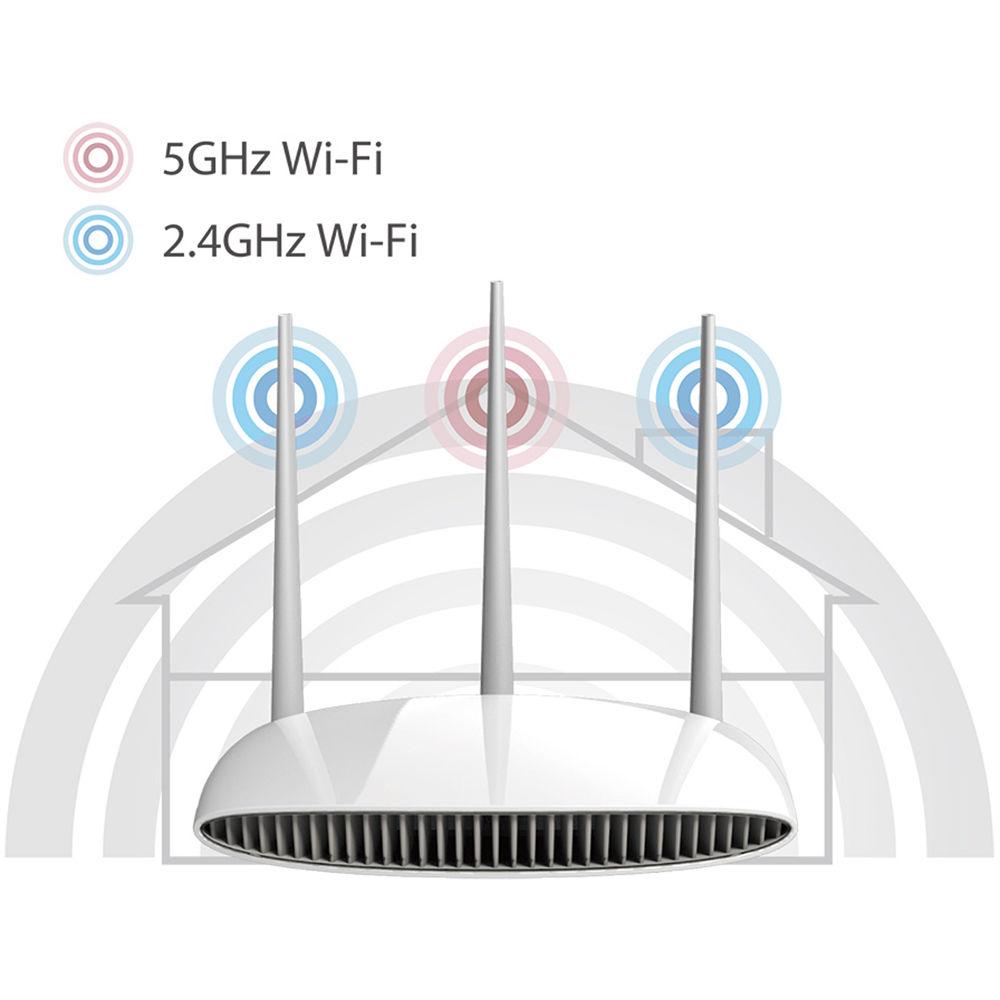

- Concurrent Dual-Band Wi-Fi Connectivity
-
- This access point provides simultaneous 2.4 GHz (802.11n) and 5 GHz (802.11ac) wireless network connectivity for maximum flexibility for your network devices.
- Three Antennas for Better Wi-Fi Performance
-

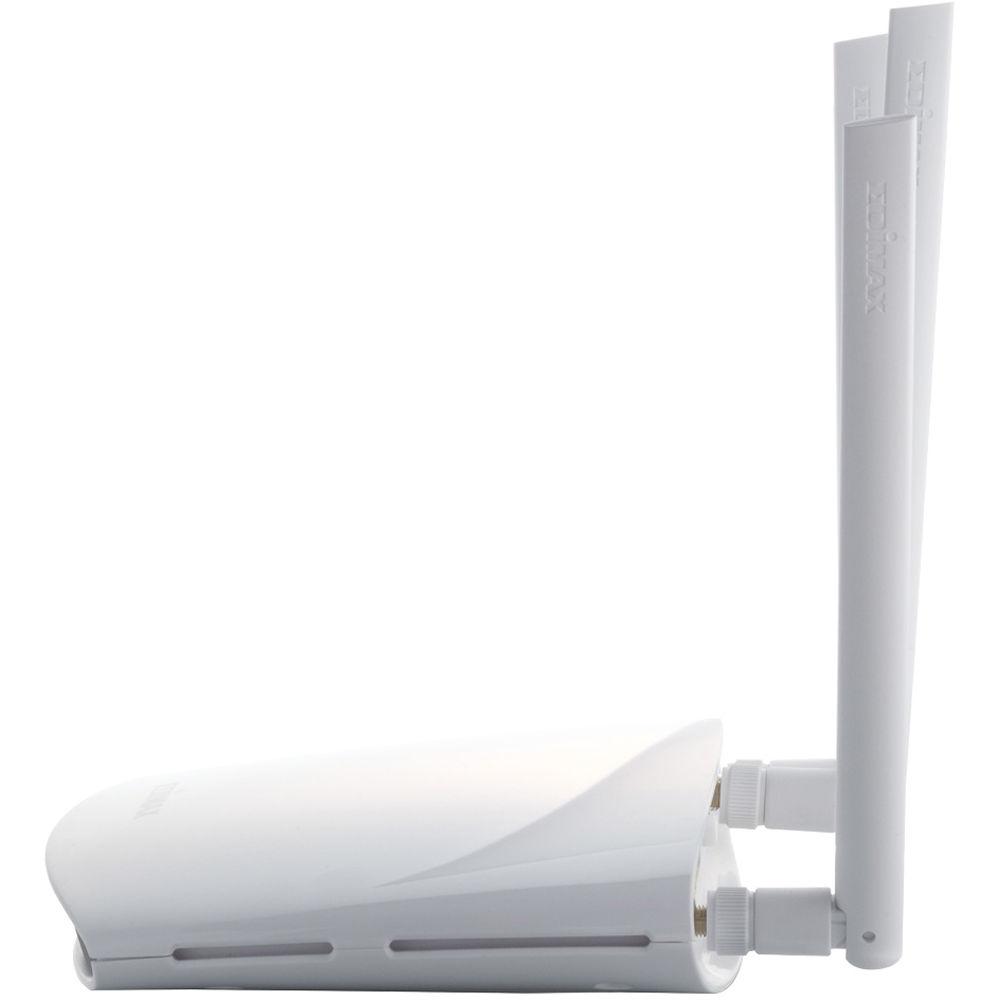

- Employing three external detachable antennas, this access point provides 2.4 GHz and 5 GHz dual-band signal strength and enhances Wi-Fi range, providing signal penetration through walls and floors across your home or office.

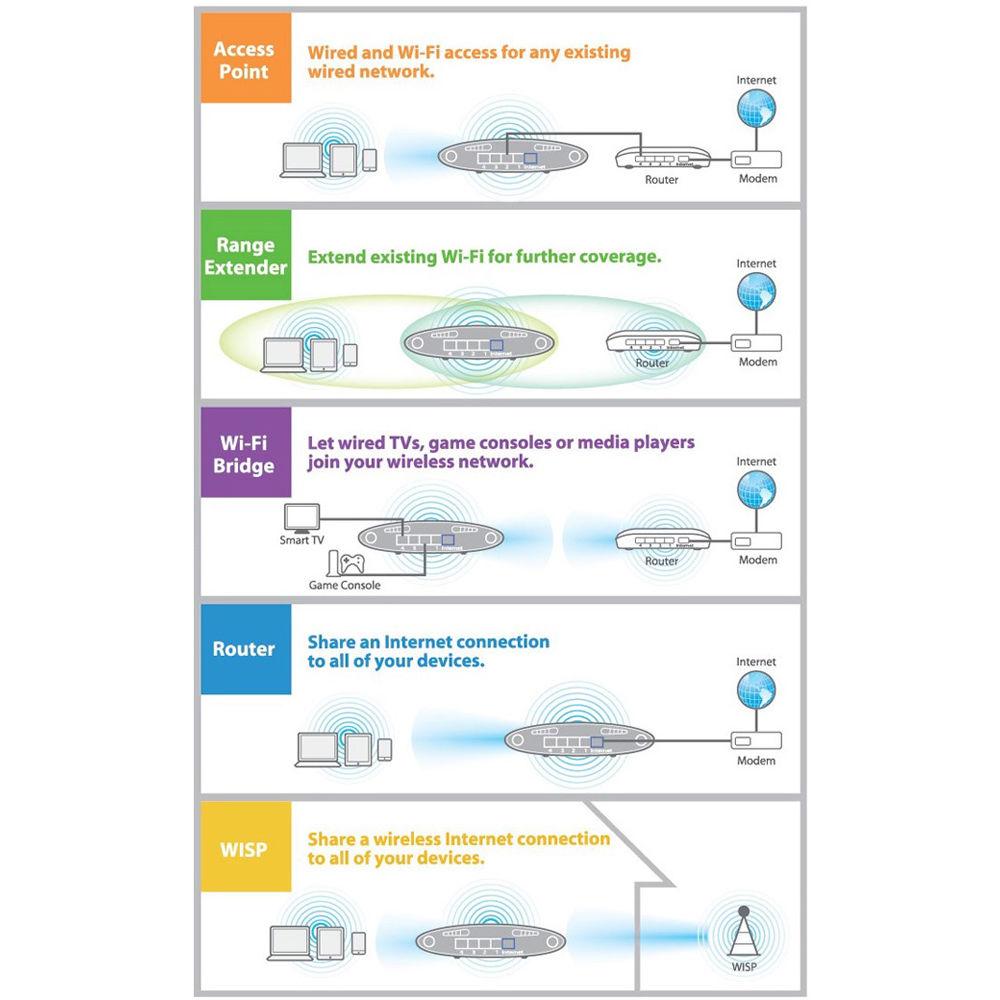

- 5-in-1, Access Point, Range Extender, Wireless Bridge, Wi-Fi Router, and WISP
-
- It can work as an access point, range extender, wireless bridge, Wi-Fi router or WISP. You just need to configure the mode you need for your network environment using the smart iQ Setup wizard.
- Smart iQ Setup
-
- Features iQ Setup for smart, automatic, and quick installation with no CD required
- Multi-SSID & VLAN Support
-
- Multi-SSID enables users to configure up to eight separate SSIDs (4 x 2.4 GHz and 4 x 5 GHz) in order to group and manage users according to your requirements. In addition, each SSID can be assigned a different VLAN ID, so users with multiple VLANs can manage the network access level of each SSID – ensuring security and protecting confidential or critical network resources.
1 Please Note: Access point mode only close - Eliminate Wi-Fi Dead Zones & Double Wi-Fi Coverage
-

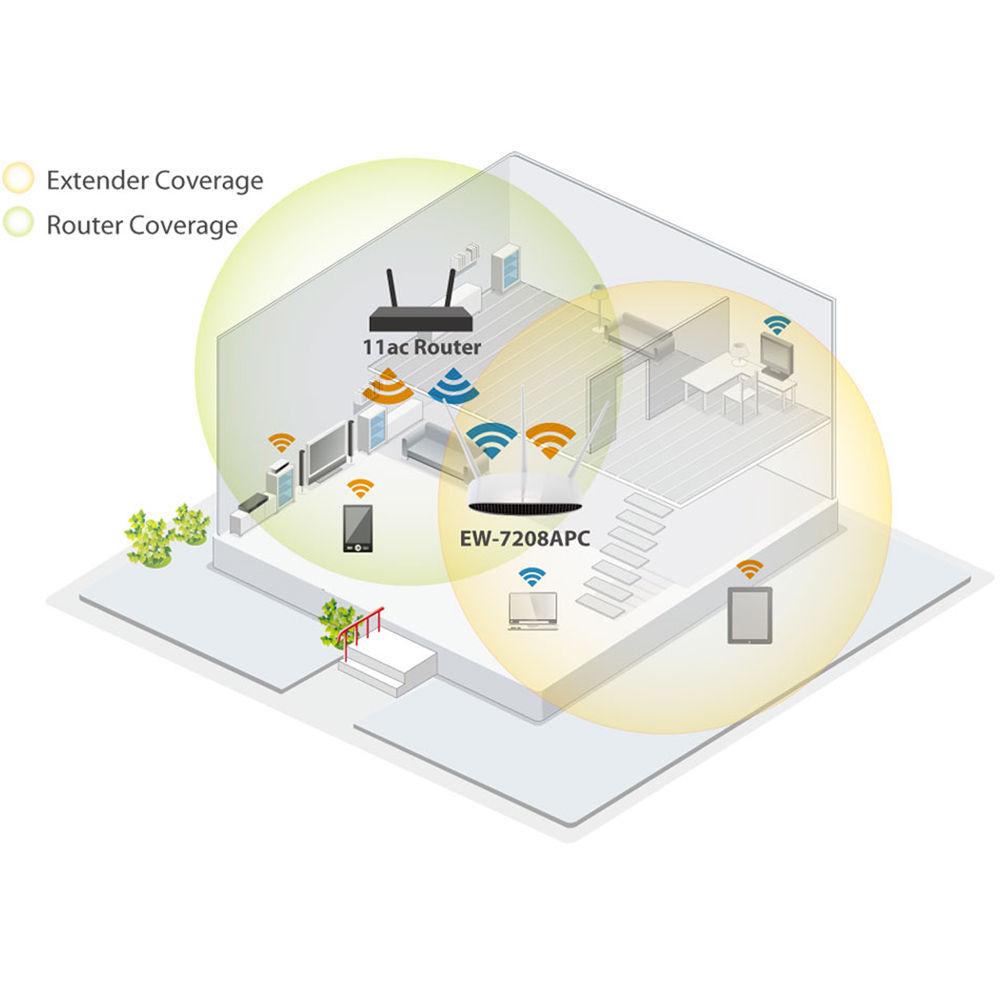

- Switch this access point to range extender mode to extend Wi-Fi coverage to dead zones which your existing Wi-Fi signal can’t reach. Increase the signal coverage of your Wi-Fi network for better performance on your Wi-Fi devices.

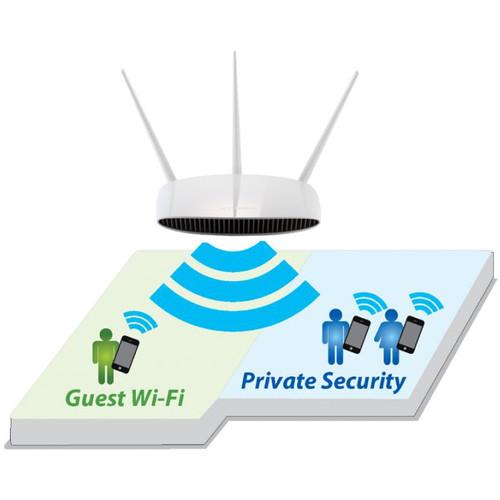

- Guest Network
-
- It can support a guest network to provide connectivity while isolating guests from your primary network.
2 Please Note: Wi-Fi router mode only close - Functions
-
- Supports access point, range extender, wireless bridge, Wi-Fi router and WISP modes
- Wi-Fi access control
- Wi-Fi schedule control
- Fault tolerance firmware upgrade
- Revolutionary iQoS for efficient and effective internet bandwidth management
- Management and Installation
-
- Multi-language user interface
- Firmware upgradable
- Smart iQ Setup (No CD required)
- Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup)
UPC: 649659025165 In the Box EDIMAX Technology EW-7208APC Multi-Function Dual-Band 802.11ac Access Point/Range Extender 5 VDC Power Adapter Ethernet Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology EW-7208APC Multi-Function Dual-Band 802.11ac Access Point Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

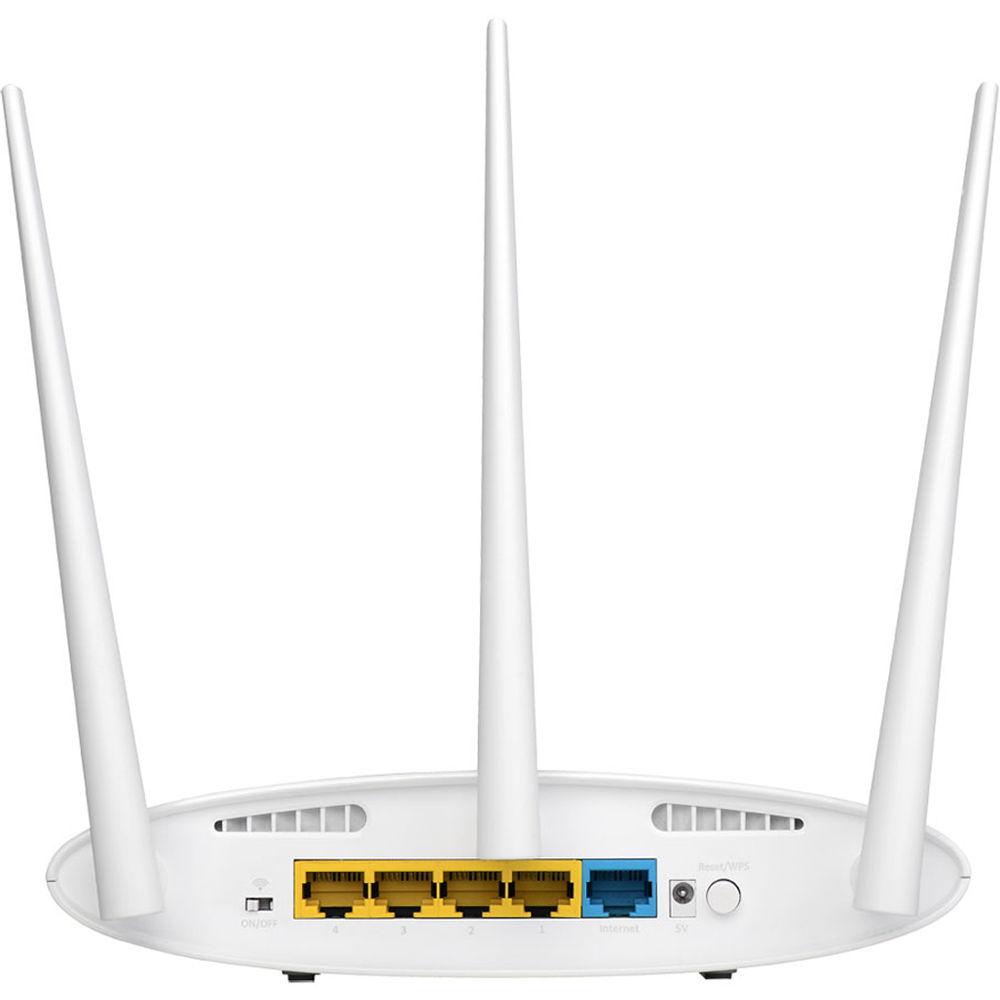

Technical parametersEDIMAX Technology EW-7208APC Specs | | | Number of Antennas | 3 | | Sensitivity | -57 to -83 dBm | | Transmit Power | 14 to 18 dBm | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) (Uplink)
4 x 10/100 Mb/s Ethernet (RJ45) | | | | Wireless Security | WEP, WPA | | | | RAM | 64 MB | | Storage Capacity | 4 MB | | Supported IEEE Standards | 802.11i, 802.1x | | | | DC Input Power | 5 VDC at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | | | Dimensions | 7.5 x 5.6 x 1.7" / 19 x 14.1 x 4.2 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 13.0 x 8.7 x 3.3" |
