User Manual for EDIMAX Technology EW-7428HCN N300 High Power Ceiling Mount Wireless PoE Range Extender Access Point Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology EW-7428HCN N300 High Power
- Product category: Wireless Access Points EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Access Points
 |
User manual for the EDIMAX Technology EW-7428HCN N300 High Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

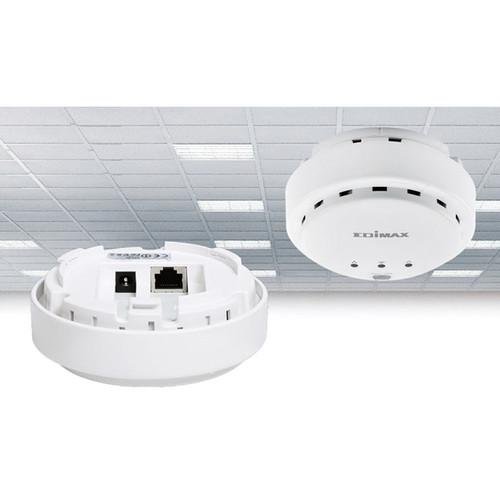

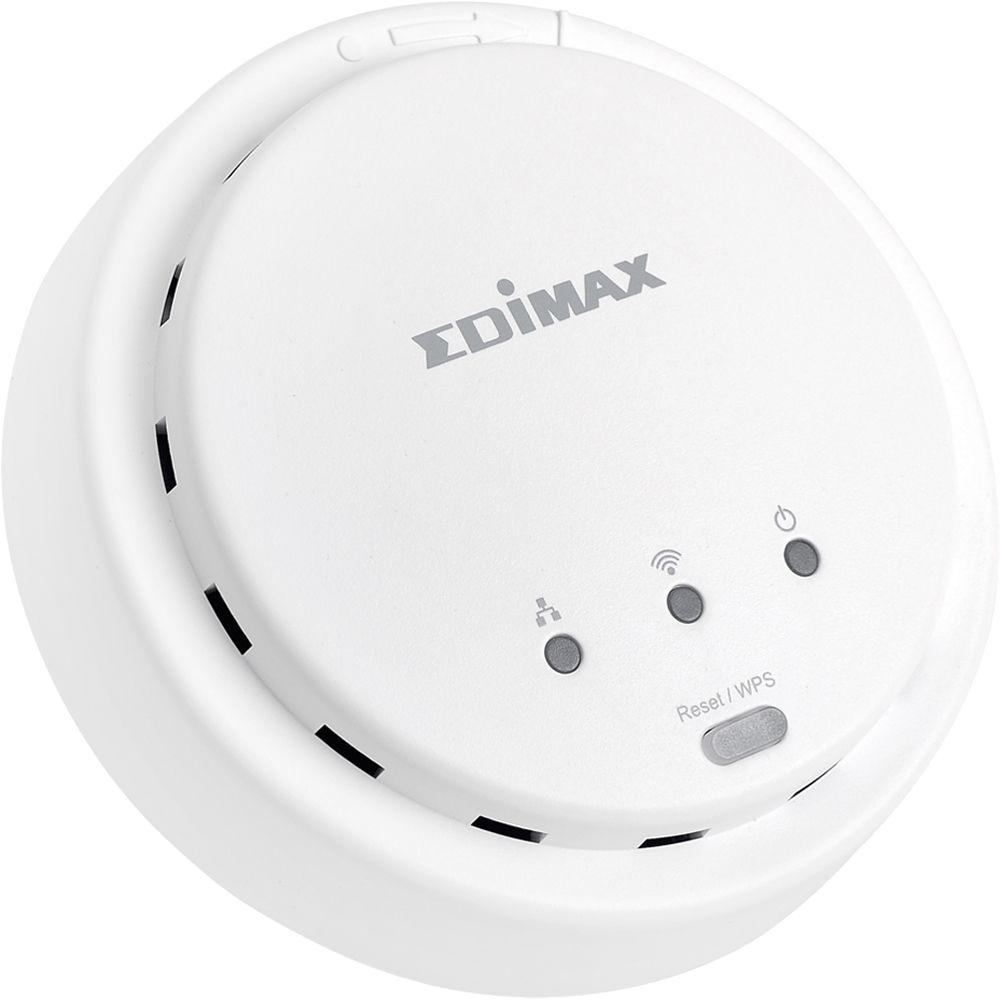

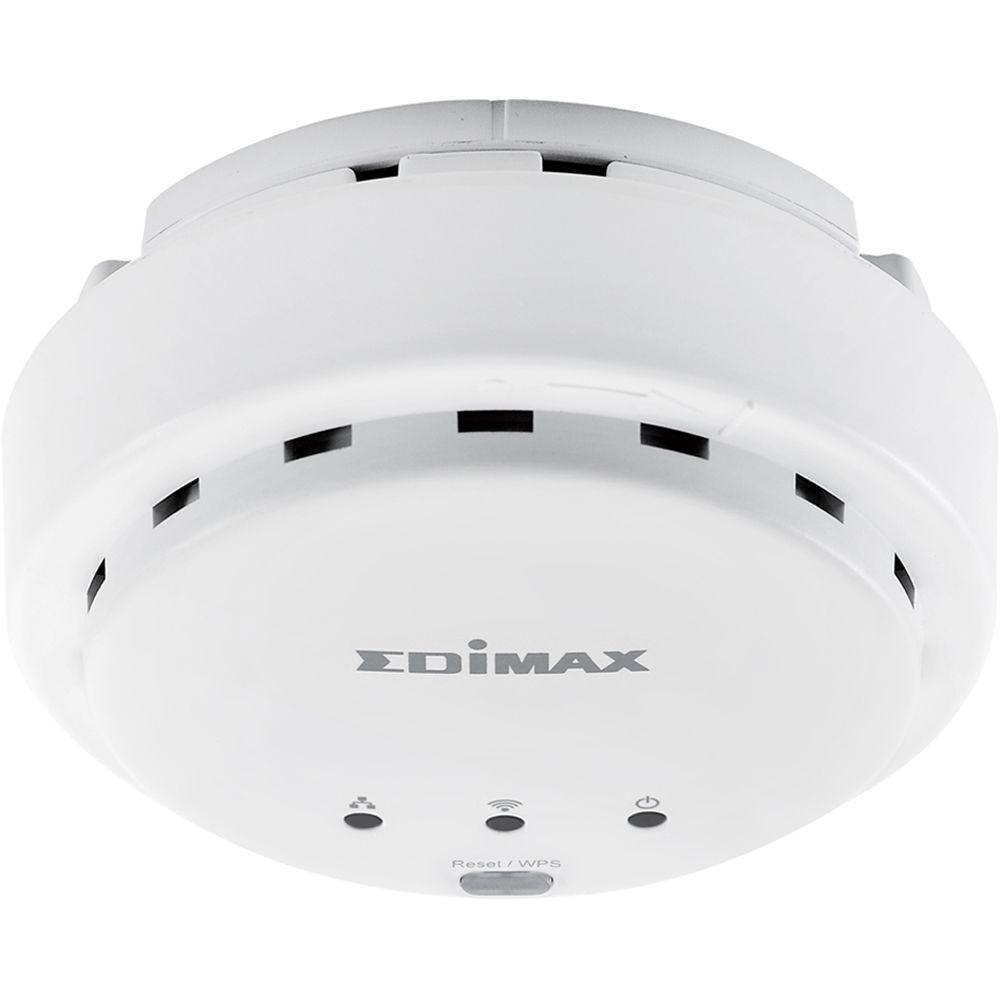

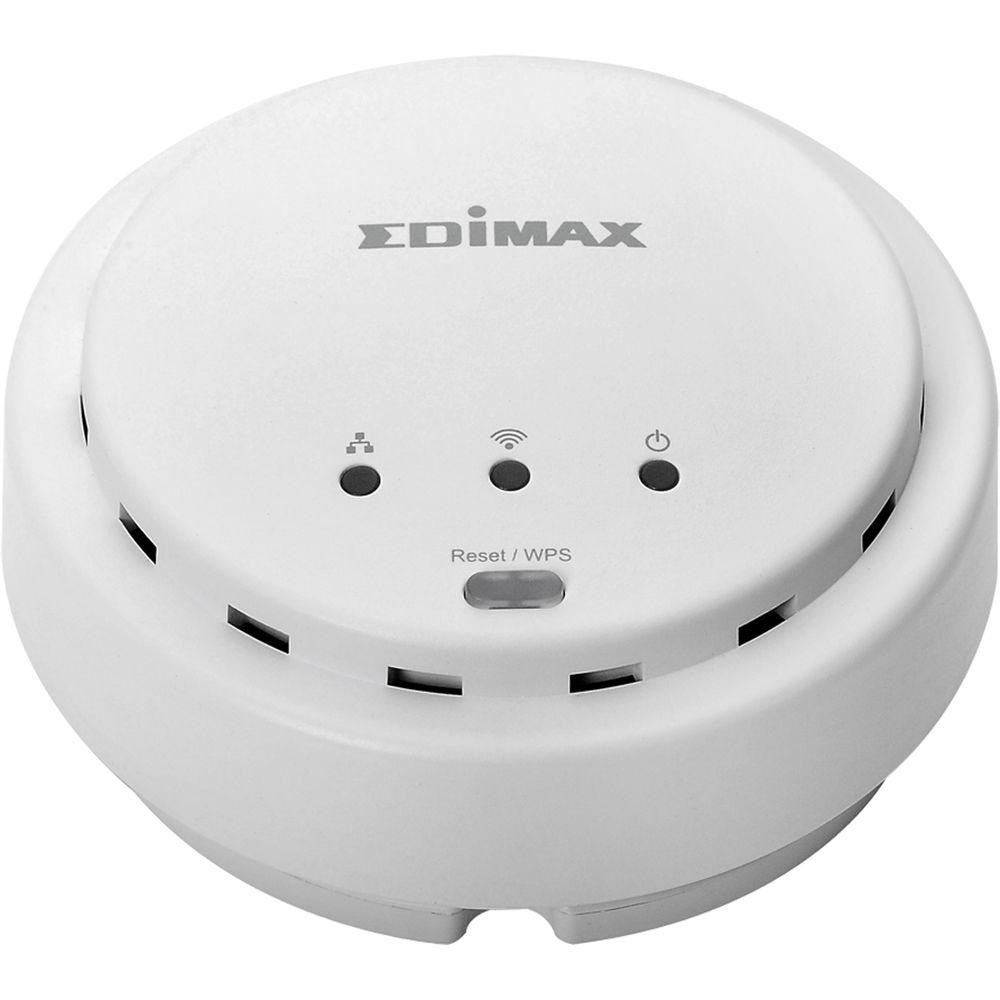

Product description The EW-7428HCN N300 High Power Ceiling Mount/Wireless PoE Range Extender/Access Point from Edimax Technology is a 2-in-1 unit with 2 operating modes – Wi-Fi extender and access point.
The access point complies with IEEE 802.11b/g/n standards. The wireless MIMO (Multiple-Input and Multiple-Output) technology is built into this access point to broaden its Wi-Fi coverage and to eliminate dead spots within the signal range. When it is connected to IEEE 802.11n wireless devices, this wireless access point can reach Wi-Fi speeds of up to 300 Mb/s.

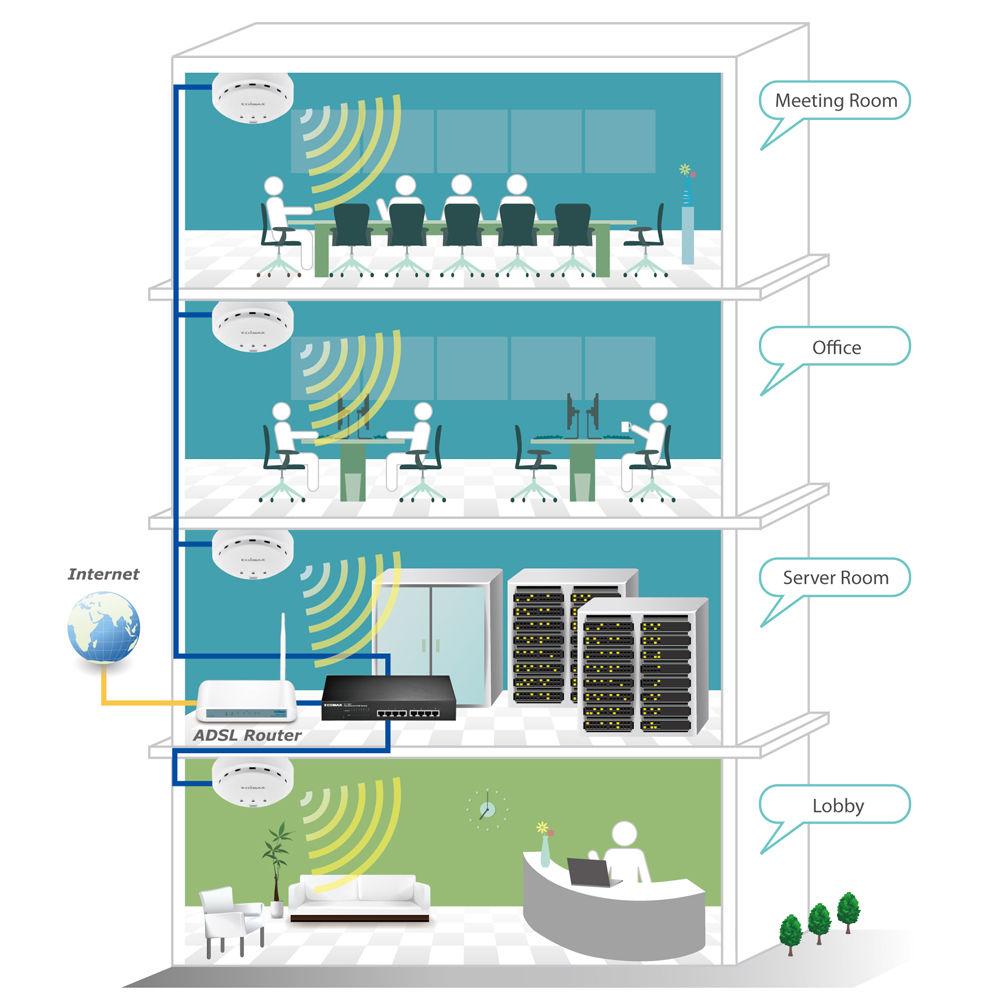

The WDS (Wireless Distributed System) function lets the access point act as a wireless LAN access point and repeater at the same time. It can be used to build up a large wireless network in a large space like airports, hotels, and schools. It is also useful when you want to bridge networks between buildings.
A WPS button can help you set up an encrypted wireless connection simply by pressing the WPS button on this access point and the client device. This one-press WPS button helps users set up a secure wireless network in less than a minute. With the WLAN technology, the unit is able to adjust its power supply according to the amount of network activity. - 600mW high power output for superior wireless performance
- iQ setup for automatic and smart setup

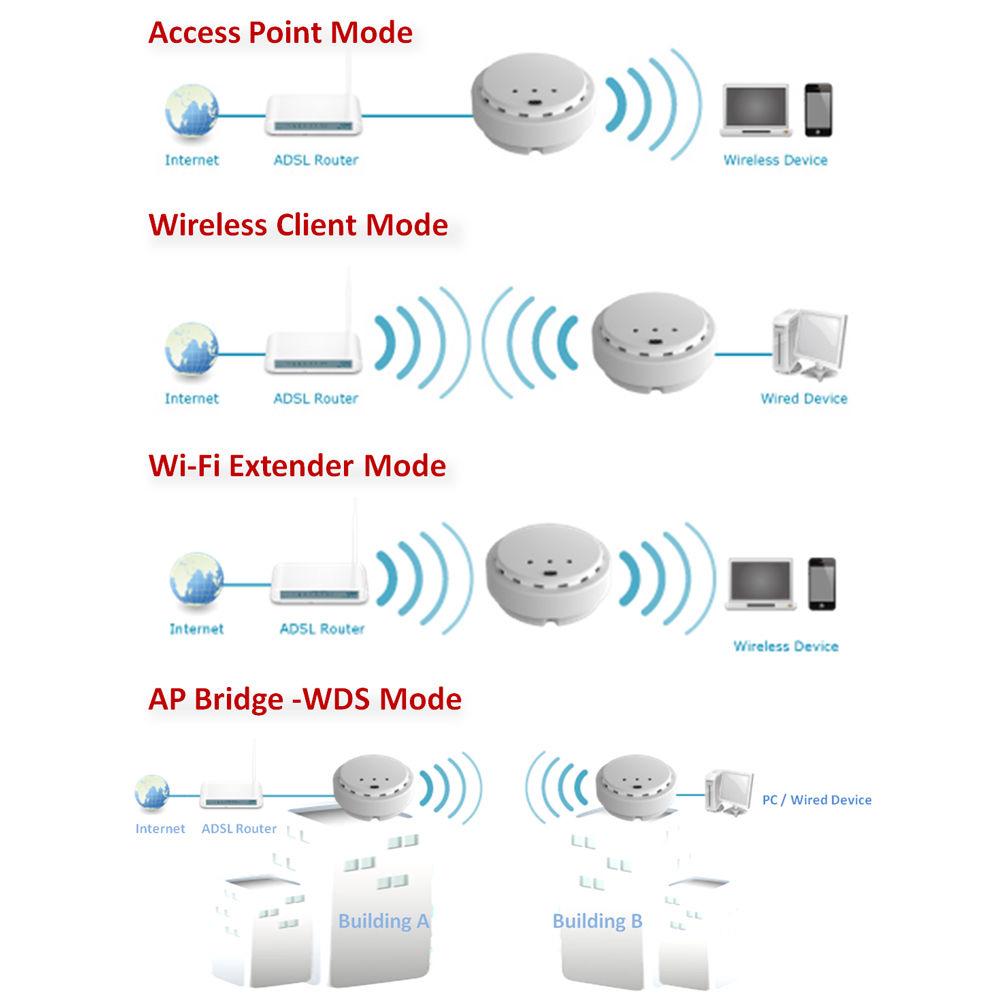

- Multiple operation modes including AP, WDS Point to Point, WDS Point to multiple points, and repeater
- Up to 5 SSIDs, making it possible to divide clients into different wireless groups with different wireless security settings
- Scheduling to turn LED and wireless on and off, to reduce power consumption
- Suitable for home, SOHO, and SMB environments
- Enhanced wireless coverage up to 10,000 square meters
Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology EW-7428HCN N300 High Power Ceiling Mount Wireless PoE Range Extender Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the EDIMAX Technology EW-7428HCN N300 High Power Ceiling Mount Wireless PoE Range Extender Access Point can be downloaded in PDF format at the link stated below.
Technical parametersEDIMAX Technology EW-7428HCN Specs | | | Wireless Frequency Bands | 2.4 GHz | | Number of Antennas | 2 | | WLAN Mode | 802.11n | | Transmit Power | 23 to 26 dBm | | Supported Protocols | WMM | | Antenna Placement | Internal | | | | Ports | 1 x 10/100 Mb/s Ethernet (RJ45) | | | | Wireless Security | WEP, WPA, AES, TKIP | | | | Throughput | 2.4 GHz: 300 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.1x, 802.3af | | | | DC Input Power | 5 VDC at 2 A | | | | Dimensions | 4.1 x 4.1 x 2" / 10.5 x 10.5 x 4.6 cm |
