User Manual for EDIMAX Technology EW-7438AC Smart AC750 Dual-Band Wi-Fi Extender Access Point Wi-Fi Bridge Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology EW-7438AC Smart AC750 Dual-Band
- Product category: Wireless Range Extenders EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Range Extenders
 |
User manual for the EDIMAX Technology EW-7438AC Smart AC750 Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

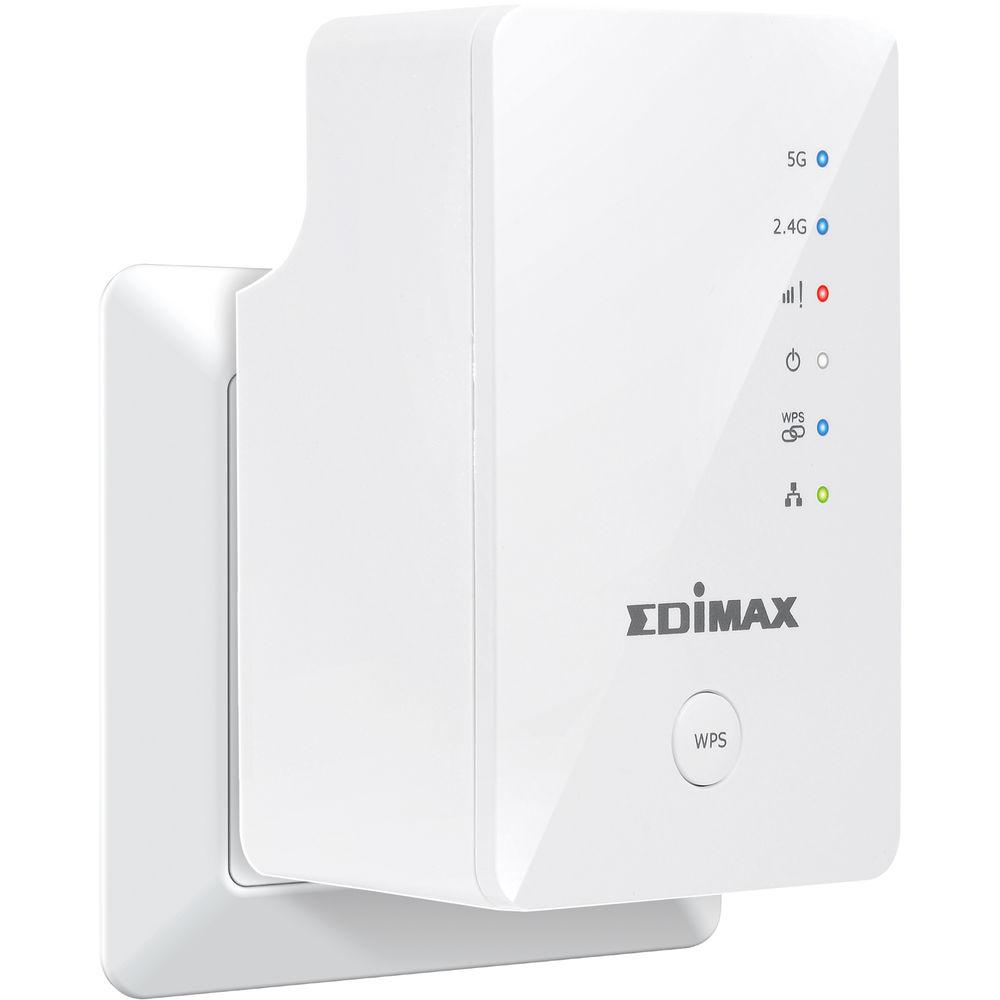

Product description Eliminate Wi-Fi dead zones with the EW-7438AC Smart AC750 Dual-Band Wi-Fi Extender / Access Point / Wi-Fi Bridge from Edimax. With the ability to operate in three different networking modes (access point, Wi-Fi extender, and Wi-Fi bridge), the EW-7438AC can be used in a variety of network configurations. Regardless of the mode being used, setup and configuration of this extender is simple and can be done from a smartphone or tablet, and through a computer using the web based interface. With Smart App Control and Analytics, a network administrator has complete control over various aspects of the network using Wi-Fi analytics, scheduling, and the ability to implement a guest network. Once installed this Edimax Range Extender operates on both the 2.4 GHz and 5 GHz frequencies and supports 802.11a/b/g/n/ac Wi-Fi network standards. In addition to wireless access, an Ethernet enabled device can be connected directly to the Fast Ethernet port located on the bottom of the extender. - 802.11ac Dual-Band Wi-Fi
- This range extender offers 802.11ac Wi-Fi technology with high-speed capacity up to 750 Mbps (N300 + AC433 Mbps) and extends both 2.4 GHz and 5 GHz wireless connections at the same time.
- Eliminate Dead Zones & Enhance Wi-Fi Coverage

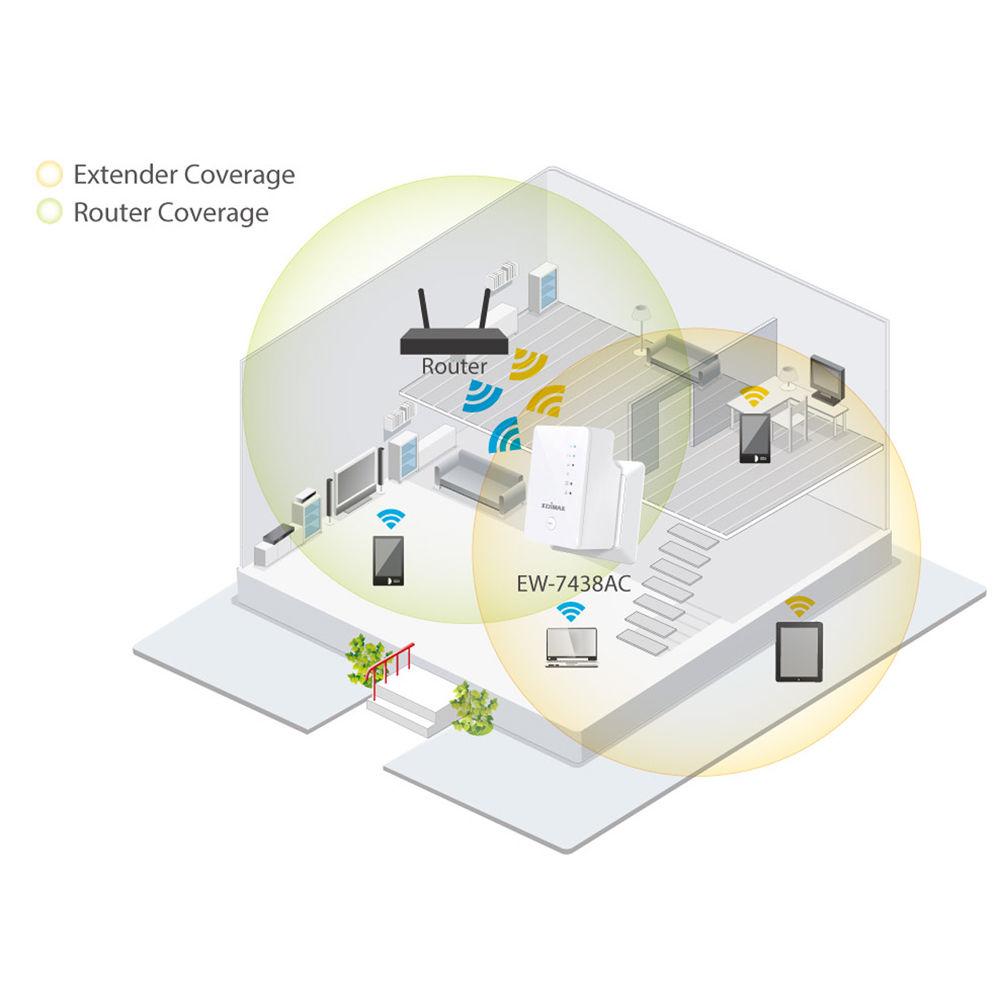

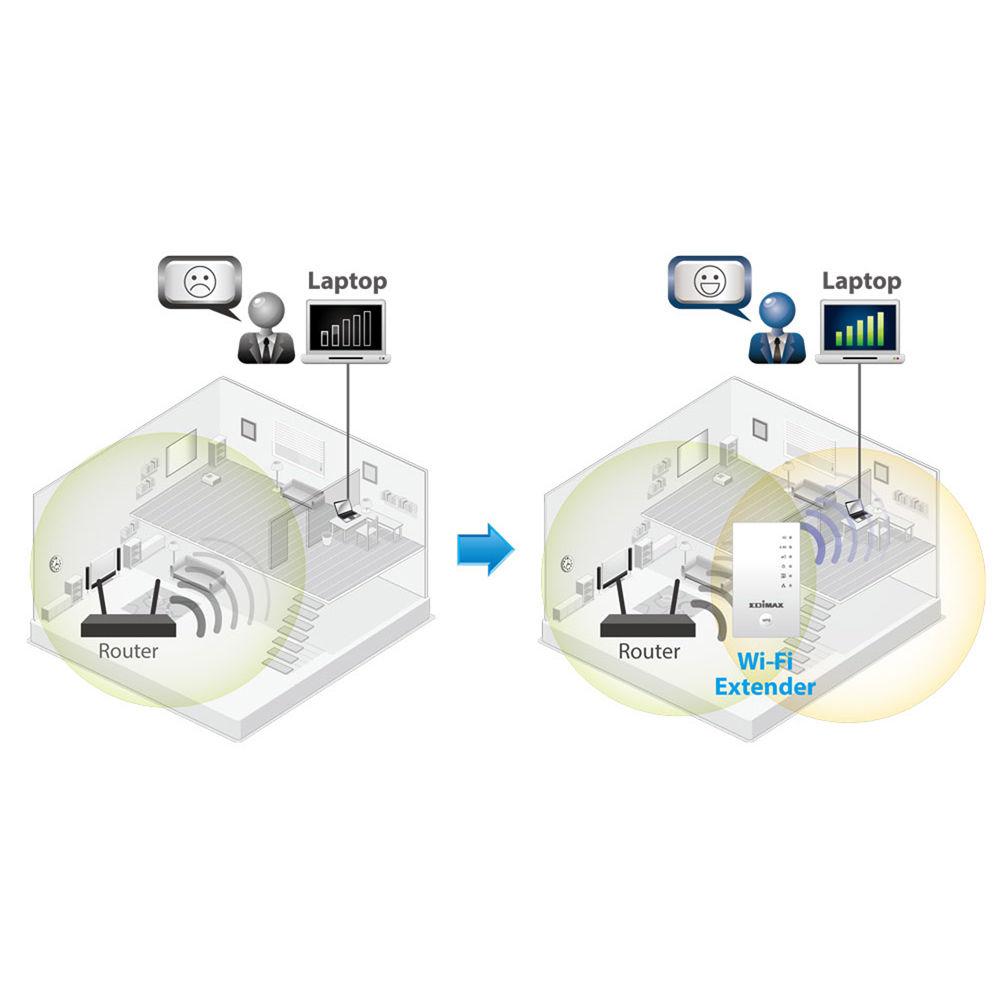

- Extend Wi-Fi coverage to dead zones which your existing Wi-Fi signal can't reach. Plug the extender directly into an electrical outlet and double the signal coverage of your Wi-Fi network for better Wi-Fi quality across different rooms or multiple floors in your home.
- Smart 3-in-1 Extender, Access Point, and Wi-Fi Bridge

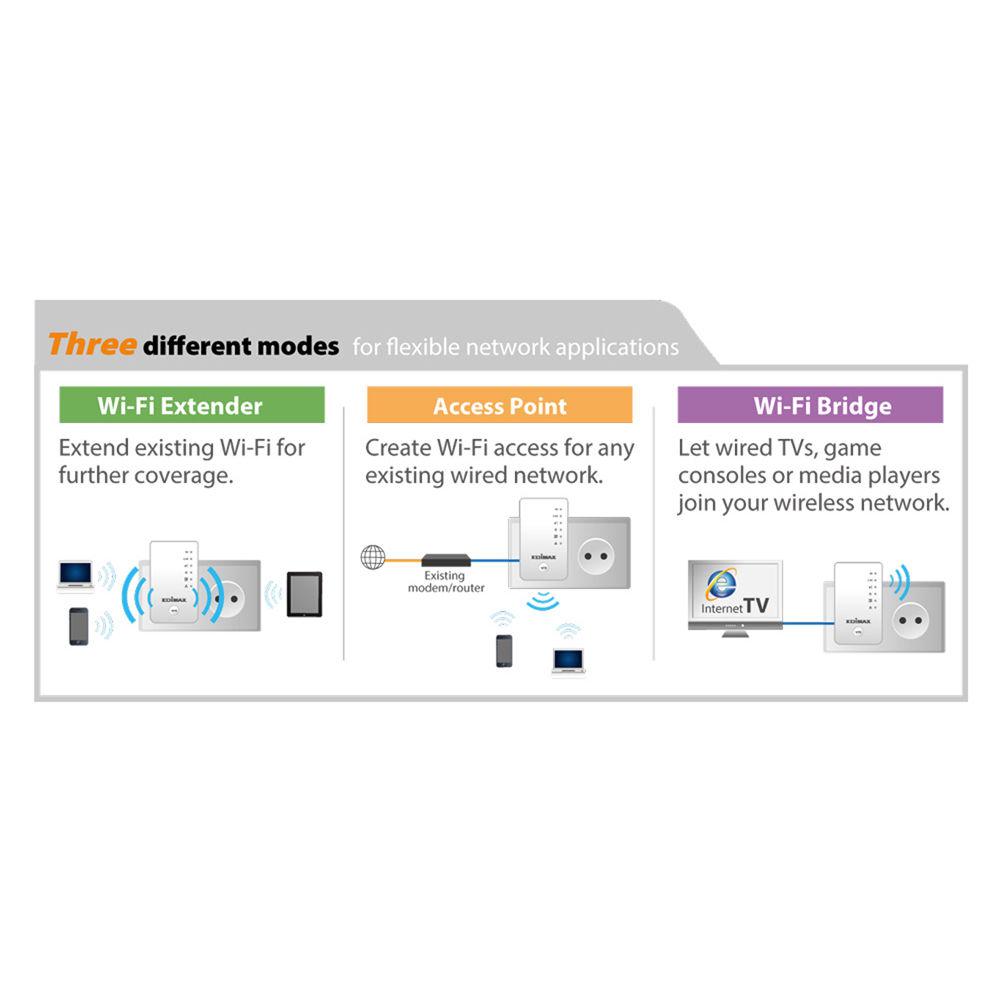

- The EW-7438AC can work as Wi-Fi extender, access point or Wi-Fi bridge. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.
- Smart IQ Setup
- Features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.
- Smart App Control & Analytics
- The extender works together with the free EdiRange smartphone app which displays your local Wi-Fi environment and provides easy-to-understand analytics. Plus, you can manage the extender's wireless network and functions such as scheduling and guest network.
- Universal Compatibility, Works with Any Wireless Router

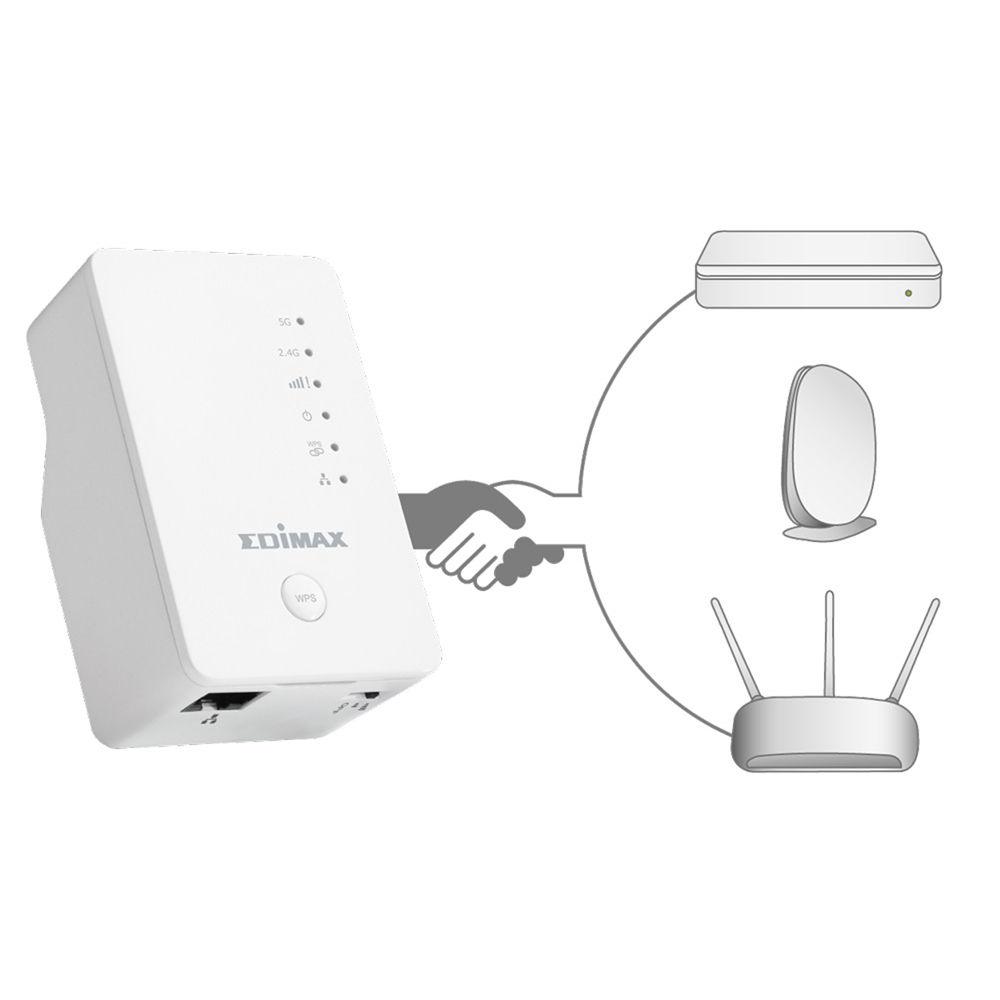

- Universal compatibility and easy web-based iQ Setup for quick and easy installation.
- Green Wi-Fi Power Switch

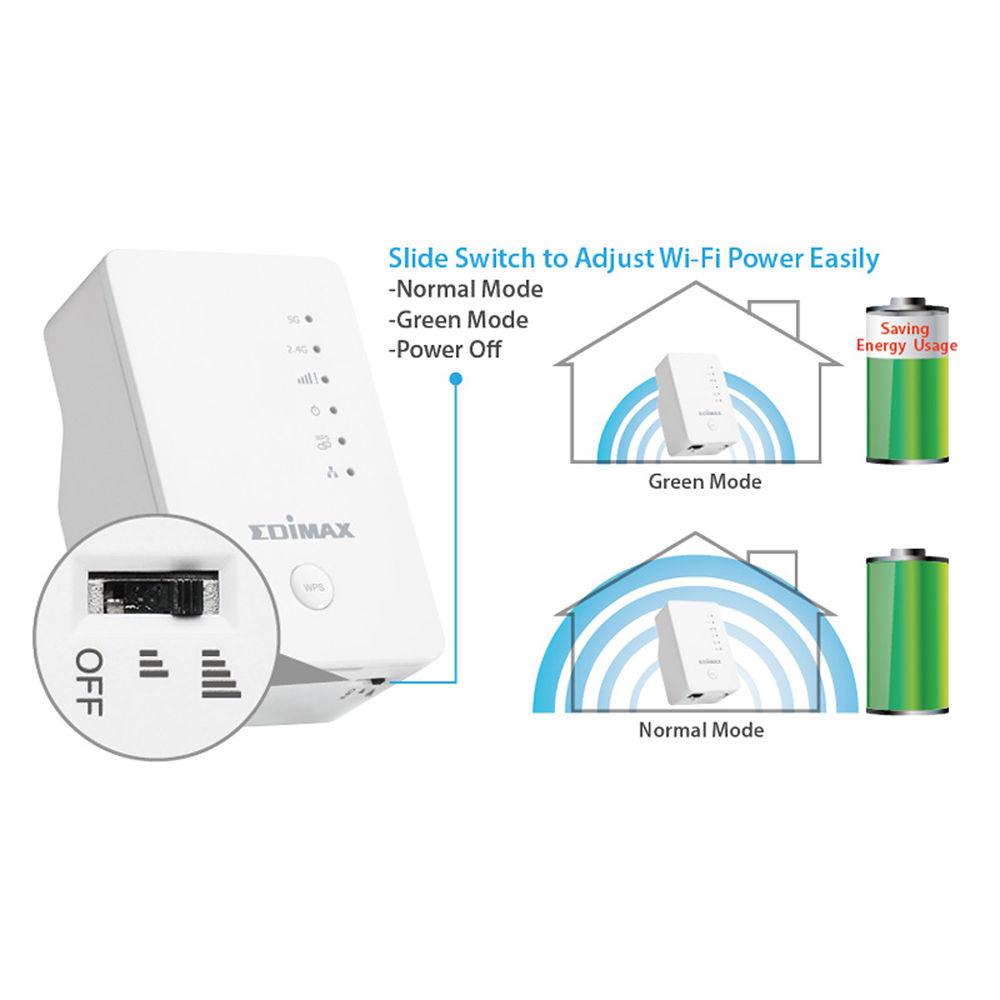

- Featuring a hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal) or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce transmit power by 75% and conserve energy.
- Cross-Band Technology for Maximum Speed
- Edimax cross-band technology uses both frequency bands together to maintain your router's maximum speed capacity through your extender and to your Wi-Fi device. Data is transmitted on one band and received on the other band, meaning no speed loss at your extender and a faster network with better performance. Perfect for high-speed applications such as HD video streaming or online gaming.
- Smart Signal-Strength Indicator
- Designed with a signal strength LED which lets you see the Wi-Fi signal strength received from the router and guides you to find the best setup location.

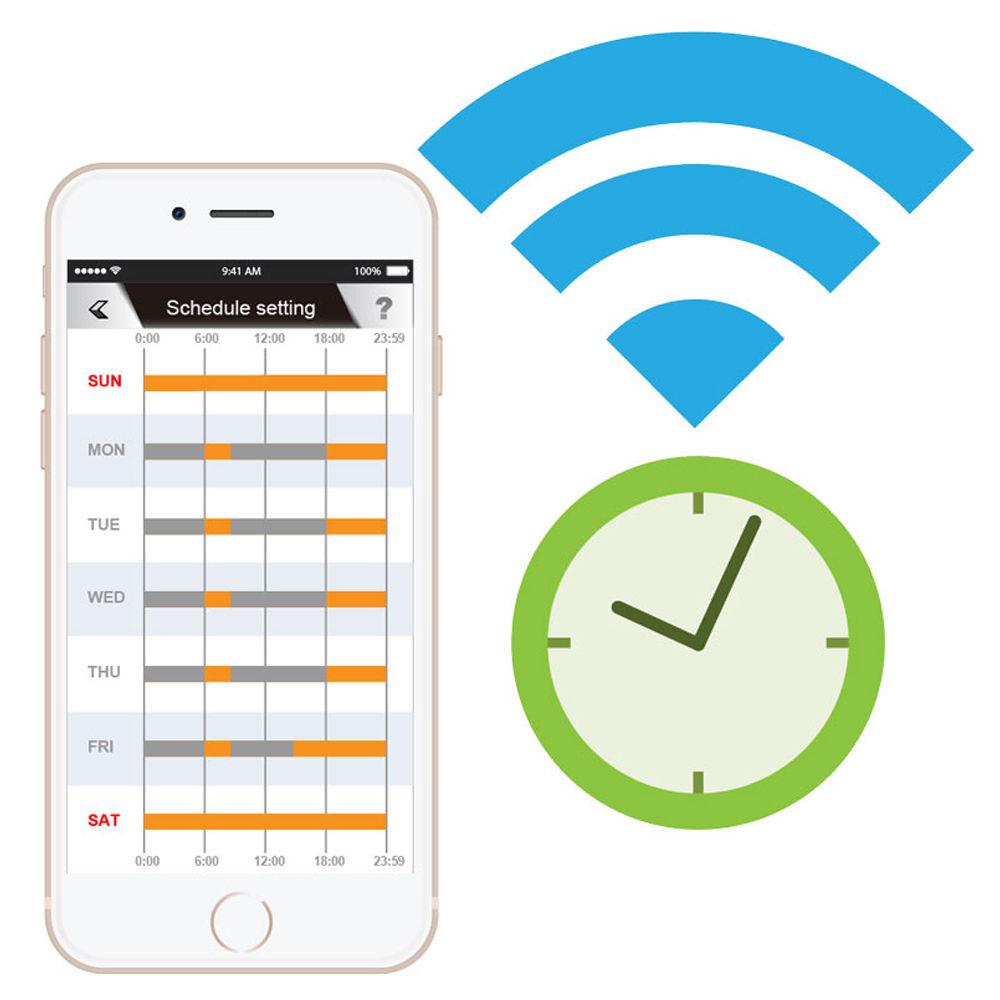

Indicator only works in extender or Wi-Fi bridge modes - Wi-Fi Scheduling
- Program intelligent schedules to manage Wi-Fi availability and power usage according to your home's routine.
- Guest Wi-Fi
- The EW-7438AC also features a guest wireless network which could be used for visitors only and help to keep your home Wi-Fi private and secure.
UPC: 649659025189 In the Box EDIMAX Technology EW-7438AC Smart AC750 Dual-Band Wi-Fi Extender / Access Point / Wi-Fi Bridge CD with Multi-Language QIG and User Manual Access Key Card Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology EW-7438AC Smart AC750 Dual-Band Wi-Fi Extender Access Point Wi-Fi Bridge in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7438AC Specs | Frequency Band | 2.4 GHz
5 GHz | | Wireless Standards & Signal Rates | IEEE 802.11ac (up to 433 Mbps)
IEEE 802.11n (up to 300 Mbps)
IEEE 802.11a (up to 54 Mbps)
IEEE 802.11g (up to 54 Mbps)
IEEE 802.11b (up to 11 Mbps) | | Hardware Interface | 1 x 10/100 Mbps Ethernet LAN port
1 x Slide switch
1 x WPS button
1 x AC plug (EU, UK, US, or AU)

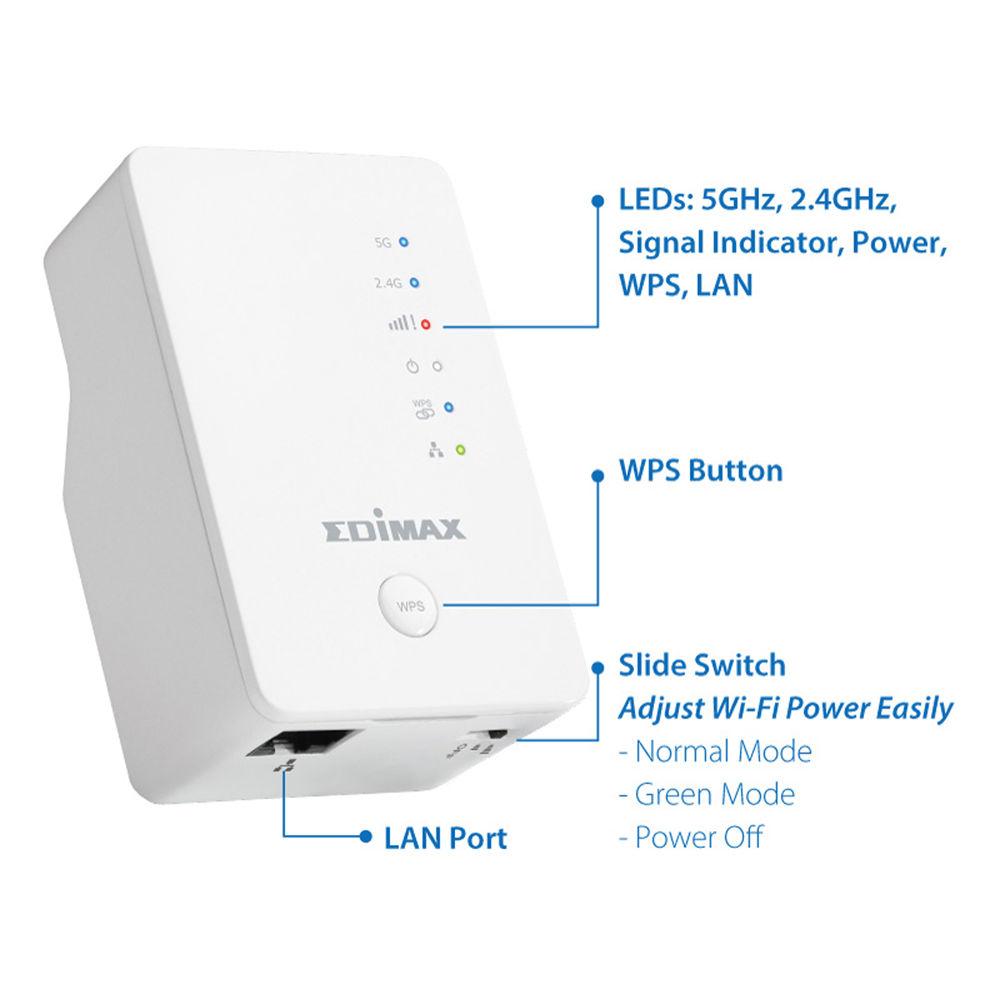

LEDs: 5 GHz, 2.4 GHz, Signal indicator, Wireless, Power, WPS, LAN | | Management | 16-language user interface
Upgradable firmware | | Security | 64/128-bit WEP, WPA-PSK and WPA2-PSK encryption
WPS (Wi-Fi Protected Setup) | | System Requirements | Existing wireless home network (2.4 GHz/5 GHz) for Wi-Fi extender/Wi-Fi bridge mode, or cable/DSL modem router for access point mode
Computer with IEEE802.11ac/a/b/g/n Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version)
iOS 6 above or Android 4.x above for mobile app | | Installation | Multi-language iQ setup (browser interface)
Hardware WPS button | | Antennas | 2 x 2.4 GHz antennas
1 x 5 GHz antenna | | Power Adapter | Built in 100-240 VAC, 0.16 A 50-60 Hz power module | | Humidity | 10 to 90% non-condensing | | Temperature | 32 to 104°F / 0 to 40°C | | Certifications | FCC, CE | | Dimensions | 2.3 x 3.6 x 1.6"
59 x 91 x 40 mm | | Weight | 3.8 oz
106 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 7.8 x 5.5 x 3.7" |
