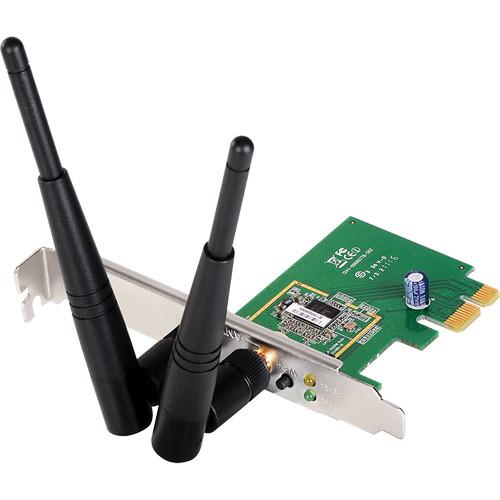

User Manual for EDIMAX Technology EW-7612PIn V2 N300 Wireless PCI Express Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology EW-7612PIn V2 N300 Wireless
- Product category: Wireless Adapters & Cards EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Adapters & Cards
|
User manual for the EDIMAX Technology EW-7612PIn V2 N300 Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The Edimax EW-7612PIn V2 N300 Wireless PCI Express Adapter is an easy way to add Wi-Fi connectivity to your desktop computer. Built with the 802.11n standard, 2T2R MIMO technology, and two high-gain 3dBi detachable antennas, this wireless PCIe adapter allows for fast and stable wireless networking with data speeds of up to 300 Mbps. It can be set up with the bundled EZmax multi-language setup wizard, and it comes with a low-profile bracket for installation on small computers. - Wireless 802.11n Standard (Data Rates Up to 300 Mbps)
- The Edimax EW-7612PIn V2 allows for increased wireless coverage and higher data transmission rates. The latest wireless technology is built into this device to broaden its wireless coverage by 5 times and to reduce dead spots within the wireless range. The EW-7612PIn V2 complies with wireless IEEE 802.11b/g/n standards and can reach data transmission rates of up to 300Mbps when connected to wireless 802.11n devices. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11b/g wireless networks.
- First-Class Reliability
- The EW-7612PIn V2's chipset offers increased bandwidth and more functionality than other PCI network adapters. This adapter is specifically designed to utilize the full bandwidth capacity of the PCI Express bus, thus eliminating collisions and latencies that exist with current 32-bit and 64-bit PCI bus architectures.
- Wi-Fi Protected Setup (WPS) Button
- The Edimax EW-7612PIn V2 features a convenient WPS button. Users can set up an encrypted wireless connection simply by pressing the WPS button on this adapter and a WPS-enabled wireless access point. This one-click WPS button helps users set up a secure wireless network in less than a minute.
- High-Gain 3dBi Detachable Antennas for Improved Wireless Performance
- The EW-7612PIn V2 comes with two high-gain 3dBi detachable antennas, which enable it to achieve better signal quality compared to common wireless adapters. The antennas' detachable design also gives users the flexibility of using the antennas with extension cables for optimal antenna placement.
UPC: 649659022898 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology EW-7612PIn V2 N300 Wireless PCI Express Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EW-7612PIN V2 Specs | Interfaces | 1 x PCI Express interface
1 x Link LED
1 x Tx/Rx LED
1 x Hardware WPS button
2 x RP-SMA connector
2 x High-gain 3dBi detachable antenna
| | Standards | IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
| | Data Rates | 11b: 1/2/5.5/11 Mbps
11g:6/9/12/24/36/48/54 Mbps
11n (20 MHz): MCS0-15 (up to 144 Mbps)
11n (40MHz): MCS0-15 (up to 300 Mbps)
| | Frequency Band | 2.4000 to 2.4835 GHz
(Industrial Scientific Medical Band) | | Output Power | 11n:12 dBm±1.5 dBm
11g: 12 dBm±1.5 dBm
11b: 16 dBm±1.5 dBm
| | Environmental | Operating temperature: 32 to 103°F (0 to 40°C)
Storage temperature: -4 to 149°F (-20 to 65°C)
Operating humidity: 10 - 90% (non-condensing)
Storage humidity: max. 95% (non-condensing)
| | Wireless Security | 64/128-bit WEP, WPA, WPA2 & IEEE 802.1x
Hardware & Software WPS configuration
| | Installation | Multi-language EZmax Setup Wizard | | System Requirements | Windows XP, Vista, 7, and 8 | | Certification | CE
FCC
| | Dimensions | 0.9 x 4.7 x 3.6" / 22 x 121 x 88 mm (without antenna) | | Weight | Not Specified By Manufacturer |
