User Manual for EDIMAX Technology Gigabit Ethernet PCI Network Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology Gigabit Ethernet PCI Network
- Product category: Network Interface Cards & Adapters EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Interface Cards & Adapters
 |
User manual for the EDIMAX Technology Gigabit Ethernet PCI Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

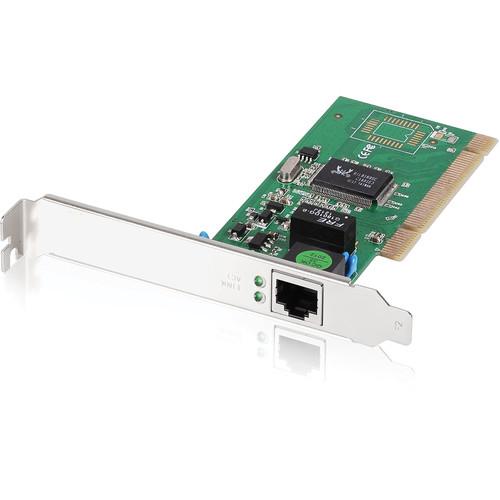

Product description The Gigabit Ethernet PCI Network Adapter from EDIMAX Technology delivers optimal performance and wired network connectivity to desktop PCs. Gigabit home or business networks can be connected to the Gigabit PCI adapter and files can be transferred at speeds 10x faster than 10/100 Fast Ethernet. Once connected, accessing shared music, documents, movies, and photos will be easy and quick. - General Features
- Offers 32-bit 33/66MHz PCI Local Bus Master high-speed operation (Rev. 2.1/2.2/2.3)
Complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards
Supports 10/100/1000 Mb/s Auto Negotiation and jumbo frame, IEEE 802.3x Full Duplex flow control, IEEE 802.1Q VLAN Tagging, PCI 2.2 Wake On LAN function, and PCI Message Signaled Interrupt (MSI)
Built-in FIFO buffers reduce overhead of memory transfers
Includes a Setup Wizard program and a low-profile bracket
Provides drivers for Novell 5.X/6.X, Windows 98/ME/NT4.0/2000/XP/Vista/7/8, Linux 2.4.x - Comprehensive Networking Approach

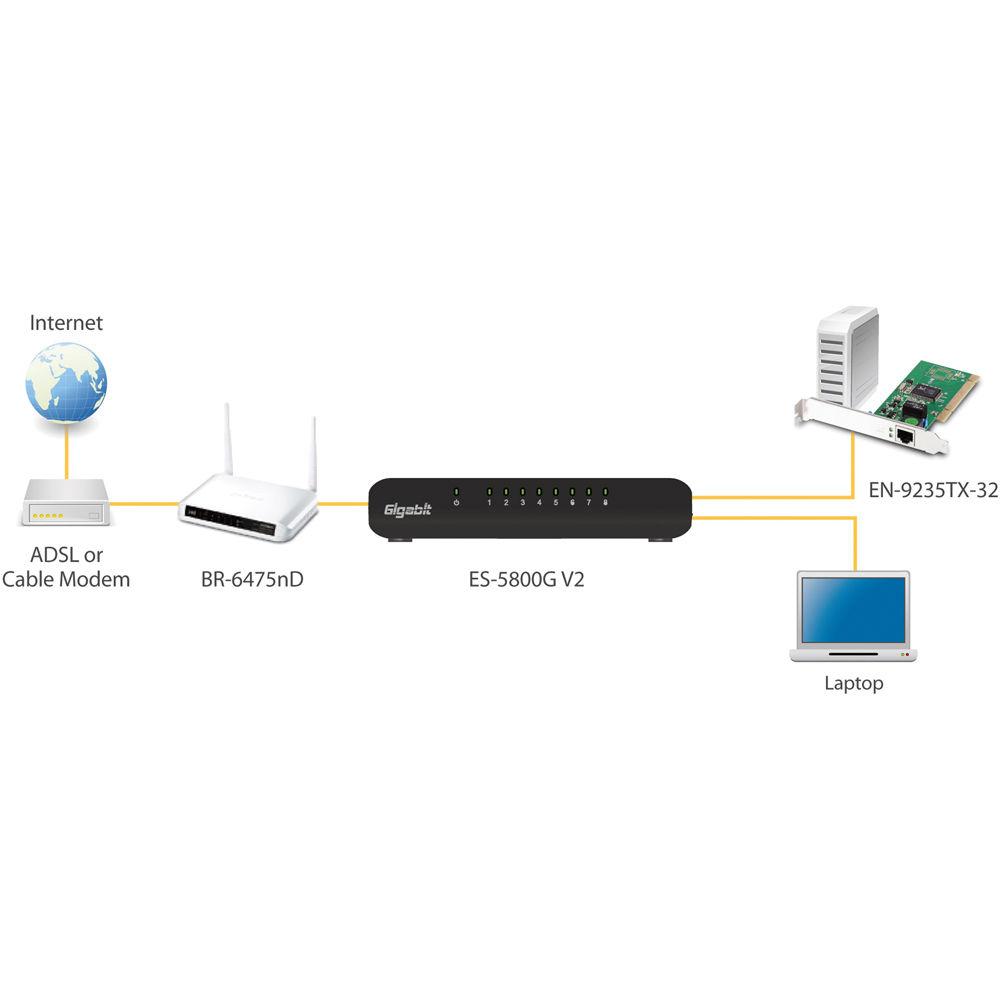

- The EN-9235TX-32 supports ACPI (Advanced Configuration Power Interface) and Wake on LAN that allows remote power control of the PC. It also provides manageability, compatibility, and 32-bit bus-mastering architecture
- Ease of Installation and Configuration
- It offers ease of installation and flexibility of configuration through plug-and-play technology. The adapter is fully compatible with Ethernet, Fast Ethernet, and Gigabit Ethernet networks. The 10/100/1000 Mb/s auto negotiation port eliminates any need for manual switching. Also it is supported by all major operating systems including Vista and Linux OS.
- To facilitate network connectivity, the adapter includes a user-friendly setup CD wizard. Its user interface simplifies driver installation for immediate use of the device.
UPC: 649659021129 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology Gigabit Ethernet PCI Network Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology EN-9235TX-32 V2 Specs | Hardware Interface | PCI Interface
1 x 10/100/1000 Mb/s LAN port | | LED Indicators | 1 x Link
1 x Activity | | Bus Architecture | 66/33 MHz PCI V 2.3/2.2/2.1 (32-bit) | | Chipset | Realtek RTL8169SC single chip | | System Requirements | CPU: Pentium III 1 G above or similar
Memory size: 256 MB RAM
1 x CD-ROM drive
Hard Disk: 100 MB (minimum)
1 x Available PCI slot
OS: Novell 5.x/6.x, Windows 98/ME/NT4.0/2000/XP/Vista/7/8, Linux 2.4.x | | Power Consumption | 1.8 W (maximum) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Operating Humidity | 10 to 90% RH (non-condensing) | | Storage Humidity | 50 to 95% RH (non-condensing) | | Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x | | Certifications | CE, FCC | | Dimensions | 4.5 x 2.0 x 0.6" (114.0 x 52.0 x 16.0 mm) | | Weight | 3.5 oz (98.0 g) |
