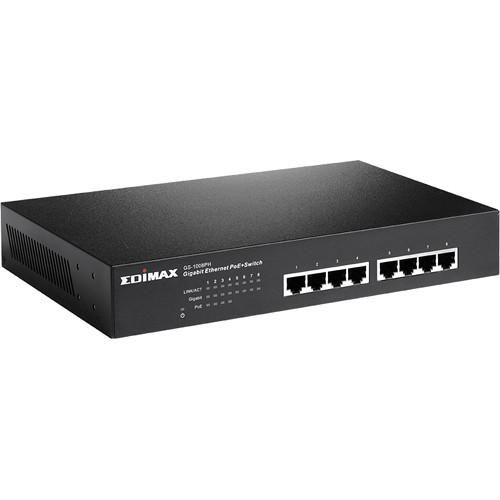

User Manual for EDIMAX Technology GS-1008PH 8-Port Gigabit Ethernet Switch with 4 PoE Ports Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology GS-1008PH 8-Port Gigabit Ethernet
- Product category: Network Switches, Bridges & Hubs EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Network Switches, Bridges & Hubs
|
User manual for the EDIMAX Technology GS-1008PH 8-Port Gigabit Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|
Product description The GS-1008PH 8-Port Gigabit Ethernet Switch with 4 PoE+ Ports from EDIMAX Technology is designed for use in small or medium sized network environments. It is compact in size, making it suitable for users with limited space. This switch also gives users the option of installing it in a 19" cabinet with rack-mount kits or underneath a desk. It can connect with a variety of PoE products, including access points, IP cameras and IP phones. It is an optimal solution when power outlets are difficult to install or the power outlets are too far from the device. It also supports auto fault detection for over/under current and voltage protection. - Complies with IEEE 802.3at Power over Ethernet (PoE)
- The switch features four IEEE 802.3at Power over Ethernet (PoE) ports, which supply up to 30W of power per port. It can convert standard 100-240VAC power into low-voltage DC, which runs over existing LAN cables to supply power to IEEE 802.3at compliant network accessories. It also features PoE detection, to verify whether the connected device is IEEE 802.3at compliant and if it is not a PoE device, only data will be sent through the LAN cable.
- No Special Networking Cable Required
- The standard Cat 5 Ethernet cable is used to link the switch and the powered devices. This Ethernet cable can transmit both data and power. No separate power cable is required for the powered devices, thus reducing installation time and costs.
- Fan-Less Design
- Since the fan-less design ensures quiet operation in small office spaces, this switch is suitable solution for SOHO environments.
UPC: 649659020528 Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology GS-1008PH 8-Port Gigabit Ethernet Switch with 4 PoE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology GS-1008PH Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2) | | | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Power Draw | 5.0 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 75 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | | | Indicator Lights | Link/Activity, PoE, Power | | Dimensions | 10.4 x 7.2 x 1.7" / 26.6 x 18.4 x 4.4 cm | | Weight | 3 lb / 1 kg | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 12.7 x 10.9 x 2.9" |
