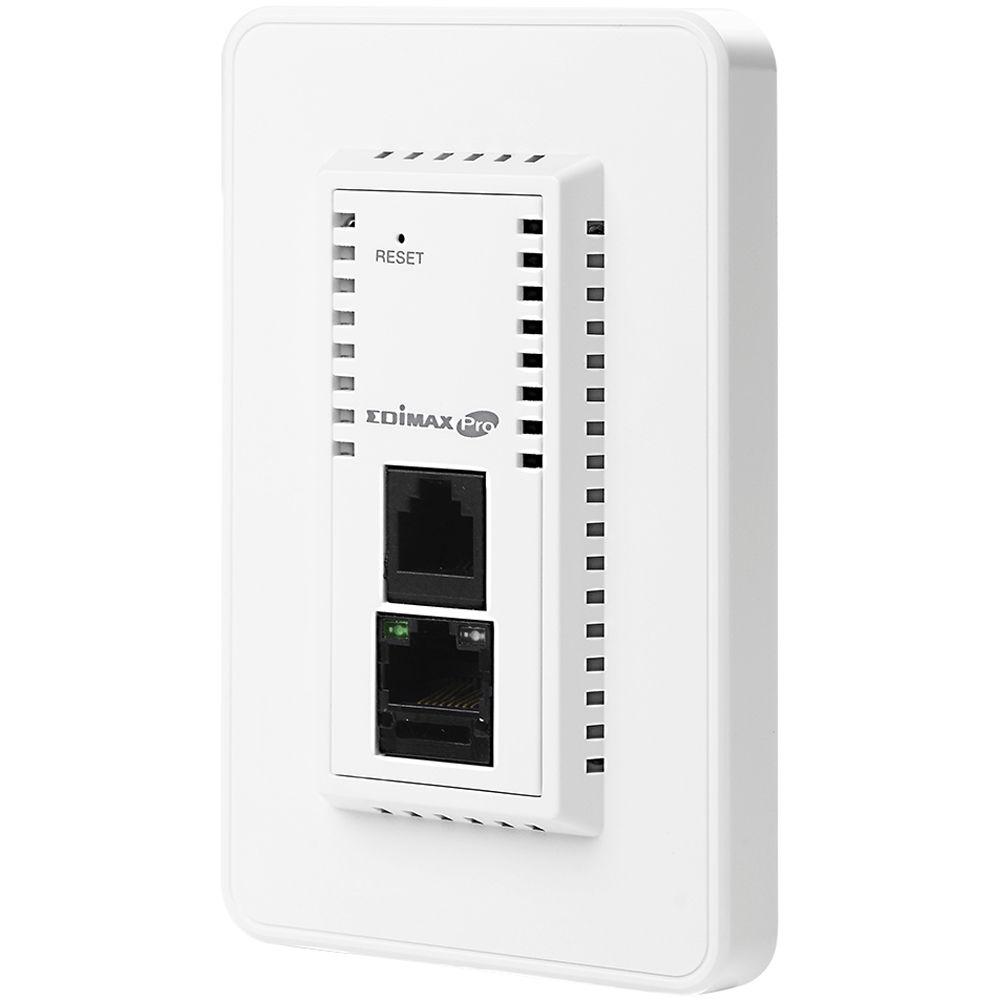

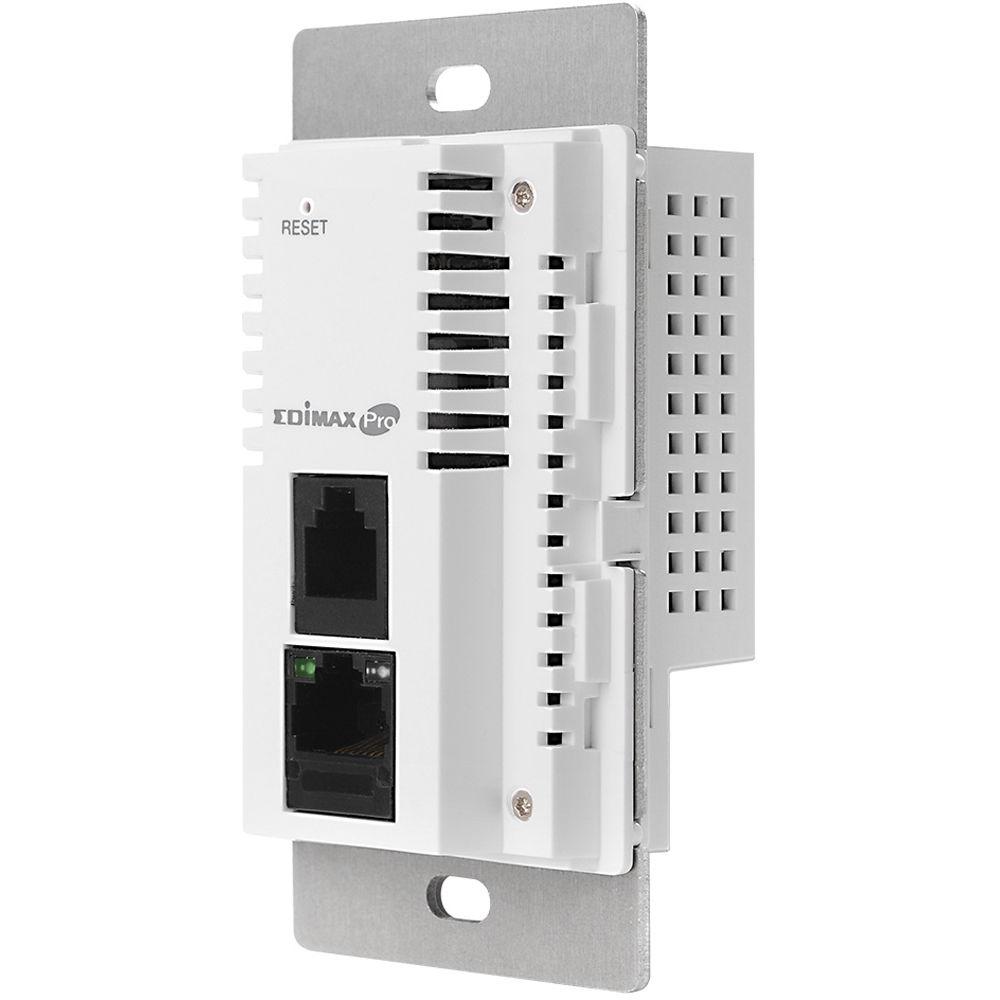

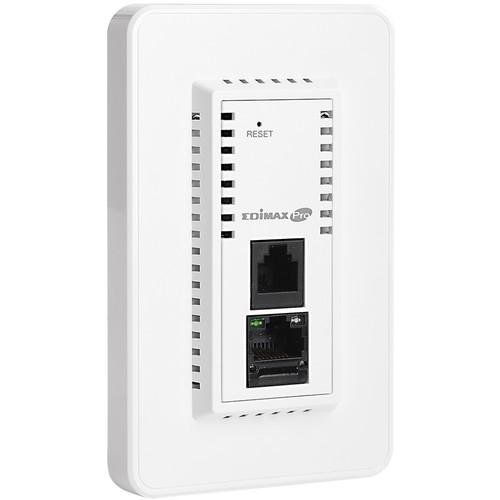

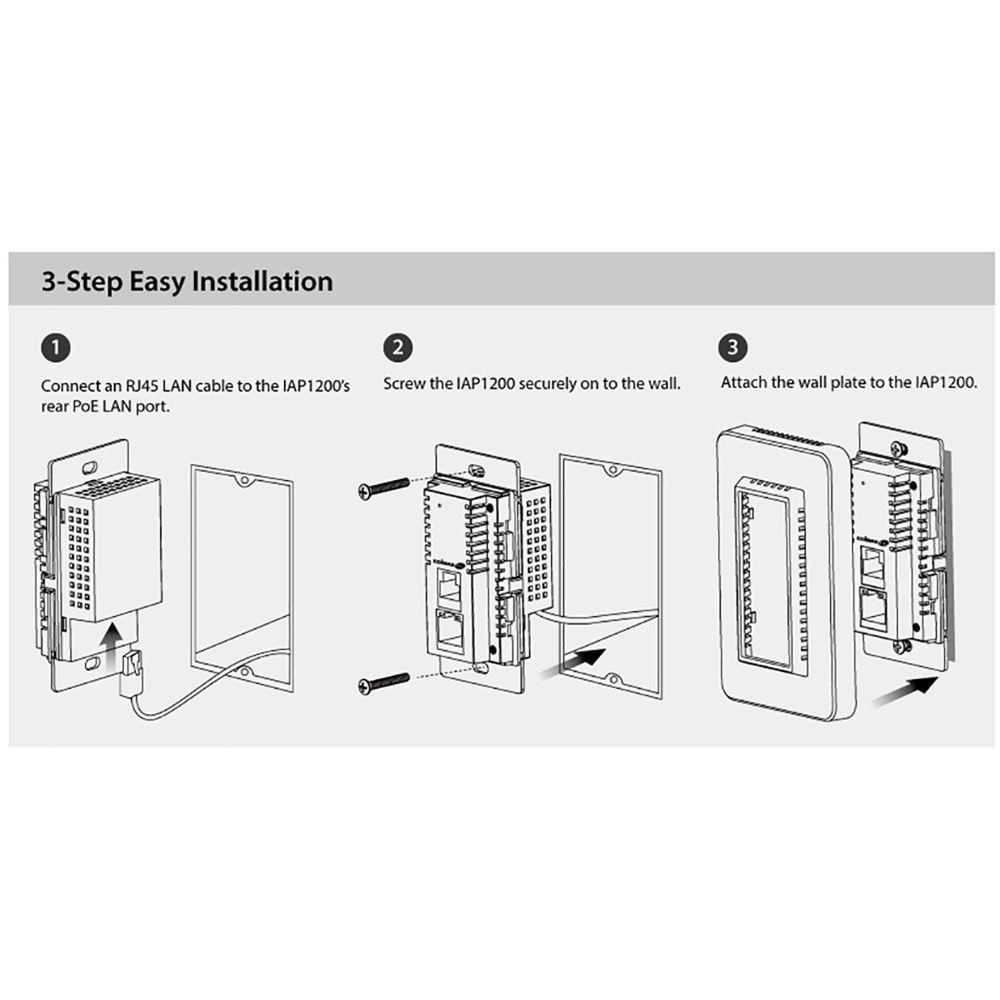

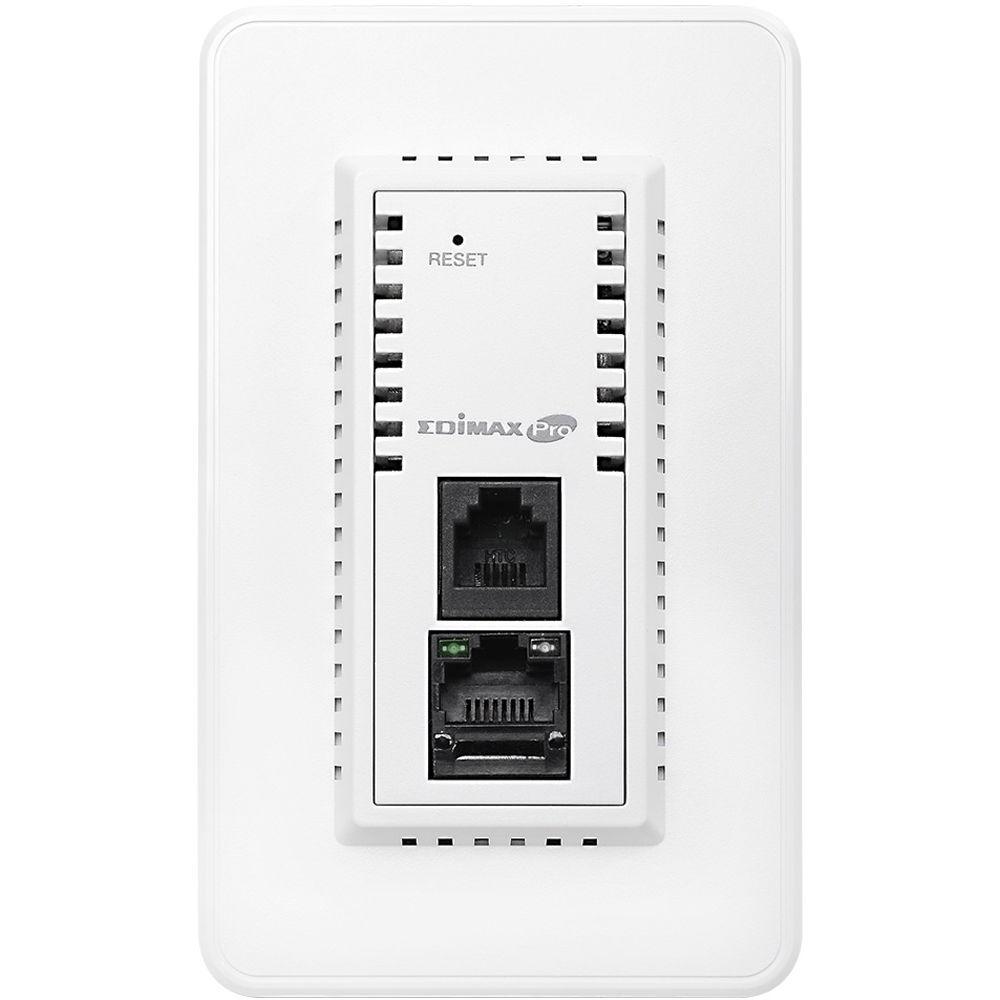

Product description Discretely expand the reach of your network with the IAP1200 Wireless-AC1200 Dual-Band In-Wall PoE Access Point from Edimax. This in-wall access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies offering wireless data transfer rates of up to 1200 Mbps. The compact design and 802.3af PoE support makes for easy installation and with dual Gigabit Ethernet ports clients can also connect to the network via a wired connection. Alongside the Gigabit Ethernet port is an RJ-11 jack making it easy to connect a standard telephone to the network as well.
Once installed, the IAP1200 offers a wide variety of network functionality for enhanced connectivity and security. In addition to 802.11ac dual-band support, this wireless AP supports up to 32 different SSIDs and is designed to support a BYOE (Bring Your Own Everything) environment in which users bring a wide variety of devices with them to connect to the network. To secure the network, Edimax uses rogue AP detection to identify unauthorized SSIDs and L2 wireless isolation for enhanced wireless security. - High-Speed 1200 Mbps Dual-Band 802.11ac
- Built-in 802.11ac wireless technology delivers the Giga-fast Wi-Fi speeds that many of today's business environments demand. And simultaneous 2.4 GHz and 5 GHz dual-band coverage means maximum flexibility for mobile-centric business productivity applications. Speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band can handle even the most bandwidth-intensive tasks, perfect for audio, video and voice applications and significantly faster than traditional 802.11n Wi-Fi. Additionally, Edimax Pro series products offer other high-performance design features such as solid capacitors for significantly longer lifespans than traditional non-solid alternatives, generating less heat and delivering increased stability.
- Wide Coverage & Multiple SSIDs
- With adjustable RF output power and high receiver sensitivity, Edimax Pro access points are equipped to provide wide coverage where it's needed the most. Suitable for large spaces across office floors, shop floors, hospital wards, or conference rooms, get the wireless coverage that staff and systems need to operate efficiently. Keep every corner of your business connected and differentiate user groups, departments or guests with up to 32 separate SSIDs with independent security. Wide, accessible Wi-Fi coverage with strong security to protect sensitive company information and supervise access to internal networks.
- BYOE Solutions & High Density Networking
- Bring Your Own Everything (BYOE) is becoming an increasingly commonplace company trend in offices and enterprise environments worldwide. Employees are using their own smartphones, tablets, laptops and wearable Wi-Fi devices with the latest cloud-connected productivity apps to get things done. Traditional 2.4 GHz is crowded, so most of these devices support high-speed 5 GHz Wi-Fi. And in offices, hotels, schools or other densely populated environments, access points need to cope with a high volume of users connecting to the network at any time, whether it's customers or employees. Edimax Pro solutions support 802.11ac 2.4 GHz and 5 GHz dual-band Wi-Fi along with high-density capacity to support up to a hundred users simultaneously, ideal for BYOE workplaces and a large number of wireless devices.
- Seamless Mobility
- Typical wireless access points can effectively cover an 82- to 98-foot radius under normal usage. With the technological advances in Edimax Pro access points, you can extend effective coverage approximately 1.5x farther, eliminating Wi-Fi dead zones completely and providing blanket coverage across enterprise environments. Wireless devices can stay seamlessly connected in environments where connectivity may be a critical component of efficiency and productivity, and benefit from mobility with high-speed connectivity across a range of wireless devices: smartphones, tablets and computers, throughout an entire organization.
- Rough AP Detection & Wireless Isolation
- Rogue access point detection can identify any unauthorized SSIDs which may have been installed in an otherwise secure network with malicious intent, and L2 wireless isolation provides wireless security.
- Easy and Intuitive Central Network Management Suite (NMS)

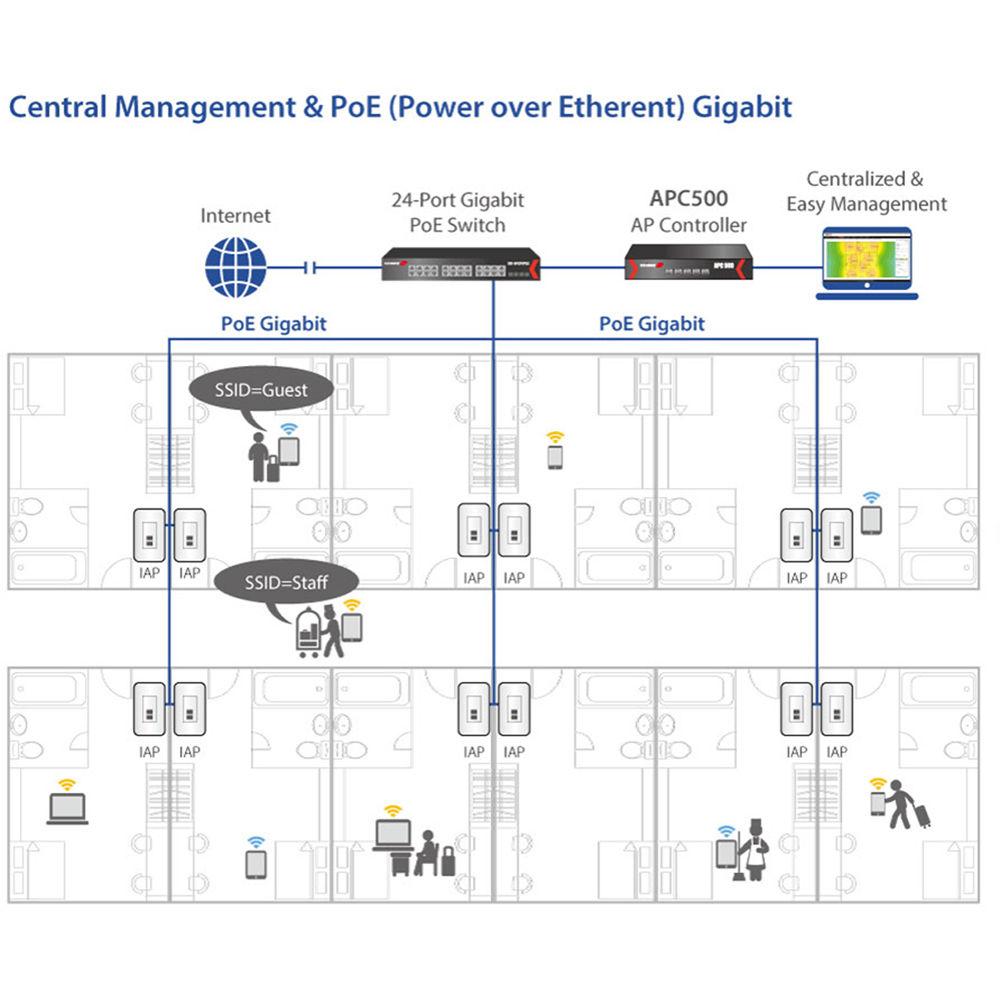

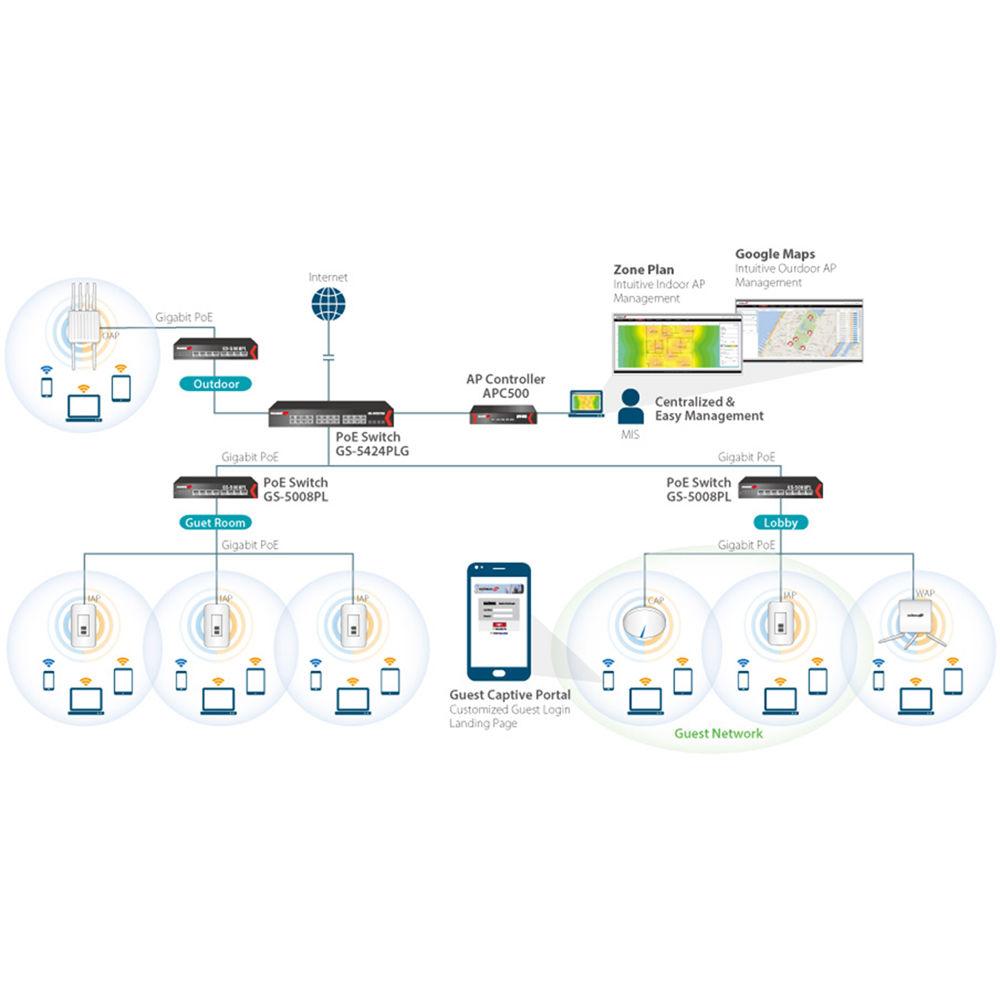

- Edimax Pro NMS (Network Management Suite) is a web-based wireless network management system that lets company MIS departments plan and manage Edimax Pro access points according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.
UPC: 649659025318 In the Box EDIMAX Technology IAP1200 Wireless-AC1200 Dual-Band In-Wall PoE Access Point Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology IAP1200 Wireless-AC1200 Dual-Band In-Wall PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

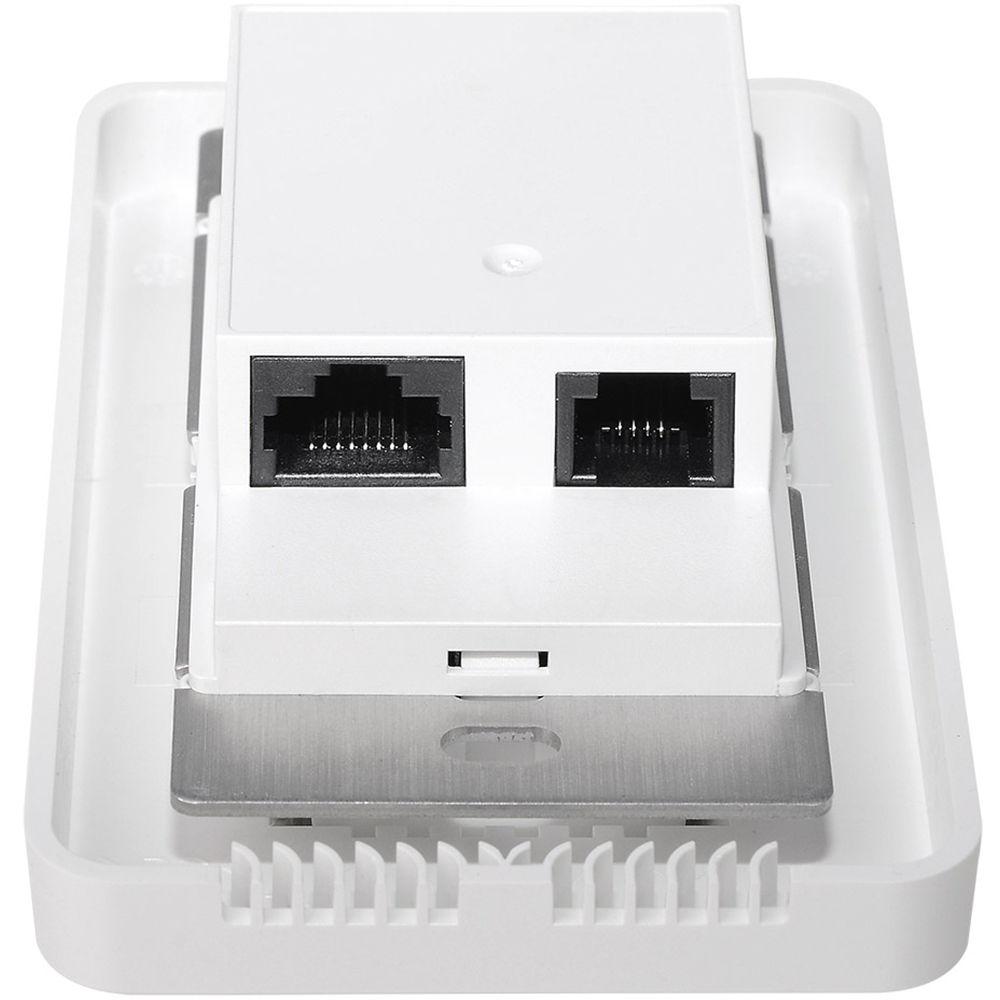

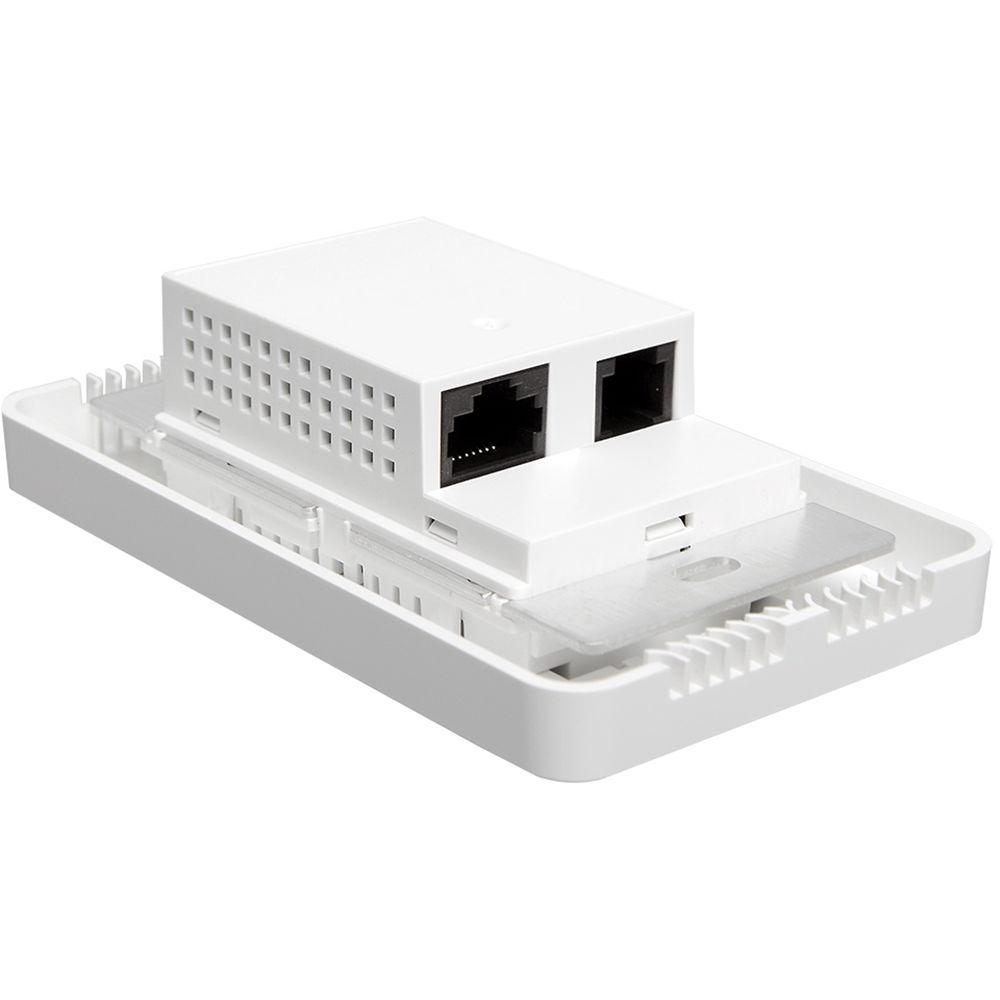

Technical parametersEDIMAX Technology IAP1200 Specs | | | LAN Interface | 2 x Gigabit Ethernet ports
2 x RJ-11 ports | | PoE | 802.3af (supports 802.3at) | | Antenna | Type: 2 x built-in PIFA
Gain: 2.14 dBi (2.4 GHz), 3.8 dBi (5 GHz) max | | Power | 802.3af (support 802.3at) | | Power Consumption | 8 W (full loading) | | Mounting | In-wall | | WPS / Reset Button | Yes | | LED Indicator | Power, Diag | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
90% or less
Storage Humidity
90% or less | | Power Saving | 802.3az | | Internal Buzzer | Yes | | Housing | Flammability rating plastic | | | | Standard | 802.11a/b/g/n/ac concurrent dual-band | | No. of Radios | 2 | | Receiver Sensitivity | ≤ -91 dBm | | Certifications | CE / FCC | | Fast Roaming | Yes | | Number of SSIDs Supported | 16 (2.4 GHz) + 16 (5 GHz) | | | | Data Rates | 300 + 867 Mbps (maximum) | | Concurrent Clients | Up to 50 per radio | | | | Frequency Band | •Radio Ⅰ: 802.11b/g/n 2.412~2.484 (GHz)
•Radio Ⅱ: 802.11a/n/ac 5.18~5.24 (GHz), 5.745~5.825 (GHz)
(The supported frequency band is restricted by local regulations) | | Operation Channels | 2.4 GHz
- US/Canada 1-11; 2.412~2.462 GHz
- Europe 1-13; 2.412~2.472 GHz
- Japan 1-14; 2.412~2.484 GHz
5 GHz
- Country dependent for the following ranges:
- US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240 (GHz)
- Band 4:149, 153, 157, 161, 165; 5.745~5.825 (GHz)
- Europe: Band 1:36, 40, 44, 48; 5.180~5.240 (GHz) | | Transmit Power | •802.11b
10 dBm @ 1 Mbps
10 dBm @ 2 Mbps
10 dBm @ 5.5 Mbps
10 dBm @ 11 Mbps
•802.11g
10 dBm @ 6 Mbps
10 dBm @ 9 Mbps
10 dBm @ 12 Mbps
10 dBm @ 18 Mbps
10 dBm @ 24 Mbps
10 dBm @ 36 Mbps
10 dBm @ 48 Mbps
10 dBm @ 54 Mbps
•802.11gn (2.4 G)
10 dBm @ MCS0/8
10 dBm @ MCS1/9
10 dBm @ MCS2/10
10 dBm @ MCS3/11
10 dBm @ MCS4/12
10 dBm @ MCS5/13
10 dBm @ MCS6/14
10 dBm @ MCS7/15
•802.11a
10 dBm @ 6 Mbps
10 dBm @ 9 Mbps
10 dBm @ 12 Mbps
10 dBm @ 18 Mbps
10 dBm @ 24 Mbps
10 dBm @ 36 Mbps
10 dBm @ 48 Mbps
10 dBm @ 54 Mbps
•802.11an (5 G)
10 dBm @ MCS0/8
10 dBm @ MCS1/9
10 dBm @ MCS2/10
10 dBm @ MCS3/11
10 dBm @ MCS4/12
10 dBm @ MCS5/13
10 dBm @ MCS6/14
10 dBm @ MCS7/15
•802.11ac
10 dBm @ MCS0
10 dBm @ MCS1
10 dBm @ MCS2
10 dBm @ MCS3
10 dBm @ MCS4
10 dBm @ MCS5
10 dBm @ MCS6
10 dBm @ MCS7
10 dBm @ MCS8
10 dBm @ MCS9 | | Receiver Sensitivity | •802.11b
≤-91 dBm @ 1 Mbps
≤-87 dBm @ 11 Mbps
•802.11g
≤-90 dBm @ 6 Mbps
≤-71 dBm @ 54 Mbps
•802.11gn (2.4 G)
≤-87 dBm @ MCS0
≤-68 dBm @ MCS7
≤-85 dBm @ MCS8
≤-65 dBm @ MCS15
•802.11a
≤-90 dBm @ 6 Mbp
≤-71 dBm @ 54 Mbps
•802.11an(5 G)
≤-86 dBm @ MCS0
≤-69 dBm @ MCS7
≤-84 dBm @ MCS8
≤-65 dBm @ MCS15
•802.11ac
≤ -82 dBm @ MCS0
≤ -63 dBm @ MCS9
≤ -83 dBm @ MCS10
≤ -55 dBm @ MCS19 | | | | Security | Encryption: WEP / WPA / WPA2
Wireless L2 Isolation
Station Isolation
IEEE 802.1x Authenticator
EAP Authentication: PEAP
Hidden SSID
MAC Address Filter
Wireless STA
Rogue AP Detection (w/ Edimax Pro Network Management Suite (NMS) | | Software | Wireless Mode: AP / WDS AP / WDS Bridge
802.1q VLAN: VID = 1-4095
Spanning Tree: RSTP
QoS: WMM (802.11e) / Max Associated Station No.
Pass-Through: IPv6 and VPN (PPTP, L2TP/IPsec)
DSCP (802.1p)
Multicast Rate up to 54 Mbps | | Management | Deployment
Standalone - AP mode
Managed AP Mode: Be managed by Edimax Pro AP Controller (APC500) or Edimax Pro Master AP
Configuration
HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
RADIUS Server
Built-in
Auto-Channel
Private MIB | | Accessory Mounting | In-wall-mount bracket kit (US or EU type) | | Dimensions | Faceplate Set: 2.8 x 4.5 x 0.7" / 70.0 x 115.0 x 17.9 mm (US-Type)
Faceplate Set: 3.4 x 3.4 x 0.7" / 86.0 x 86.0 x 17.0 mm (EU-Type)
Stand/Mounting Bracket: 1.9 x 2.9 x 1.5" / 48.8 x 74.0 x 38.4 mm | | Weight | 4.4 oz / 125 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.4 x 4.8 x 2.0" |
