Product description

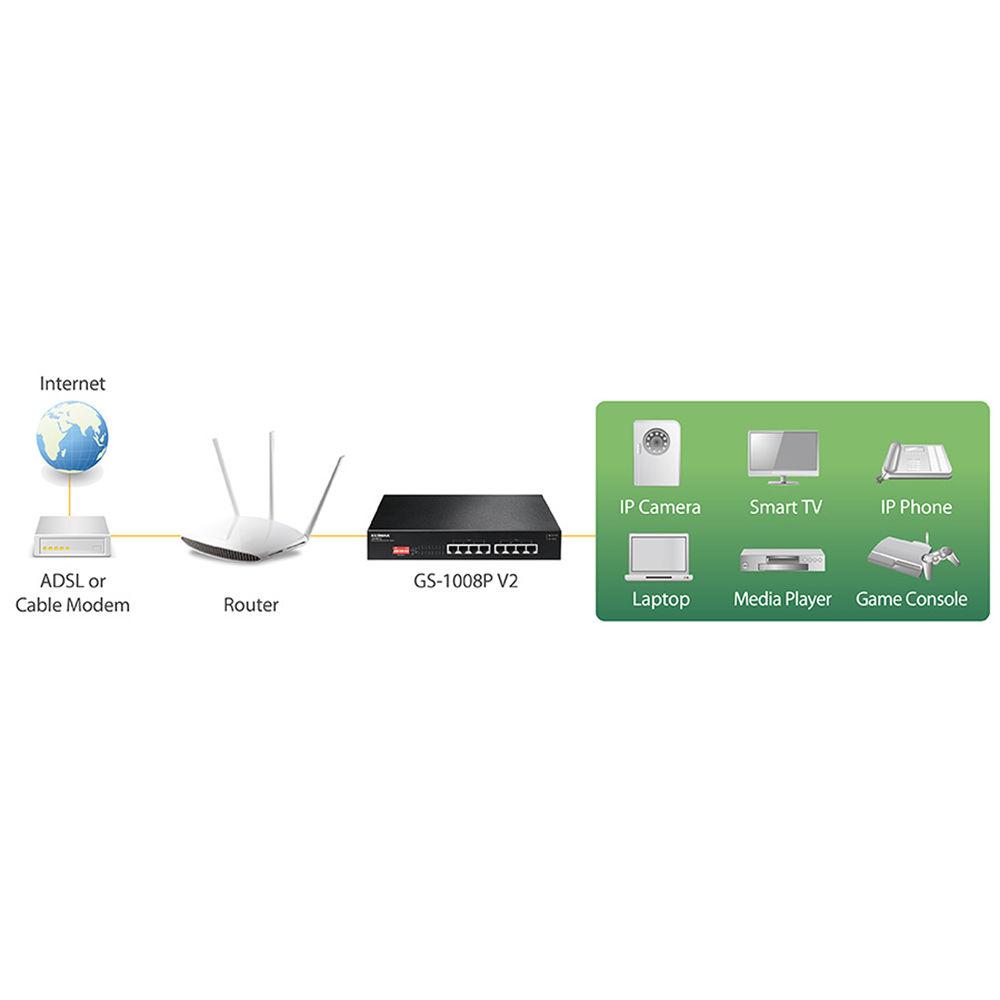

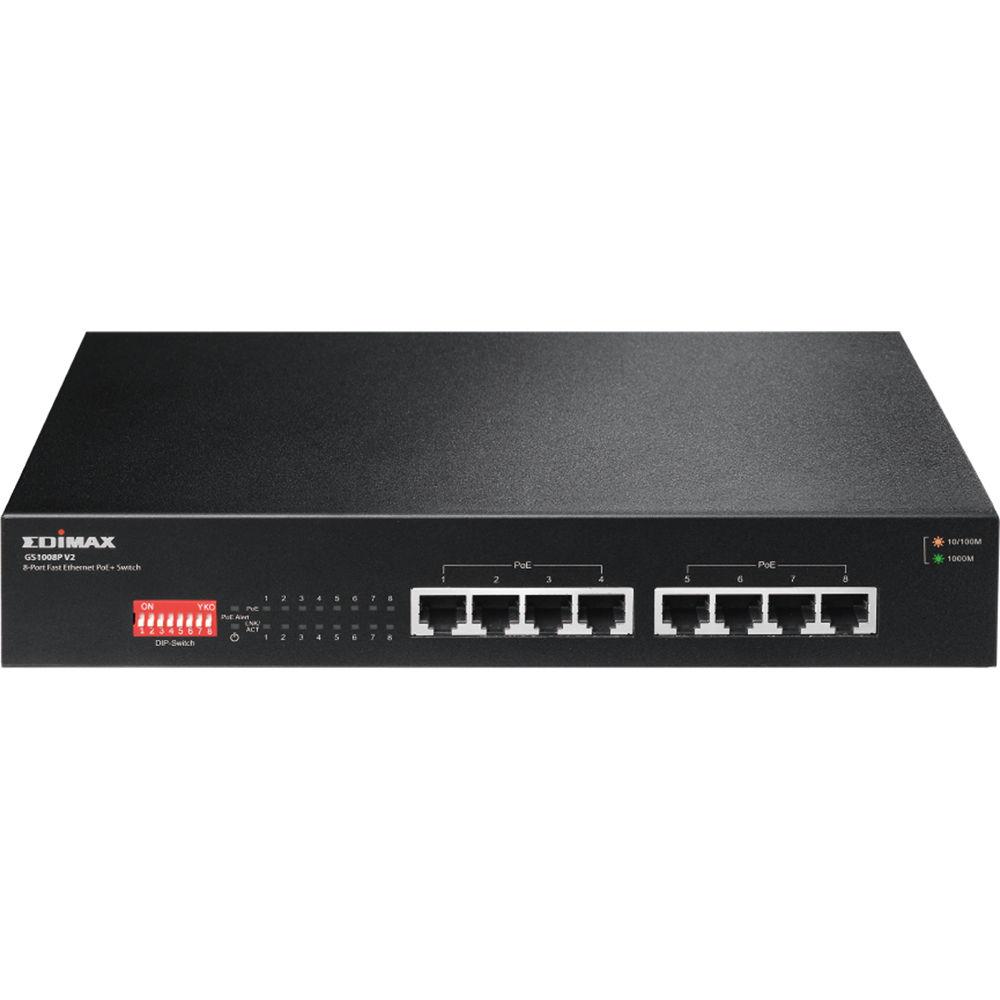

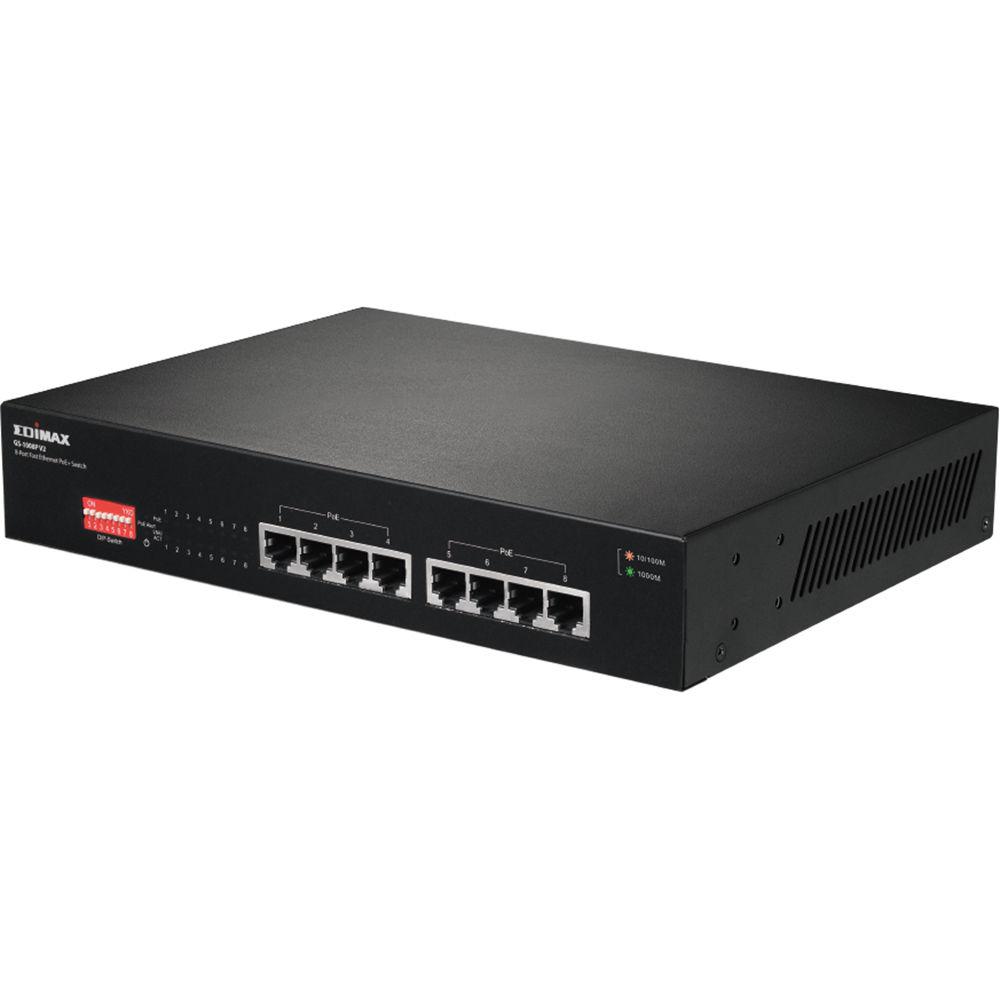

The Long Range 8-Port Gigabit PoE+ Switch from EDIMAX Technology is designed for homes and small- to medium-sized network environments. With eight DIP switches, the PoE port can be manually set for On-Off control to extend the PoE delivery distance up to 656' at 10 Mb/s, and also support port-based On-Off for VLAN and QoS functions. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras, and IP phones, as well as other Ethernet-enabled devices such as computers, printers, and network attached storage (NAS). Four IEEE 802.3at PoE+ ports supply up to 30W of electricity per port. The GS-1008P V2 can convert standard 100-240 VAC power into low-voltage 50-57 VDC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables.
  • Eight 10/100/1000 Mb/s Gigabit PoE+ ports
  • IEEE 802.3af/at PoE-compliant for simplified deployment and installation

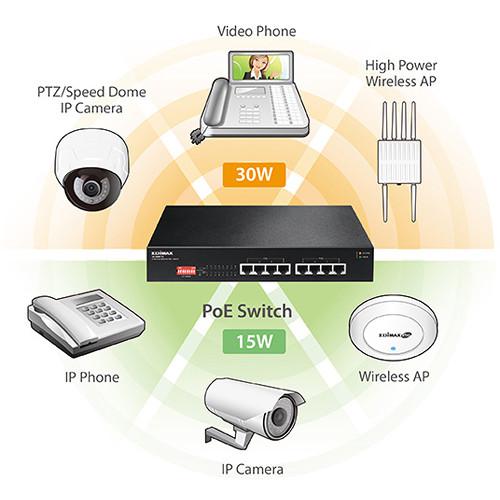

  • Up to 30W per PoE port (total power budget: 130W) for powering PoE-enabled devices
  • Auto-detection of powered devices (PD) and power consumption levels

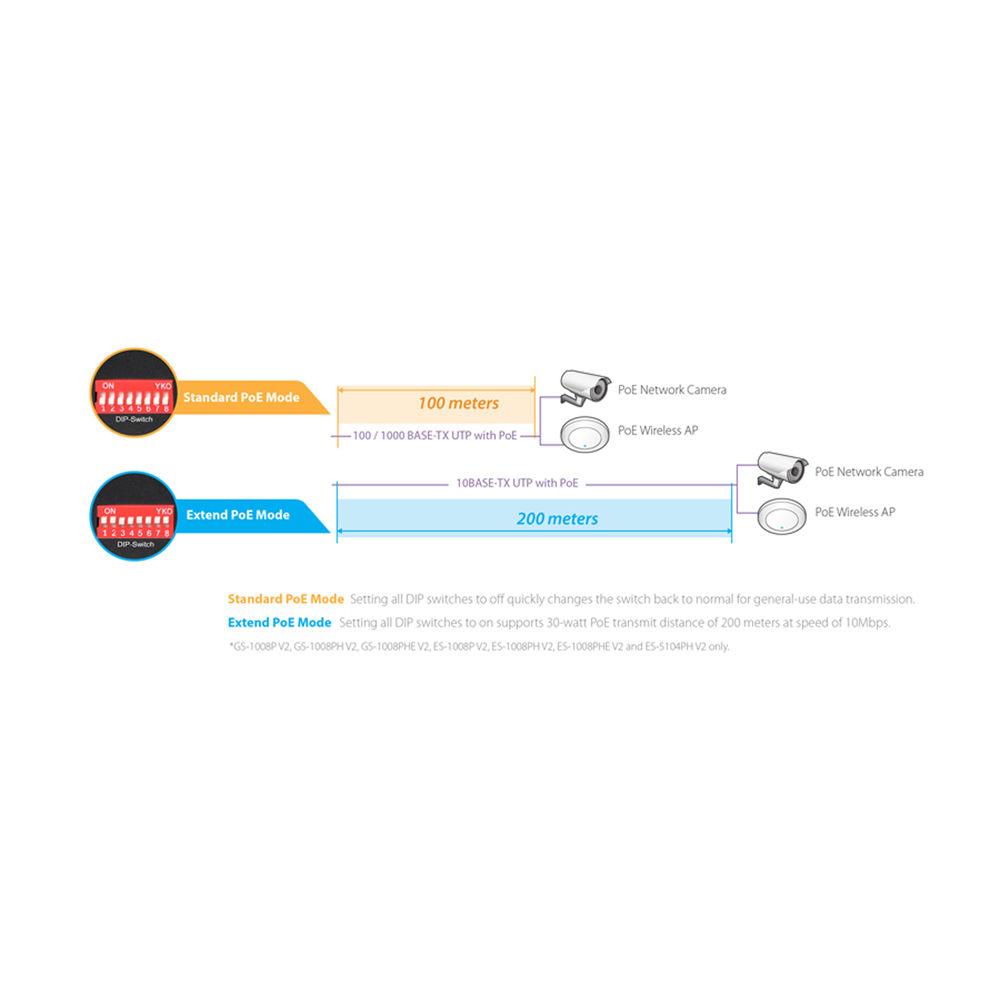

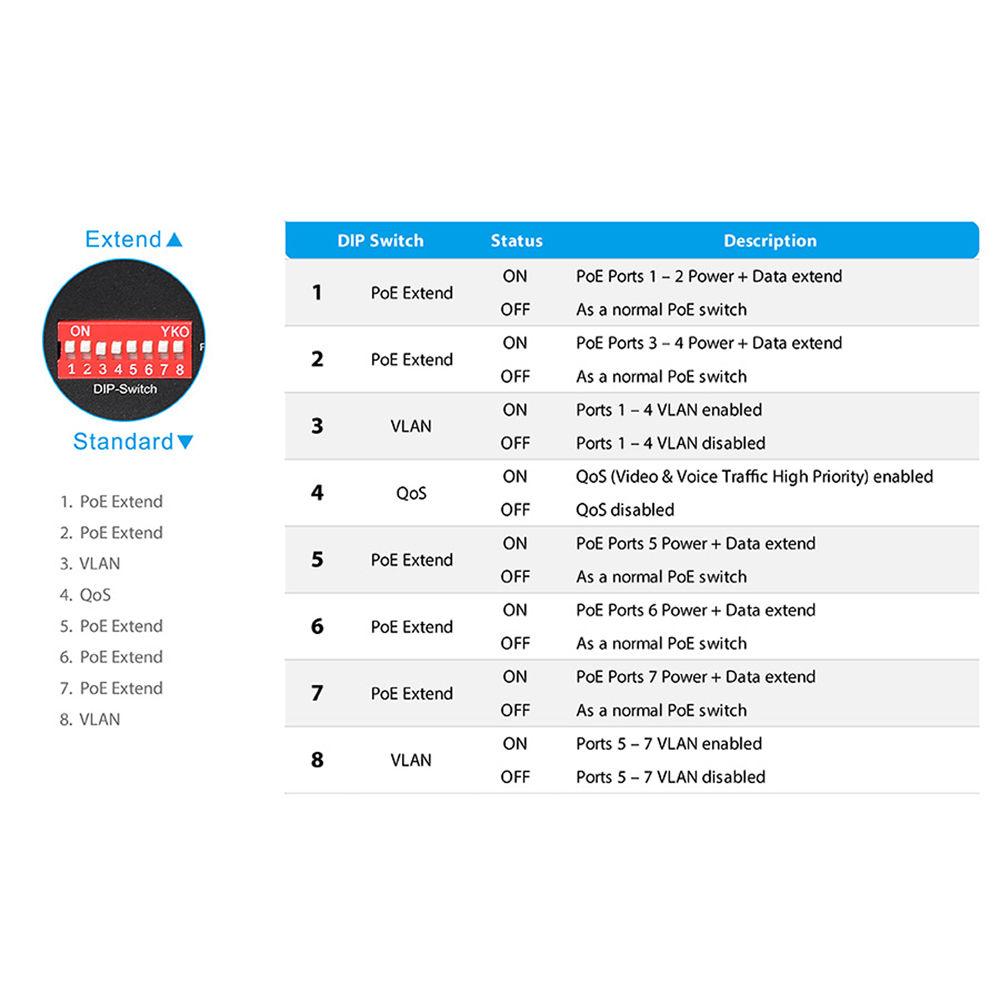

  • Hardware DIP switch for "Standard" and "Extend" mode selection

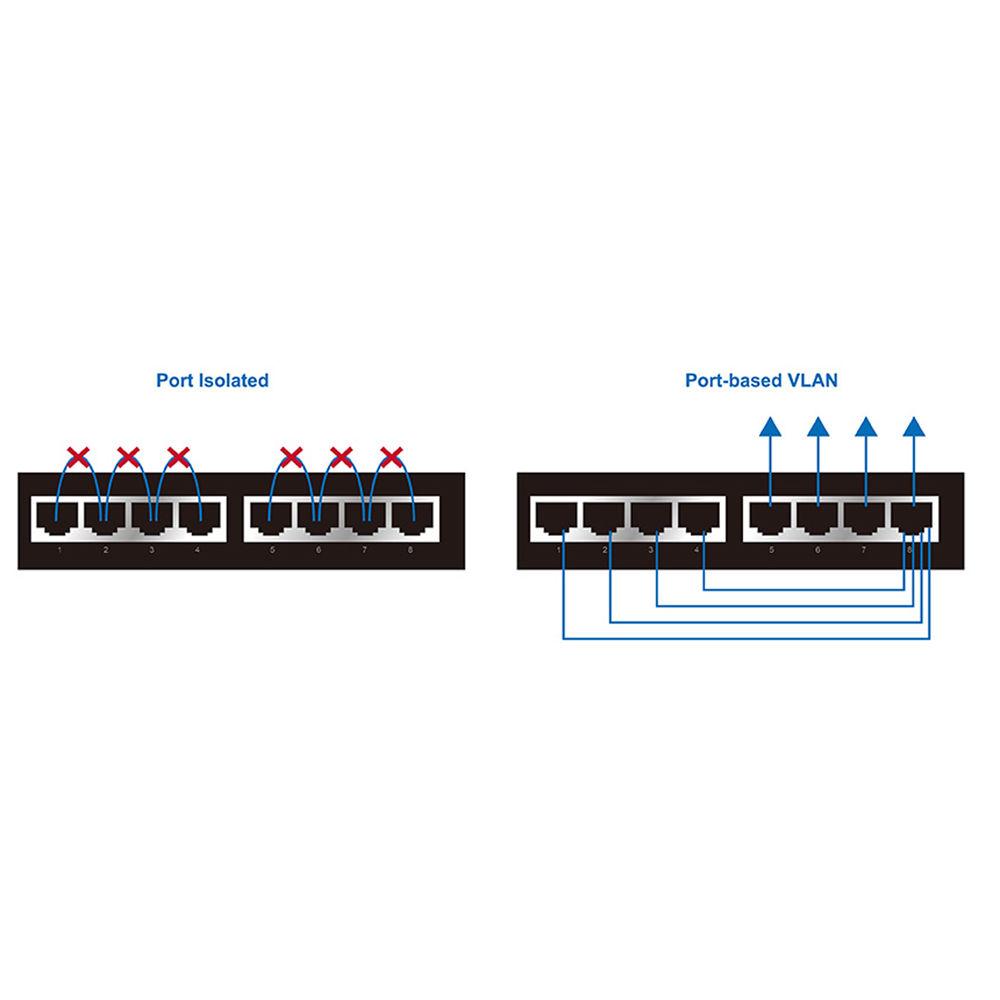

  • Port-based VLAN and Loop Protection features

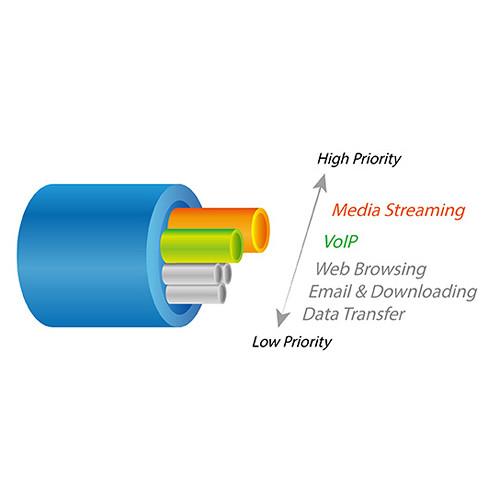

  • Supports 802.1p Quality of Service (QoS)
  • CCTV-mode DIP switch function is ideal for surveillance networking environment
  • Plug-and-play design
  • Flexible network deployment and energy efficient
  • Fan-less quiet and compact Design
UPC: 649659020917 In the Box EDIMAX Technology Long Range 8-Port Gigabit PoE+ Switch with DIP Switch
  • Power Cord
  • Rackmount Kit
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the EDIMAX Technology Long Range 8-Port Gigabit PoE Switch with DIP Switch in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    EDIMAX Technology GS-1008P V2 Specs

    Ports 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
    Transmission Method Store-and-Forward
    Jumbo Frames Support 9000 Bytes
    MAC Address Table Size 8K
    Supported IEEE Standards 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x
    Forwarding Rate 1.49 Mpps
    Packet Buffer 128 Kb
    Power Draw 5.0 W

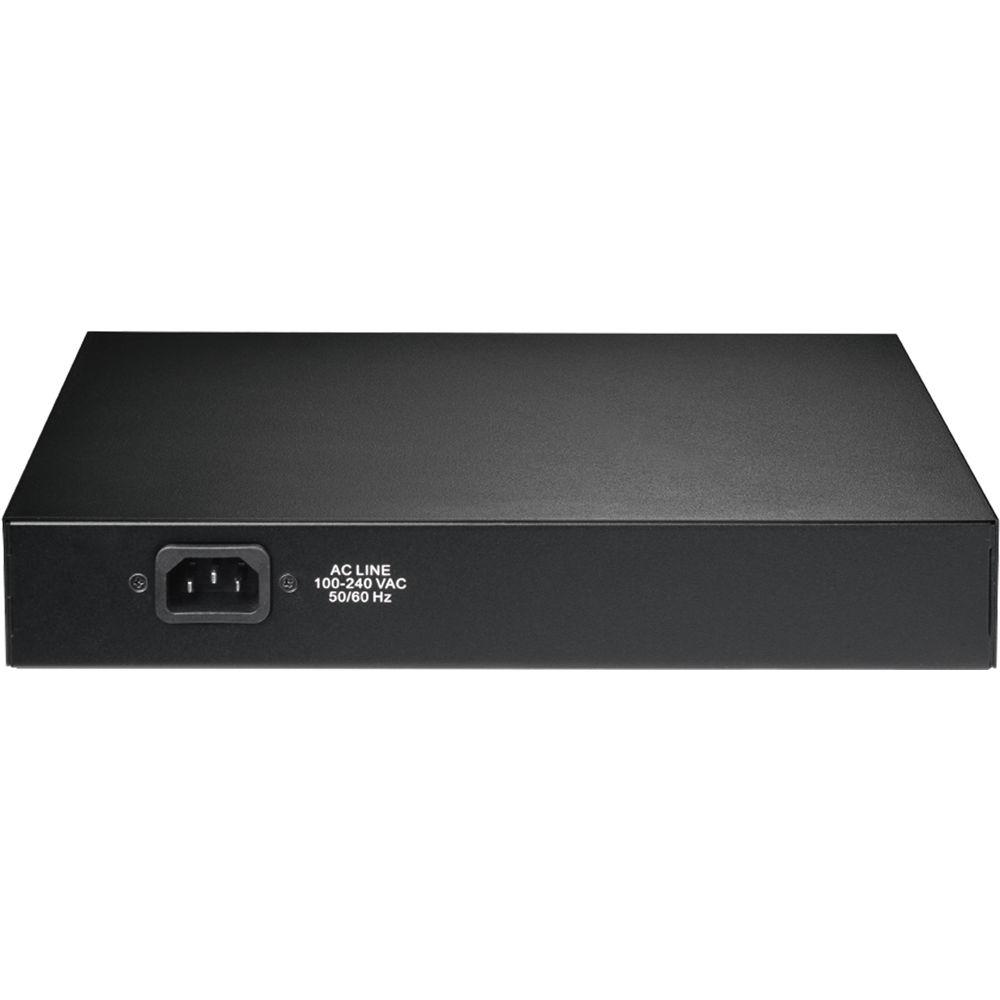

    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    PoE Power Budget 130 W
    PoE per Port 30 W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 10 to 90%
    Storage Temperature -40 to 158°F / -40 to 70°C
    Storage Humidity 5 to 90%
    Certifications CE, FCC, as per Manufacturer
    Indicator Lights Link/Activity, PoE, Power
    Dimensions 10.43 x 7.24 x 1.73" / 26.5 x 18.4 x 4.4 cm
    Weight 3.5 lb / 1.6 kg
