User Manual for EDIMAX Technology N150 Wi-Fi & Bluetooth 4.0 USB Adapter Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology N150 Wi-Fi & Bluetooth
- Product category: Bluetooth Adapters EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Bluetooth Adapters
 |
User manual for the EDIMAX Technology N150 Wi-Fi & Bluetooth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

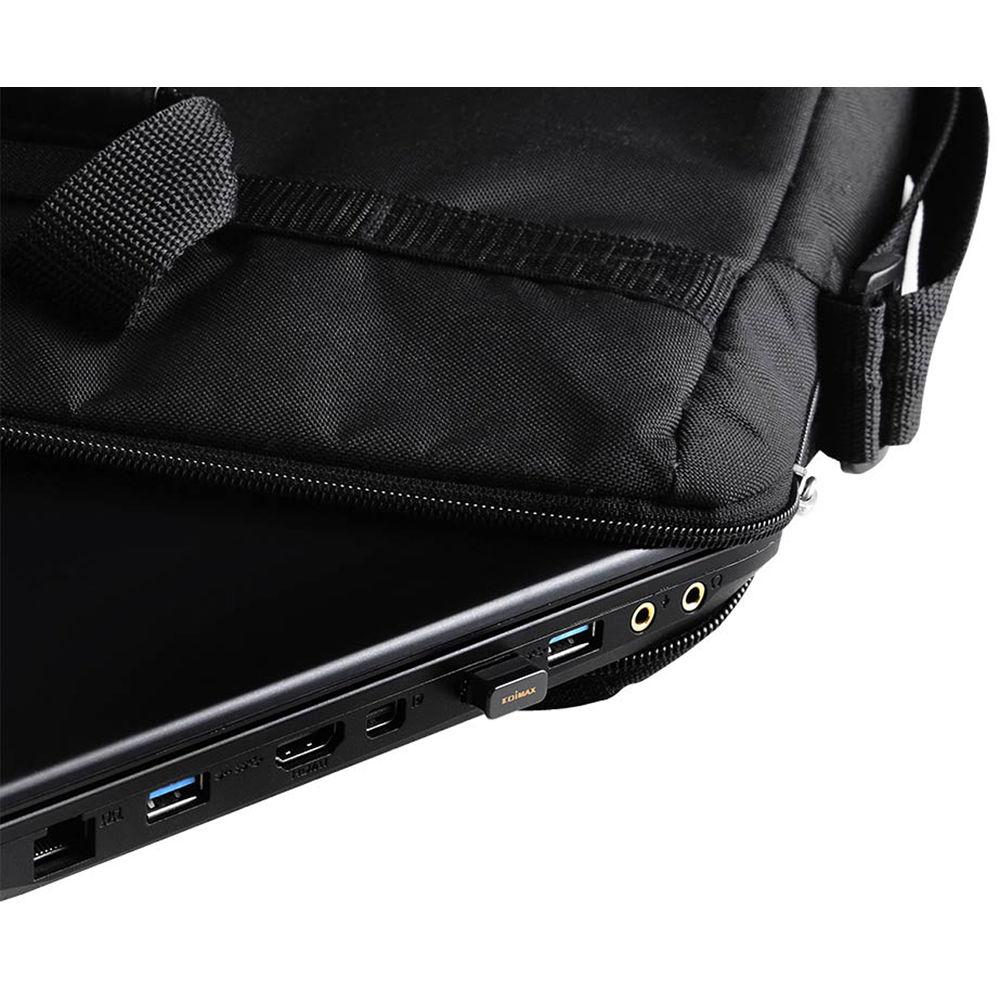

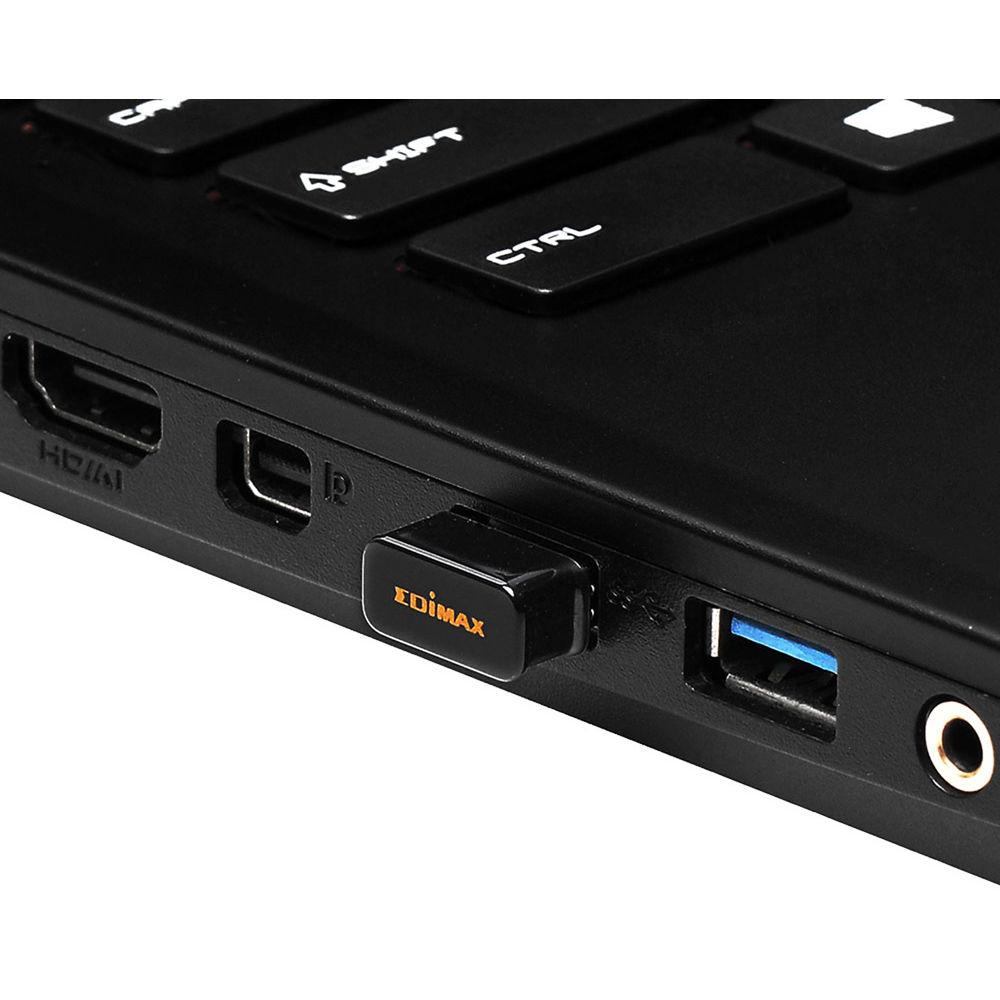

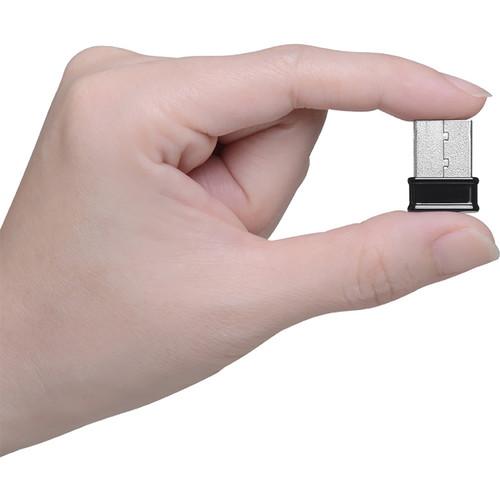

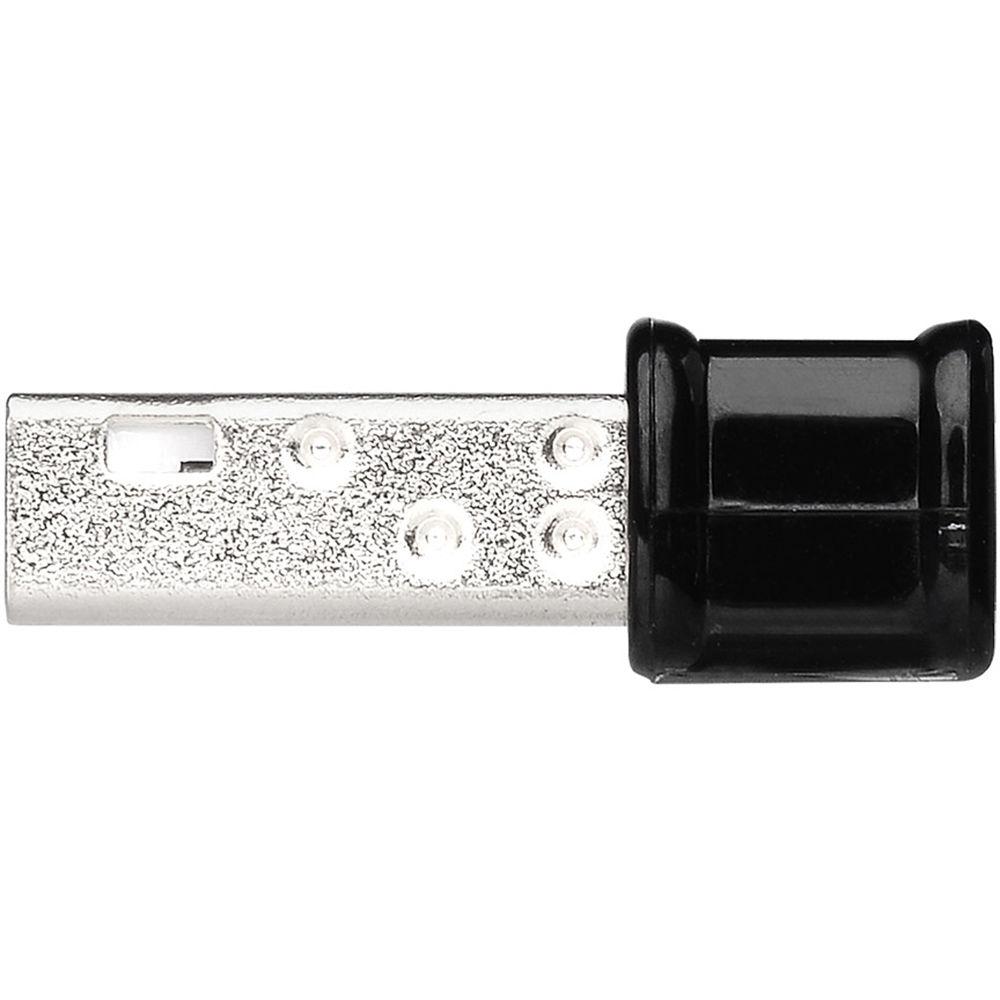

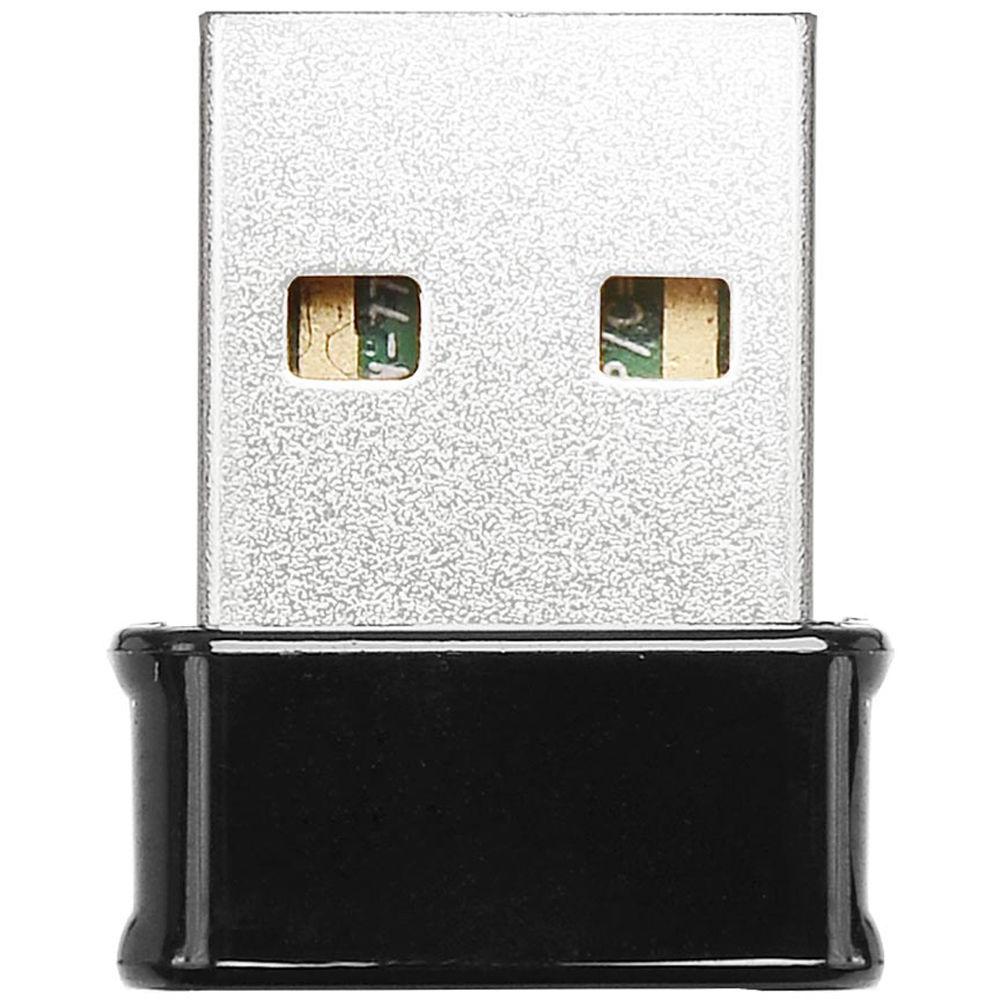

Product description The N150 Wi-Fi & Bluetooth 4.0 USB Adapter from Edimax grants your desktop PC or portable notebook Wi-Fi and Bluetooth connectivity. Simply plug this compact adapter into any standard USB Type-A port on your system, and you'll be able to connect to 802.11n networks at up to 150 Mbps, as well as pair compatible wireless peripherals via Bluetooth 4.0 technology. Its small form factor makes it easy to carry around and prevents it from accidentally snapping if you leave it plugged in. This adapter is also backwards compatible with Bluetooth 3.0 and 2.0 so you can connect mobile phones, tablets, mice, keyboards, and more. Follow the easy setup wizard and friendly user interface to configure this adapter in minutes.
Please note that Bluetooth functionality will not work with Mac PCs. - 11n Wi-Fi Speed up to 150 Mbps
- Complies with IEEE802.11b/g/n wireless standards for data transfer rates of up to 150 Mbps when connected to an 802.11n device.
- Bluetooth 4.0 & Bluetooth 3.0+HS (High Speed)
- Bluetooth 4.0 provides data transmission up to 24 Mbps and is fully backwards compatible with Bluetooth 3.0+HS and Bluetooth 2.1+EDR for wireless communication with almost all Bluetooth-enabled mobile phones, tablets, mice, keyboards, printers and more.
- Energy Saving with Green WLAN & Bluetooth Low Energy (BLE)
- These energy saving features will help you reduce energy consumption by adjusting transmission output by distance and CPU offload when your wireless connection is idle.
- Supports WPS (Wi-Fi Protected Setup)
- This adapter supports Wi-Fi Protected Setup (WPS) so you can easily and securely connect to a wireless network.
UPC: 649659025240 In the Box EDIMAX Technology N150 Wi-Fi & Bluetooth 4.0 USB Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology N150 Wi-Fi & Bluetooth 4.0 USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology N150 Specs | Interface | USB Type-A Port (USB 2.0/1.0 supported) | | Network Standards | IEEE 802.11b/g/n
Bluetooth 4.0 BLE / 4.0 Dual Mode
Bluetooth 3.0 + HS
Bluetooth 2.1 & 3.0 | | Frequency Band | Wi-Fi: 2.4 to 2.4835 GHz (Industrial Scientific Medical Band)
Bluetooth: 2.4 to 2.4835 GHz unlicensed ISM band | | Data Rate | 11b: 1/2/5.5/11 Mbps
11g: 6/9/12/24/36/48/54 Mbps
11n (20 MHz): MCS0-7 (up to 72 Mbps)
11n (40 MHz): MCS0-7 (up to 150 Mbps)
Bluetooth: Up to 24 Mbps | | Sensitivity | 11n (20 MHz) @ MCS7: -64 dBm ± 2 dBm
11n (40 MHz) @ MCS7: -64 dBm ± 2 dBm
11g @ 54 Mbps: -65 dBm ± 2 dBm
11b @ 11 Mbps: -79 dBm ± 2 dBm | | Antenna | Built-In | | LED Indicators | Link/Activity | | | | Operating Temperature | 32~104°F (0~40°C) | | Storage Temperature | -4~140°F (-20~60°C) | | Operating Humidity | 10~90% (Non Condensing) | | Storage Humidity | Max. 95% (Non Condensing) | | | | Certifications | CE, FCC, Wi-Fi, BQB | | Security | WEP 64/128-bit, WPA, WPA2, 802.1x
Software WPS configuration | | System Requirements | Windows XP / Vista / 7 / 8 / 8.1 / 10
Linux & Mac OS | | Dimensions (H x W x D) | 0.28 x 0.59 x 0.73" (7.1 x 14.9 x 18.5 mm) | | Weight | 0.11 oz (3 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.8 x 3.4 x 0.7" |
