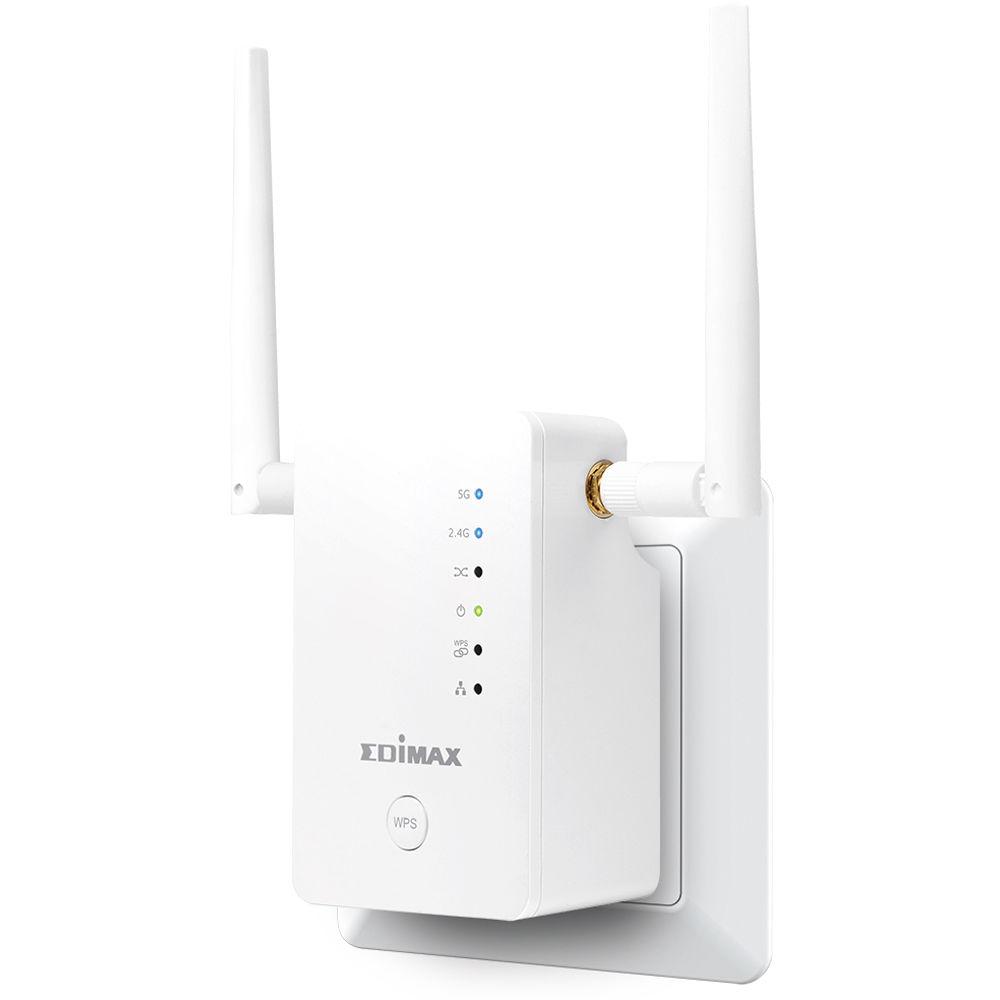

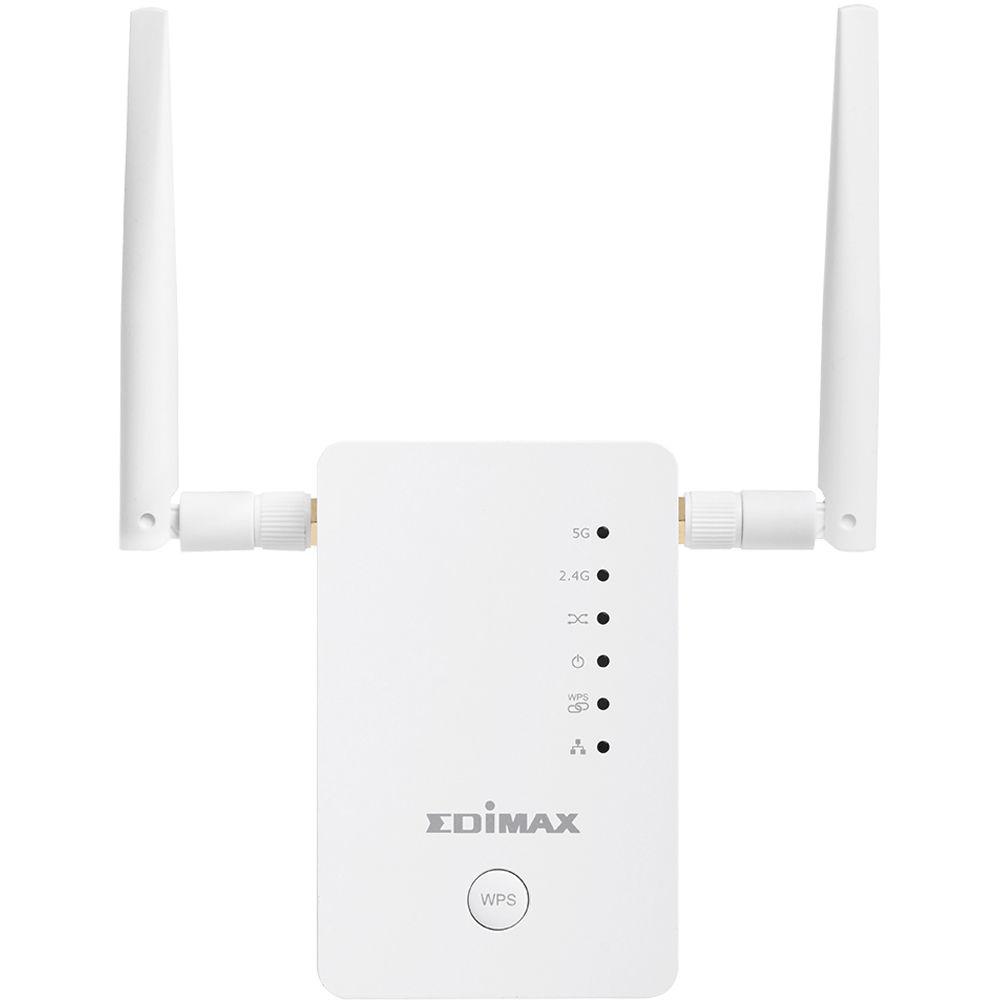

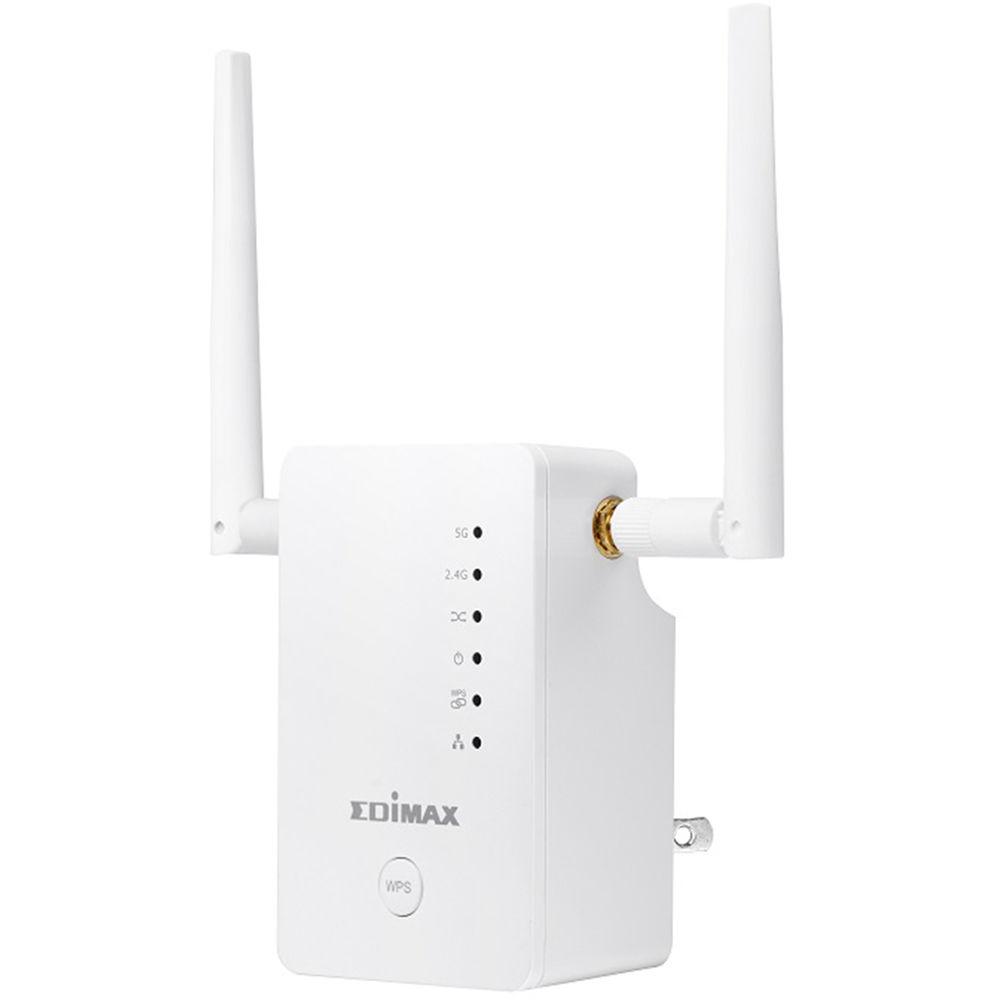

User Manual for EDIMAX Technology RE11S AC1200 Dual-Band Wireless Range Extender Click to enlarge the picture
Contents of the user manual for the EDIMAX Technology RE11S AC1200 Dual-Band Wireless
- Product category: Wireless Range Extenders EDIMAX Technology
- Brand: EDIMAX Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EDIMAX Technology Wireless Range Extenders
 |
User manual for the EDIMAX Technology RE11S AC1200 Dual-Band Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EDIMAX Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EDIMAX Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EDIMAX Technology product will considerably shorten its lifespan!
|

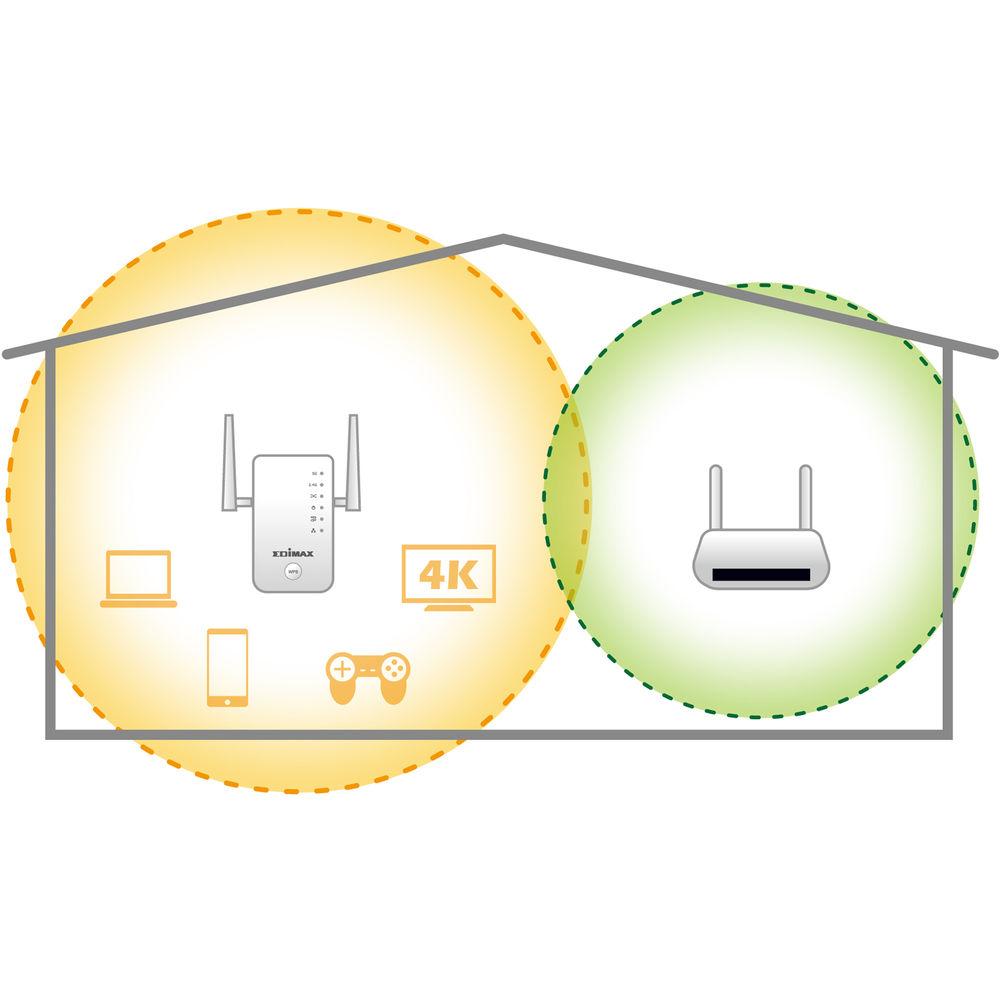

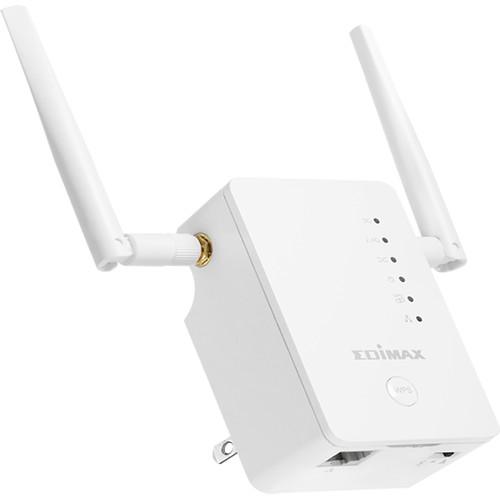

Product description Quickly and easily expand the reach of your existing Wi-Fi network with the RE11S AC1200 Dual-Band Wireless Range Extender from Edimax. Setup is easy, as this plug-and-play Wi-Fi extender comes equipped with Smart IQ Setup, which guides you though the process of detecting your current Wi-Fi signal and connecting the extender to your network, all from your smartphone, tablet, or web browser.
Once configured, the RE11S supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1200 Mbps. The RE11S is also designed to provide seamless roaming between SSIDs so you can roam about without the need to sign in to a different Wi-Fi network. When not in use, the range extender can be switched off to reduce power consumption by up to 75% via the built-in power switch. - Plug-and-Play in AP-Mode
- The Gemini RE11S in AP-Mode is designed to be easy to configure with plug-and-play auto-grouping management. Moreover, additional Gemini RE11S can be easily added to get even better whole-home Wi-Fi coverage.
- Smarter Wi-Fi with a Single Network
- Fast, reliable roaming for a seamless connection while you move around your home with hassle-free switching between SSIDs (network name). The RE11S uses the same SSID and switches automatically and intelligently.
- Stronger Signal for Connected Homes
- The RE11S extenders keep detecting the Wi-Fi signal quality for your Wi-Fi devices, and ensure they're always connected to the best Wi-Fi signal.

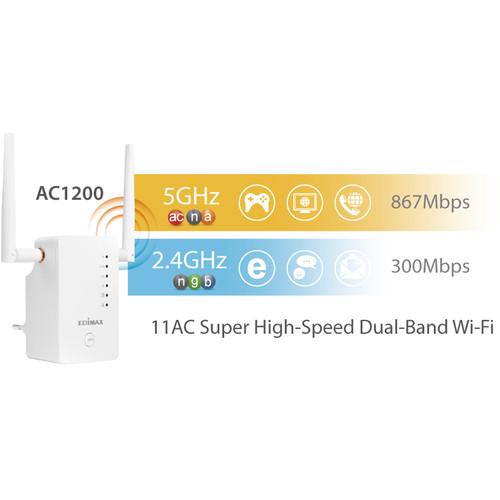

- Faster 11ac Speeds
- Upgrade your single-band 2.4 GHz Wi-Fi to 802.11ac dual-band Wi-Fi with 5 GHz, ideal for video streaming. Get 11ac technology with high-speed capacity up to 1200 Mbps (N300 + AC867 Mbps), and extends both 2.4 GHz and 5 GHz wireless connections at the same time.
- Upgrade for Your Home 11n Router to 11ac
- Just plug in the Edimax RE11S to upgrade your single-band 2.4 GHz Wi-Fi to dual-band with better coverage, without replacing your router and with no configuration required.
- Smart IQ Setup
- The RE11S features user-friendly browser-based iQ Setup for smart, automatic and quick installation. iQ Setup automatically detects the available Wi-Fi networks nearby and helps you establish a connection in a few seconds.

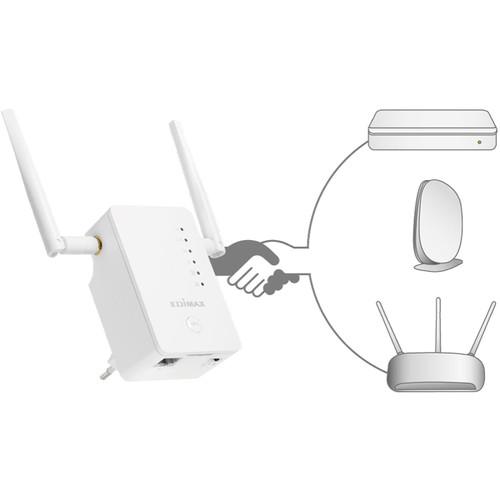

- Works with Any Wi-Fi Router
- Universal compatibility and easy web-based iQ Setup provide for quick and easy installation.
- Detachable Antenna
- The RE11S is designed with a detachable antenna, to provide flexibility and high performance connections for your wireless network.

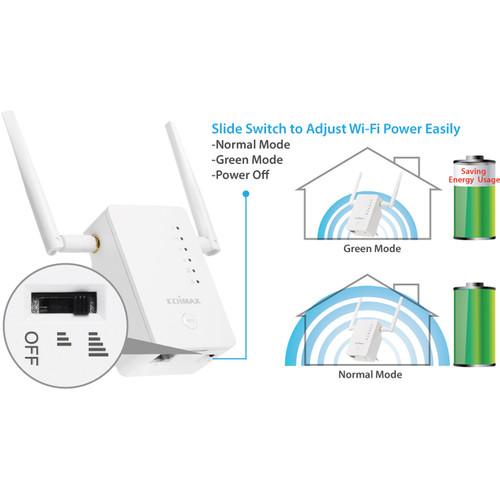

- Green Wi-Fi Power Switch
- Featuring a new hardware switch to adjust between normal and green Wi-Fi transmit power (the strength of the Wi-Fi signal), or switch off the power with one click. If you only need Wi-Fi in a smaller house, you can switch to green mode to reduce power by 75% and conserve energy.

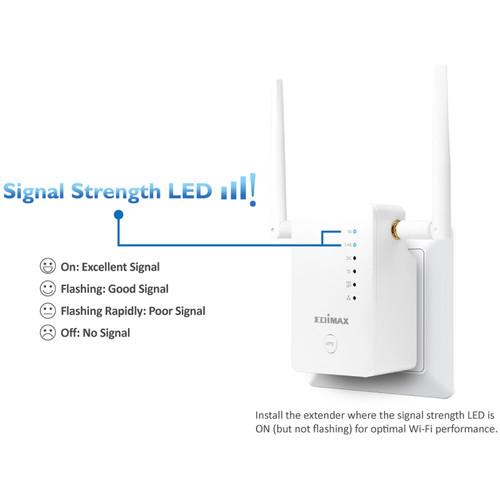

- Signal-Strength Indicator
- The RE11S is designed with a signal-strength LED which lets you see the Wi-Fi signal strength received from the router and guides you to find the best setup location.
UPC: 649659025325 In the Box EDIMAX Technology RE11S AC1200 Dual-Band Wireless Range Extender 2 x Wi-Fi Range Extender Ethernet Cable Access Key Card Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EDIMAX Technology RE11S AC1200 Dual-Band Wireless Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEDIMAX Technology Gemini RE11S Specs | Frequency Band | 2.4 GHz & 5 GHz | | Wireless Standards & Signal Rates | IEEE 802.11ac (up to 867 Mbps)
IEEE 802.11n (up to 300 Mbps)
IEEE 802.11a (up to 54 Mbps)
IEEE 802.11g (up to 54 Mbps)

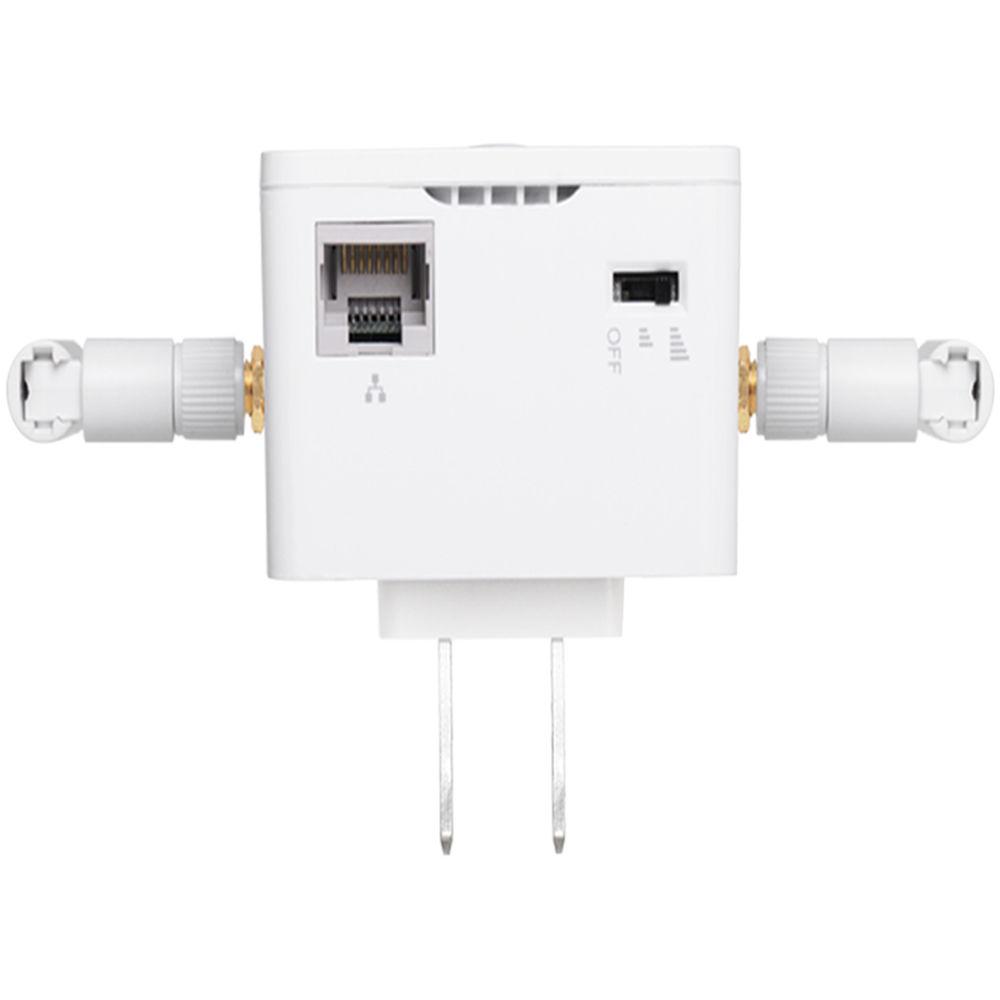

IEEE 802.11b (up to 11 Mbps) | | Hardware Interface | 1 x 10/100/1000 Mbps Ethernet LAN port
1 x Slide switch
1 x WPS button
2 x External detachable antennas
LEDs: 5 GHz, 2.4 GHz, Signal indicator, Wireless, Power, WPS, LAN 1 x AC plug (EU, UK, US, or AU) | | Management | 16-language user interface
Upgradable firmware | | Security | 64/128-bit WEP, WPA-PSK and WPA2-PSK encryption
802.1x authentication, User access control (in access point mode)
WPS (Wi-Fi Protected Setup) | | System Requirements | Existing wireless home network (2.4 GHz/5 GHz) for Wi-Fi extender/Wi-Fi bridge mode, or cable/DSL modem router for access point mode
Computer with IEEE802.11ac/a/b/g/n Wi-Fi capability and web browser for software configuration (Internet Explorer, Google Chrome, Firefox, Opera or Safari latest version) | | Installation | Multi-language iQ Setup (browser interface)
Hardware WPS button | | Antenna | 2 x External detachable antennas | | Power Adapter | Built in AC100-240 V, 0.16 A 50-60 Hz power module | | Temperature & Humidity | Temperature
32 to 104°F / 0 to 40°C
Humidity
10 to 90% non-condensing | | Certifications | FCC, CE | | Dimensions | 2.32 x 3.58 x 1.57" / 59 x 91 x 40 mm | | Weight | 4.59 oz / 130 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.8 x 5.6 x 3.8" |
